Transforming a property with outdoor landscape lighting requires a strategic combination of low-voltage electrical design, precision optics, and dynamic color technology. By combining targeted fixture placement—such as canopy moonlighting, wall washing, and hardscape accentuation—with modern RGB Landscape Lighting and intelligent digital controls, property managers and engineering installers can create secure, energy-efficient, and visually stunning exterior environments.
Section | Summary |
Understanding Landscape Lighting Fundamentals | Explores the basic engineering principles of exterior illumination, covering voltage selection, optical distribution, ingress protection, and thermal dynamics in outdoor environments. |
15 Outdoor Landscape Lighting Ideas | Details fifteen distinct optical and structural techniques for dynamic property transformation using advanced monochromatic and color changing landscape lighting systems. |
Professional Installation vs. DIY: Making the Right Choice | Evaluates the technical parameters differentiating basic low-voltage installations from professional engineering deployments involving complex wiring and DMX signal protocols. |
Essential Components of a Quality Lighting System | Breaks down the key hardware components required for long-term system stability, including digital transformers, high-efficiency LEDs, and proper wire gauge sizing. |
Implementing effective outdoor landscape lighting systems requires a comprehensive understanding of electrical safety, photometrics, and material science. Low-voltage direct current (12V–24V DC) and low-voltage alternating current (12V AC) form the backbone of modern residential and commercial landscape installations. Lower voltages minimize electrical shock hazards in damp outdoor environments while facilitating easier wiring runs without the rigid conduit requirements of line-voltage (120V/240V) systems. Modern solid-state LED fixtures have completely altered the landscape design paradigm, consuming up to 85% less energy than legacy halogen lamps while providing extended operating lifespans exceeding 50,000 hours.
Optical distribution and beam control determine how light interacts with architectural surfaces, flora, and hardscape features. Engineers specify luminaires based on beam angles, ranging from narrow spot distributions (15 degrees) to wide flood allocations (60 degrees or higher). Furthermore, color temperature plays a critical role in human perception and architectural presentation. While fixed warm white light (2700K to 3000K) remains popular for organic elements like stone and timber, advanced RGB Landscape Lighting fixtures enable dynamic color tuning across the full spectral band, allowing property managers to adapt aesthetics for events, seasonal themes, or commercial branding requirements.
Environmental durability is another crucial consideration during system design. Ingress Protection (IP) ratings define fixture resistance to moisture and particulate intrusion. Fixtures engineered with IP66 or IP67 ratings feature silicone-sealed optics, anodized or powder-coated aluminum, or marine-grade stainless steel housings to prevent moisture ingress caused by rain, soil humidity, and irrigation systems. When specifying multi color landscape lights, engineers must balance thermal dissipation with sealed enclosure designs to ensure that internal IC drivers and LED emitters maintain optimal junction temperatures throughout continuous exterior operation.
System Design Insight: European commercial client requirements focus on sub-surface thermal management and universal DMX protocol integration. Product designs utilize thermally conductive potting materials and die-cast aluminum alloys to extract heat directly from high-output LED chips, preserving lumen maintenance across extreme temperature cycles.
Positioning wide-beam luminaire arrays high within mature tree canopies angled downward produces a natural, filtered light effect reminiscent of full moonlight shining through leaves.
Placing high-lumen, narrow-beam RGB Landscape Lighting spotlights at the root base of specimen trees projects light upward along trunk textures and canopy undersides to create striking vertical geometry.
Installing low-glare, downward-directed bollards or path lights along walkways guarantees safe foot traffic navigation while casting subtle, diffused light pools across adjacent terrain.
Mounting directional floodlights behind dense foliage, sculptures, or architectural screens reflects ambient light off background walls, rendering bold dark silhouettes in the foreground.

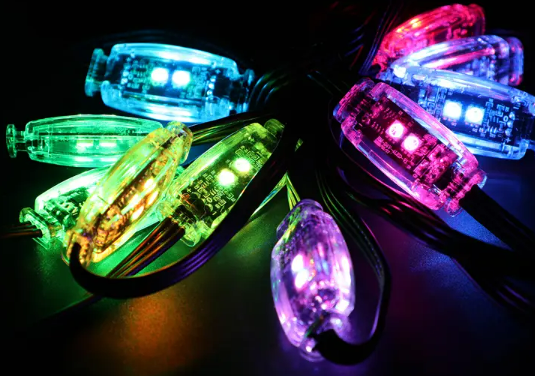

Integrating fully submersible IP68 LED nodes inside fountains, waterfalls, and ponds allows light rays to refract through moving water, creating dynamic caustic wave patterns on surrounding landscapes. For versatile outdoor water features and custom terrain accentuation, contractors often deploy flexible solutions like IP66 RGB/RGBW Pebble Light Custom Manufactured Systems due to their adaptable string pitch, corrosion resistance, and pixel-addressable control capabilities.
Placing wide-angle wall-wash luminaires close to vertical building surfaces creates even light distributions that highlight textures in brick, natural stone, stucco, or composite cladding.
Embedding compact step lights or flush linear light bars directly into stair risers, retaining walls, and coping stones ensures step visibility and emphasizes structural stonework lines.
Hiding low-profile micro-spotlights or soft flood units within flower beds casts warm, uniform light across low-growing shrubs, perennials, and ground cover vegetation.
Integrating subtle overhead linear strip fixtures, beam-mounted spotlights, or hanging ambient nodes under pergolas creates functional illuminated outdoor living areas for evening entertainment.
Positioning heavy-duty, drive-over rated in-ground well lights along driveway edges and property entrances provides precise boundary guidance and elevated curb appeal.
Mounting under-rail linear lighting or flush surface-mount puck fixtures along deck borders visually defines outdoor living zones without creating blinding overhead glare.
Directing focused, high-CRI narrow beam spotlights toward outdoor artwork, statues, or rare plant specimens draws the eye directly to designated property centerpieces.
Combining automated motion-activated floodlights with low-voltage ambient perimeter lighting eliminates blind spots, deters unauthorized access, and maintains property security without sacrificing visual appeal.
Installing permanent, architecture-matched track systems allows properties to toggle between subtle architectural highlighting and vibrant full-color festive displays instantly. Utilizing low-profile commercial structures such as RGB Permanent Lights eliminates the need for repeated seasonal installations while providing seamless app-driven dynamic color control for year-round utility.
Implementing addressable color changing landscape lighting technology connected to centralized smart control hubs enables property managers to program customized color schedules, dynamic scenes, and automated dimming profiles via mobile applications or automated DMX consoles.
Maintenance Best Practices: Periodic maintenance schedules should include cleaning optical lenses with non-abrasive solution to remove mineral deposits from irrigation systems, checking wire connection splices for dielectric grease degradation, and inspecting IP66/IP67 mechanical seals for thermal cycling damage.
Small-scale residential gardens requiring fewer than eight low-voltage accent fixtures.
Plug-and-play lighting kits operating on enclosed pre-wired power packs.
Temporary decorative installations that do not require permanent direct-burial cable trenching.
Single-zone warm white systems with short wiring runs under 50 feet.
Commercial properties, large estates, or multi-zone outdoor entertainment venues.
Custom installations utilizing addressable RGB Landscape Lighting networks controlled via DMX or smart home automation systems.
Projects requiring deep ground trenching beneath hardscape elements like pavers, concrete, or asphalt.
High-wattage installations requiring multiple multi-tap transformers, precise voltage drop balancing, and complex sub-circuit routing.
The transformer converts incoming municipal grid power into regulated low-voltage output. Premium units incorporate multi-tap voltage switches (12V, 13V, 14V, 15V) allowing installers to boost output voltage at the source, ensuring fixtures at the end of long wire runs receive the exact voltage required for optimal operation.
Modern solid-state LED emitters consume approximately 80% to 85% less energy than equivalent halogen lamps while generating significantly less internal heat. This operational efficiency extends luminaire lifespans up to 50,000 operating hours, virtually eliminating ongoing bulb replacement and system maintenance costs.
Voltage drop occurs when electrical resistance over long wire lengths reduces line voltage available to downstream fixtures. System designers utilize thicker wire gauges, such as 10 AWG or 12 AWG stranded copper, alongside strategic wiring layouts like T-taps or split hub arrangements, to maintain voltage stability within recommended operating windows (typically 11V to 15V for 12V AC/DC systems).
Designing and deploying a professional exterior lighting system demands a balance of optical design, electrical engineering, and durable component selection. By leveraging versatile RGB Landscape Lighting systems, addressable pixel control, and robust IP-rated hardware, property managers and installers can transform outdoor spaces into secure, visually compelling environments that operate reliably year-round. Investing in high-grade transformers, appropriately sized direct-burial cabling, and advanced color-changing optics ensures long-term system stability, reduced maintenance overhead, and maximum property aesthetic value.
