Waterproof Rating: IP66 (Full outdoor protection)
Input Voltage: 24V DC (Low-voltage safety)
LED Options: RGB (2 LEDs) & RGBW (4 LEDs) versions
Beam Angles: 180° (RGB) & 360° (RGBW) illumination
Grayscale: 16-bit (65,536 smooth color transitions)
Material: Polycarbonate crust (Impact resistant)
Max Run: 240 lights (RGB) / 200 lights (RGBW)
Wire Type: 3x18# AWG UV protected
Customization: OEM/ODM available
Applications: Landscape, architectural, pathway lighting

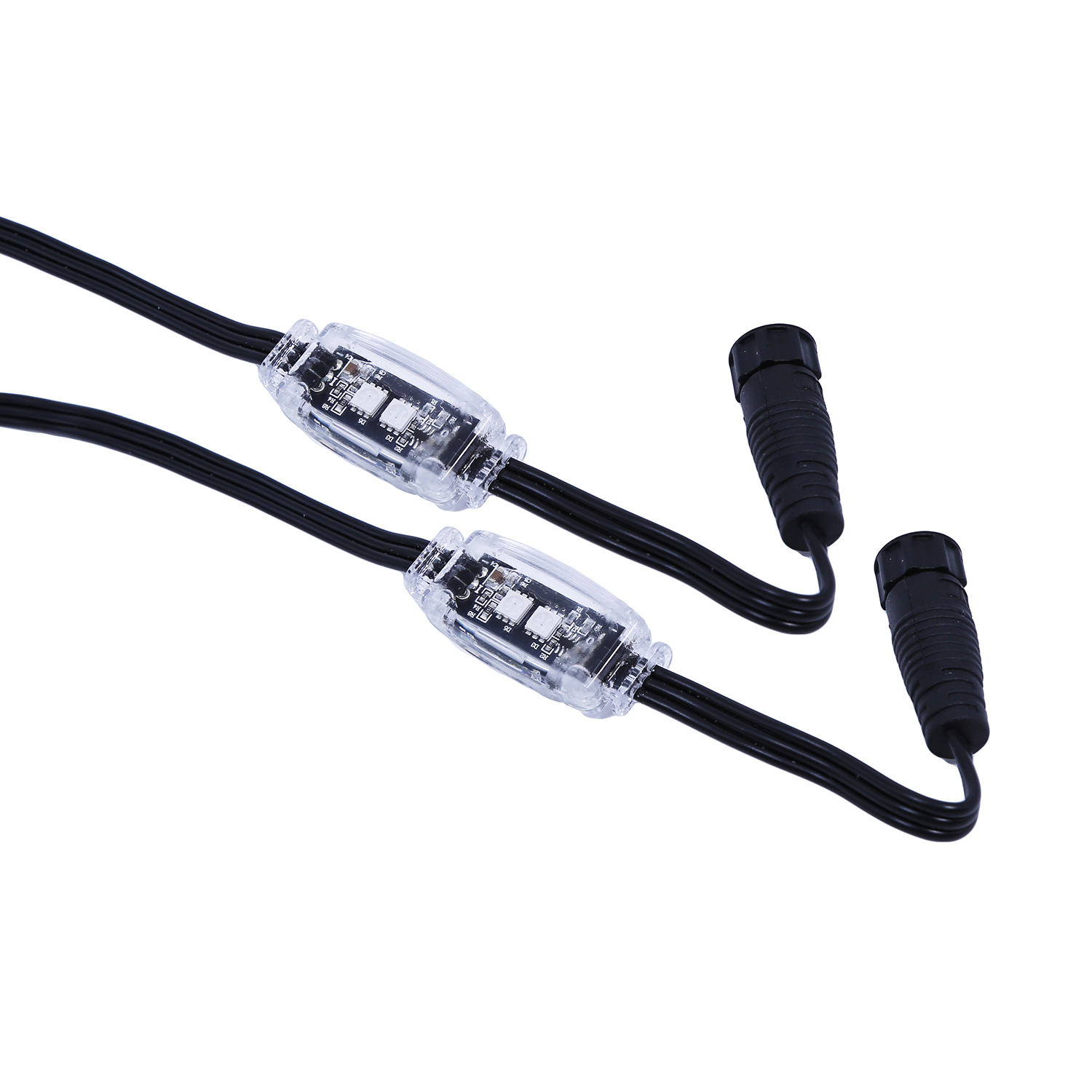

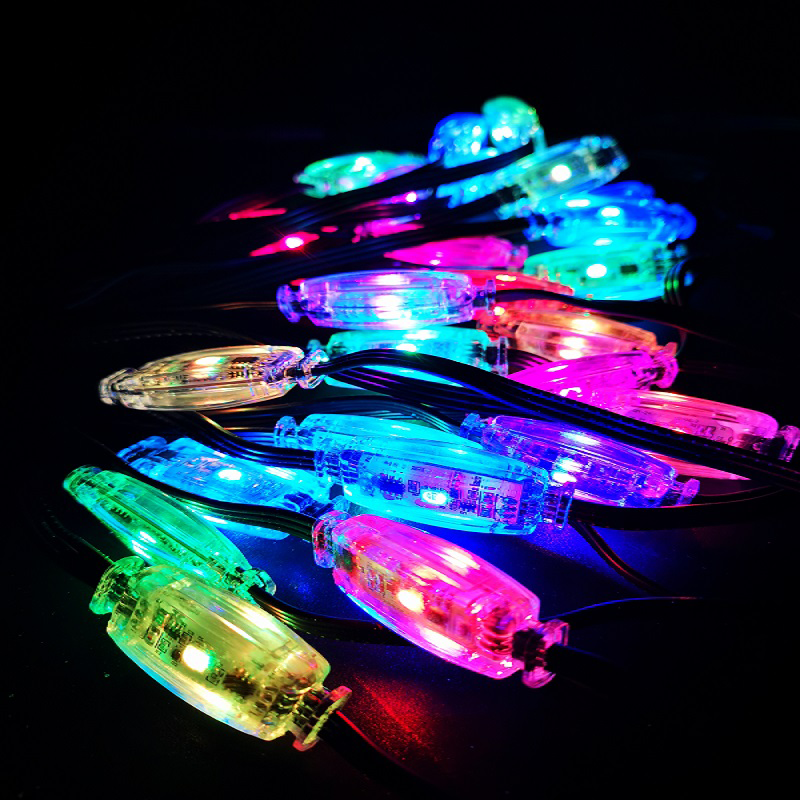

P50P Pebble Light
RAINMIN

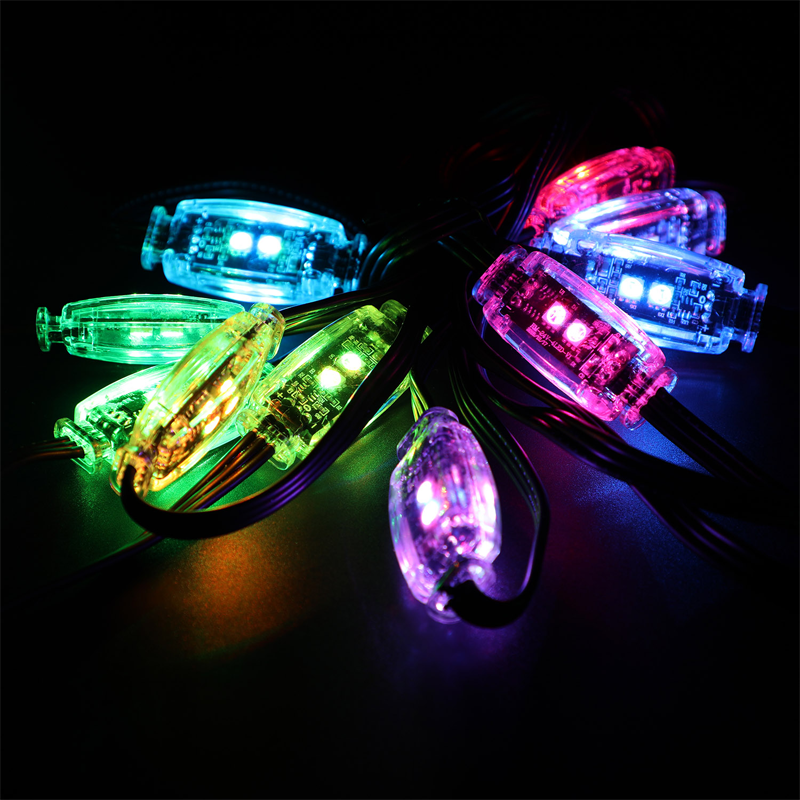

Rainmin's P50P Pebble Light redefines landscape lighting with its versatile RGB and RGBW configurations. Encased in durable polycarbonate with IP66 protection, these low-profile lights offer exceptional weather resistance for permanent outdoor installation. Choose between the 180-degree RGB version with 2 LEDs or the 360-degree RGBW version with 4 LEDs, both featuring 16-bit precision for smooth color blending. With extended run capabilities up to 240 lights and advanced compatibility with major control systems, the P50P series provides architects and landscape designers with flexible, professional-grade lighting solutions. Backed by Rainmin's manufacturing expertise, we offer complete customization from housing colors to specialized firmware.
Dual Configuration Options: RGB (2 LEDs) and RGBW (4 LEDs) versions available
Full Spectrum Lighting: RGBW option adds pure white to colorful lighting effects
16-bit Precision Control: 65,536 grayscale levels for professional smooth fading
360° Illumination: RGBW version provides complete spherical light distribution
Polycarbonate Construction: Impact-resistant and UV-protected housing
Extended Run Capability: Up to 240 lights without power injection
Professional Integration: Compatible with major control systems
Easy Installation: Low-voltage operation and daisy-chain connectivity
| Parameter | RGB Version | RGBW Version |
|---|---|---|
| LED Type | SMD 5050 RGB | SMD 5050 RGBW |
| LED Quantity | 2 LEDs | 4 LEDs |
| Beam Angle | 180-degree | 360-degree |
| Input Voltage | 24V DC | 24V DC |
| Current Consumption | 0.013A per light | 0.026A per light |
| Power Consumption | 0.3W per light | 0.6W per light |
| Max Lights Before Injection | 240 lights | 200 lights |
| Max Distance Before Injection | 72 meters | 60 meters |
| Waterproof Rating | IP66 | IP66 |
| Operating Temperature | -25°C to +60°C | -25°C to +60°C |
| Housing Material | Polycarbonate | Polycarbonate |
| Wire Type | 3x18# AWG UV protected | 3x18# AWG UV protected |
Landscape Pathway Lighting: Garden walks and driveway illumination

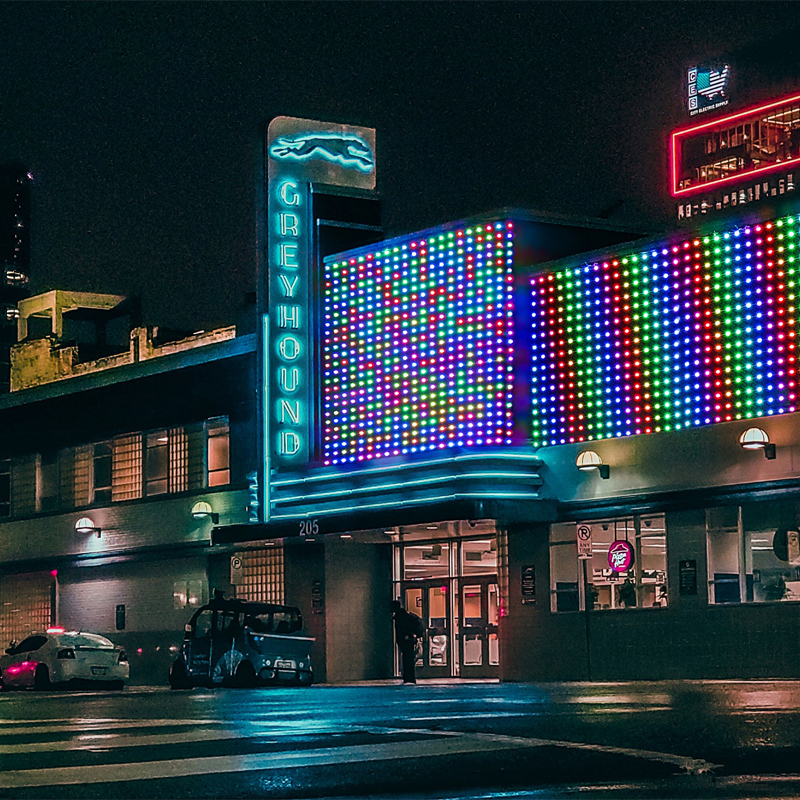

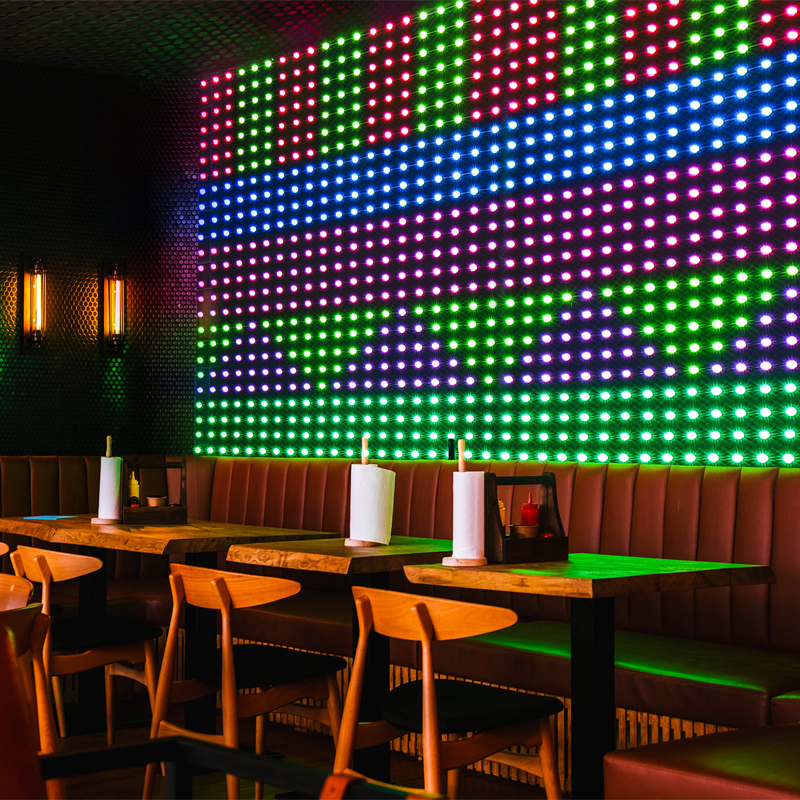

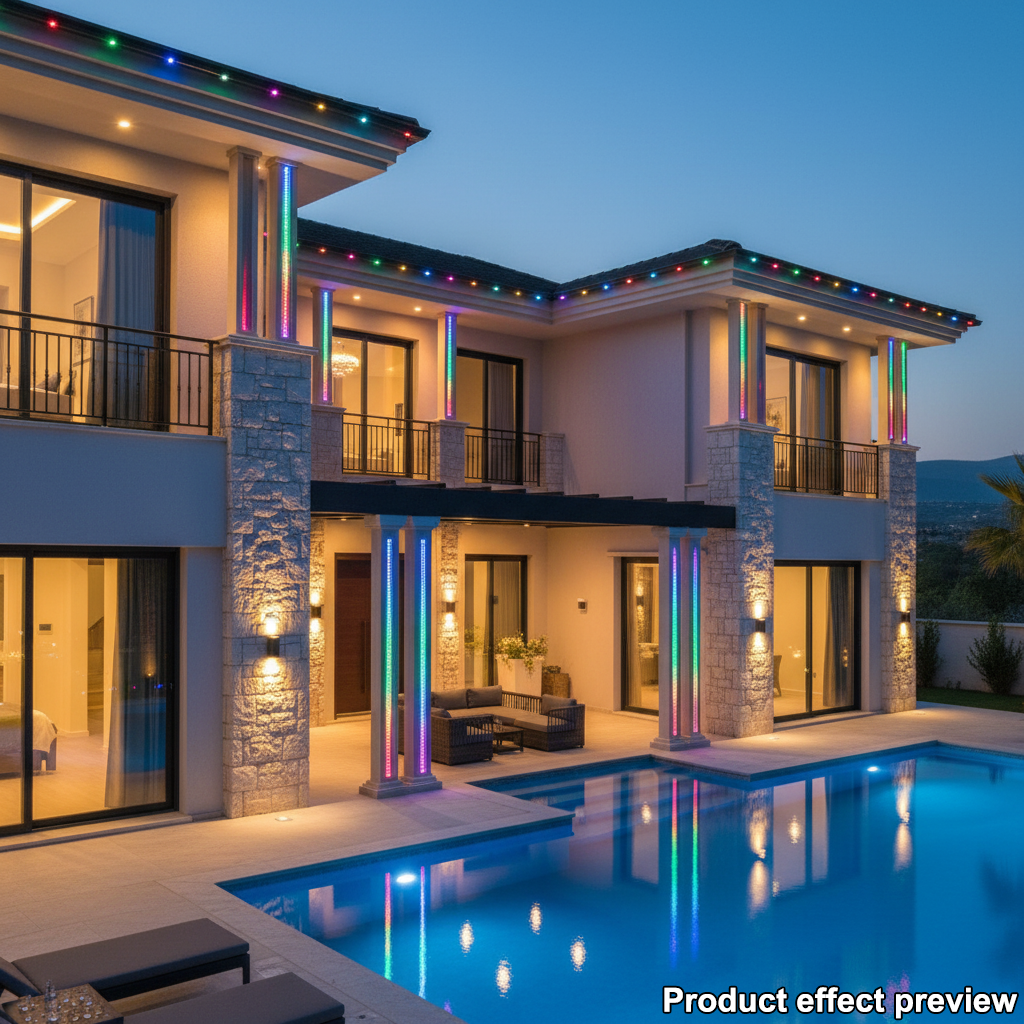

Architectural Accent Lighting: Building perimeters and feature highlighting
Commercial Landscape Design: Hotel and resort outdoor lighting
Public Space Illumination: Parks and municipal area lighting
Residential Garden Lighting: backyard and patio ambiance
Water Feature Lighting: Pond and fountain illumination
Historical Site Lighting: Gentle illumination of heritage sites
Rainmin Lighting: Expert in Professional Landscape Lighting Solutions
With 16+ years of specialized manufacturing experience, Rainmin provides:
Custom housing colors and finish options
Specialized optical design for specific beam patterns
Custom firmware for unique lighting sequences
International safety certification support
Technical support for large-scale projects
Competitive OEM pricing for volume orders
Q: What's the main difference between RGB and RGBW versions?
A: RGB version has 2 LEDs with 180° beam angle, while RGBW version has 4 LEDs with 360° illumination and added white light capability
Q: Can these be used underwater?
A: While IP66 rated for heavy rain and water jets, they are not designed for permanent submersion
Q: What controllers are compatible?
A: Compatible with most SPI/TTL controllers including NEC and WEC systems
Q: Can I mix RGB and RGBW versions in one installation?
A: Yes, but they will need to be on separate channels due to different power requirements
Q: Do you offer custom housing colors?
A: Yes, we can match specific color requirements for seamless landscape integration
With over 16 years of specialized expertise in outdoor and architectural lighting, Rainmin has established itself as a leading manufacturer for landscape designers, architects, and OEM clients worldwide. We combine technical innovation with practical design to create lighting solutions that enhance outdoor spaces while standing up to environmental challenges.
Our Custom Capabilities:
• Complete product customization: housing colors, optical designs, mounting options
• Specialized firmware for unique lighting effects and sequences
• Custom engineering for specific environmental requirements
• International certification support (CE, ROHS, UL)
• Large-scale production capacity with consistent quality
Technical Expertise:
Advanced optical design and light distribution
Weather-resistant material engineering
Low-voltage system design
Professional control system integration
Installation and technical support
Partner Benefits:
• Custom product development from concept to installation
• Competitive OEM pricing for volume projects
• Technical documentation and certification support
• Global logistics and supply chain management
• Dedicated technical support team
Rainmin - Illuminating Outdoor Spaces with Precision and Reliability
