Waterproof Rating: IP66 (Full outdoor protection)
Input Voltage: 12V DC (Low-voltage safety)
LED Density: 24 LEDs/foot (High-intensity illumination)
Grayscale: 16-bit (65,536 smooth color transitions)
Beam Angle: 360-degree full illumination
Material: Polycarbonate housing (Impact resistant)
Power Consumption: 4W/foot (Energy efficient)
Custom Lengths: 1-5 feet options available
Installation: 10 feet maximum before injection
Applications: Architectural, commercial, decorative lighting
T8 Light Tube
RAINMIN

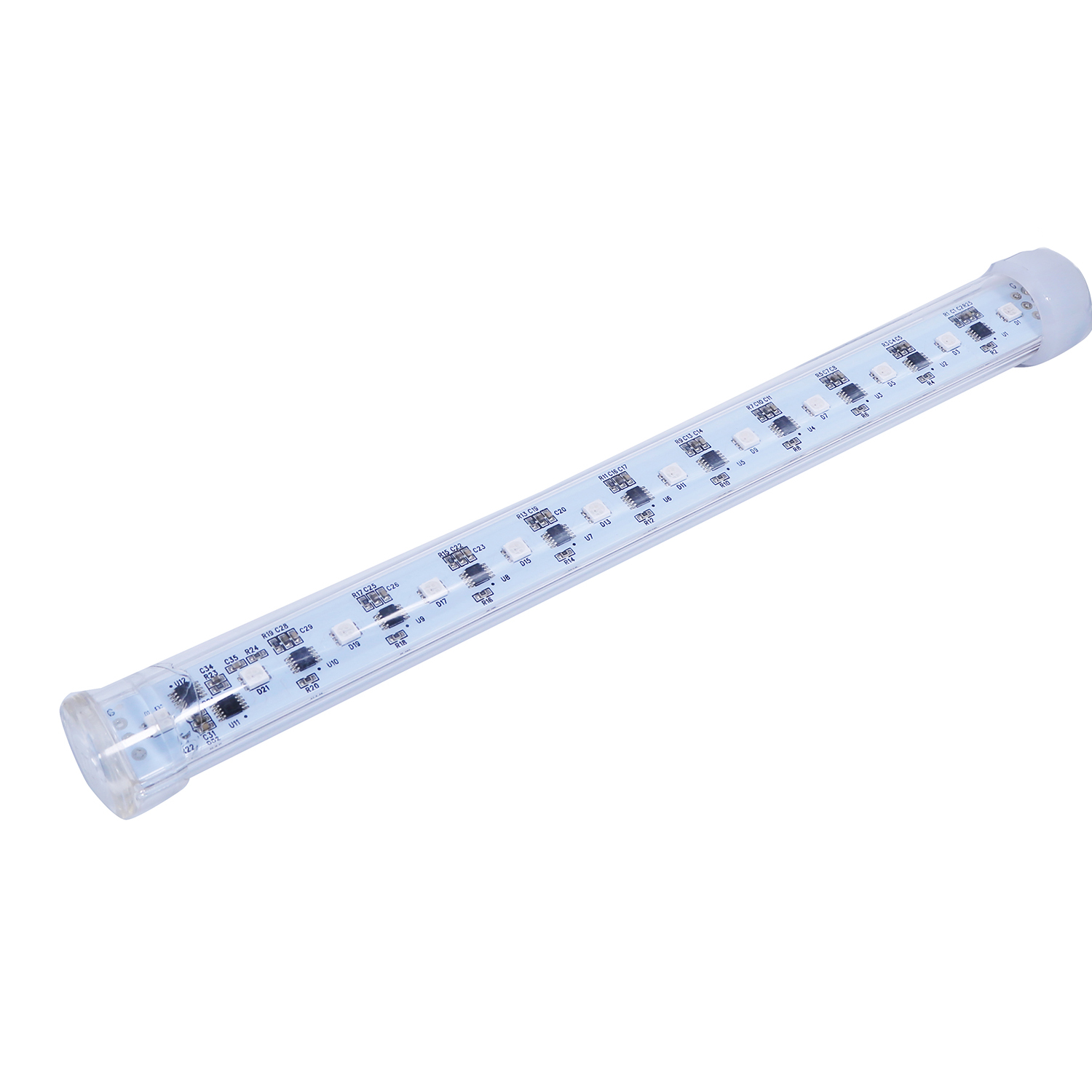

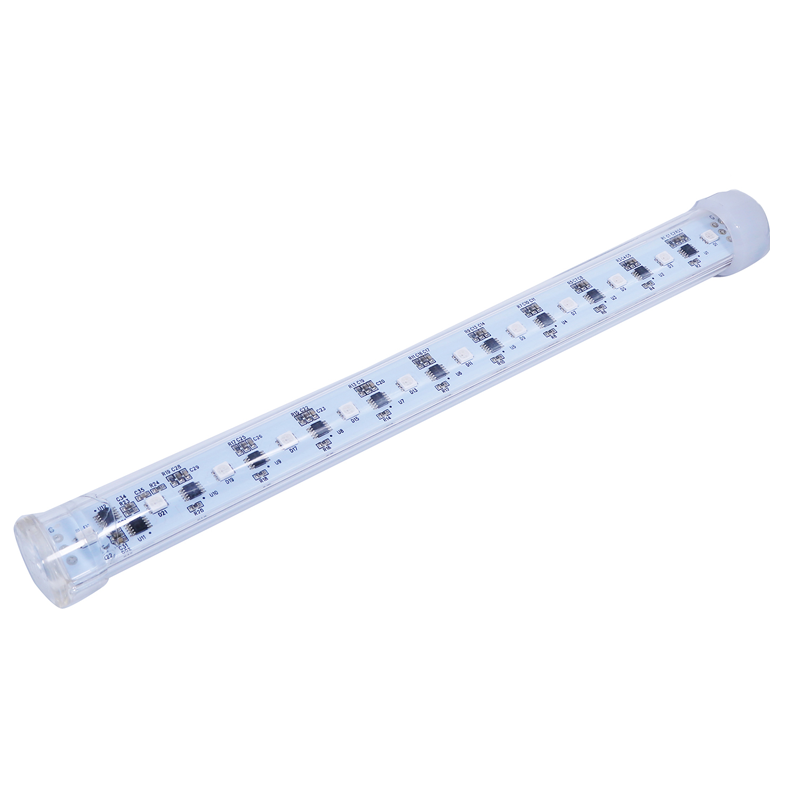

Rainmin's T8 RGB Light Tube redefines linear lighting with its impressive 360-degree illumination and customizable length options. Featuring high-density 24 LEDs per foot and advanced 16-bit color processing, this IP66-rated light tube delivers professional-grade RGB lighting for both indoor and outdoor applications. The polycarbonate construction ensures durability while maintaining excellent light diffusion. Available in lengths from 1 to 5 feet, these tubes offer seamless integration with major control systems including NEC and WEC controllers. Perfect for architectural highlighting, commercial displays, and creative installations, the T8 series combines aesthetic appeal with technical excellence.

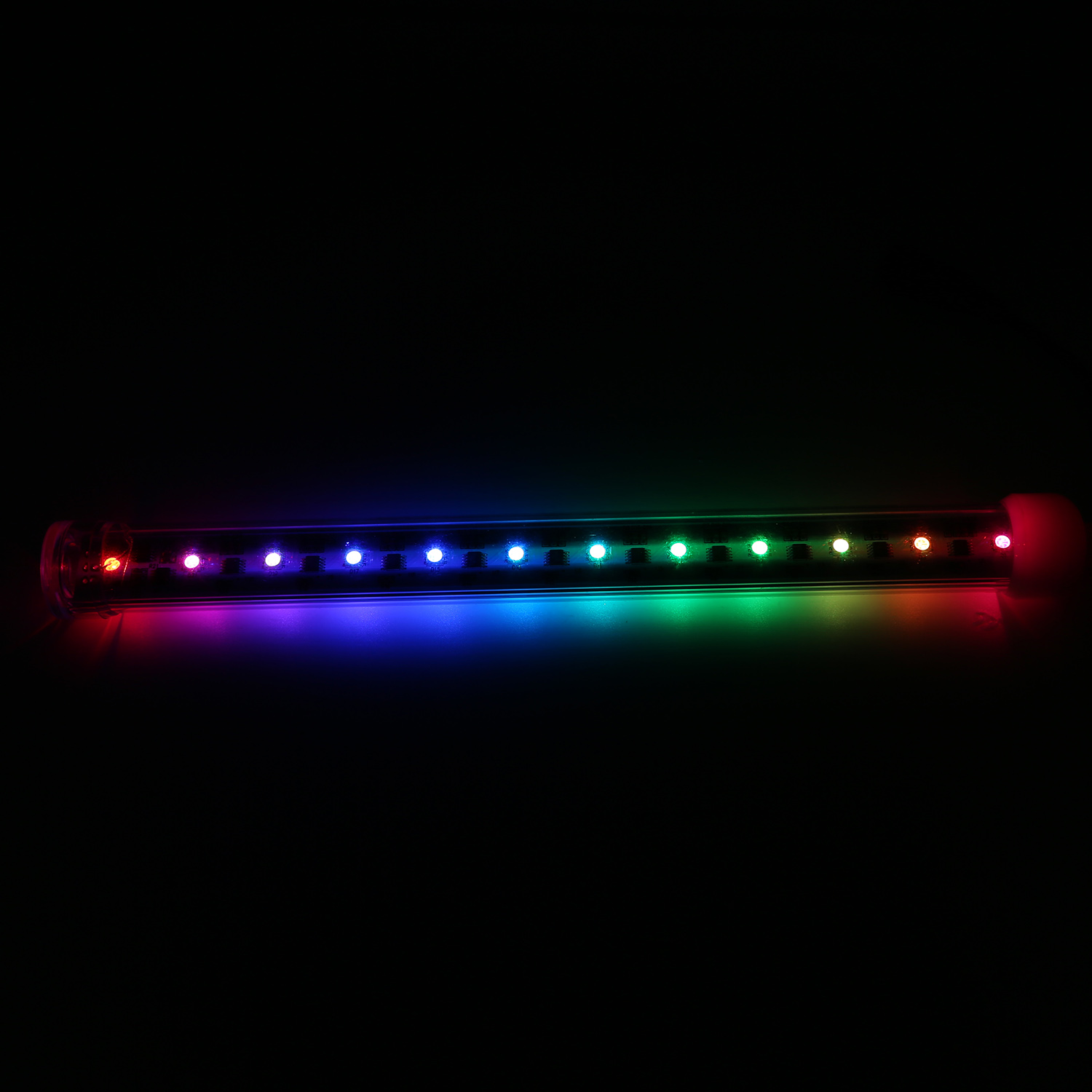

Complete 360° Illumination: Full circumferential lighting from a single tube
High-Density LEDs: 24 LEDs per foot for bright, consistent lighting
16-bit Color Precision: 65,536 grayscale levels for professional smooth transitions
Custom Length Options: Available in 1, 2, 3, 4, and 5-foot lengths
Weatherproof Design: IP66 rating ensures all-weather performance
Polycarbonate Construction: Impact-resistant and UV-stabilized
Professional Control: Compatible with NEC, WEC and SPI/TTL systems
Easy Installation: Low-voltage operation with clear connectivity options
| Parameter | Specification |
|---|---|
| Model Number | T8 RGB Light Tube |
| LED Type | SMD 5050 RGB |
| LED Density | 24 LEDs/foot |
| Grayscale | 16-bit (65,536 levels) |
| Available Lengths | 1, 2, 3, 4, 5 feet |
| Beam Angle | 360-degree |
| Housing Material | Polycarbonate |
| Waterproof Rating | IP66 |
| Operating Temperature | -25°C to +60°C |
| Input Voltage | 12V DC |
| Current Consumption | 0.336A/foot |
| Power Consumption | 4W/foot |
| Wire Type | 3x20# AWG UV protected |
| Max Distance Before Injection | 10 feet |
| Protocol Support | SPI/TTL |

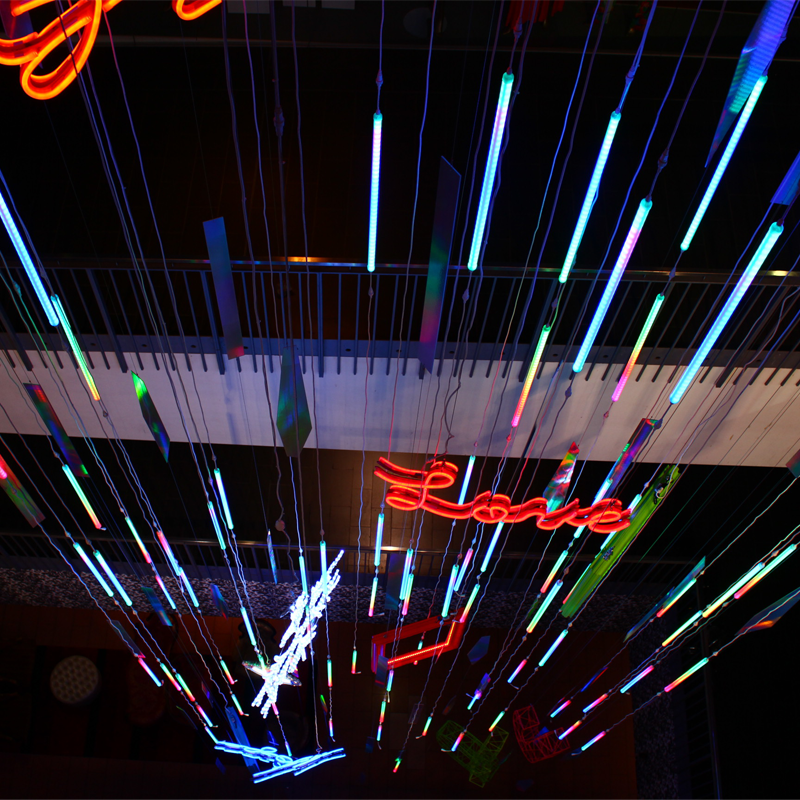

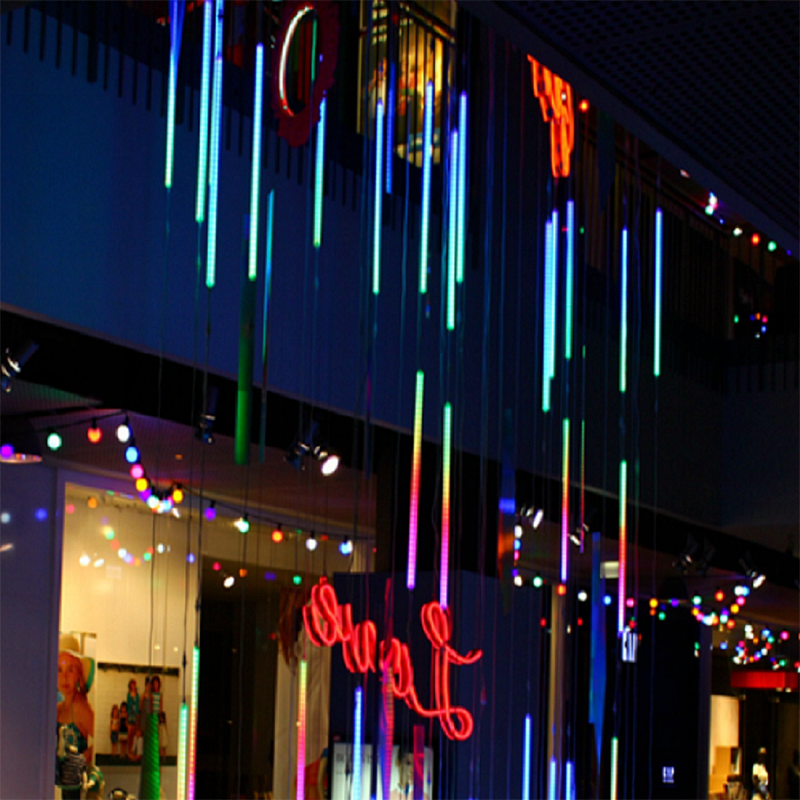

Architectural Lighting: Building outlines and structural highlighting
Commercial Displays: Retail signage and window displays
Event Decoration: Wedding and party lighting installations
Interior Design: Modern lighting for bars and restaurants
Landscape Lighting: Garden paths and feature illumination
Art Installations: Creative lighting for exhibitions
Entertainment Venues: Clubs and stage lighting effects
Rainmin Lighting: Expert in Linear Lighting Solutions
With 16+ years of specialized manufacturing experience, Rainmin provides:
Custom length cutting and specific requirements
Specialized diffuser options and optical engineering
Custom firmware development for unique lighting sequences
International safety certification support
Technical guidance for complex installations
Competitive OEM pricing for volume orders
Q: What length options are available?
A: Available in 1, 2, 3, 4, and 5-foot lengths with custom options
Q: Can these tubes be used outdoors permanently?
A: Yes, the IP66 rating ensures protection against heavy rain and weather conditions
Q: What controllers are compatible?
A: Compatible with NEC, WEC, and other SPI/TTL based control systems
Q: Can you create custom lengths beyond 5 feet?
A: Yes, we offer custom length manufacturing for specific project requirements
Q: How does the 360-degree lighting benefit installations?
A: Provides uniform illumination from all angles, eliminating dark spots
With over 16 years of specialized expertise in linear and architectural lighting, Rainmin has established itself as a leading manufacturer for lighting designers and OEM clients worldwide. We combine innovative technology with practical design to create lighting solutions that deliver exceptional performance in demanding environments.
Our Custom Capabilities:
• Complete product customization: lengths, diffusers, mounting solutions
• Specialized optical engineering for uniform lighting
• Custom firmware for unique lighting sequences
• International certification support (CE, ROHS, UL)
• Large-scale production capacity with quality assurance
Technical Expertise:
Linear lighting design and engineering
Weather-resistant material development
Low-voltage system integration
Professional control system compatibility
Installation and technical support
Partner Benefits:
• Custom product development from concept to production
• Competitive OEM pricing for volume projects
• Technical documentation and certification support
• Global logistics and supply chain management
• Dedicated technical support team
Rainmin - Innovative Lighting Solutions for Professional Applications
