Waterproof Rating: IP66 (Full outdoor protection)
Input Voltage: 24V DC (Professional low-voltage operation)
LED Options: RGB & RGBW versions available
Cover Options: Clear, Frosted, Faceted styles
Beam Angle: 360-degree full illumination
Grayscale: 16-bit (65,536 smooth transitions)
Material: Polycarbonate construction
Max Run: 110 lights before injection
Power Consumption: 0.4W per bulb (Energy efficient)
Applications: Commercial, architectural, event lighting
S14 Strip Light
RAINMIN
| LED Quantity: | |
|---|---|
| LED Type: | |
| Beam Angle: | |
| Grey Scale: | |
| Crust Material: | |
| Power: | |
| voltage: | |

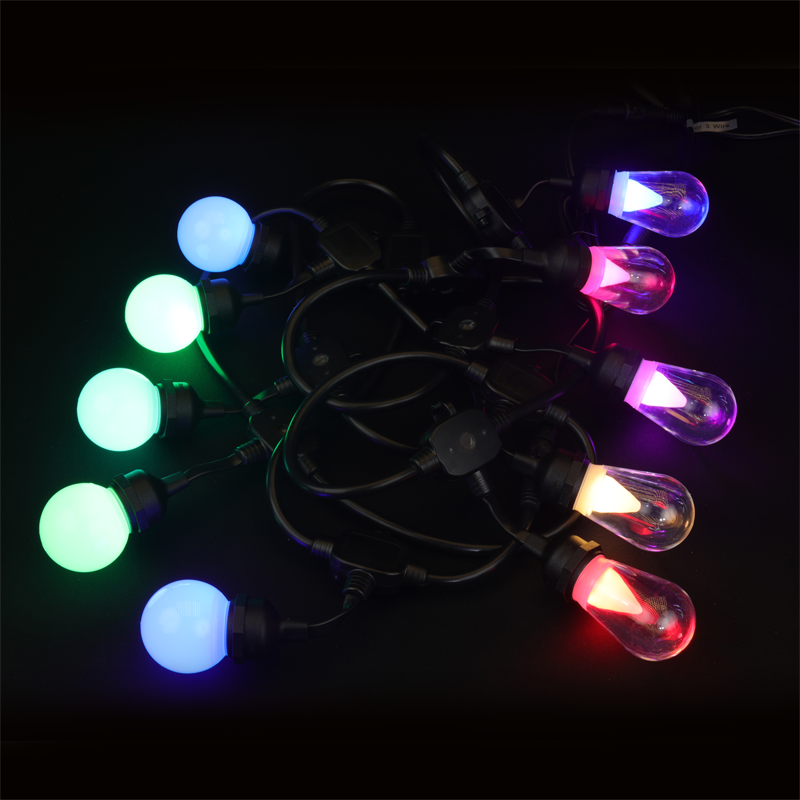

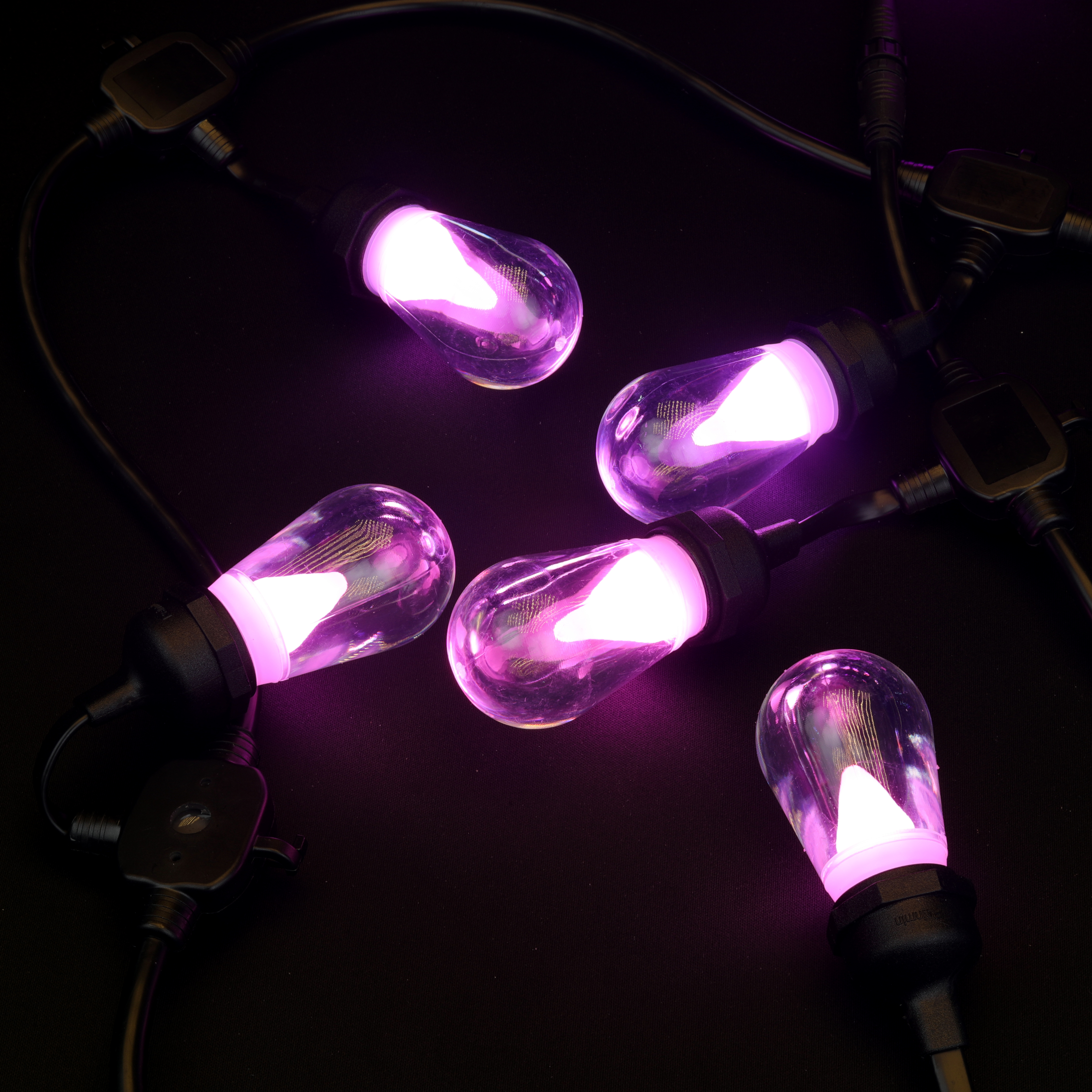

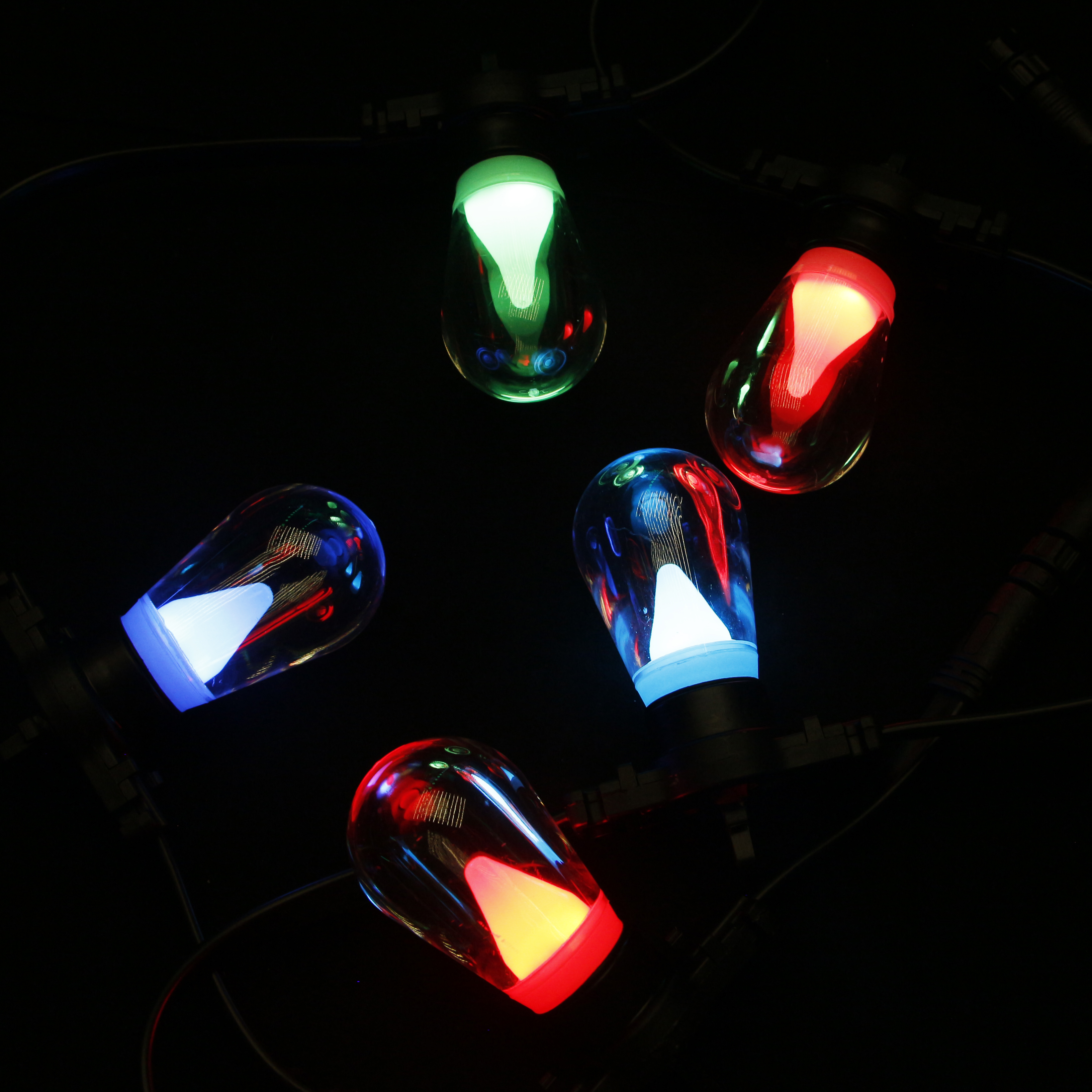

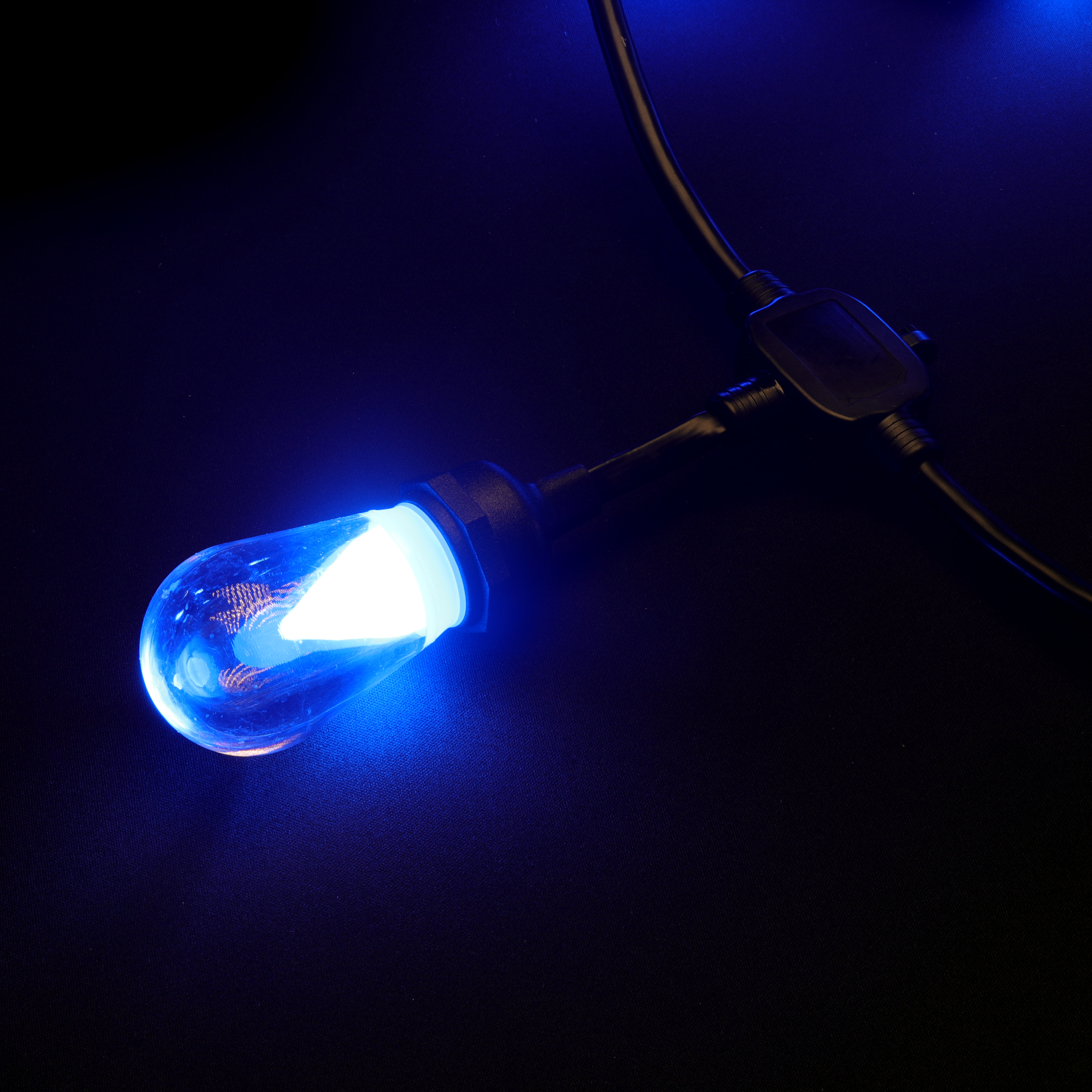

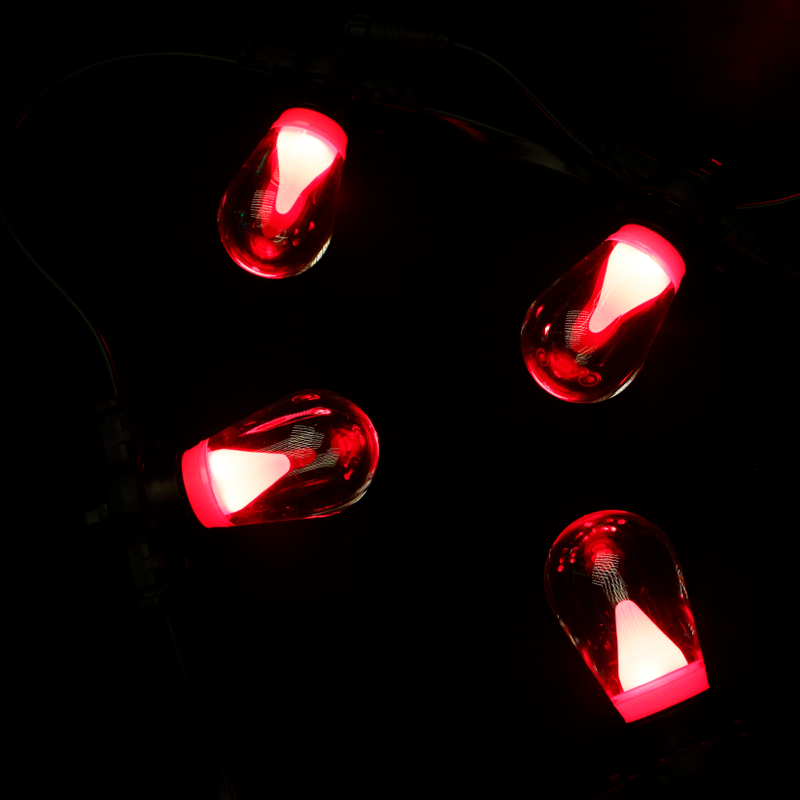

Rainmin's S14 String Light redefines outdoor lighting with its professional 360-degree illumination and multiple customization options. Featuring advanced 16-bit color processing and IP66-rated polycarbonate construction, these string lights deliver exceptional performance for commercial and architectural applications. Choose between RGB or RGBW LED configurations and select from three cover types - Clear, Frosted, or Faceted - to achieve your desired lighting effect. With extended run capability of up to 110 lights and 66 meters without power injection, the S14 series offers unparalleled flexibility for large-scale installations. Compatible with major control systems including NEC and WEC controllers, these lights are perfect for professional lighting designers and OEM partners seeking reliable, customizable solutions.
Complete 360° Illumination: Full spherical lighting from each bulb

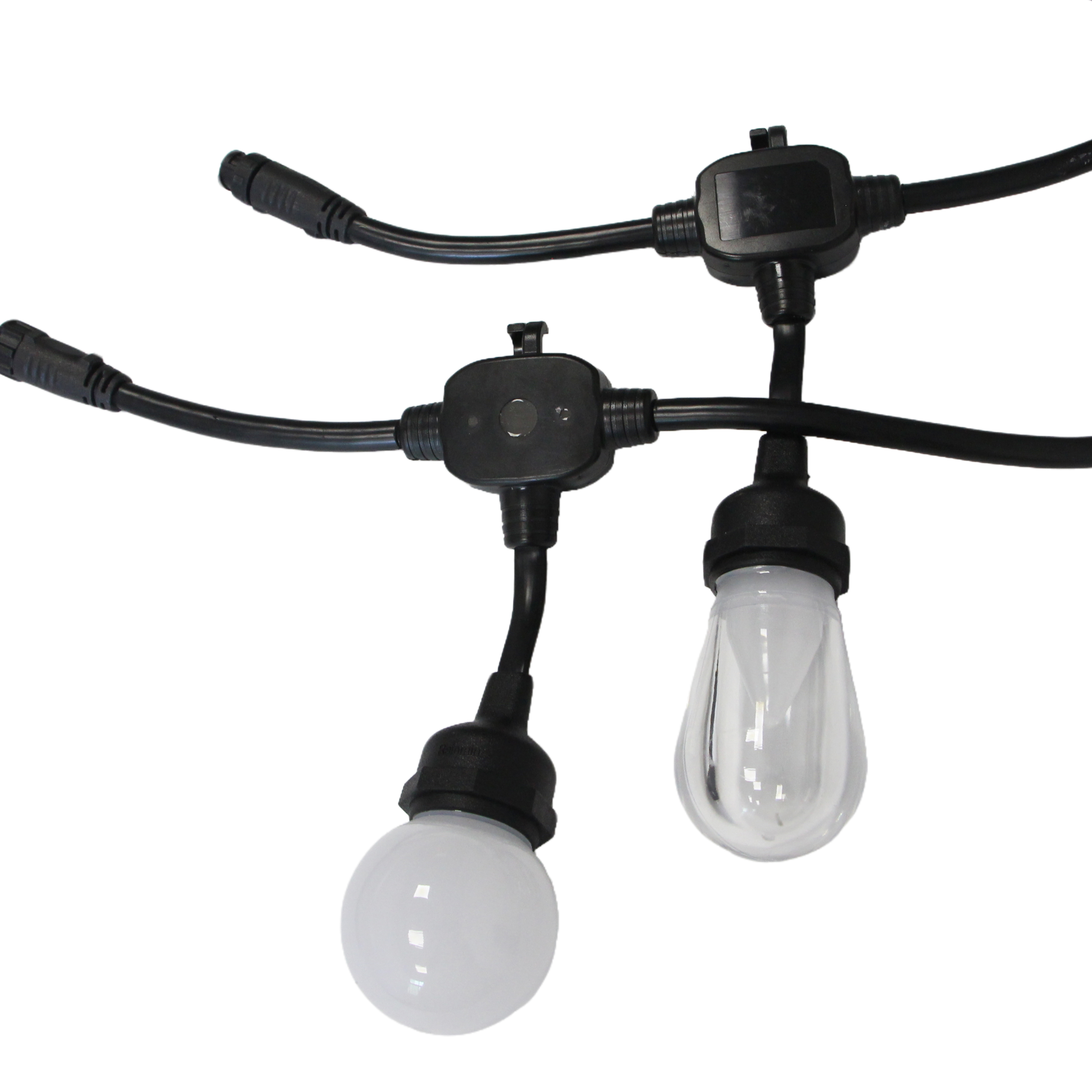

Multiple Cover Options: Clear, Frosted, and Faceted styles available
Dual LED Configurations: RGB for colors or RGBW for color + white light
Professional Grade Control: 16-bit processing with 65,536 color transitions
Extended Run Capability: Up to 110 lights over 66 meters without injection
Weatherproof Design: IP66 rating ensures all-weather durability
Energy Efficient: Low 0.4W power consumption per bulb
Wide Compatibility: Supports NEC, WEC and SPI/TTL control systems
| Parameter | Specification |
|---|---|
| Model Number | S14 String Light |
| LED Type | SMD 5050 (RGB/RGBW) |
| LED Quantity | 3 LEDs per bulb |
| Grayscale | 16-bit (65,536 levels) |
| Beam Angle | 360-degree |
| Cover Types | Clear, Frosted, Faceted |
| Housing Material | Polycarbonate |
| Waterproof Rating | IP66 |
| Operating Temperature | -25°C to +60°C |
| Input Voltage | 24V DC |
| Current Consumption | 0.017A per bulb |
| Power Consumption | 0.4W per bulb |
| Wire Type | 18AWG UV protected |
| Max Lights Before Injection | 110 lights |
| Max Distance Before Injection | 66 meters |
| Protocol Support | SPI/TTL |
Commercial Lighting: Shopping centers and retail displays
Architectural Lighting: Building outlines and feature highlighting
Event Decoration: Wedding and party lighting installations
Hospitality Lighting: Hotels, resorts, and restaurant ambiance
Public Space Lighting: Parks and municipal area illumination
Theme Park Lighting: Entertainment venue decoration
Seasonal Displays: Holiday and festival lighting installations
Rainmin Lighting: Expert in Professional String Lighting Solutions
With 16+ years of specialized manufacturing experience, Rainmin provides:
Custom cover style and color options
Specialized optical engineering services
Custom firmware development capabilities
International safety certification support
Technical guidance for large-scale installations
Competitive OEM pricing for volume orders
Q: What's the difference between the cover options?
A: Clear offers brightest output, Frosted provides diffused light, Faceted creates sparkling effects
Q: Can I mix RGB and RGBW versions in one installation?
A: Yes, but they require separate control channels due to different power requirements
Q: What controllers are compatible?
A: Compatible with NEC, WEC, and other SPI/TTL based control systems
Q: Can you create custom cover designs?
A: Yes, we offer custom cover designs and colors for specific project requirements
Q: How does the 360-degree lighting benefit commercial applications?
A: Provides uniform illumination from all angles, ensuring consistent visual effects
