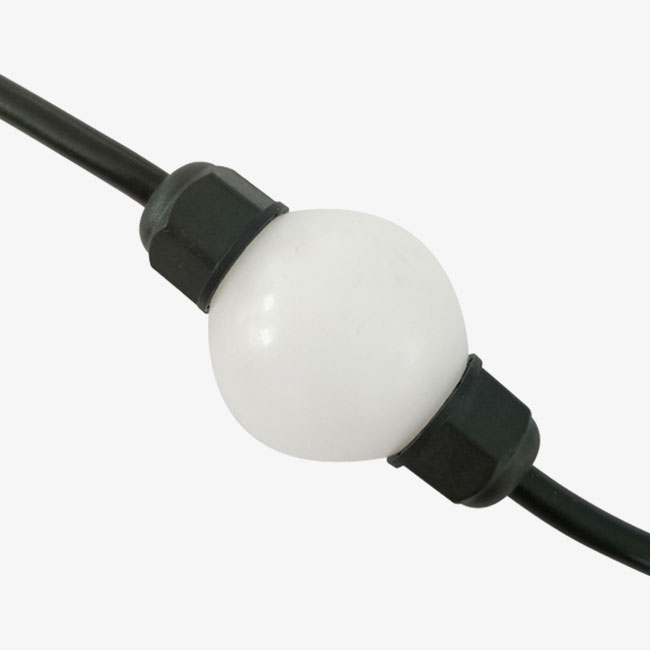

RGB Mini Triklits

The RGB Mini Triklits is the most versatile light in the world and are designed to be viewed from any angle which allow for a degree of creativity using light that has not been possible before. Your imagination is the limitation with the possibilities. The construction enable very clean and even light dispersion whilst also providing high levels of water ingress protection and strength.
Availability:
Product Feature
  • Anti-UV Material

  • Easy for installation

  • Good waterproof

  • Customized length&light number

Product Specification

G28

G42

Physical Parameter

LED Type

SMD 5050

SMD 5050

LED Channels

R-G-B

R-G-B/R-G-B-W

Grey Scale

16 bits, 65,536

16 bits, 65,536

LED Quantity

2

2

Bean Angle

360-degrees

360-degrees

Crust Material

Polycarbonate

Polycarbonate

Waterproof Level

IP 65, Outdoor use

IP 65, Outdoor use

Working Temperature

-25 to +55 Deg

-25 to +55 Deg

Electrical Parameter

Input Voltage

12V DC

12V DC

Current

0.028 Amps

0.028 Amps

Power

0.336 Watts

0.336 Watts

Wire Type

22 AWG, 3C, UV protected

20 AWG, 3C, UV protected

Max Lights before power injection

approx 100 Lights

approx 125 Lights

Max Distance before Power Injection

approx 30 Meters

approx 30 Meters

Inline power injection

via Power T & 12V power supply

Control System

Individual Control

Yes

Protocol

Art-net.E1 31 ,DDP

Control Method

On-line/ Off-line


Rainmin Lighting Advantage
  • 12VDC - Safe low DC voltage which is perfect for public spaces and commercial applications

  • IP67 - Can be used outdoors or indoors, temporary or permanently.

  • UV Rated - High-quality materials are used to withstand the harsh sun for many years.

  • RGB LED - A Red, Green and Blue LED are combined in the same package allowing the creations of millions of colours.

  • 48 Bit Digital Processing - 16 Bit per colour allowing for millions of colour combinations.

  • 1KHZ Refresh Rate - High refresh rate allowing for broadcast-quality recording without flicker effects.

  • Quick Connect Plug - Fast 1/2 turn weatherproof connector allowing for dramatically reduced installation and dismantle times.

  • Knowledge & Experience - We know our products and we can help you make the best use of our lighting and control systems for maximum impact.

  • Plug and Play Options - We work with you to offer complete plug and play solutions, programmed with installation instructions based on your customized needs.
