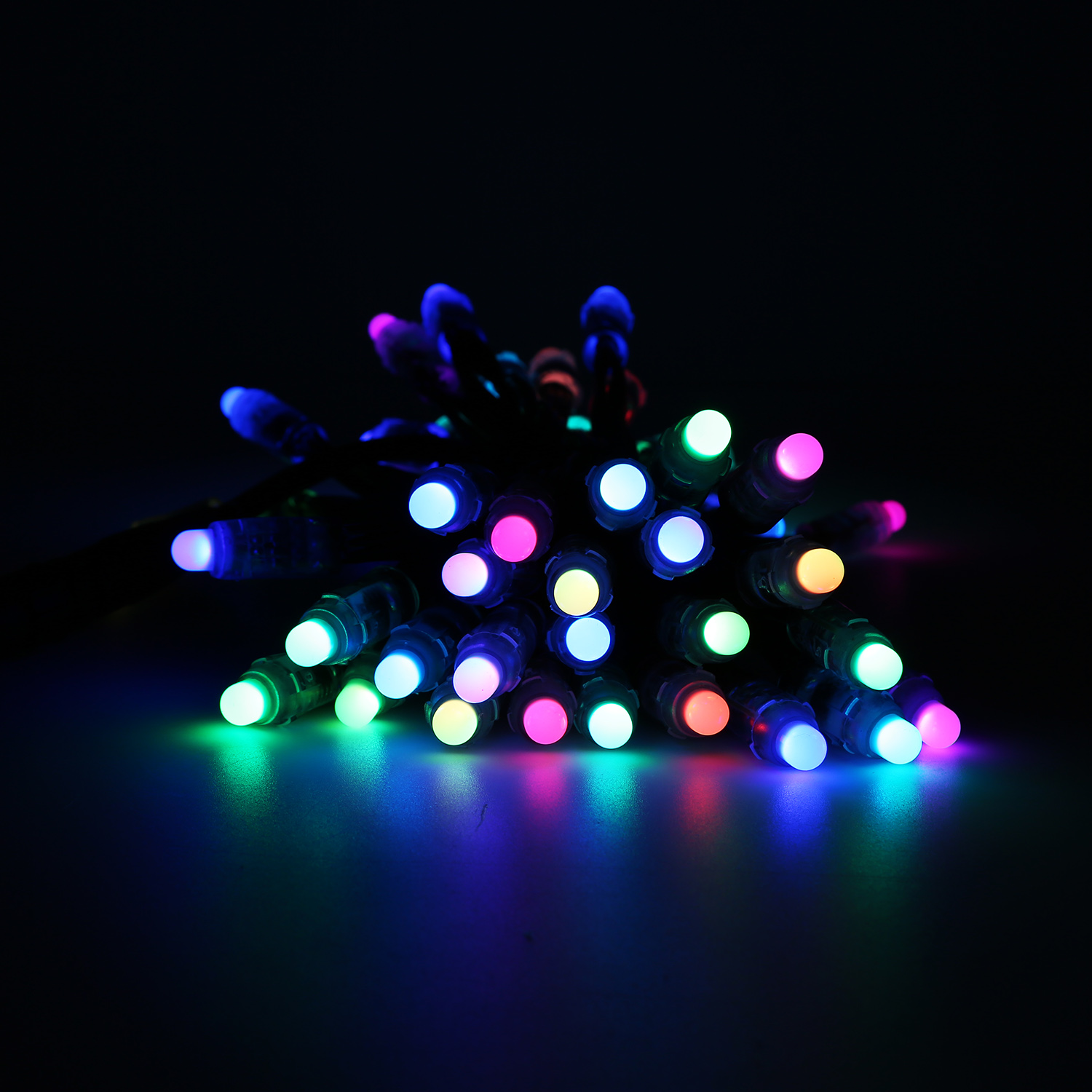

RGB LED Pixel Light Module

Availability:
Product Description

Product Feature

·Anti-UV Material

·Easy for installation

·Good waterproof

·Customized length & light number




     Product Specification


Physical Parameter

LED Type

DIP 8mm

LED Channels

R-G-B

Grey Scale

16 bits,65,536

LED Quantity

1

Beam Angle

180-degrees

Crust Material

Polycarbonate

Waterproof Level

IP 65,Outdoor use

Working Temperature

-25 to +55 Deg

Electrical Parameter

Input Voltage

12V DC

Current

0.028 Amps

Power

0.336 Walts

Wire Type

20AWG,3C.UV protected

Max Lights before power injection

approx 125 Lights

Max Distance before Power Injection

approx 30 Meters

Inline power injection

via Power T& 12V power supply

Control System

Individual Control

Yes

Protocol

Art-net.E1.31.DDP

Control Method

On-line/Off-line



应用图



     Rainmin Lighting Advantage

·12VDC-Safe low DC voltage which is perfect for public spaces and commercial applications

·IP67-Can be used outdoors or indoors, temporary or permanently.

·UV Rated-High-quality materials are used to withstand the harsh sun for many years.

·RGB LED-A Red, Green and Blue LED are combined in the same package allowing the creations of millions of colours.

·48 Bit Digital Processing-16 Bit per colour allowing for millions of colour combinations

·IKHZ Refresh Rate-High refresh rote allowing for broadcost-quality recording without flicker effects.

·Quick Connect Plug-Fast 1/2 turn weatherproof connector allowing for dramatically reduced installation and dismantle times

·Knowledge & Experience-We know out products and we can help you make the best use of our lighting and control systems for maximum impact.

·Plug and Play Options-We work with you to offer complete plug and play solutions, programmed with installation instructions based on your customized needs.
