RGB D20 Mesh Screen Light

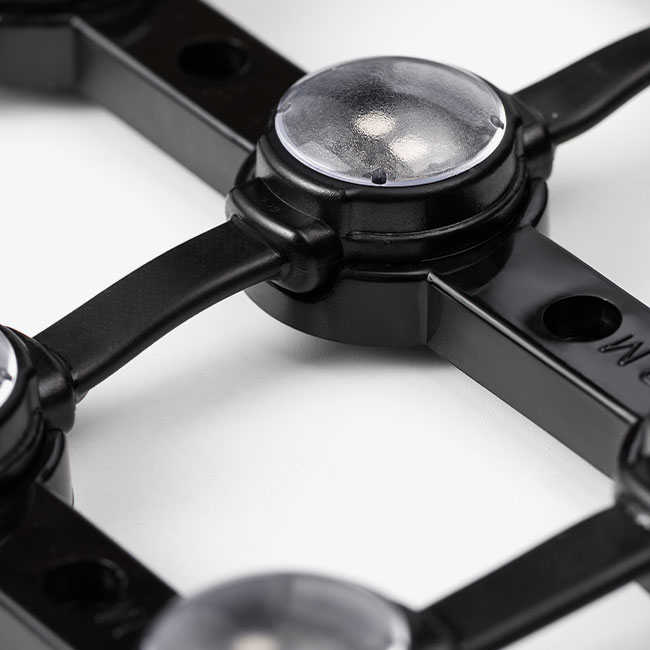

The Rainmin D20 Mesh Grid is a bright digital RGB programmable colour changing flexible light screen that is designed to be surface mounted, hung or wrapped to create a colourful flexible lighting grid. Each flexible light fixing is 5 strings wide and can be connected together to make any length and width to suit any string length. The D20 Mesh Grid is perfect for, clubs, facades, buildings, signage, draping, wrapping and many other applications and is made of high-quality materials allowing for a long trouble-free life

Availability:
Product Feature
  • Anti-UV Material

  • Easy for installation

  • Good waterproof

  • Customized length&light number

Product Specification

Name

D20 Mesh Screen

Part Number

RGB+D20MESH-12V

Diameter

22mm

LED Quantity

2 LEDs

LED Type

SMD 3535

Colour

R-G-B

IC Chip

UCS 8903 48Bit 16bit/colour - 1KHZ Refresh Rate

Light Spacing

5cm x 5 length expandable mesh grid

Light per String

Custom

Material

Polycarbonate - UV rated

Voltage

12V DC

Power

0.336W per bulb

Current

28mA per bulb

Wire Type

3x 20 AWG

Wire Colour

Black

Plug Type

Connectable with 1/2 turn quick connect plug

Working Temp

-20to+60DegC

Waterproof Level

IP65, ouldoor use

Warranty

24 Months


7


8


Rainmin Lighting Advantage
  • 12VDC - Safe low DC voltage which is perfect for public spaces and commercial applications

  • IP67 - Can be used outdoors or indoors, temporary or permanently.

  • UV Rated - High-quality materials are used to withstand the harsh sun for many years.

  • RGB LED - A Red, Green and Blue LED are combined in the same package allowing the creations of millions of colours.

  • 48 Bit Digital Processing - 16 Bit per colour allowing for millions of colour combinations.

  • 1KHZ Refresh Rate - High refresh rate allowing for broadcast-quality recording without flicker effects.

  • Quick Connect Plug - Fast 1/2 turn weatherproof connector allowing for dramatically reduced installation and dismantle times.

  • Knowledge & Experience - We know our products and we can help you make the best use of our lighting and control systems for maximum impact.

  • Plug and Play Options - We work with you to offer complete plug and play solutions, programmed with installation instructions based on your customized needs.
