The RM5535 Pixel Light is a professional-grade LED solution designed for architectural lighting, landscape decoration, and creative display projects. Featuring RGB and RGBW options, it provides rich and vivid colors with 16-bit, 65,536 grayscale control for smooth and precise color transitions. With an IP66 waterproof rating, UV-protected cabling, and low-voltage 24V DC input, the RM5535 ensures safe and reliable performance in demanding outdoor environments. Its programmable SPI/TTL protocol compatibility allows seamless integration with multiple controllers for stunning lighting effects.

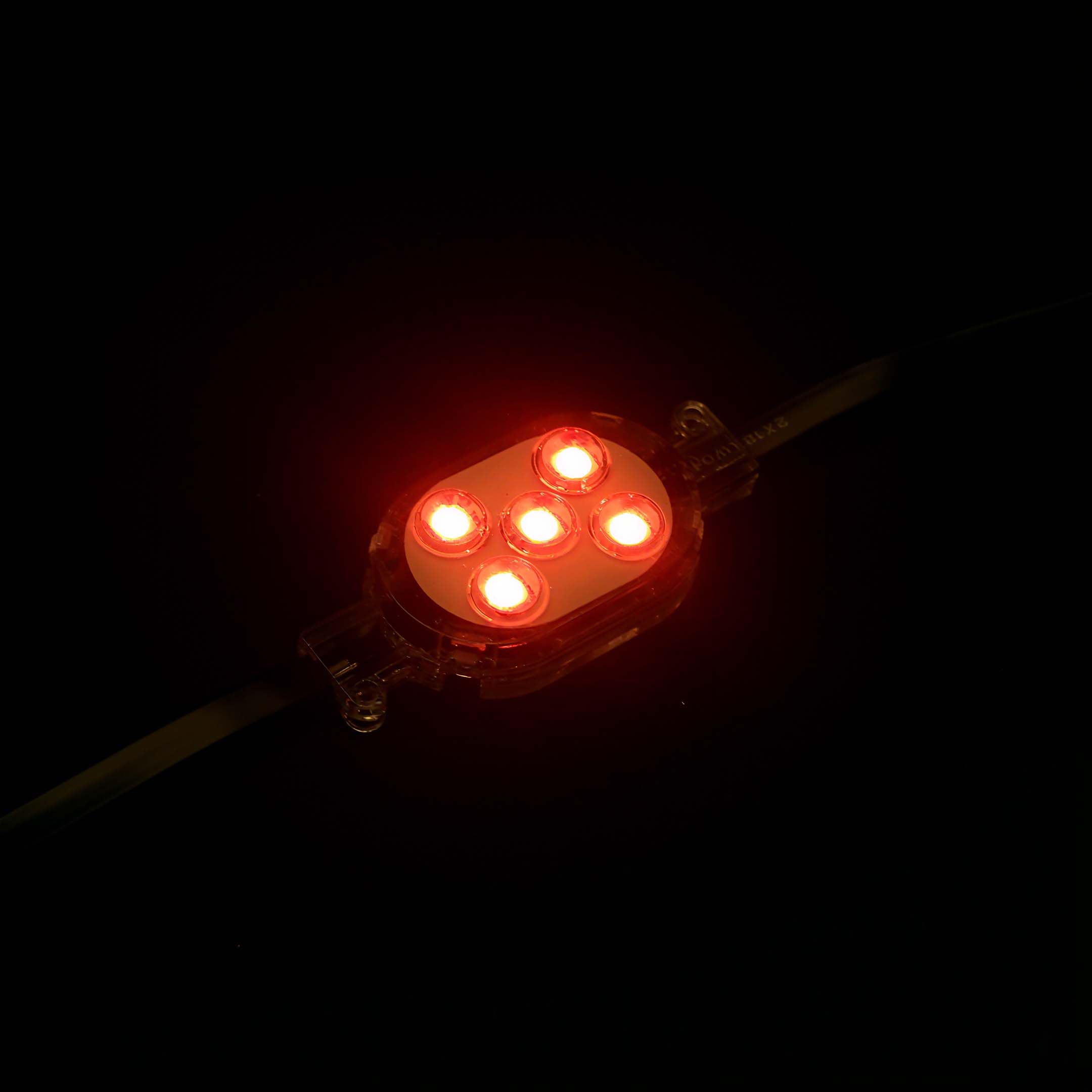

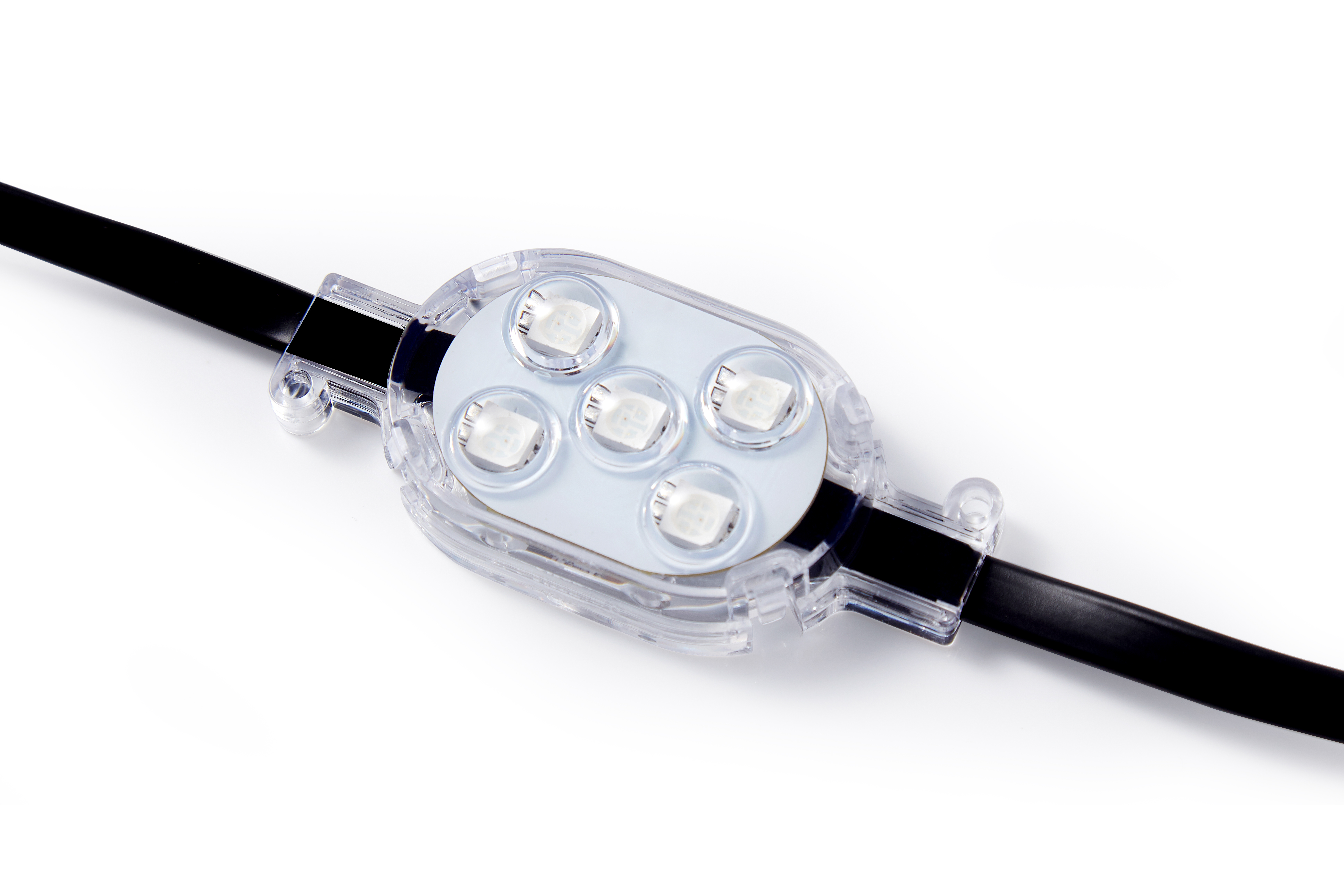

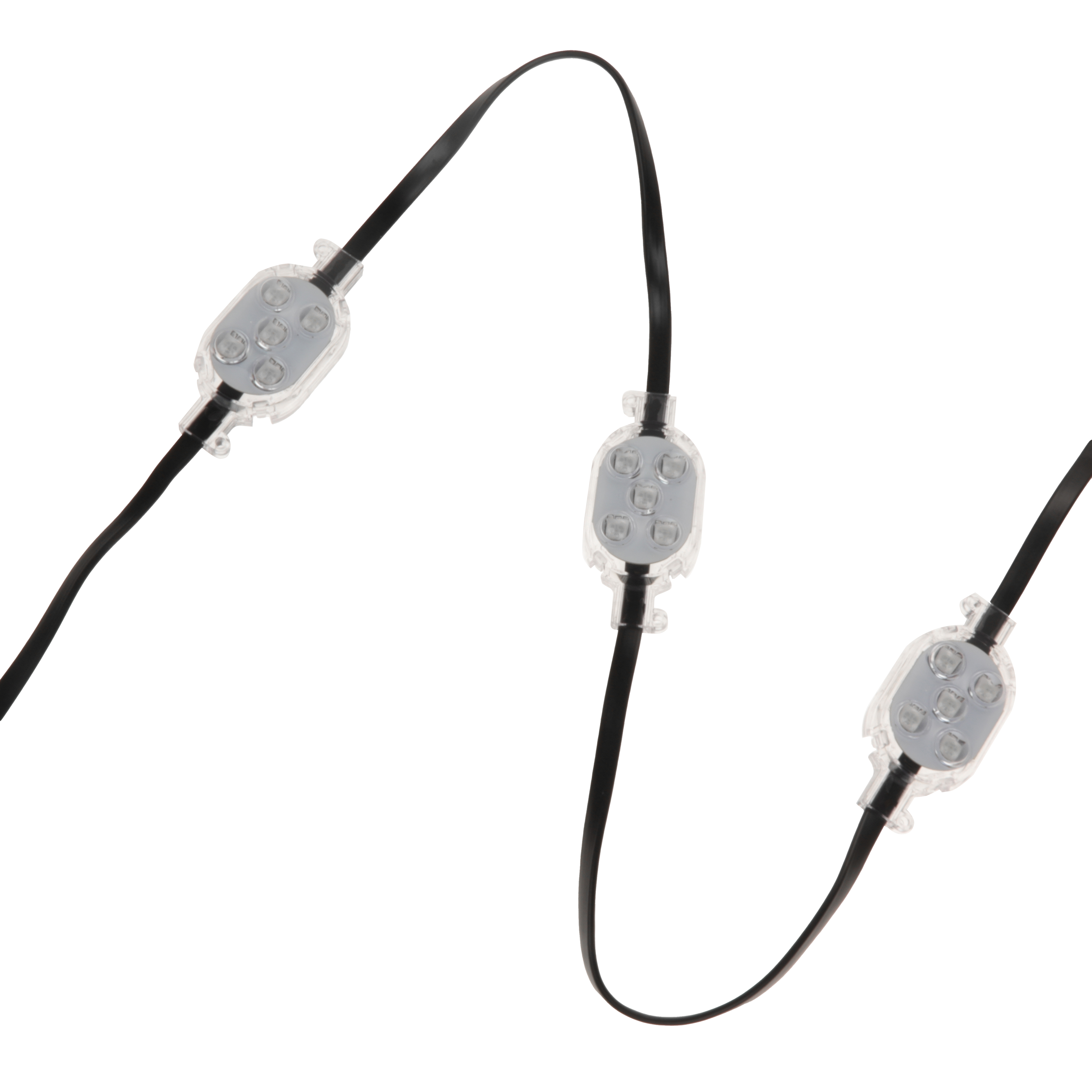

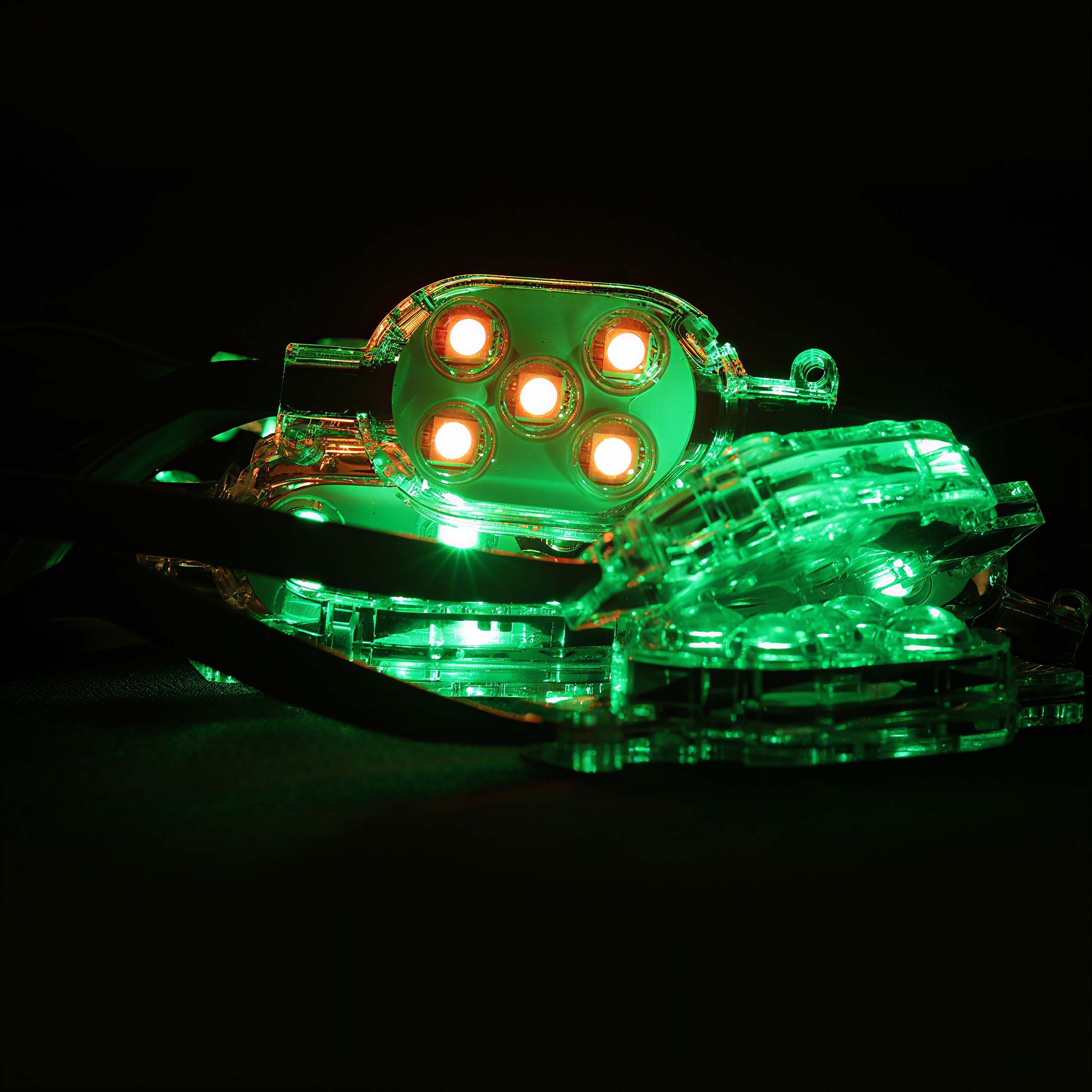

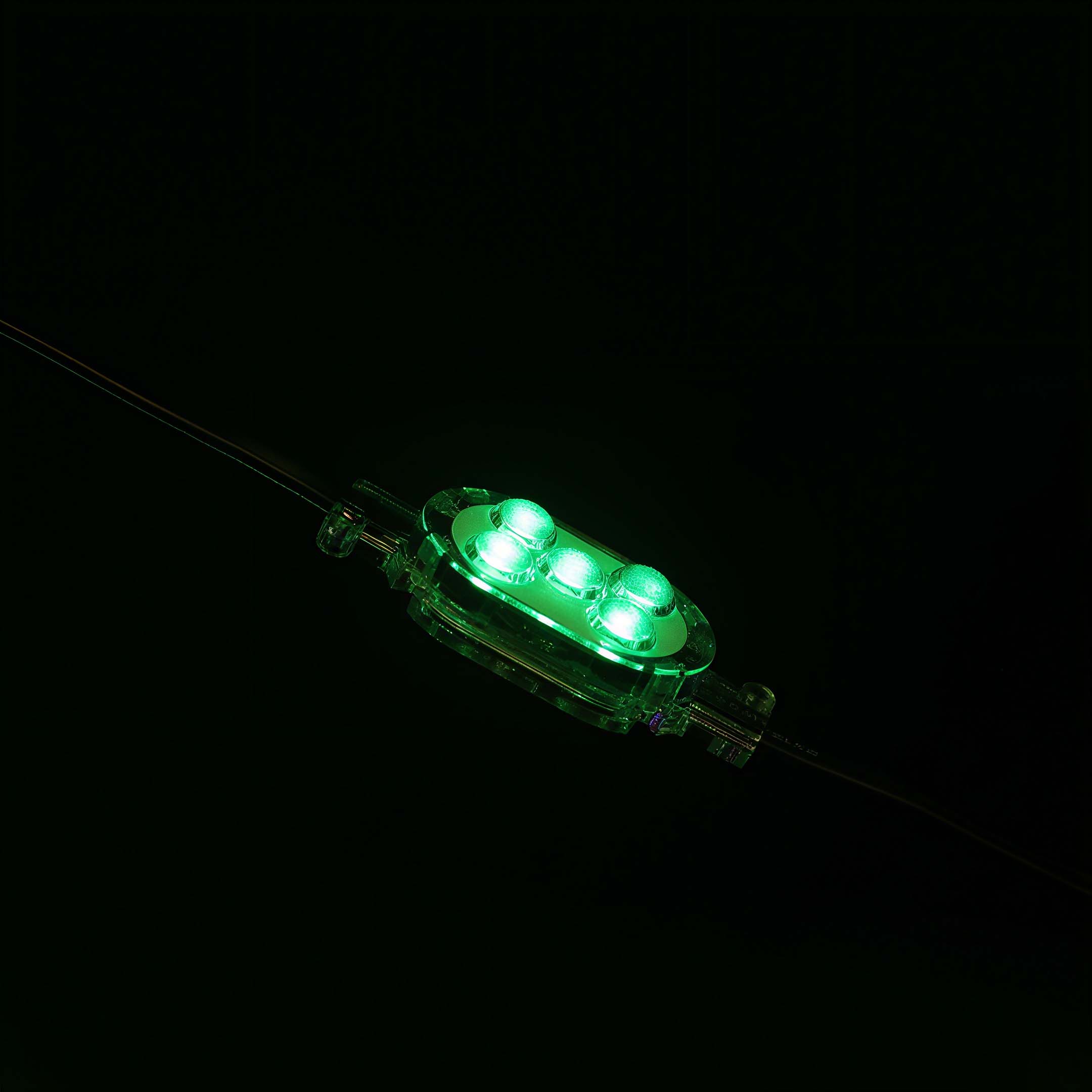

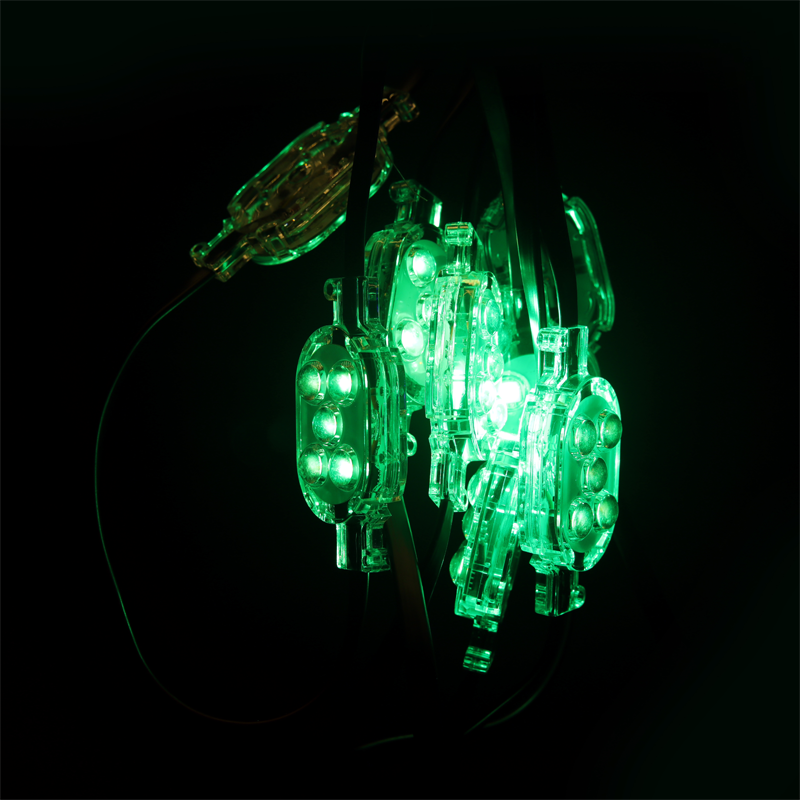

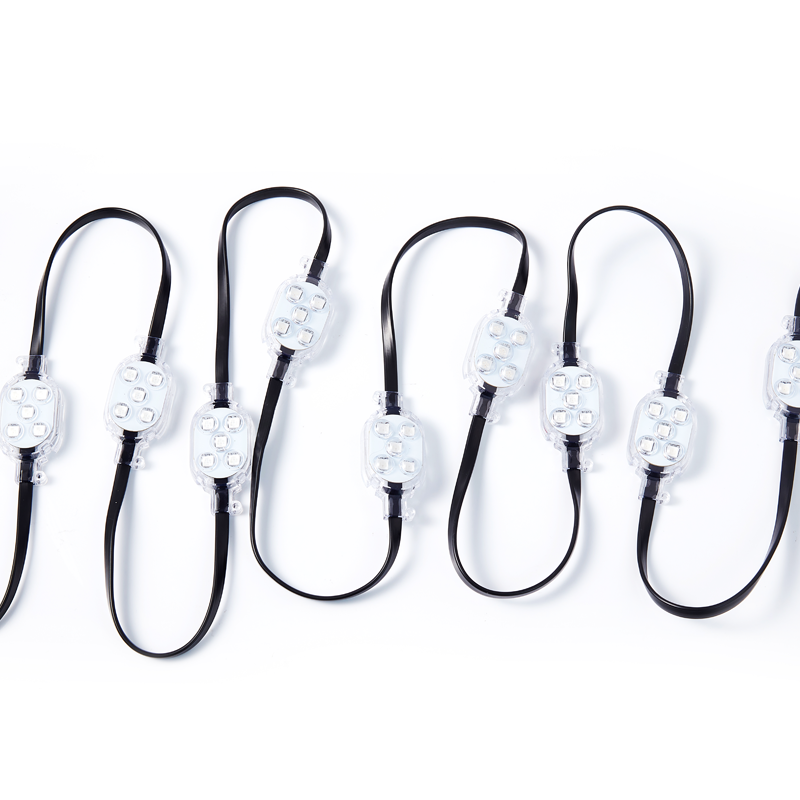

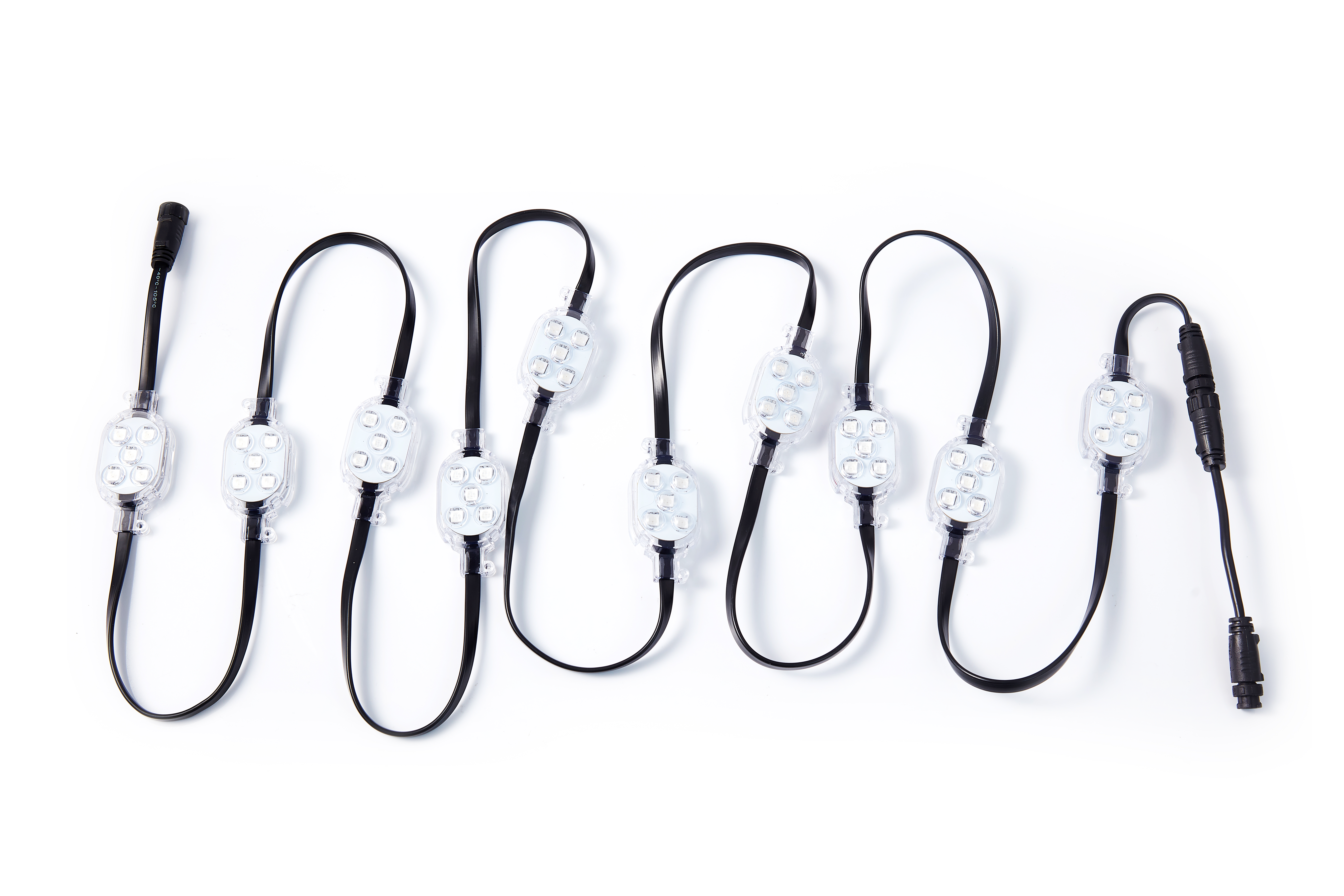

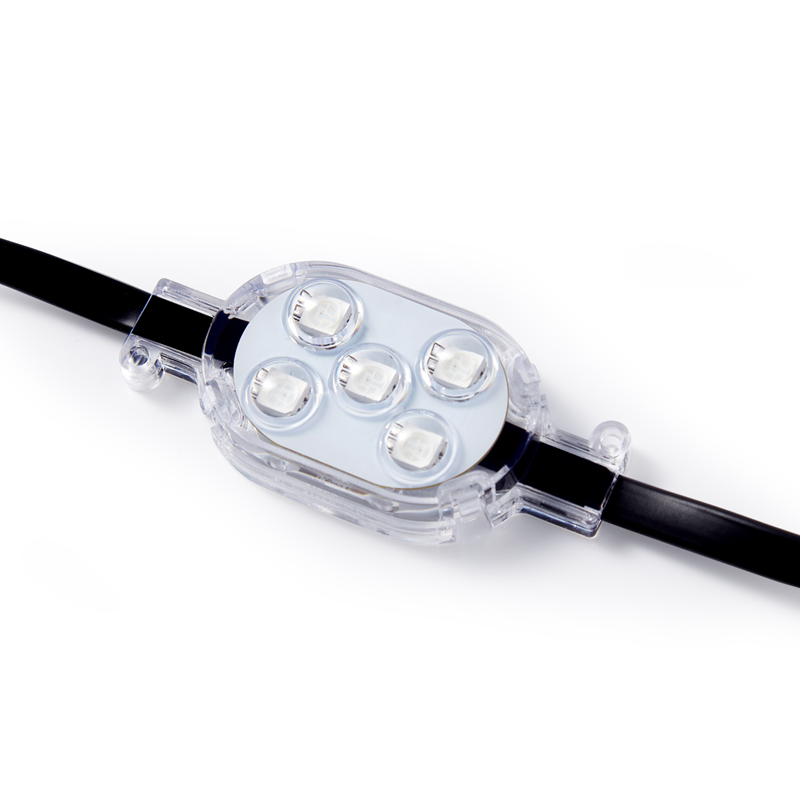

RM5535 pixel light
Rainmin
| LED Type: | |
|---|---|
| Beam Angle: | |
| Current: | |
| Power: | |
| LED Quantity: | |
| Input Voltage: | |
| LED Channels: | |
Product Name: RM5535 Pixel Light
Physical Parameters
LED Type: SMD 5050
LED Channels: R-G-B-W, R-G-B
Grey Scale: 16-bit, 65,536
LED Quantity: 5
Beam Angle: 180°
Waterproof Level: IP66, Outdoor use
Working Temperature: -25° to +60°
Electrical Parameters
Input Voltage: 24V DC
Current: 0.042 Amps
Power: 1W
Wire Type: 20 AWG, UV protected
Max Lights before power injection: 120 Lights
Max Distance before power injection: 36 Meters
Inline Power Injection: via Power T & 24V power supply
Control System
Supported Controllers: NEC & NDB / WEC / WEC BOSS / Other controls
Protocol: SPI / TTL

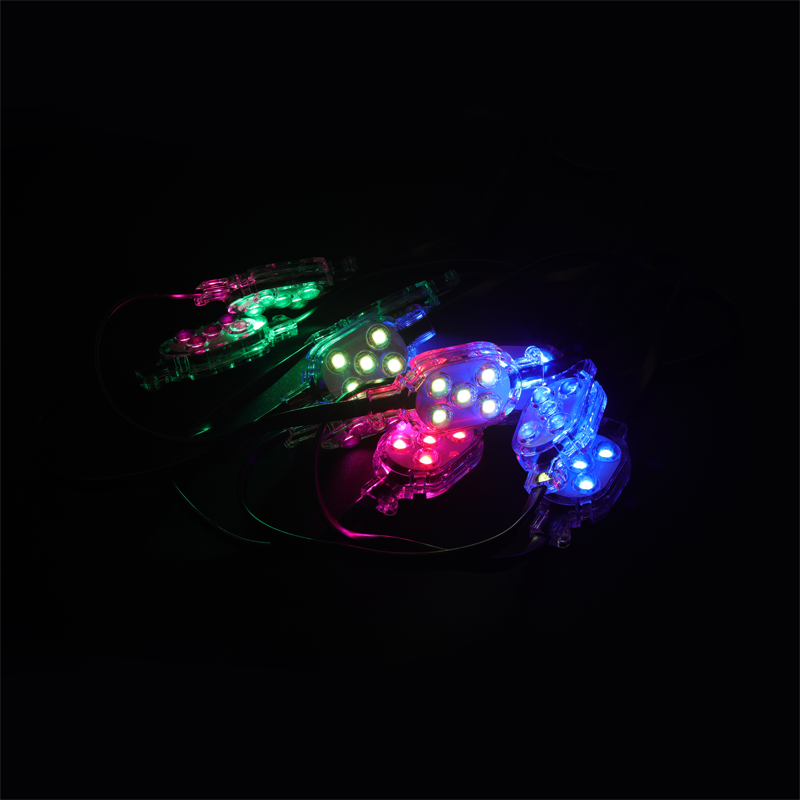

RGB & RGBW Options: Available in both RGB and RGBW for versatile lighting applications.
High-Resolution Control: 16-bit grayscale (65,536 levels) ensures ultra-smooth dimming and color transitions.
Durable & Reliable: IP66 waterproof, UV-resistant cabling, and wide operating temperature range for long-term stability.
Energy Efficient: Low power consumption with 1W per unit.
Scalable Installation: Supports up to 120 lights per run with a maximum 36m distance before power injection.
Programmable System: Compatible with SPI/TTL protocols and multiple controllers for dynamic effects.
Building facade decoration
Outdoor landscape and garden lighting
Festival and event illumination
Stage and creative media displays
Commercial signage and advertising
Over 16 years of experience in LED pixel lighting solutions
Full customization services available (design, voltage, protocol)
Strong R&D and advanced production capabilities
International quality standards and certifications
Dedicated pre-sales consultation and after-sales support
Q1: Is the RM5535 Pixel Light suitable for outdoor projects?
A1: Yes, with IP66 waterproofing and UV-resistant wiring, it is perfect for outdoor applications.
Q2: How many lights can be connected before power injection?
A2: Up to 120 lights with a maximum distance of 36 meters.
Q3: Does it support both RGB and RGBW lighting?
A3: Yes, the RM5535 is available in both RGB and RGBW versions.
Q4: Which control systems are compatible?
A4: It works with NEC, NDB, WEC, WEC BOSS, and other controllers using SPI/TTL protocol.
Q5: Can the lighting effects be customized?
A5: Absolutely, the system supports programmable effects for custom lighting shows.
