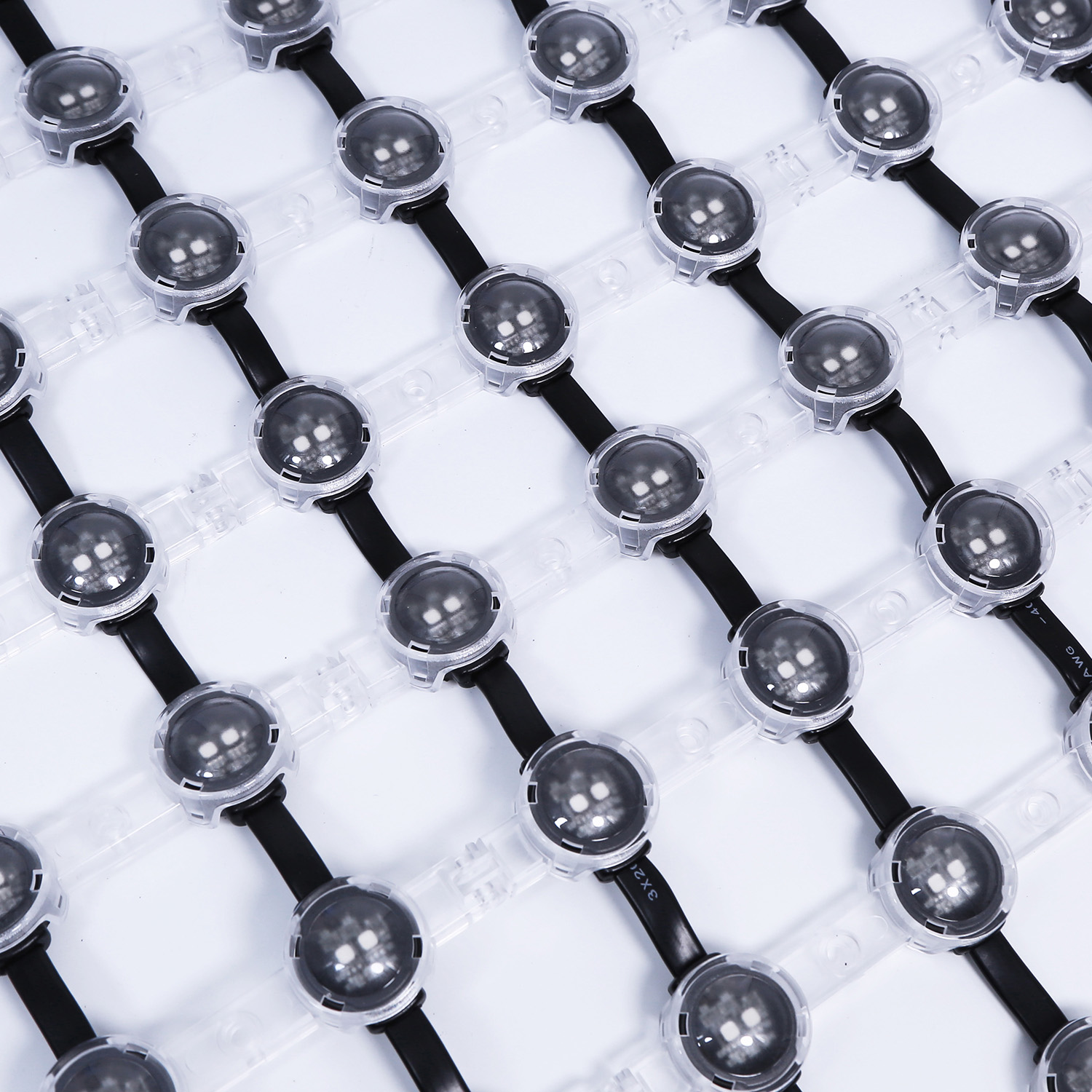

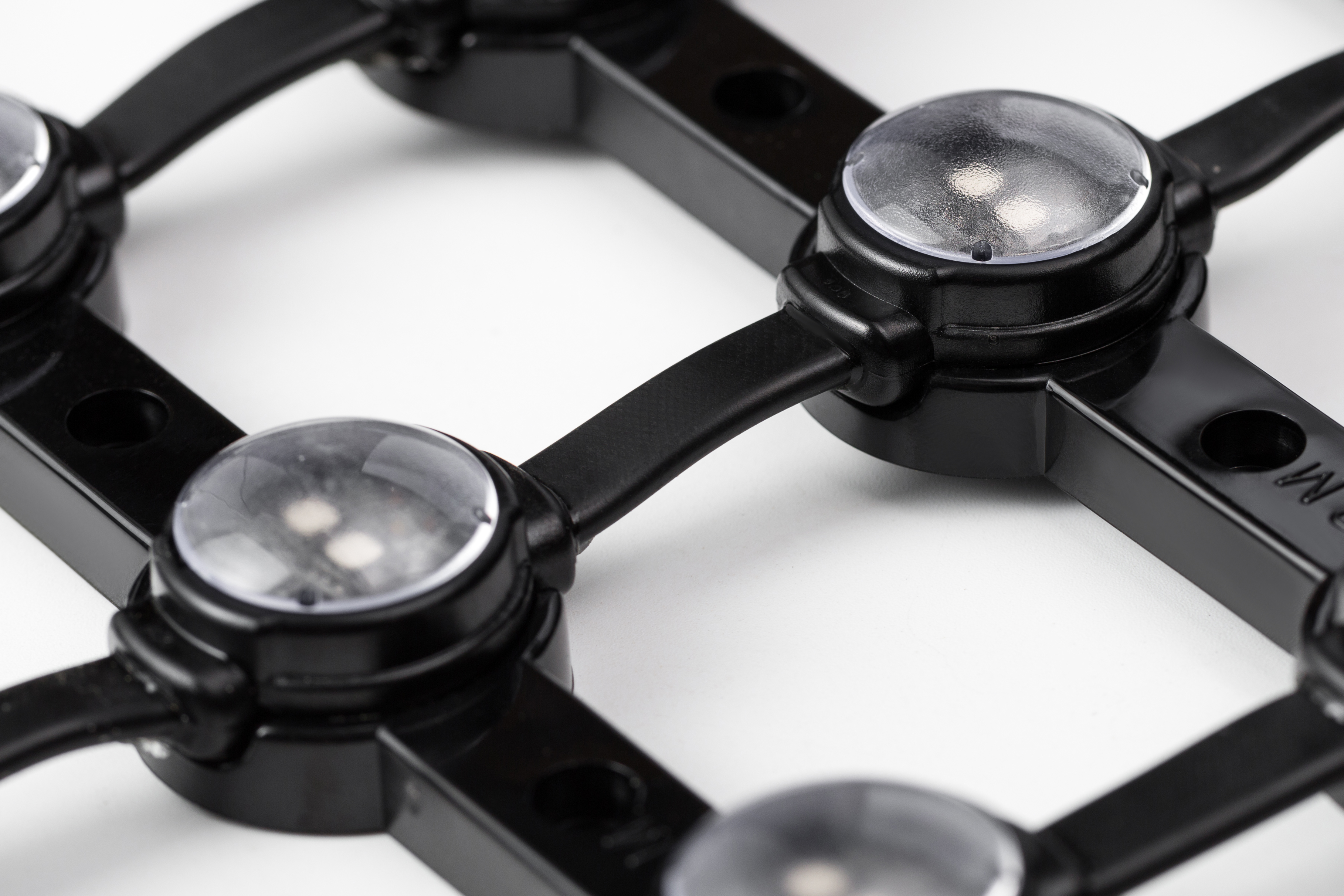

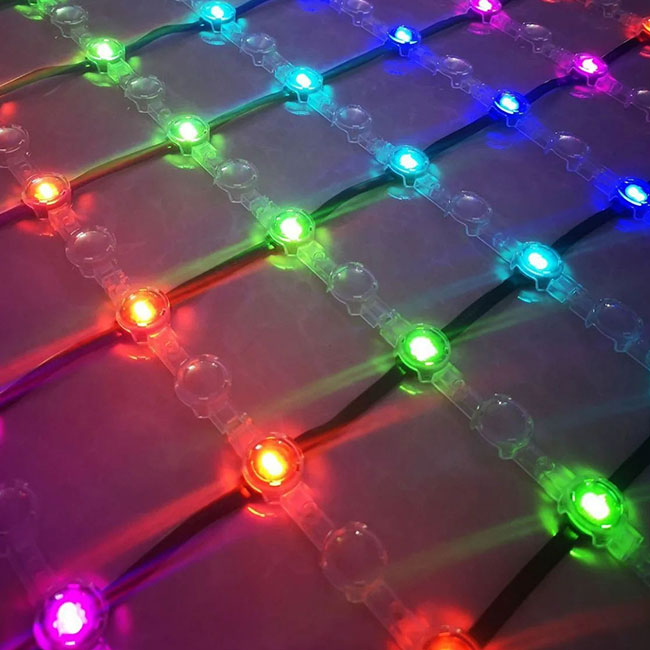

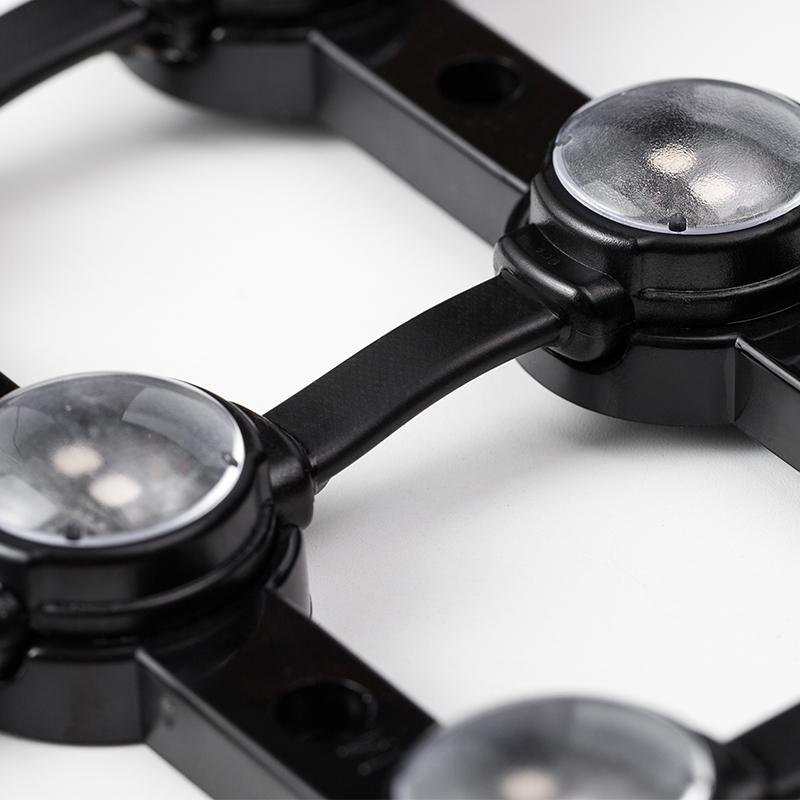

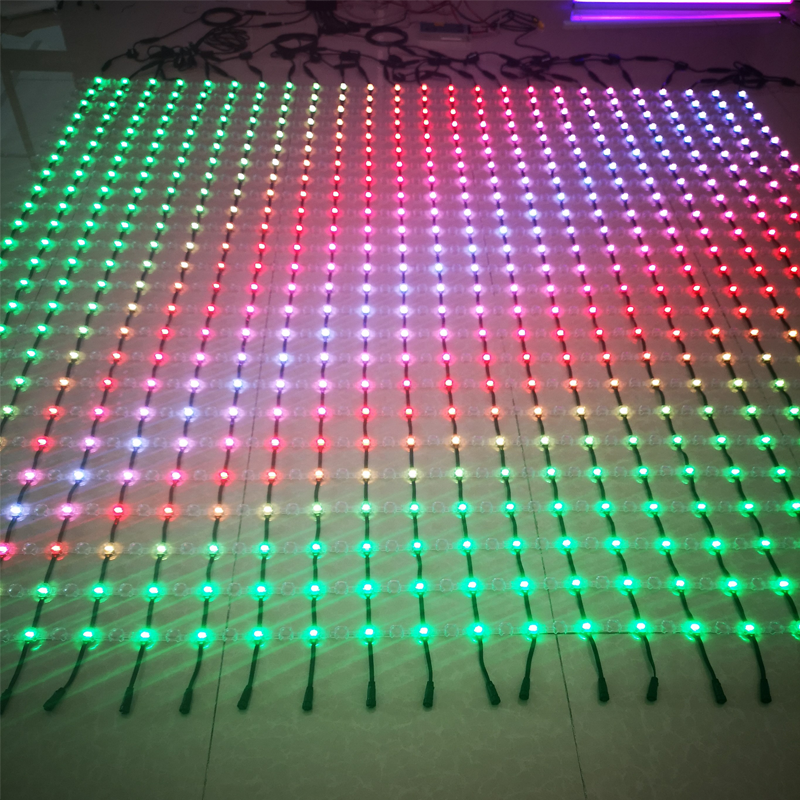

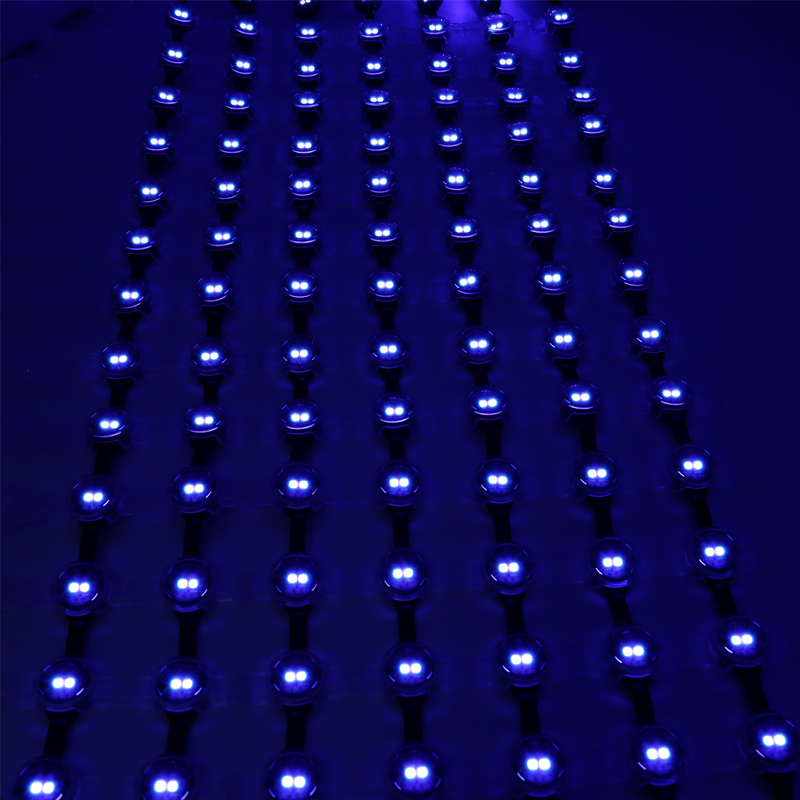

The D22 Grid Pixel Light is a flexible RGB programmable mesh display system, designed to create stunning large-scale visual effects. By connecting multiple pixel light strings into a grid structure, it enables dynamic presentations of colors, text, images, and animations. Perfect for building facades, stage backgrounds, shopping malls, exhibitions, and creative installations, this light mesh system offers limitless design possibilities.
With advanced control protocols (SPI/TTL), the D22 Grid Pixel Light is compatible with a wide range of controllers, ensuring smooth operation and vivid performance. Its durable polycarbonate housing, IP66 waterproof rating, and UV-protected wiring guarantee long-lasting performance in harsh outdoor environments.
D22
Rainmin

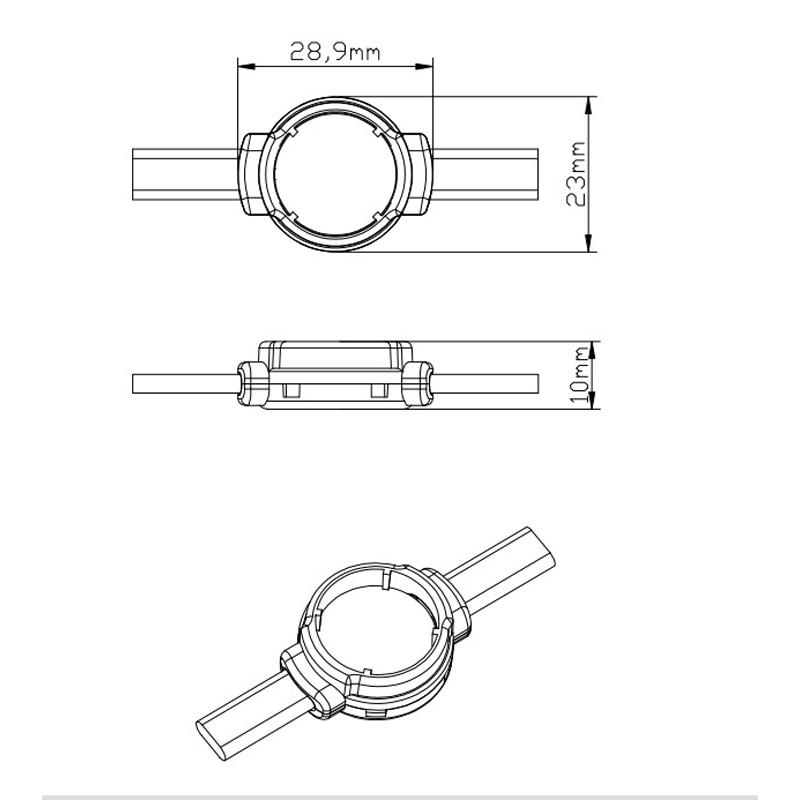

Physical Parameters:

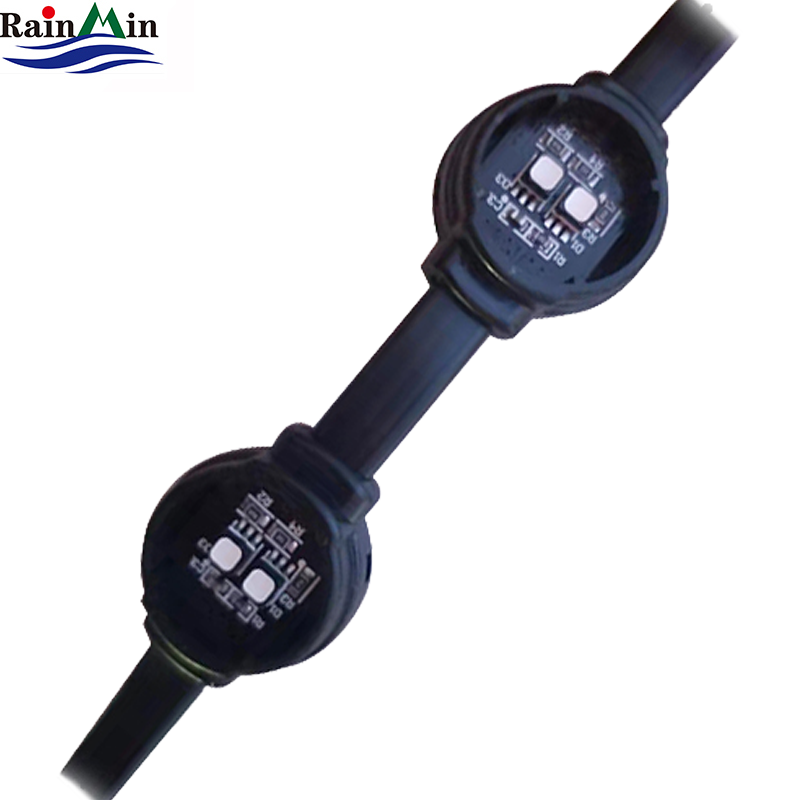

LED Type: SMD 3535
LED Channels: RGB
Grayscale: 12-bit, 4096 levels
Number of LEDs: 2 per pixel
Beam Angle: 180°
Housing Material: Polycarbonate
Waterproof Rating: IP66
Operating Temperature: -25°C to +60°C
Electrical Parameters:
Input Voltage: 12V DC
Current: 0.025 Amps
Power: 0.3W per pixel
Wire Gauge: 20 AWG, UV protected
Max Lights Before Power Injection: 125
Max Distance Before Power Injection: 30 meters
Power Supply Method: Via Power T & 12V Power Supply
Control System:
Supported Controllers: NEC, NDB, WEC, WEC BOSS, and others
Protocol: SPI/TTL
Dynamic Visual Display – Supports text, logos, animations, and full-color effects.
Flexible Modular Design – Easily customized into different grid sizes and shapes.
High Durability – Polycarbonate housing and IP66 waterproof performance.
Energy Efficient – Low voltage 12V DC, safe and cost-effective.
Programmable System – Compatible with multiple controllers and software.
Plug-and-Play Installation – Quick setup and easy maintenance.
Building facades & architectural lighting

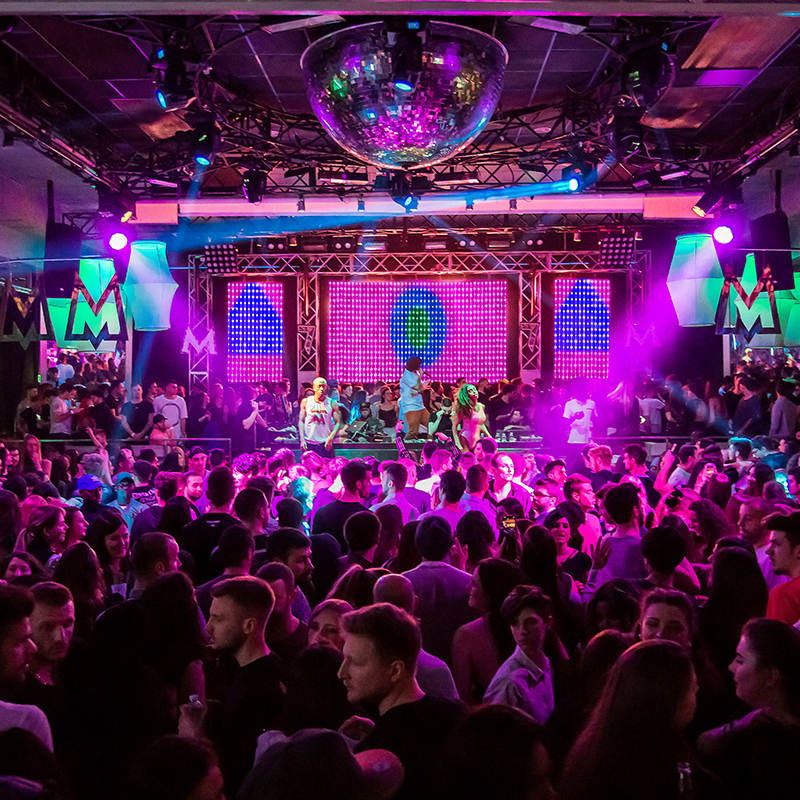

Stage & concert background displays
Shopping mall advertising screens
Exhibition & trade show decoration
Theme parks & creative installations
Q1: What makes the D22 Grid Pixel Light different from traditional LED displays?
A1: Unlike standard LED panels, the Grid Pixel Light forms a mesh screen with flexible pixel spacing, making it lightweight, customizable, and suitable for irregular surfaces.
Q2: Can the lights display text and animations?
A2: Yes, when connected as a grid, the pixel lights can display scrolling text, patterns, images, and dynamic effects with SPI/TTL programmable controllers.
Q3: Is this product suitable for outdoor use?
A3: Absolutely. With an IP66 waterproof rating and UV-protected wiring, it is built to withstand outdoor weather conditions.
Q4: How do I control the lighting effects?
A4: The product supports NEC, NDB, WEC, and WEC BOSS controllers, compatible with SPI/TTL protocols, allowing easy integration with existing lighting control systems.
Q5: What projects are best for Grid Pixel Lights?
A5: They are ideal for large-scale applications such as architectural facades, building decoration, concert stages, theme parks, and city landmarks.
Rainmin – Lighting Innovation Through Customizable Pixel Systems
With 16+ years of specialization in RGB programmable pixel lighting, Rainmin is your trusted partner for creative and customizable lighting solutions. Unlike traditional LED manufacturers, we offer a complete plug-and-play ecosystem – from Pixel Lights, Pebble Lights, Wall Washers, Linear Lights, Strip Lights, Tubes, Grip Pixel Lights, to Floodlights, all programmable through our advanced LightShow Pro software.
What sets us apart?
Programmable Brilliance – Transform static lights into dynamic experiences with real-time effects synced to music or custom designs.
Custom Solutions – Tailor-made products and system integration for projects of all scales.
Durability & Safety – IP65/IP66 waterproof, low-voltage safe, and long lifespan.
Global Expertise – Proven track record in architecture, landscape, and event lighting worldwide.
From energy-efficient strips to complete architectural lighting shows, Rainmin empowers clients to reimagine any space with immersive visual impact.
✨ Choose Rainmin – where customization meets technology, and lighting becomes an unforgettable experience.
Anti-UV Material
Easy for installation
Good waterproof
Customized length&light number
12VDC - Safe low DC voltage which is perfect for public spaces and commercial applications
IP67 - Can be used outdoors or indoors, temporary or permanently.
UV Rated - High-quality materials are used to withstand the harsh sun for many years.
RGB LED - A Red, Green and Blue LED are combined in the same package allowing the creations of millions of colours.
48 Bit Digital Processing - 16 Bit per colour allowing for millions of colour combinations.
1KHZ Refresh Rate - High refresh rate allowing for broadcast-quality recording without flicker effects.
Quick Connect Plug - Fast 1/2 turn weatherproof connector allowing for dramatically reduced installation and dismantle times.
Knowledge & Experience - We know our products and we can help you make the best use of our lighting and control systems for maximum impact.
Plug and Play Options - We work with you to offer complete plug and play solutions, programmed with installation instructions based on your customized needs.
