Waterproof Rating: IP66 (Full outdoor protection)
Dual Voltage Options: 24V DC & 36V DC versions available
LED Choices: SMD3535 RGB & SMD5050 RGBW configurations
Extended Distance: Up to 90 meters without power injection
Grayscale: 12-bit (4,096 color transitions)
Material: Polycarbonate housing (Impact resistant)
Power Consumption: 0.35W per light (Energy efficient)
Wire Quality: 4x20# AWG UV protected
Customization: Full OEM/ODM support
Applications: Landscape, architectural, pathway lighting

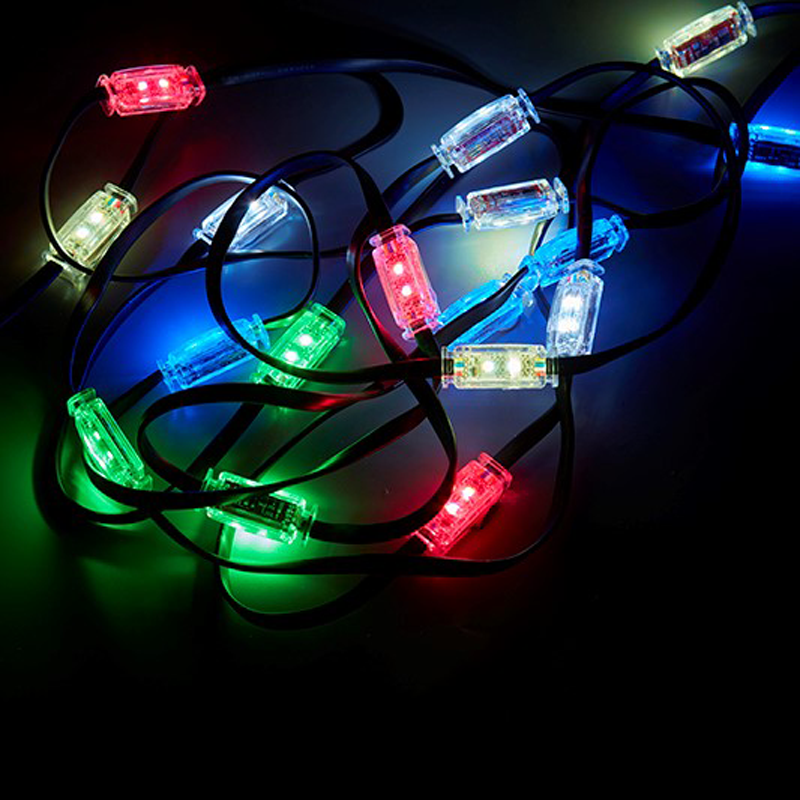

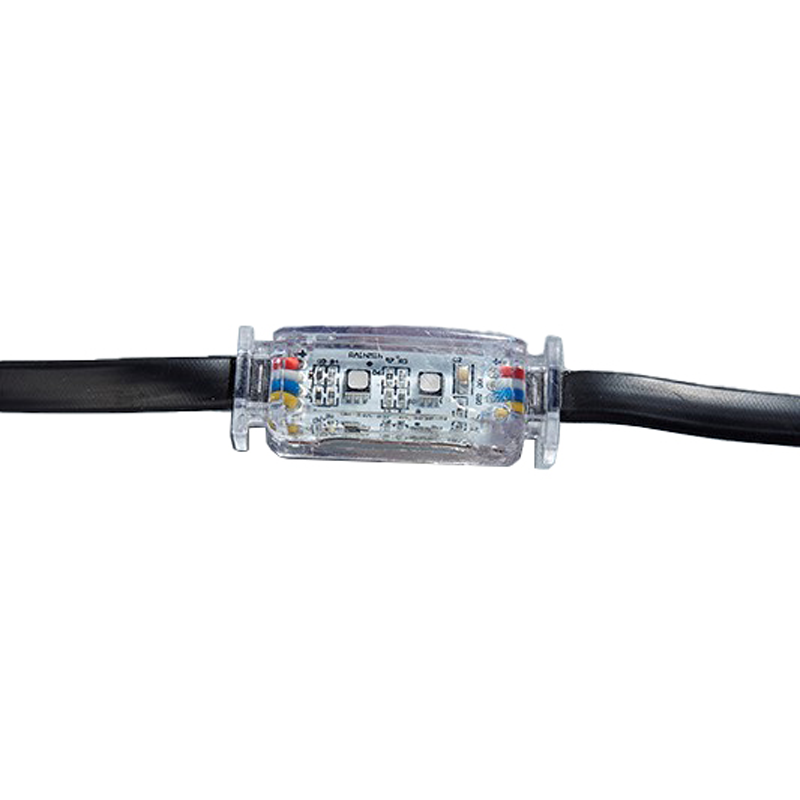

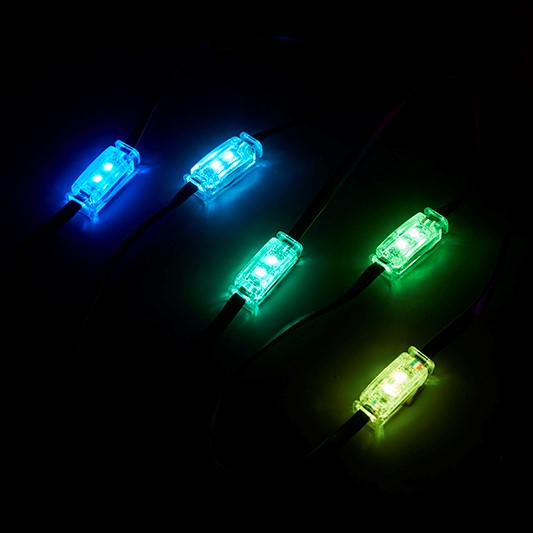

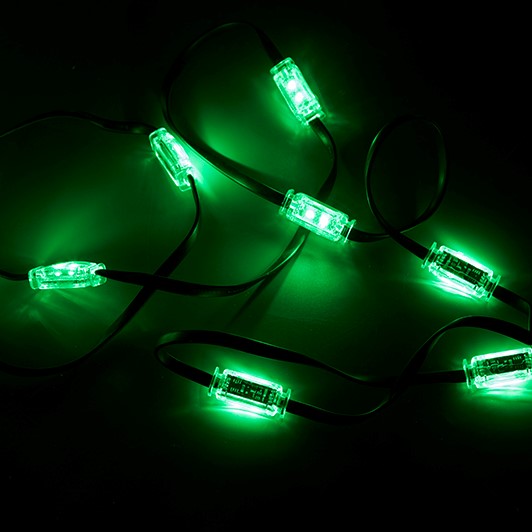

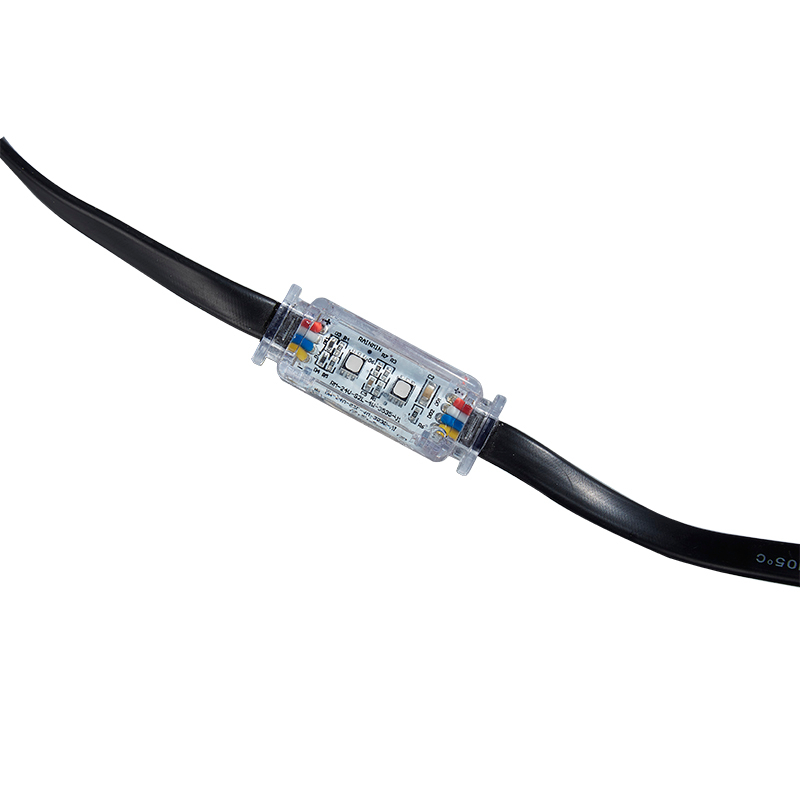

P50T Pebble Light
RAINMIN
| LED Type: | |
|---|---|
| Chip/Meter: | |
| LED Quantity: | |
| Current: | |
| Beam Angle: | |
| Crust Material: | |
| Grey Scale: | |

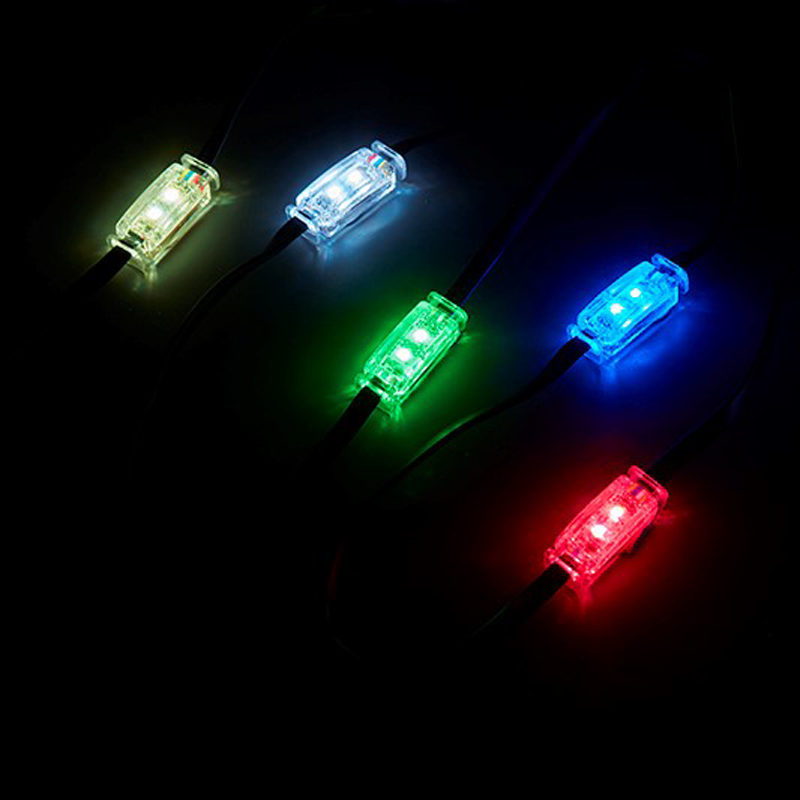

Rainmin's P50T Pebble Light offers unparalleled flexibility with dual voltage options and multiple LED configurations. Choose between the SMD3535 RGB version (24V DC) for vibrant color effects or the SMD5050 RGBW version (36V DC) that adds pure white illumination to your palette. Featuring extended run capabilities up to 90 meters without power injection and IP66-rated polycarbonate construction, these low-profile lights deliver professional performance in any outdoor environment. With 12-bit color processing and compatibility with major control systems, the P50T series provides landscape designers and architects with reliable, customizable lighting solutions for permanent installations.
Dual Voltage Flexibility: 24V DC and 36V DC options for different project requirements
Advanced LED Options: SMD3535 RGB for colors or SMD5050 RGBW for color + white
Extended Run Capability: Up to 90 meters without power injection (36V version)
Weatherproof Design: IP66 rating with UV-protected wiring for outdoor durability
Polycarbonate Construction: Impact-resistant housing for long-term performance
Professional Grade: 12-bit color processing with smooth transitions

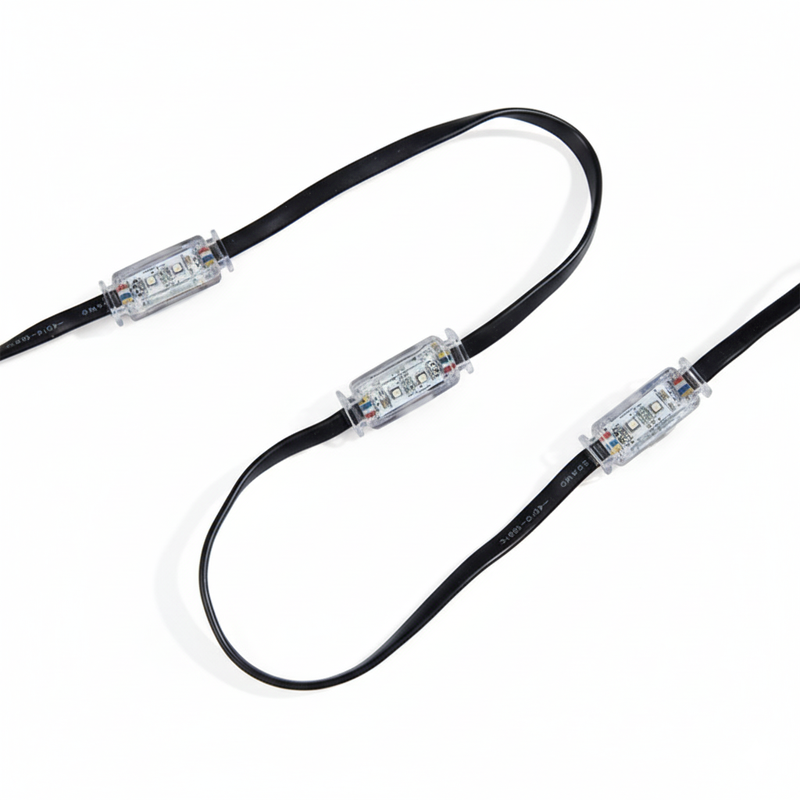

Easy Installation: Daisy-chain connectivity with extended distance coverage
Customizable: Available in various configurations and custom options
| Parameter | SMD3535 RGB Version | SMD5050 RGBW Version |
|---|---|---|
| LED Type | SMD3535 RGB | SMD5050 RGBW |
| Input Voltage | 24V DC | 36V DC |
| Current Consumption | 0.014A per light | 0.01A per light |
| Power Consumption | 0.35W per light | 0.35W per light |
| Max Distance Before Injection | 60 meters | 90 meters |
| Color Channels | RGB | RGBW |
| Grayscale | 12-bit (4,096 levels) | 12-bit (4,096 levels) |
| LED Quantity | 2 LEDs | 2 LEDs |
| Beam Angle | 180-degree | 180-degree |
| Waterproof Rating | IP66 | IP66 |
| Operating Temperature | -25°C to +60°C | -25°C to +60°C |
| Housing Material | Polycarbonate | Polycarbonate |
| Wire Type | 4x20# AWG UV protected | 4x20# AWG UV protected |
Landscape Pathway Lighting: Garden walks and driveway illumination

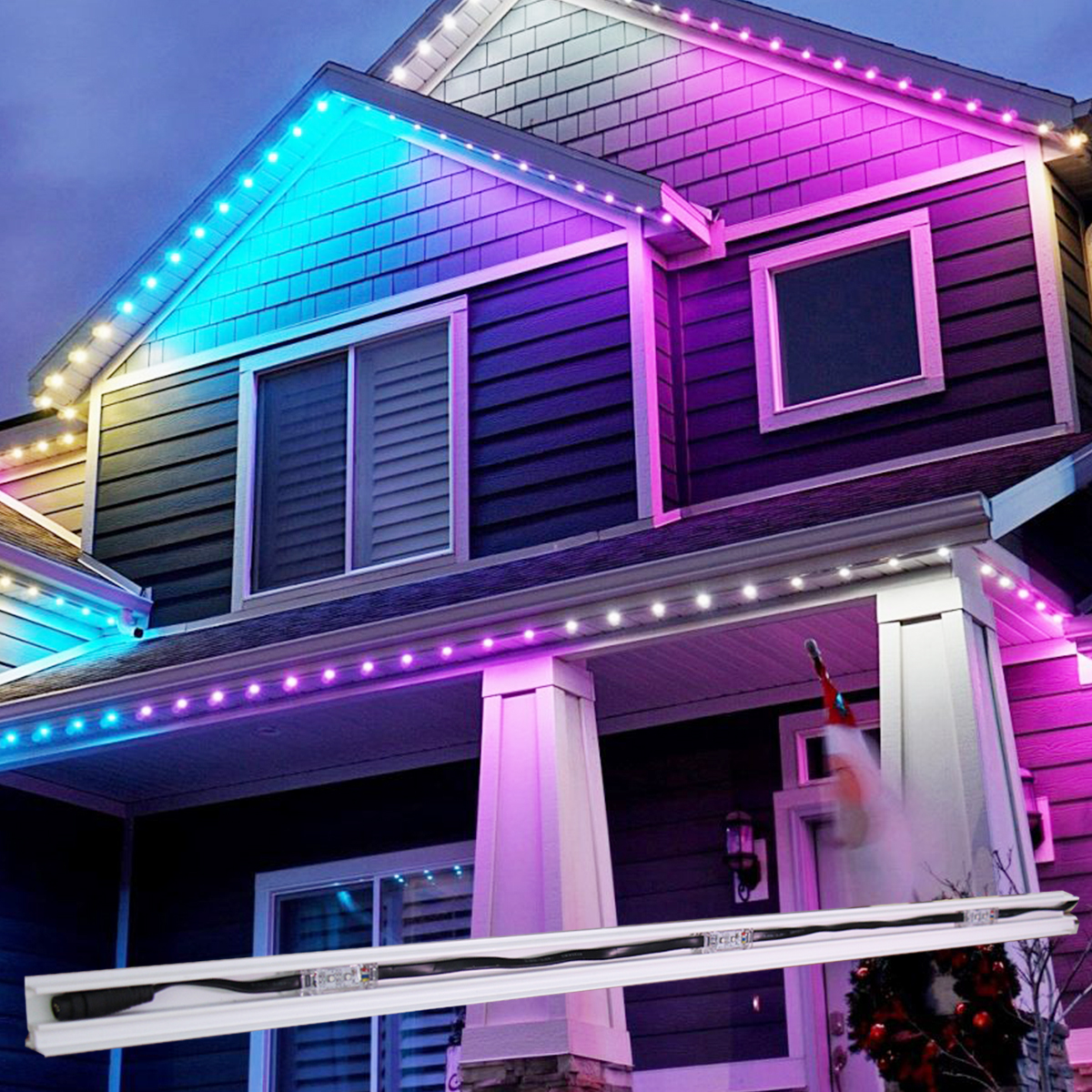

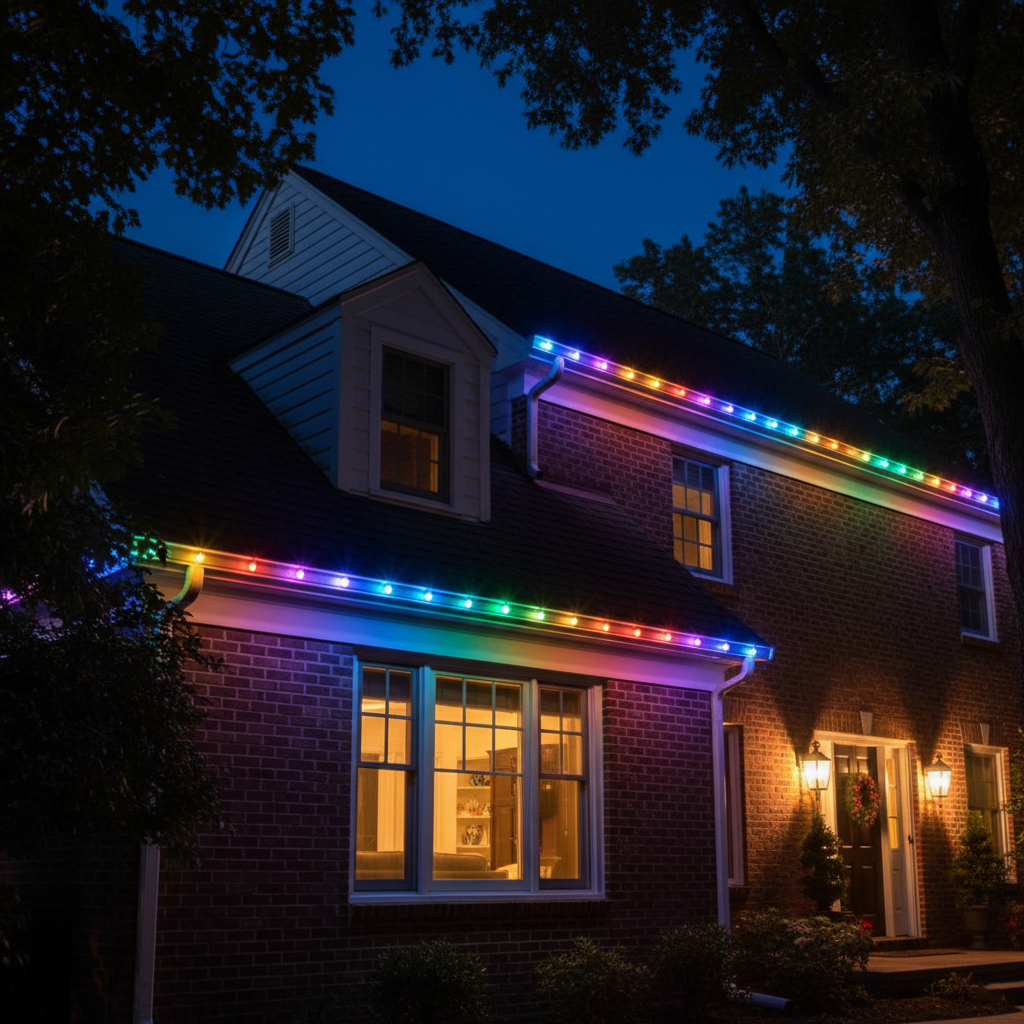

Architectural Accent Lighting: Building perimeters and feature highlighting
Commercial Landscape Design: Hotel and resort outdoor lighting
Public Space Illumination: Parks and municipal area lighting
Residential Garden Lighting: Backyard and patio ambiance creation
Historical Site Lighting: Gentle illumination of heritage locations
Water Feature Lighting: Pond and fountain enhancement
Rainmin Lighting: Expert in Professional Outdoor Lighting Solutions
With 16+ years of specialized manufacturing experience, Rainmin provides:
Custom voltage and configuration options
Specialized optical design services
Custom firmware development
International certification support
Technical guidance for large projects
Competitive OEM pricing
Q: What's the main difference between the two versions?
A: The SMD3535 version operates at 24V DC for RGB colors, while the SMD5050 version runs at 36V DC with RGBW including white light
Q: Which version offers longer distance without injection?
A: The 36V DC RGBW version supports up to 90 meters versus 60 meters for the 24V version
Q: Can these lights be used in extreme weather?
A: Yes, the IP66 rating ensures protection against heavy rain, dust, and temperature extremes
Q: What controllers are compatible?
A: Compatible with most SPI/TTL controllers including NEC and WEC systems
Q: Do you offer custom housing colors?
A: Yes, we can match specific color requirements for seamless landscape integration
With over 16 years of specialized expertise in outdoor and architectural lighting, Rainmin has established itself as a leading manufacturer for landscape designers, architects, and OEM clients worldwide. We combine technical innovation with practical design to create lighting solutions that enhance outdoor spaces while standing up to environmental challenges.
Our Custom Capabilities:
• Complete product customization: voltage options, housing designs, optical configurations
• Specialized firmware for unique lighting sequences
• Custom engineering for specific environmental requirements
• International certification support (CE, ROHS, UL)
• Large-scale production capacity with consistent quality
Technical Expertise:
Dual voltage system design
Weather-resistant material engineering
Advanced optical design
Professional control system integration
Installation and technical support
Partner Benefits:
• Custom product development from concept to installation
• Competitive OEM pricing for volume projects
• Technical documentation and certification support
• Global logistics and supply chain management
• Dedicated technical support team
Rainmin - Innovative Lighting Solutions for Professional Applications
