Waterproof Rating: IP66 (Full protection against dust and water jets)
Input Voltage: 24V DC (Low-voltage safe operation)
LED Type: High-intensity SMD 3535 RGB
Beam Angle: 180-degree wide illumination
Power Consumption: 0.6W per node (Energy-efficient)
Control Protocol: SPI/TTL compatible
Max Distance: 225 feet before power injection
Customization: OEM/ODM available
Min Order: Small quantities accepted
Applications: Architectural, landscape, event lighting

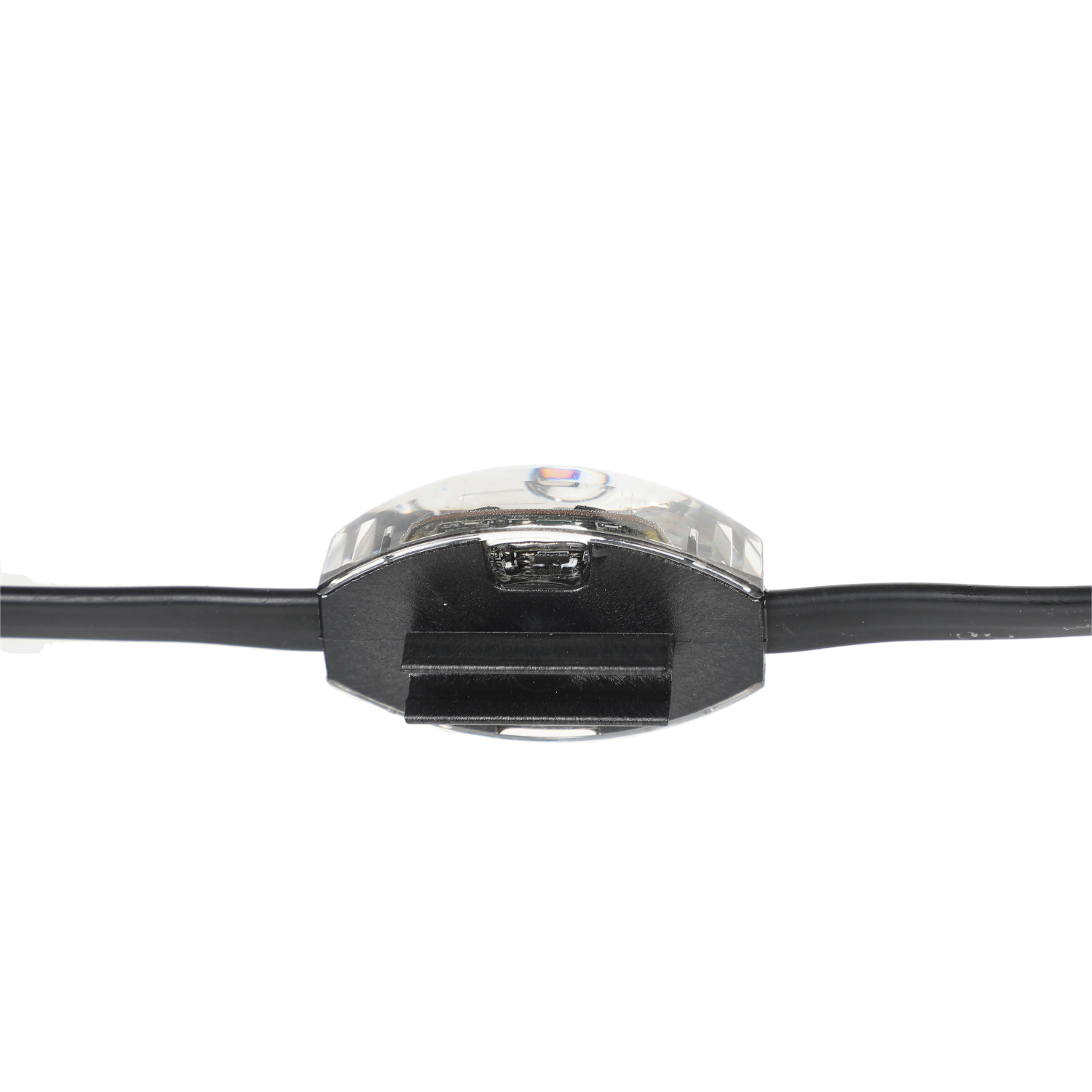

P50 Pebble Light
RAINMIN
| LED Channels: | |
|---|---|
| LED Type: | |
| LED Quantity: | |
| Bean Angle: | |
| Current: | |
| Power: | |
| voltage: | |

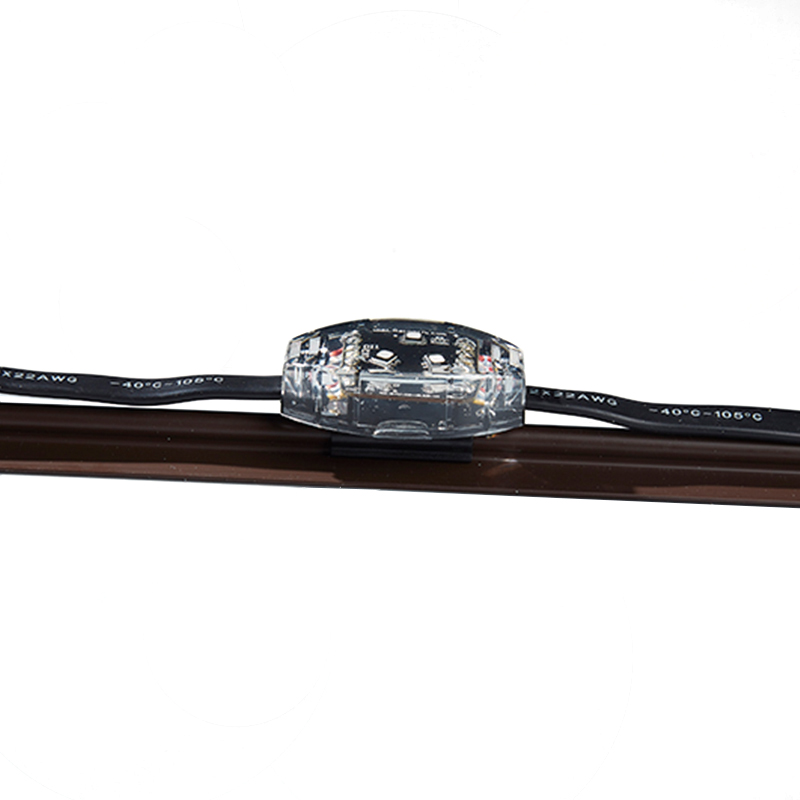

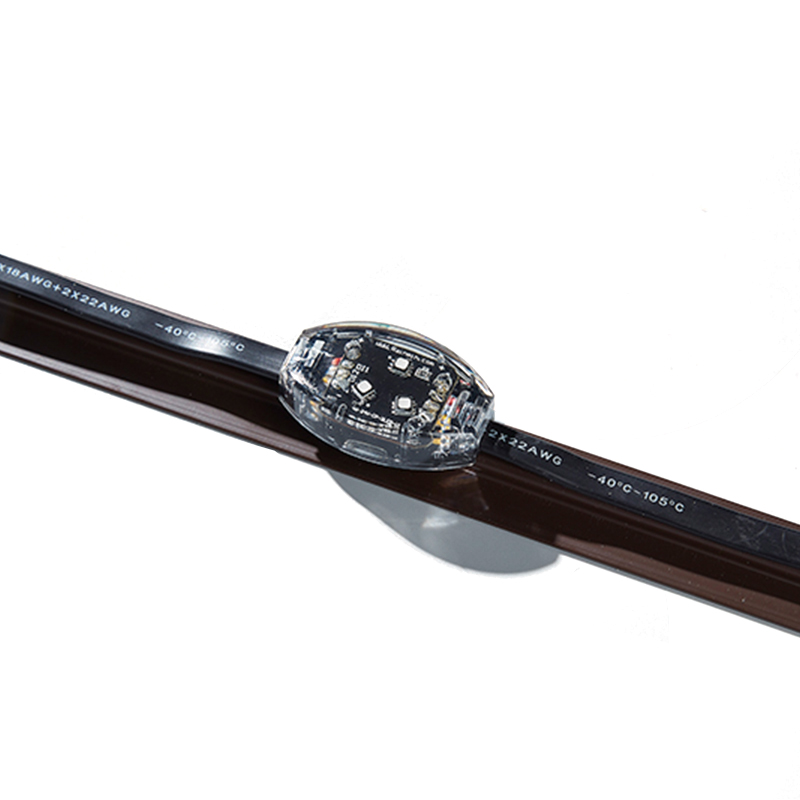

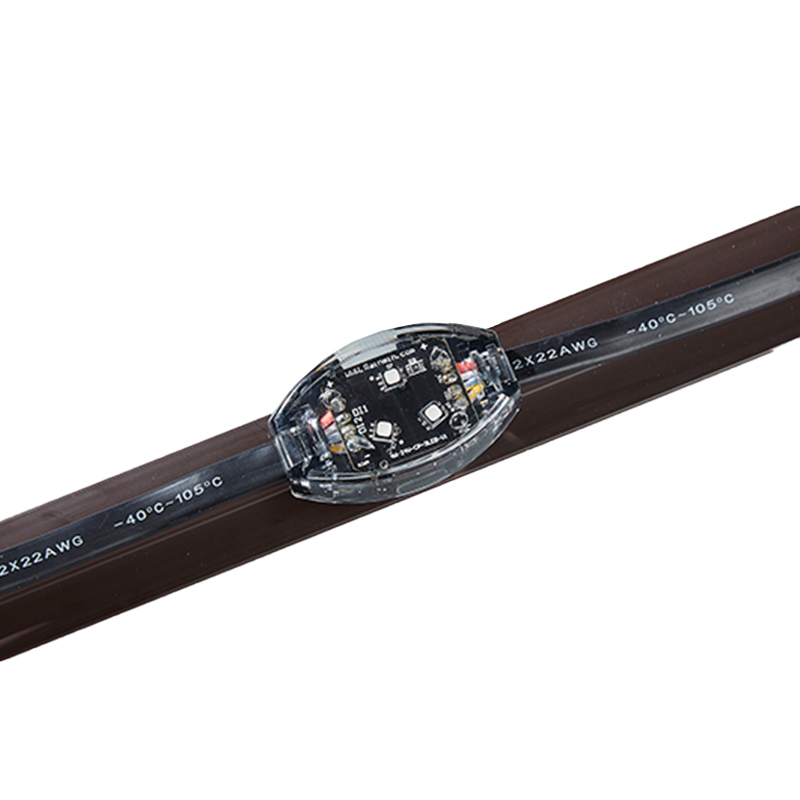

The Rainmin P50 Pearl Light represents the pinnacle of pixel lighting technology, combining advanced SMD 3535 LEDs with robust IP66 protection for professional outdoor applications. Engineered for seamless integration with major control systems, this high-density pixel node delivers vibrant, consistent lighting performance in the most demanding environments. Backed by Rainmin's 16 years of manufacturing expertise, the P50 offers unparalleled customization options from firmware to housing design, making it the ideal choice for architects, lighting designers, and OEM partners seeking reliable, high-performance lighting solutions.
Advanced SMD 3535 LEDs: Superior brightness and color consistency
IP66 Protection: Complete weather resistance for outdoor durability
Wide Compatibility: Works with NEC, WEC and other major controllers
Energy Efficient: Low 0.6W power consumption per node
Customizable: Tailored solutions for specific project requirements
Easy Installation: 225-foot maximum distance before power injection
180-Degree Beam: Wide, uniform illumination coverage
Quality Construction: Robust materials ensure long lifespan
| Parameter | Specification |
|---|---|
| Model Number | P50 Pearl Light |
| LED Type | SMD 3535 RGB |
| LED Quantity | 3 LEDs per node |
| Beam Angle | 180-degree |
| Waterproof Rating | IP66 |
| Operating Temperature | -25°C to +60°C |
| Input Voltage | 24V DC |
| Current Consumption | 25mA per node |
| Power Consumption | 0.6W per node |
| Maximum Distance | 225 feet (before power injection) |
| Protocol Support | SPI/TTL |
| Compatible Controllers | NEC, WEC, WEC BOSS |
Architectural Lighting: Building outlines and facades
Landscape Illumination: Gardens and public spaces
Event Production: Stage and concert lighting
Commercial Displays: Retail and advertising applications
Theme Parks: Entertainment and immersive experiences
Public Art: Interactive installations and displays
Rainmin Lighting: Your Partner in Advanced Pixel Technology
With over 16 years of specialized expertise, Rainmin provides comprehensive lighting solutions from concept to completion. Our technical capabilities include:
Custom firmware development and system integration
Complete ODM/OEM services with custom configurations
Rigorous quality testing and international certification support
Global project experience with diverse requirements
Technical support throughout project lifecycle
Q: What controllers are compatible with the P50?
A: The P50 is compatible with NEC, WEC, and other SPI/TTL-based control systems.
Q: Can you customize the LED density?
A: Yes, we offer complete customization of LED configuration and spacing.
Q: Is the P50 suitable for permanent outdoor use?
A: Absolutely. The IP66 rating ensures protection against harsh weather conditions.
Q: What is the maximum installation distance?
A: Up to 225 feet between power injection points under standard conditions.
Q: Do you provide technical support?
A: Yes, our engineering team offers comprehensive technical support.
