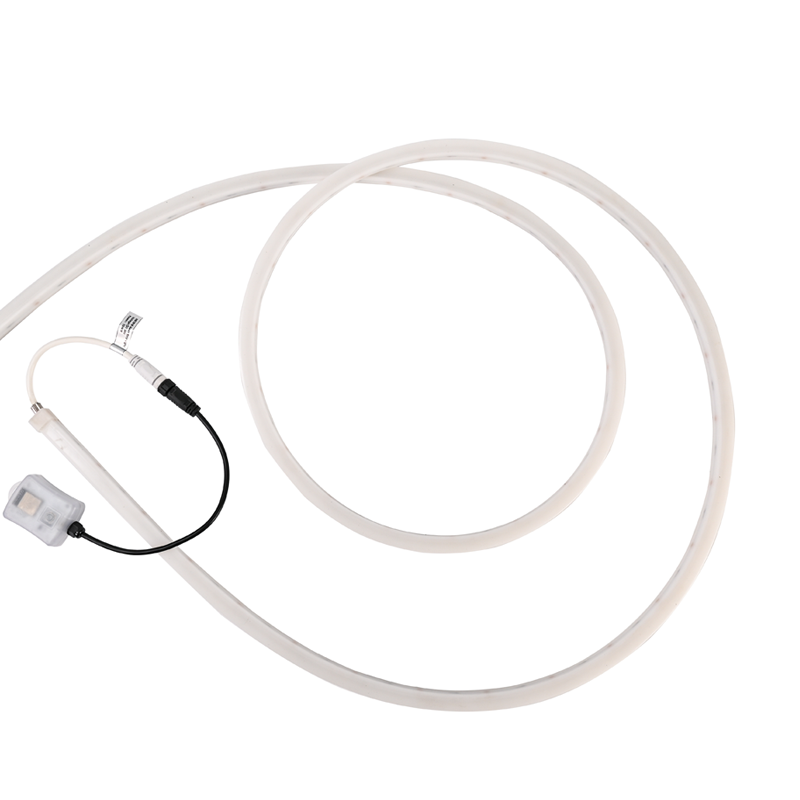

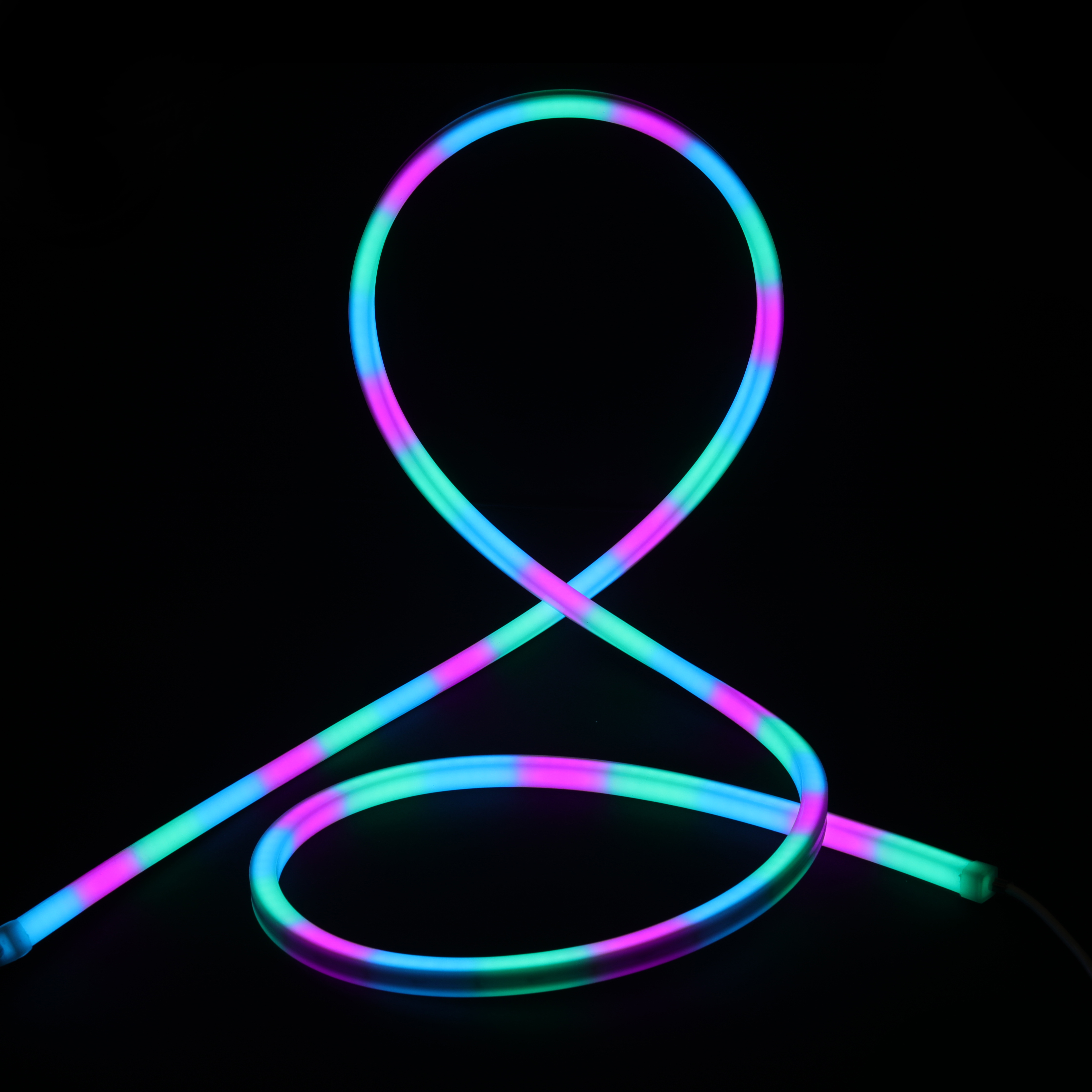

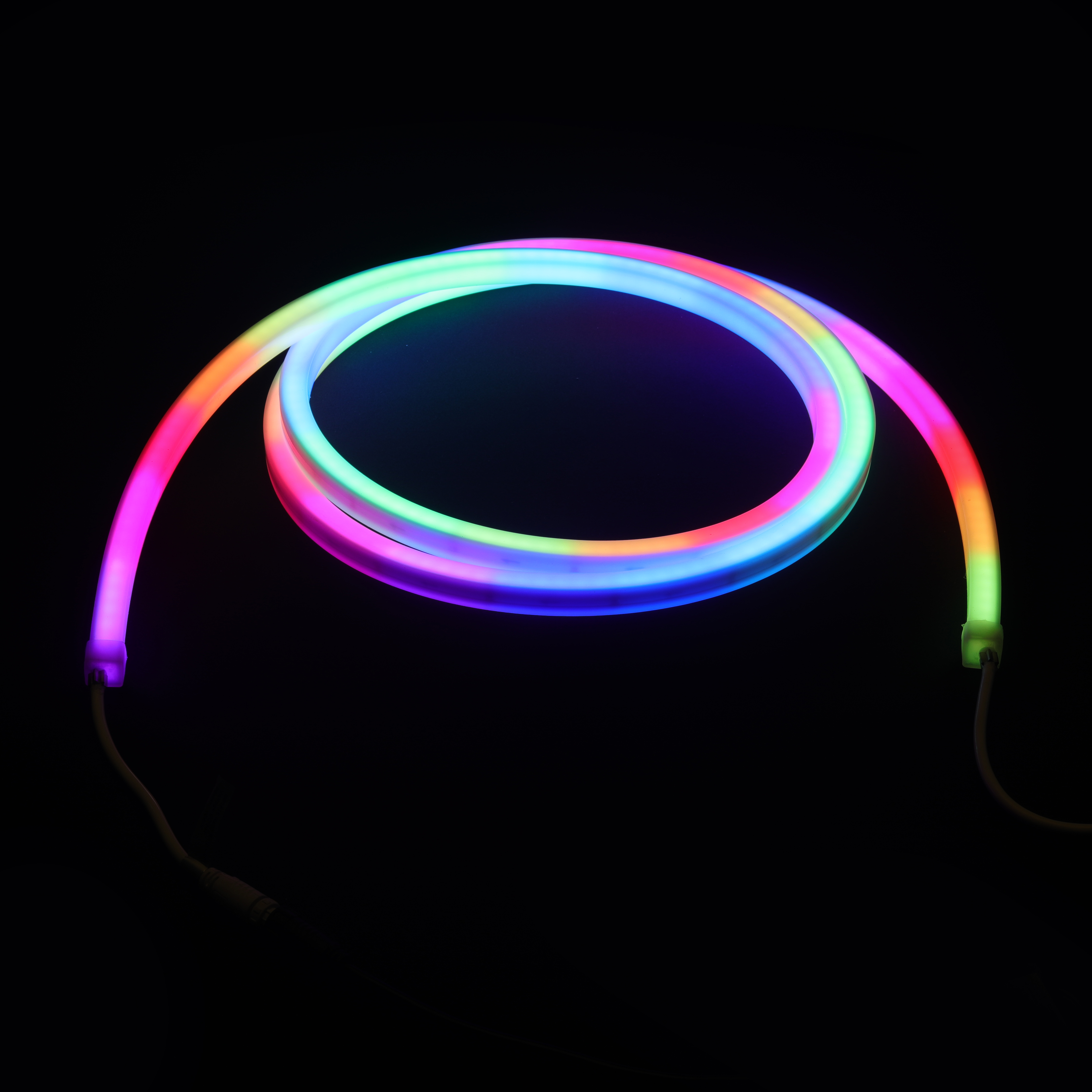

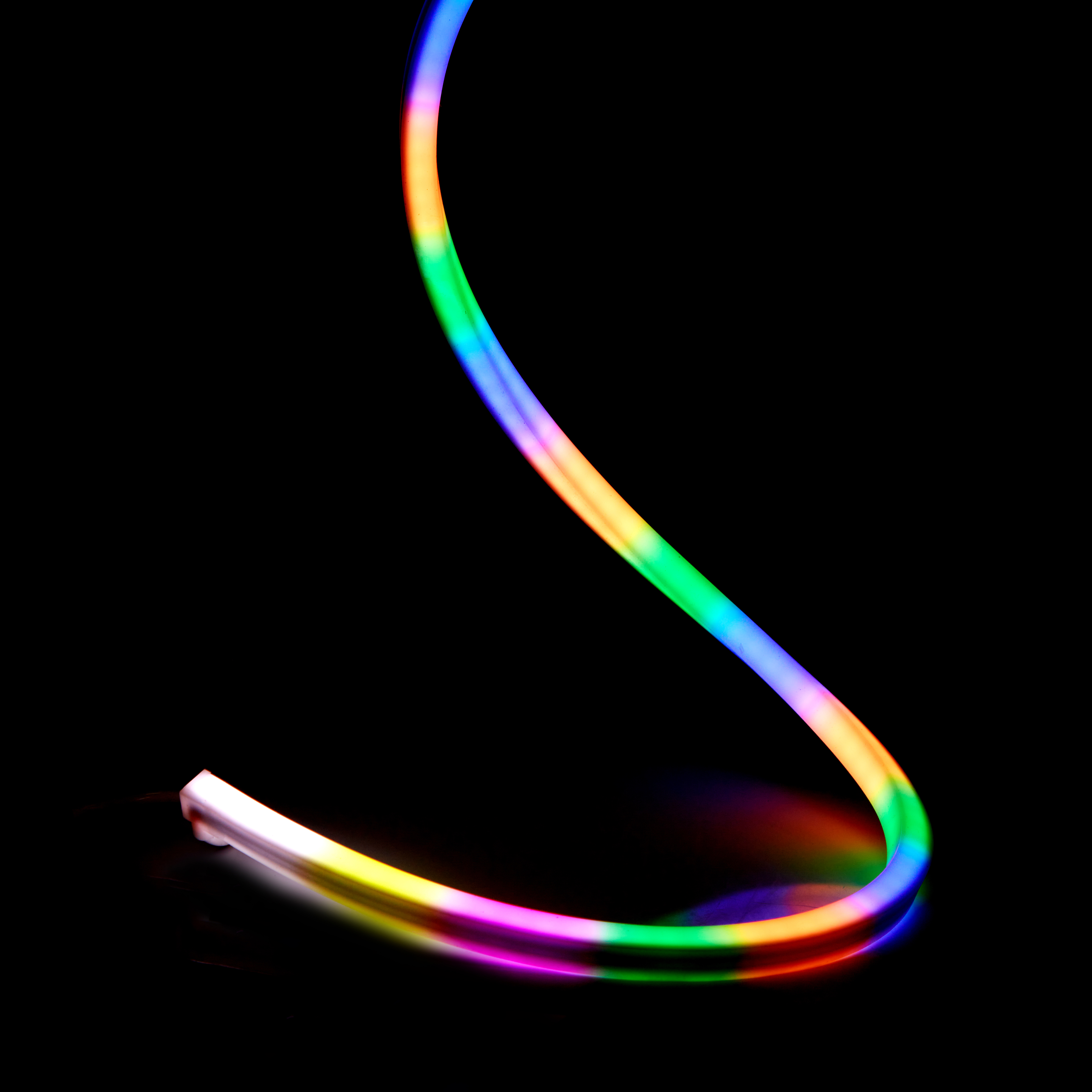

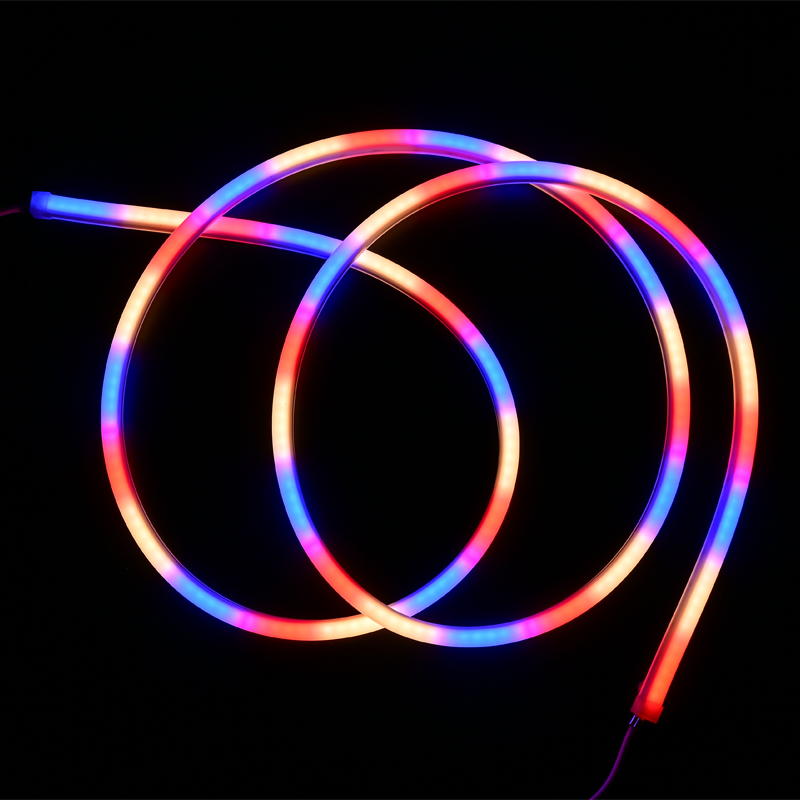

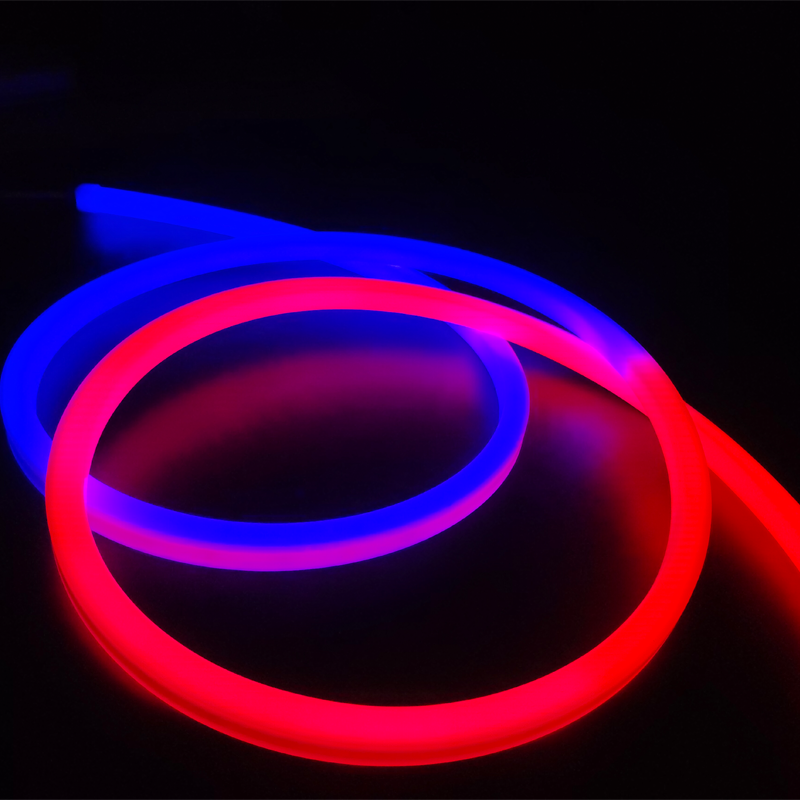

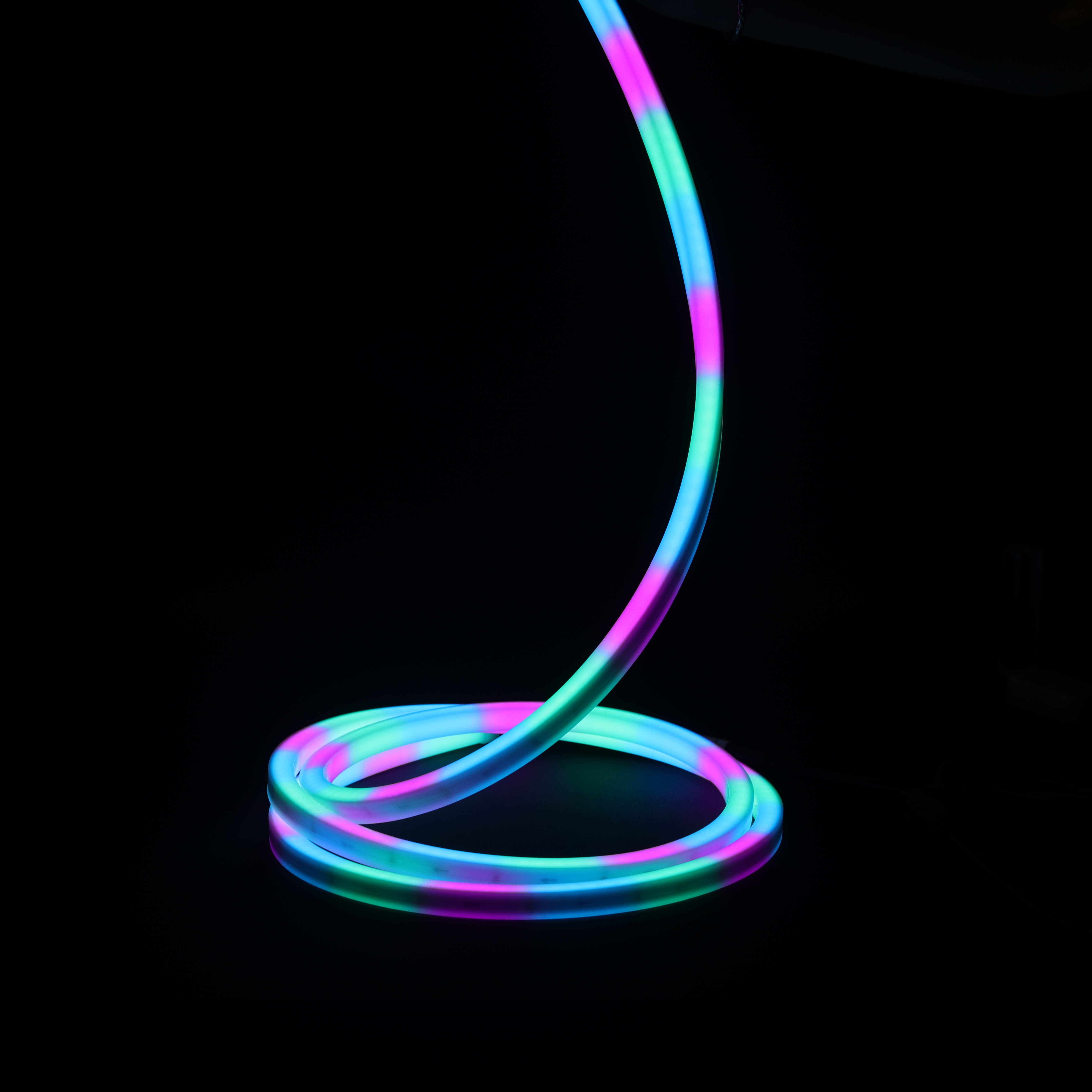

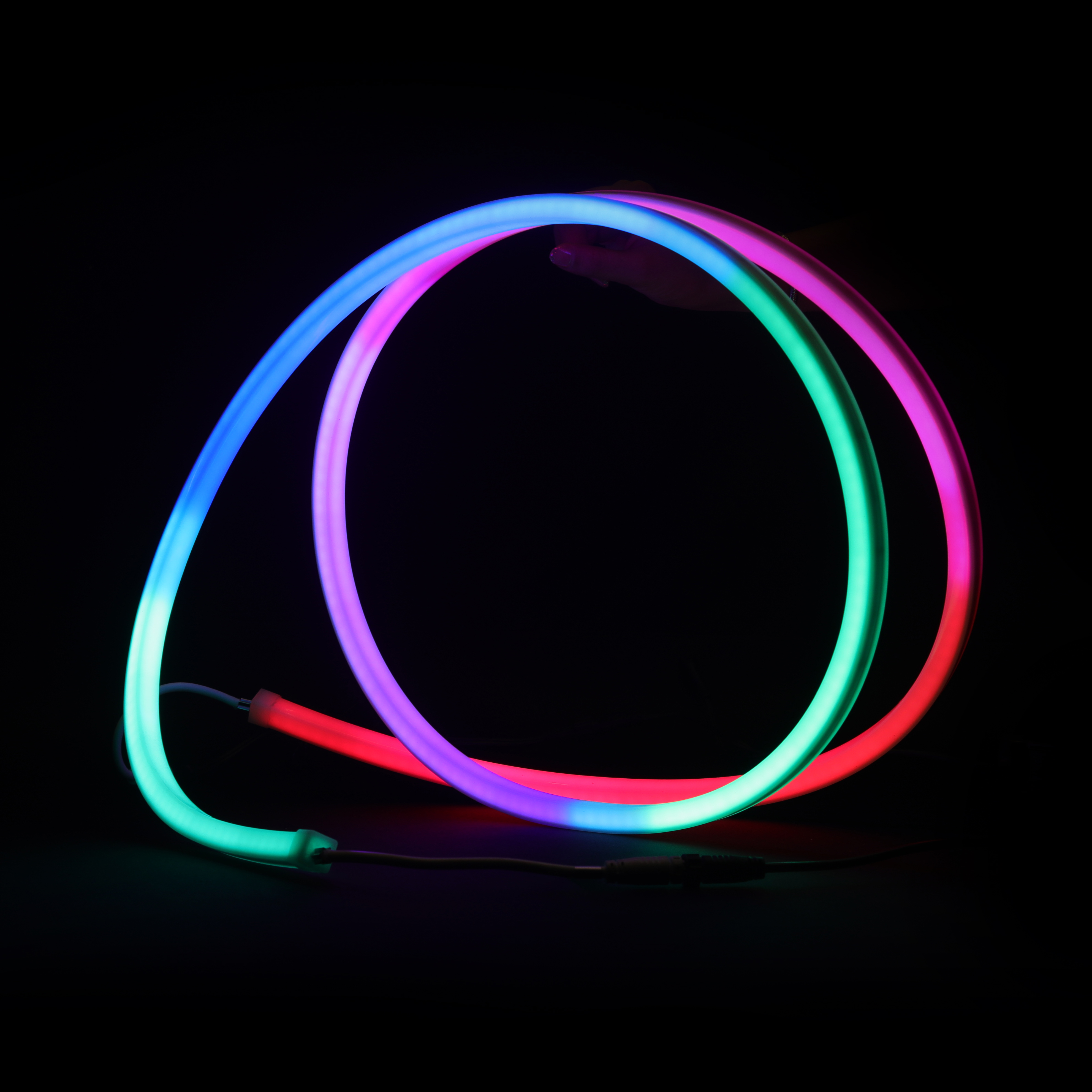

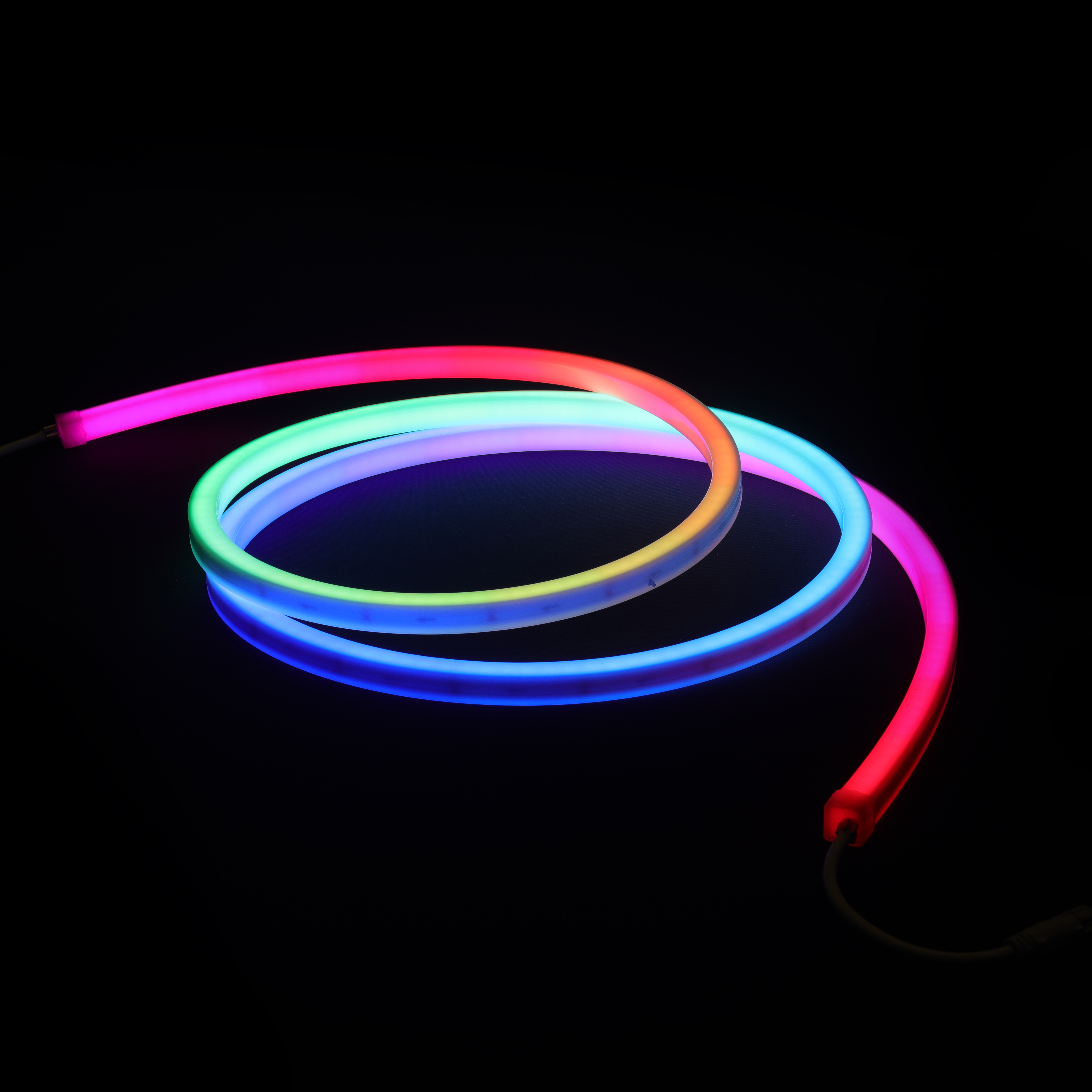

The NS1616T Neon Light Strip is a high-performance RGBW flexible LED strip designed for professional outdoor and architectural lighting. Featuring 96 SMD 5050 LEDs per meter with 16 chips, it delivers vibrant, uniform illumination with a wide 270-degree beam angle. Built with durable silicone housing, the strip achieves IP66 waterproof protection, making it suitable for all-weather applications. With 16-bit grayscale (65,536 levels), it ensures smooth dimming and rich color transitions.
Engineered for efficiency, the NS1616T strip operates on 24V DC, consuming only 13W per meter. It supports a maximum operating distance of 5 meters before power injection, ensuring reliable performance across larger installations. Compatible with NEC & NDB, WEC, WEC BOSS, and other controllers, the strip runs on SPI/TTL protocols, providing seamless integration with professional control systems.
NS1616T Neon Strip Light
Rainmin
| Current: | |
|---|---|
| Power: | |
| LED Quantity: | |
| Beam Angle: | |
| Input Voltage: | |
| LED Type: | |
| Crust Material: | |
Physical Parameters
Product Size: 16mm*16mm
LED Type: SMD 5050
LED Channels: RGBW
Grey Scale: 16-bit, 65536
LED Quantity: 96 PCS (16 chips/meter)
Beam Angle: 270°
Housing Material: Silicone
Waterproof Rating: IP66
Operating Temperature: -25° to +60°
Electrical Parameters
Input Voltage: 24V DC
Current: 0.54 A/meter
Power: 13W/meter
Wire Size: 3x20 AWG, UV protected
Max Operating Distance Before Power On: 5 meters
Power Supply Method: Via Power T & 24V power supply
Control System
Supported Controllers: NEC & NDB / WEC / WEC BOSS / Other controllers
Protocol: SPI/TTL
High brightness with 96 LEDs per meter, 16 chips for smooth illumination
RGBW color mixing for vivid and versatile lighting effects
270-degree wide beam angle ensures uniform coverage
IP66 waterproof silicone housing for outdoor durability
Energy-efficient design at 13W/meter with stable 24V input
16-bit grayscale enables smooth dimming and professional-grade effects
Compatible with multiple controllers via SPI/TTL protocol
Reliable for long-distance installation with 5m max run before power injection
Architectural outline lighting
Outdoor decorative projects
Building facade illumination
Landscape and garden design
Shopping malls, hotels, and public spaces
Stage and event lighting installations
Over 16 years of expertise in RGB pixel lighting systems
Comprehensive customization services for different project needs
Global R&D and production capacity for consistent innovation
High-quality, IP-rated waterproof LED solutions for outdoor use
Dedicated pre-sales and after-sales support for smooth project delivery
Q1: What is the maximum length before power injection?
A1: The NS1616T Neon Light Strip can run up to 5 meters before power injection.
Q2: Can it be used outdoors?
A2: Yes, it is IP66 waterproof, making it suitable for all-weather outdoor applications.
Q3: Which controllers are compatible?
A3: It supports NEC & NDB, WEC, WEC BOSS, and other SPI/TTL-based controllers.
Q4: Does it support RGBW?
A4: Yes, this strip is designed with RGBW channels for extended color options.
Q5: What is the beam angle?
A5: The NS1616T provides a 270-degree wide beam angle for smooth and uniform lighting.
