Waterproof Rating: IP66 (Full outdoor protection)
Input Voltage: 24V DC (Professional low-voltage operation)
LED Density: 60 LEDs/meter (High-intensity illumination)
Color Control: 8-bit (256 color variations)
Beam Angle: 180-degree wide illumination
Material: Flexible silicone casing (Durable and bendable)
Power Consumption: 9.6W/meter (Optimized performance)
Cable Options: Straight-out, side-out, bottom-out mounting
Color Temperature: 2700K warm white option available
Applications: Architectural, commercial, decorative lighting

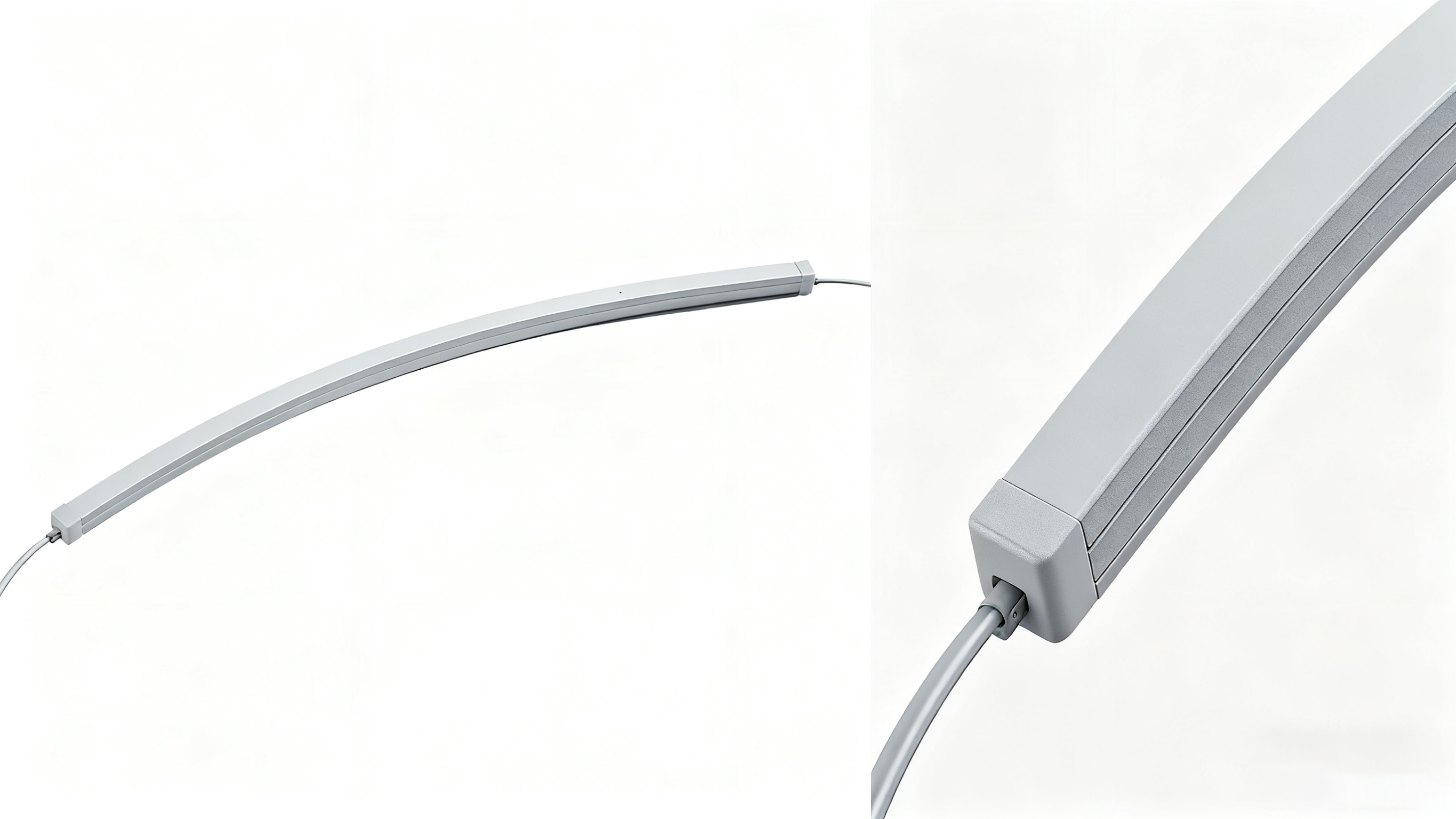

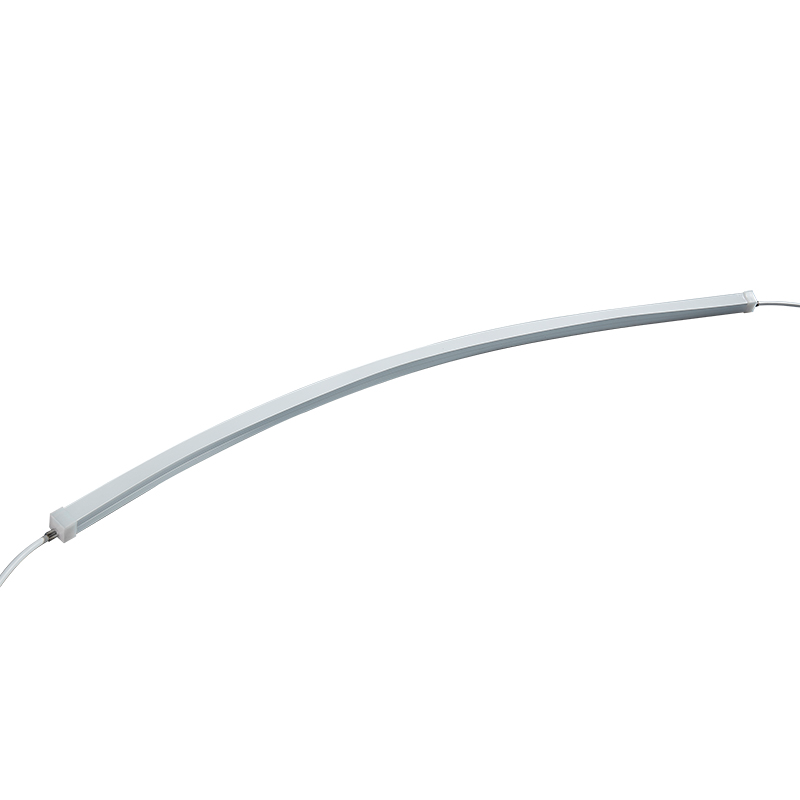

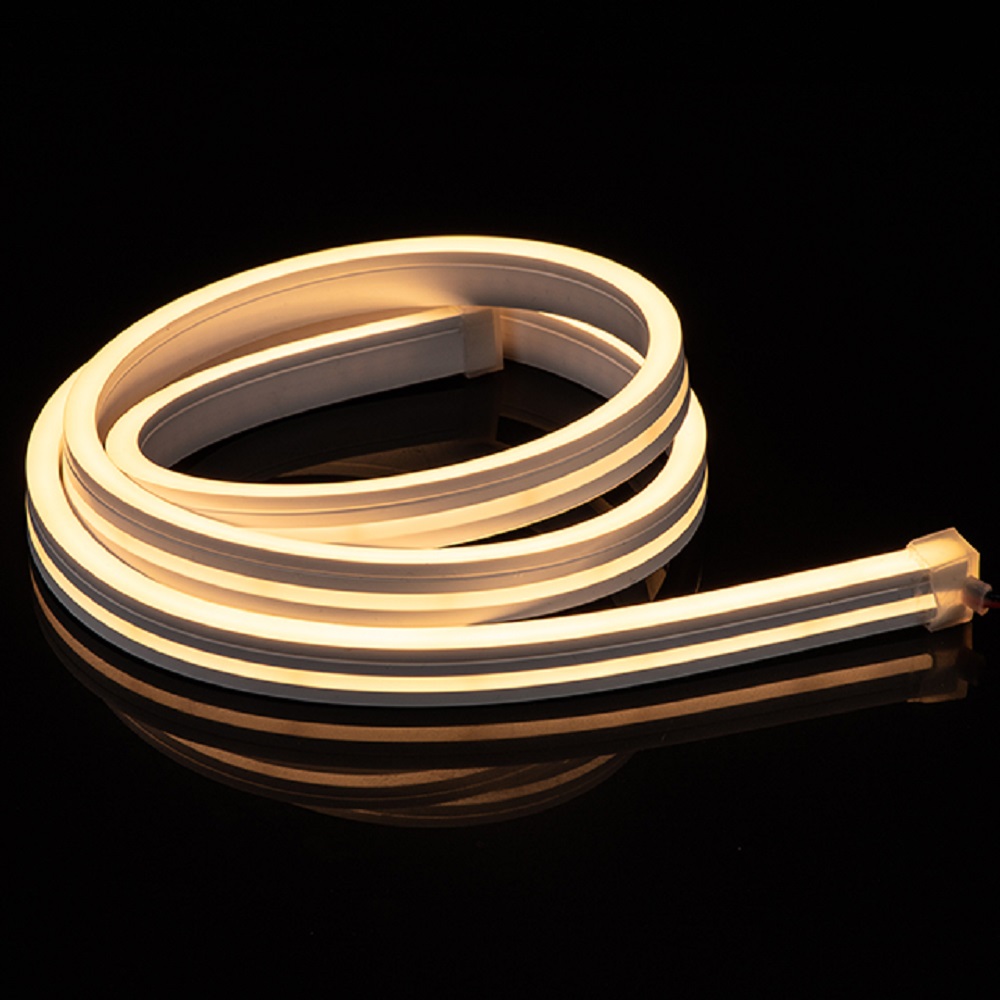

NS2020 Neon Strip Light
Rainmin
| LED Quantity: | |
|---|---|
| Current: | |
| Power: | |
| Beam Angle: | |
| Crust Material: | |
| LED Type: | |
| Chip/Meter: | |

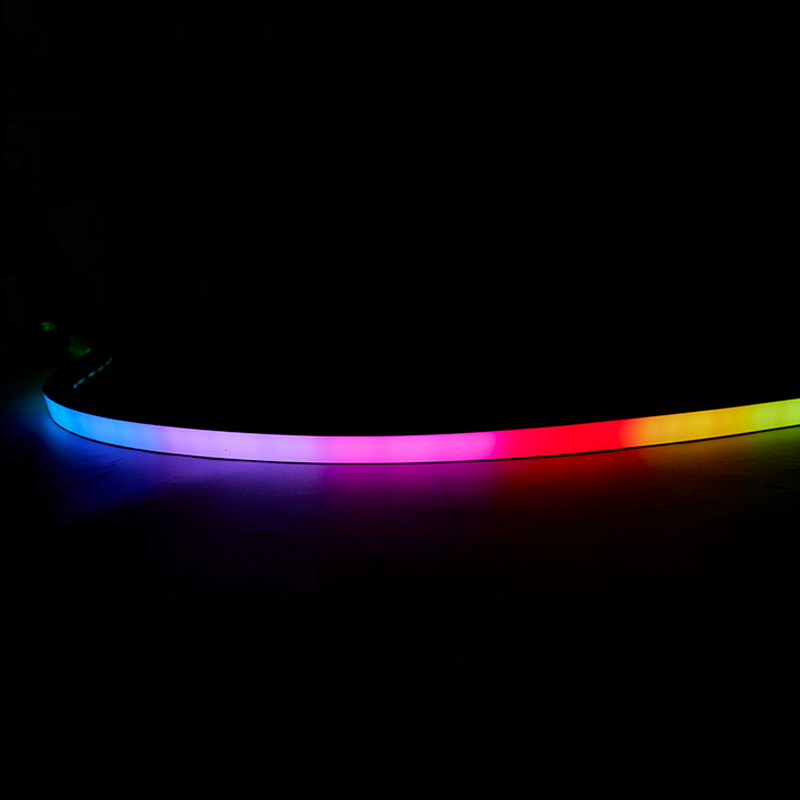

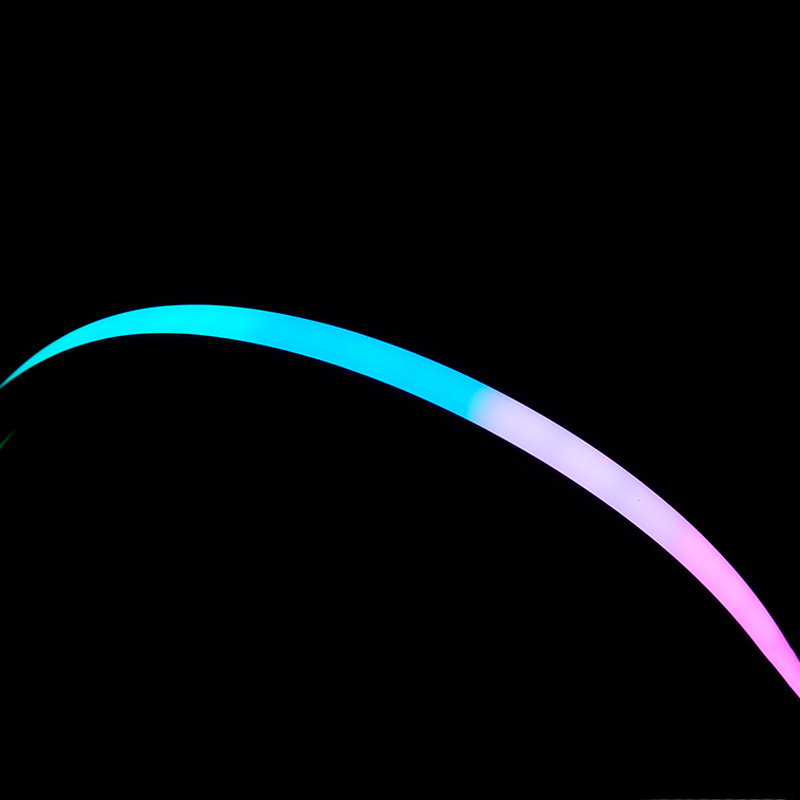

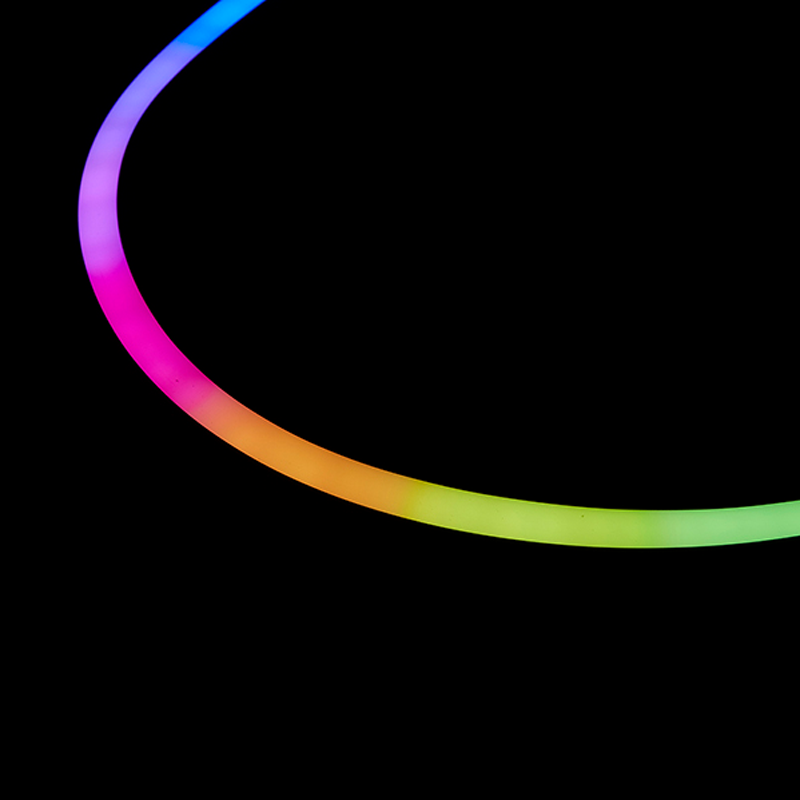

Rainmin's NS2020 Neon Strip Light offers professional-grade RGB lighting solutions with exceptional flexibility and durability. Featuring high-density 60 LEDs per meter and IP66-rated silicone encapsulation, this neon strip delivers vibrant illumination for both indoor and outdoor applications. The 24V DC operation ensures stable performance while supporting three convenient mounting options for versatile installation. With 8-bit color control and compatibility with major control systems including NEC and WEC controllers, the NS2020 is perfect for architectural highlighting, commercial signage, and creative decorative projects. Backed by Rainmin's manufacturing expertise, we provide complete customization options to meet specific project requirements.
High-Density Illumination: 60 LEDs/meter for bright, consistent lighting
Flexible Silicone Design: Bendable around curves and complex shapes
Multiple Mounting Options: Straight-out, side-out, and bottom-out cable configurations
Professional Voltage: 24V DC operation for stable performance
Weatherproof Construction: IP66 rating ensures outdoor durability
Color Temperature Option: 2700K warm white available
Easy Installation: Flexible design with multiple mounting choices
Wide Compatibility: Supports NEC, WEC and SPI/TTL control systems
| Parameter | Specification |
|---|---|
| Model Number | NS2020 Neon Strip Light |
| Product Size | 20mm × 20mm |
| LED Type | SMD 5050 RGB |
| LED Density | 60 LEDs/meter |
| Grayscale | 8-bit (256 levels) |
| Beam Angle | 180-degree |
| Housing Material | Silicone |
| Waterproof Rating | IP66 |
| Operating Temperature | -25°C to +60°C |
| Input Voltage | 24V DC |
| Current Consumption | 0.4A/meter |
| Power Consumption | 9.6W/meter |
| Wire Type | 4×20 AWG UV protected |
| Chips/Meter | 10 chips |
| Max Distance Before Injection | 10 meters |
| Color Temperature | 2700K、3000K、3500K、4000K、5000K、1W |
| Mounting Options | Straight-out, side-out, bottom-out |

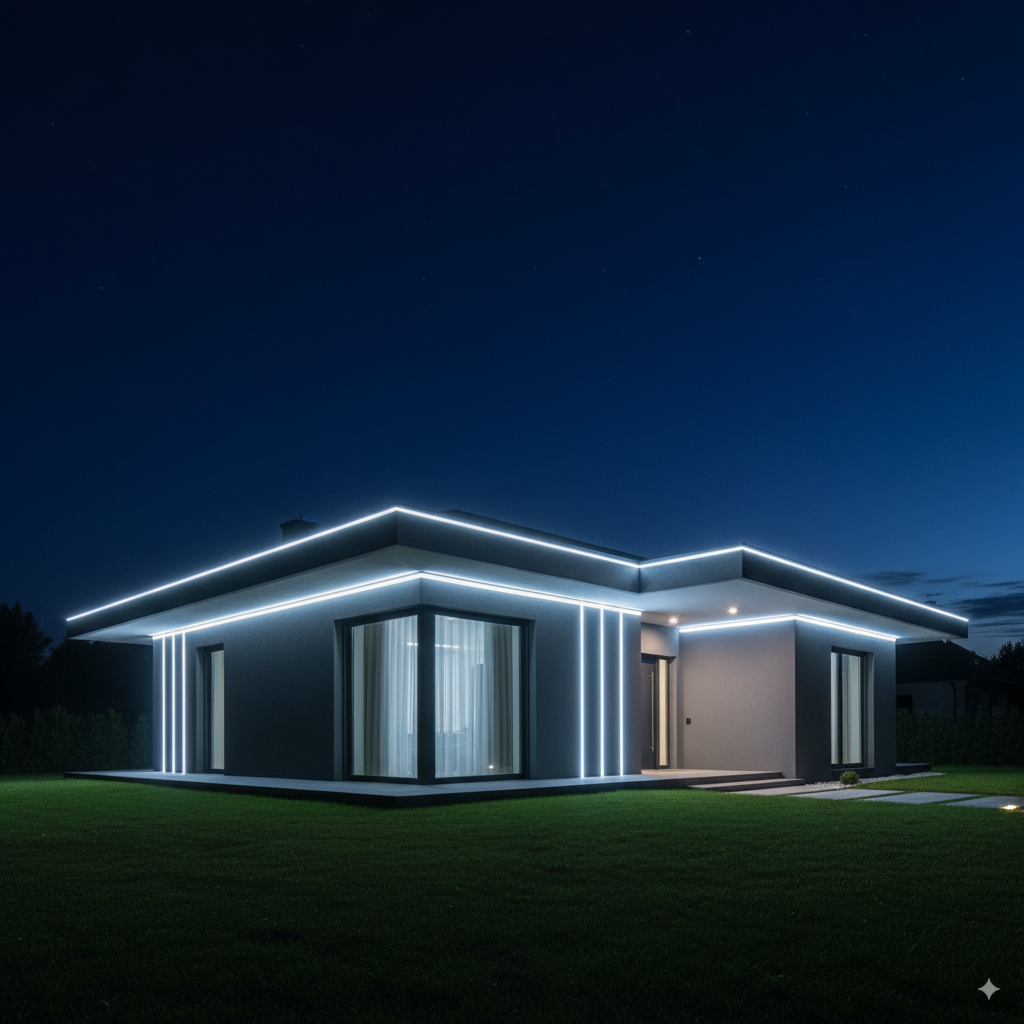

Architectural Lighting: Building contours and structural highlighting
Commercial Signage: Storefront signs and business identification
Retail Displays: Window displays and product highlighting
Event Decoration: Wedding and party lighting installations

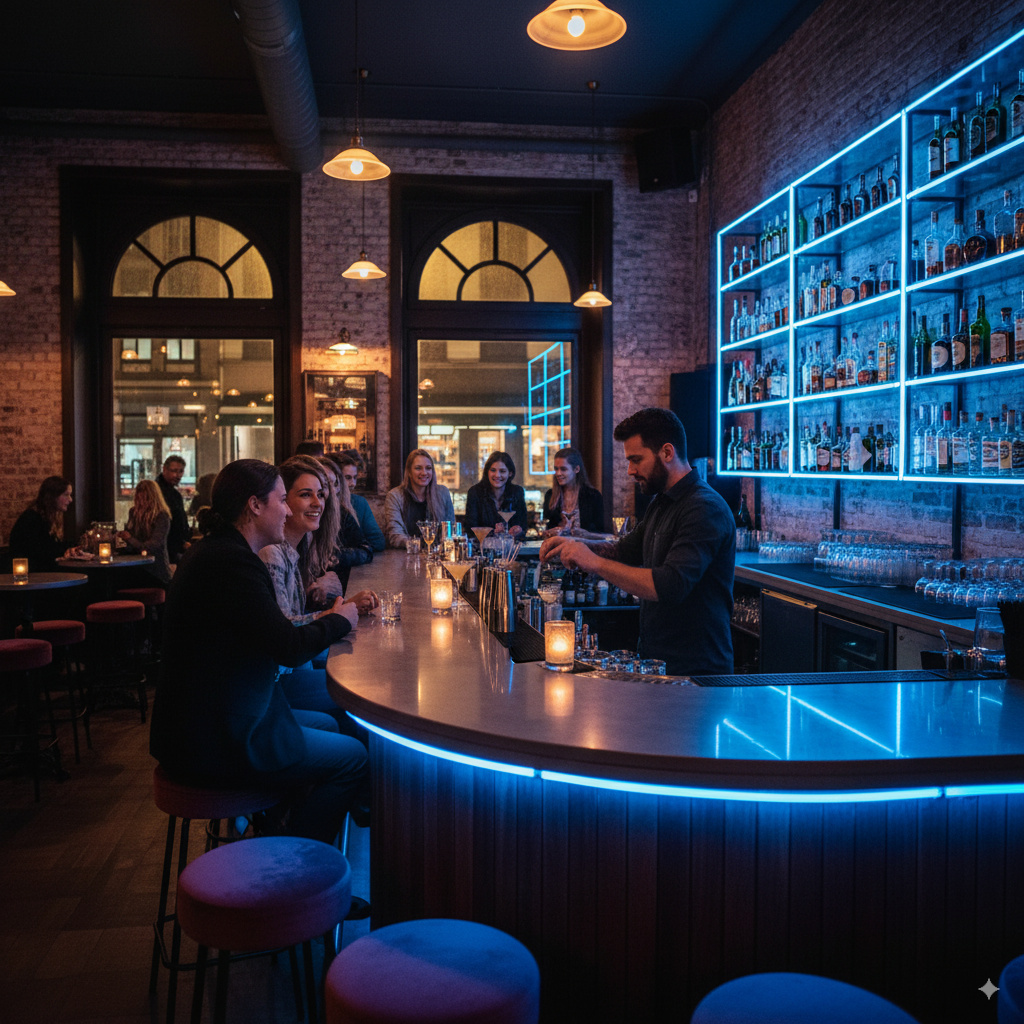

Hospitality Lighting: Bar, restaurant, and hotel ambiance
Landscape Lighting: Garden paths and feature illumination
Creative Installations: Artistic and decorative lighting projects

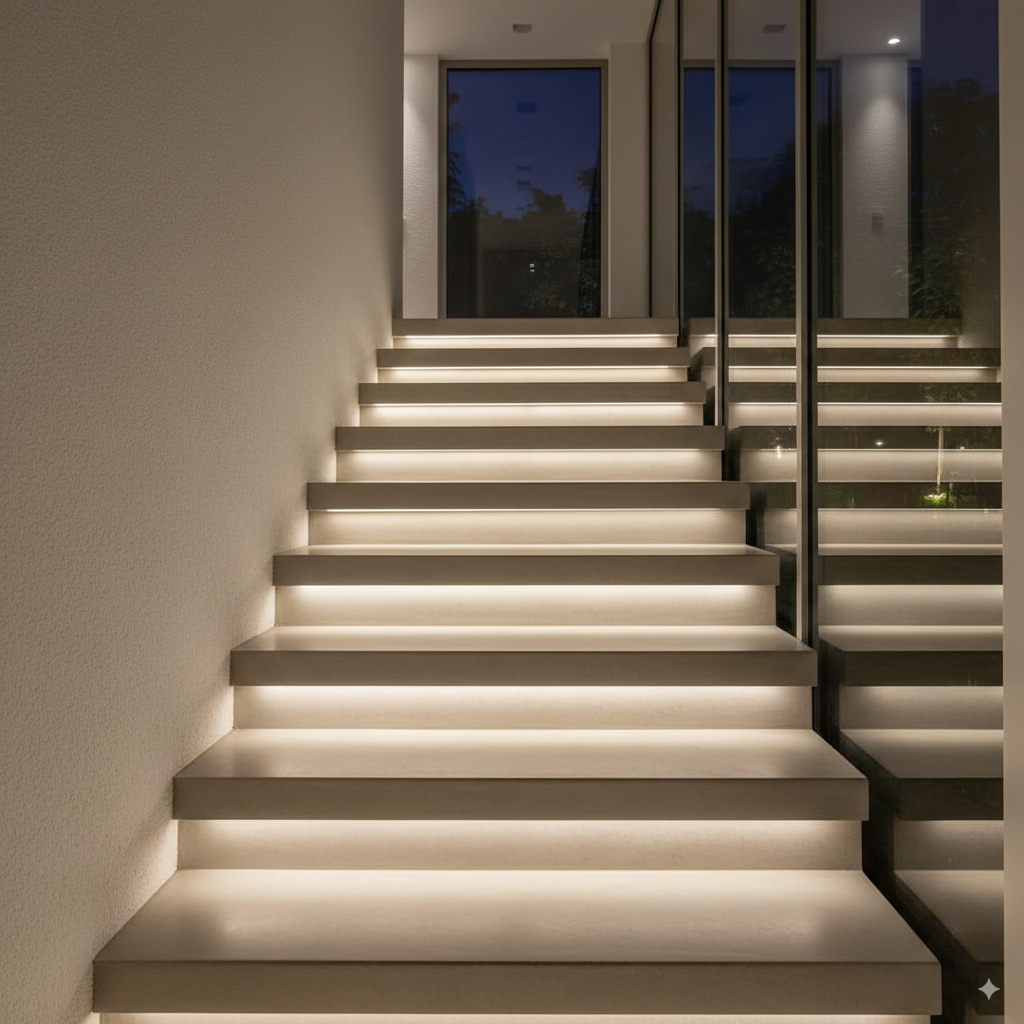

（The effect diagram is for reference only. Please inquire about the actual scene application and usage effect through inquiry ↑）
Q: What are the available mounting options?
A: Three options available: straight-out, side-out, and bottom-out cable configurations
Q: Can the strip be cut to custom lengths?
A: Yes, we offer custom cutting at specific intervals with proper sealing
Q: Is the 2700K color temperature option available?
A: Yes, we offer warm white option alongside RGB versions
Q: What controllers are compatible?
A: Compatible with NEC, WEC, and other SPI/TTL controllers
Q: Can you create custom silicone colors?
A: Yes, we offer custom color matching for specific project requirements
