Waterproof Rating: IP66 (Full outdoor protection)
Input Voltage: 12V/24V DC Optional (Low-voltage safety)
LED Density: 60 LEDs/meter (High-density illumination)
Grayscale: 16-bit (65,536 smooth color transitions)
Material: Flexible silicone casing (Durable and bendable)
Power Consumption: 5W/meter (Energy efficient)

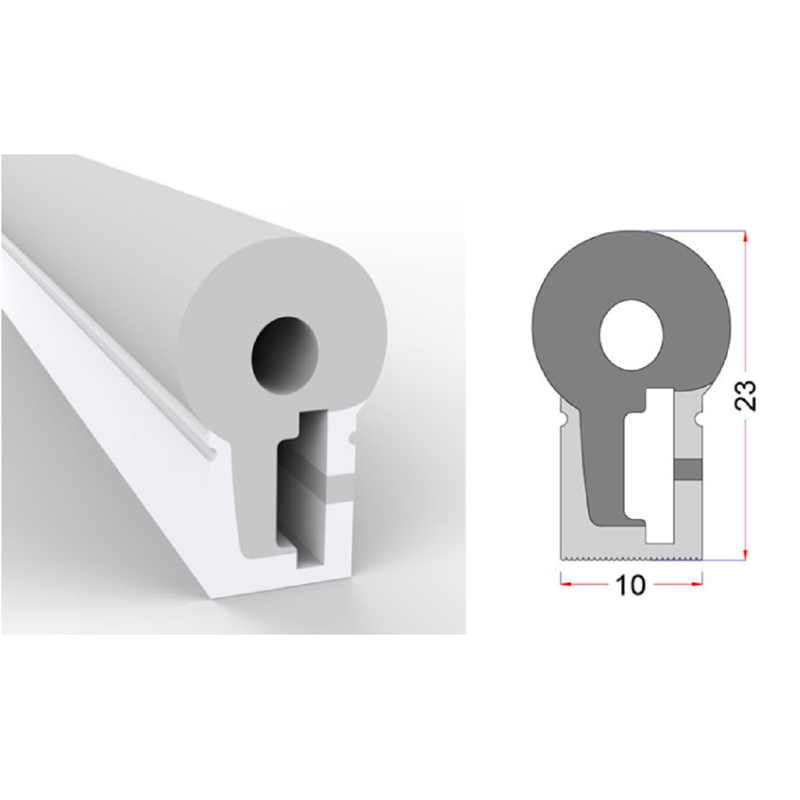

Dimensions: 10mm × 23mm (Slim profile design)
Beam Angle: 180-degree wide illumination
Customization: OEM/ODM available
Applications: Architectural, commercial, decorative lighting
NS1023
Rainmin
| Crust Material: | |
|---|---|
| Current: | |
| LED Quantity: | |
| Power: | |
| Bean Angle: | |
| voltage: | |
| LED Type: | |
Rainmin's NS1023 Neon Strip Light redefines flexible lighting with its high-density 60 LEDs/meter configuration and durable silicone encapsulation. Featuring IP66 waterproof rating and 16-bit color precision, this slim-profile neon strip delivers professional-grade lighting effects for both indoor and outdoor applications. Available in 12V and 24V options, the NS1023 offers seamless integration with major control systems including NEC and WEC controllers. The flexible silicone construction allows for easy installation around curves and corners, making it ideal for architectural highlighting, commercial signage, and creative decorative projects. Backed by Rainmin's manufacturing expertise, we offer complete customization from length cutting to specialized firmware development.
High-Density Illumination: 60 LEDs/meter for bright, consistent lighting
Flexible Silicone Design: Bendable around curves and complex shapes
Dual Voltage Option: 12V/24V DC configurations for flexible installation
16-bit Color Precision: 65,536 grayscale levels for smooth transitions
IP66 Protection: Complete weather resistance for outdoor applications
Slim Profile: 10mm×23mm dimensions for discreet installation
Energy Efficient: Low 5W/meter power consumption
Professional Integration: Compatible with major control systems
| Parameter | Specification |
|---|---|
| Model Number | NS1023 Neon Strip Light |
| LED Type | SMD 5050 RGB |
| LED Density | 60 LEDs/meter |
| Grayscale | 16-bit (65,536 levels) |
| Input Voltage | 12V/24V DC Optional |
| Current Consumption | 0.4A/meter |
| Power Consumption | 5W/meter |
| Beam Angle | 180-degree |
| Waterproof Rating | IP66 |
| Operating Temperature | -25°C to +60°C |
| Housing Material | Flexible silicone |
| Dimensions | 10mm × 23mm |
| Wire Type | 3×20AWG UV protected |
| Max Distance Before Injection | 10 meters |
| Protocol Support | SPI/TTL |

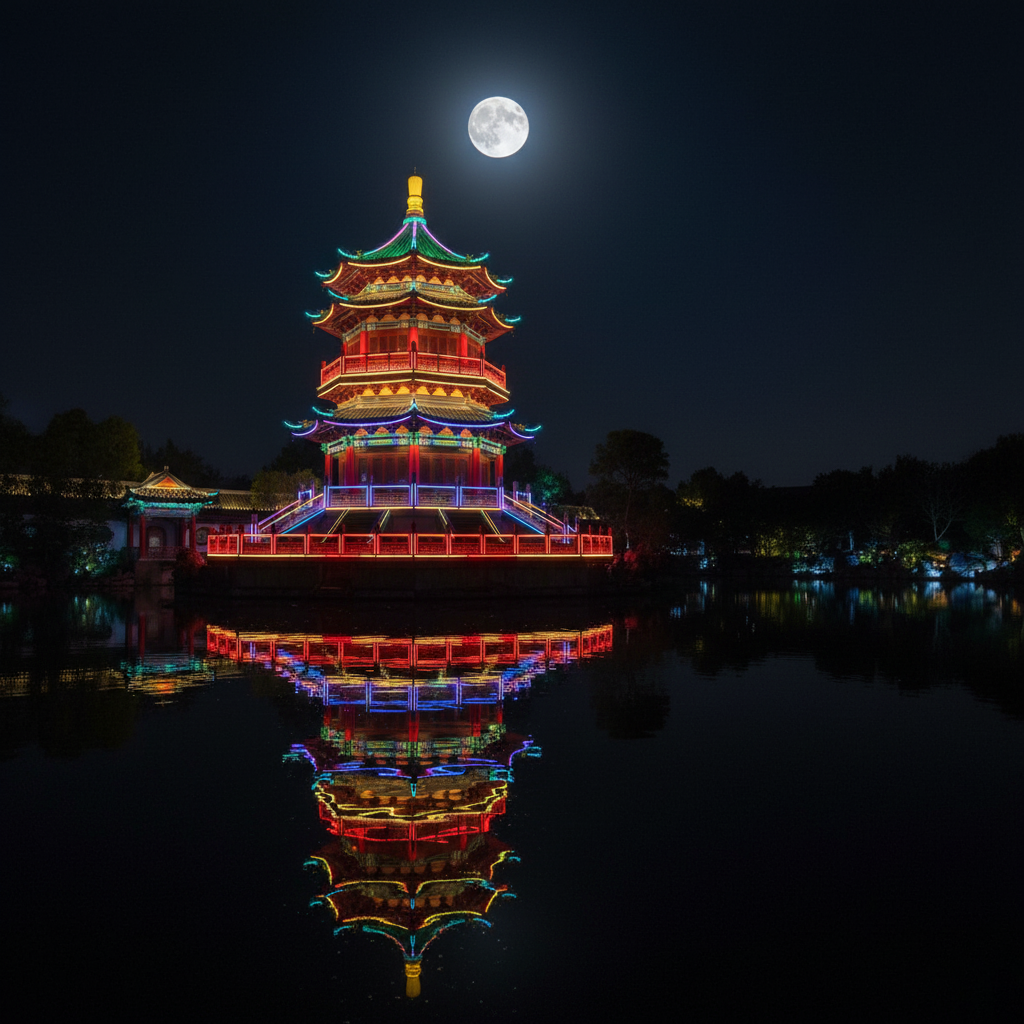

Architectural Outline Lighting: Building contours and structural highlighting
Commercial Signage: Storefront signs and business identification

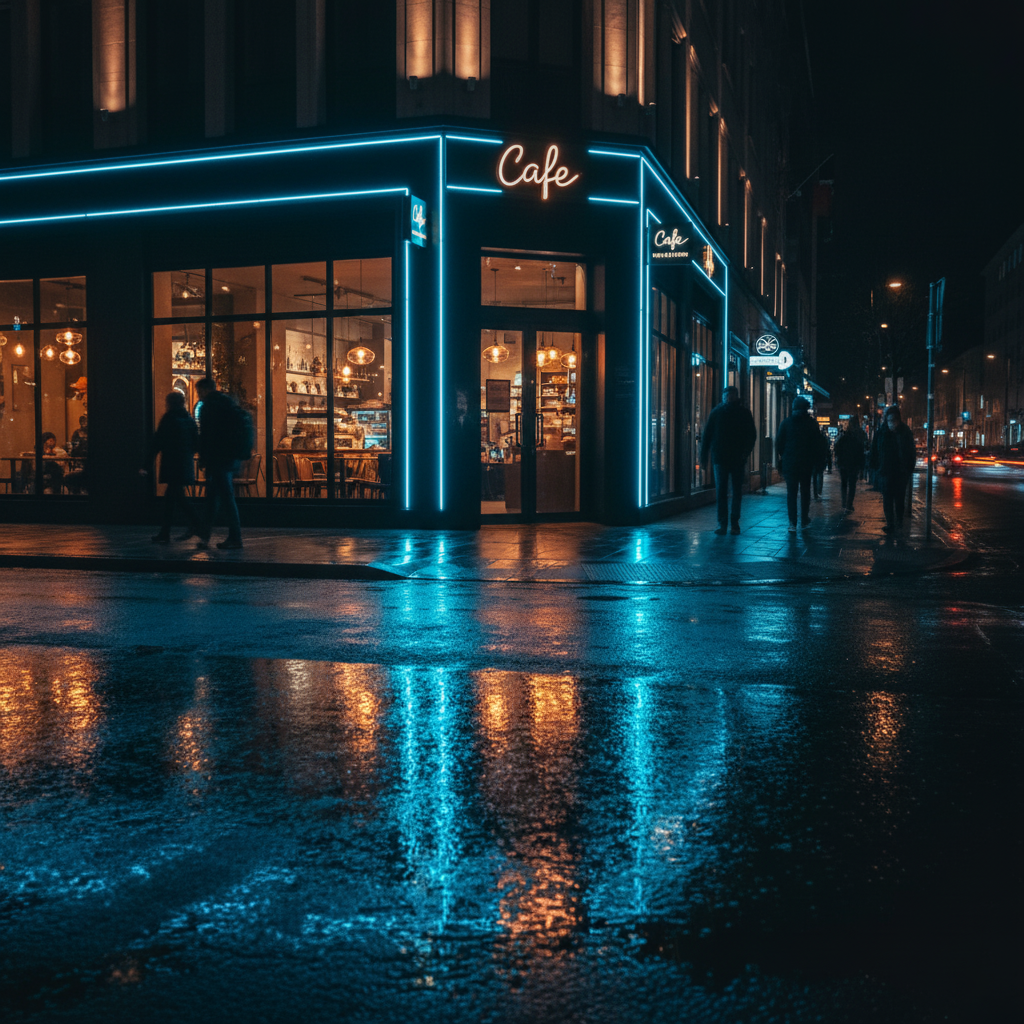

Interior Design: Creative lighting for bars, restaurants, and retail spaces
Event Decoration: Wedding and party lighting installations
Landscape Lighting: Garden paths and feature illumination
Vehicle Customization: Automotive and marine accent lighting
Art Installations: Creative lighting for exhibitions and displays
Rainmin Lighting: Expert in Flexible Neon Lighting Solutions
With 16+ years of specialized manufacturing experience, Rainmin provides:
Custom length cutting and connector options
Specialized silicone color matching
Custom firmware for unique lighting sequences
International safety certification support
Technical guidance for complex installations
Competitive OEM pricing for volume orders
Q: What's the difference between 12V and 24V versions?
A: 24V version allows longer runs with less voltage drop, while 12V version is more common for shorter runs
Q: Can the strip be cut to custom lengths?
A: Yes, we offer custom cutting at specific intervals with proper sealing
Q: Is the silicone casing UV resistant?
A: Yes, the silicone material is UV rated for outdoor durability
Q: What controllers are compatible?
A: Compatible with NEC, WEC, and other SPI/TTL controllers
Q: Can you create custom colors for the silicone housing?
A: Yes, we offer custom color matching for specific project requirements
With over 16 years of specialized expertise in flexible and architectural lighting, Rainmin has established itself as a leading manufacturer for designers, architects, and OEM clients worldwide. We combine technical innovation with practical design to create lighting solutions that enhance spaces while standing up to environmental challenges.
Our Custom Capabilities:
• Complete product customization: lengths, connectors, colors
• Specialized silicone formulation for specific requirements
• Custom firmware for unique lighting effects
• International certification support (CE, ROHS, UL)
• Large-scale production capacity with consistent quality
Technical Expertise:
Flexible lighting design and engineering
Weather-resistant material development
Low-voltage system integration
Professional control system compatibility
Installation and technical support
Partner Benefits:
• Custom product development from concept to production
• Competitive OEM pricing for volume projects
• Technical documentation and certification support
• Global logistics and supply chain management
• Dedicated technical support team
Rainmin - Innovative Lighting Solutions for Professional Applications
