The LP48S Linear Light is a high-performance RGB lighting solution designed for architectural and outdoor decorative applications. Built with SMD 5050 LEDs and 16-bit grey scale, it ensures smooth and vibrant color transitions. With IP66 waterproof protection and durable aluminum-plastic housing, this light is ideal for long-lasting outdoor installations. Energy-efficient, easy to install, and customizable, it’s perfect for both small-scale projects and large professional lighting systems.

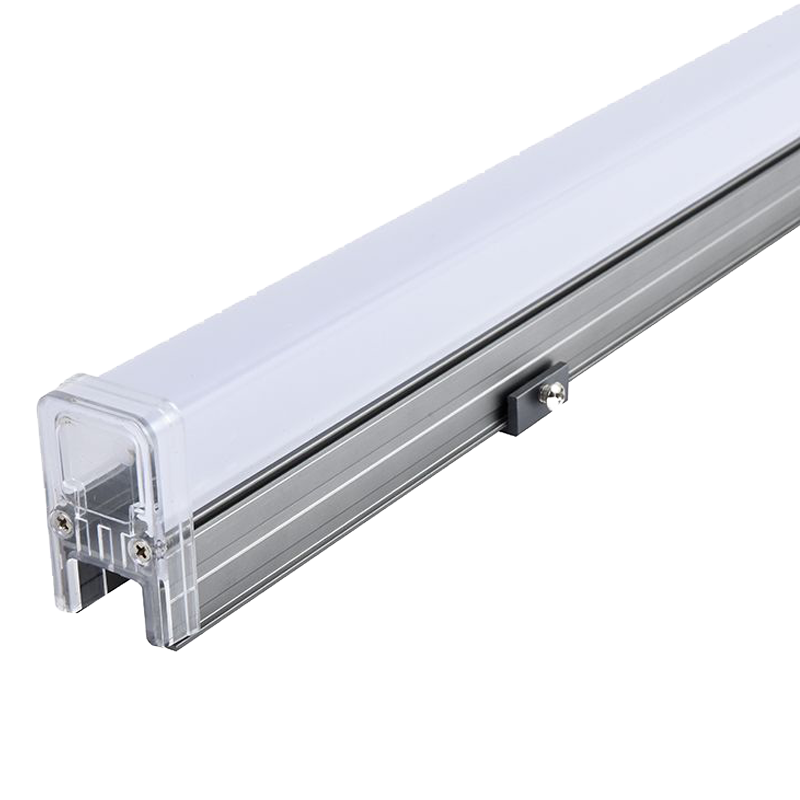

LP48S Linear Light
Rainmin
| Size: | |
|---|---|
| Current: | |
| LED Quantity: | |
| Shell Material: | |
| Beam Angle: | |
| Power: | |
| voltage: | |

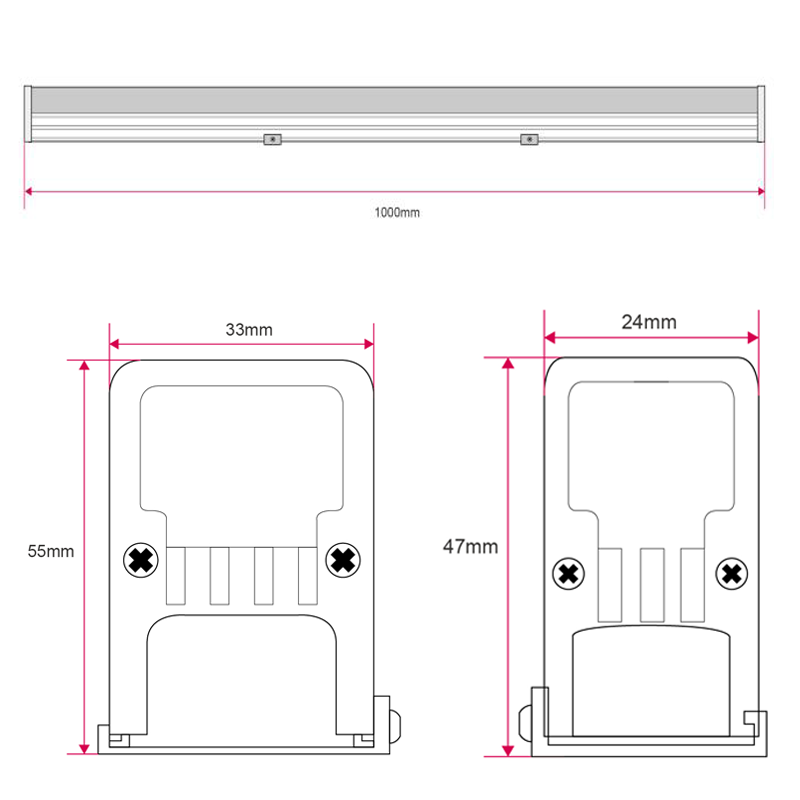

Size: 10002447mm / 10003355mm
LED Type: SMD 5050
Channels: RGB | 16-bit, 65,536 grey scale
Beam Angle: 180°
️ Material: Aluminum + Plastic
️ Waterproof: IP66 | Outdoor use
️ Temp Range: -25°C ~ +60°C
⚡ Voltage: 24V DC
Power: 4.8W/meter | Current: 0.2A/m
Max Connection: 200 lights or 25m
Wire: 18 AWG, UV protected
Injection: Via Power T & 24V supply
Controllers: NEC & NDB / WEC / WEC BOSS / Others
Protocol: SPI / TTL
Brilliant RGB colors with 16-bit grey scale for smooth transitions
️ IP66 waterproof design for reliable outdoor performance
️ Durable aluminum + plastic housing for strength and longevity
Low power consumption of 4.8W/meter for energy savings
⚡ Easy plug-and-play installation with UV-protected wiring
Fully customizable to meet diverse project requirements
Architectural façade lighting
️ Stadium and park decoration
Commercial building highlights
Creative stage and event lighting
Landscape and pathway illumination
16+ Years of expertise in RGB pixel lighting systems
Comprehensive customization services for tailored solutions
Global partnerships and reliable supply chain support
Continuous R&D to stay ahead of lighting innovations
Dedicated pre-sales and after-sales technical support
Q1: Is the LP48S suitable for outdoor use?
✅ Yes, with IP66 waterproof protection, it’s ideal for outdoor installations.
Q2: Can the colors be customized?
✅ Yes, RGB control via SPI/TTL allows full customization.
Q3: How many lights can be connected?
✅ Up to 200 lights or 25 meters before power injection is required.
Q4: What is the warranty?
✅ This product comes with a 2-year warranty.
Rainmin – Lighting Up Your World with Innovation and Customization
With over 16 years of expertise in RGB pixel lighting systems, Rainmin is more than just a LED manufacturer – we are your trusted lighting solution provider. Our commitment goes beyond products; we deliver tailor-made solutions that adapt to dynamic market trends and unique customer needs.
We provide customization services from product design to system integration, ensuring your vision becomes reality. From safe low-voltage designs and IP65/IP66 waterproof performance to high refresh RGB LEDs and plug-and-play installation, our products are engineered for reliability, versatility, and brilliance.
✨ Choose Rainmin – where experience meets innovation, and customization meets excellence.
12VDC - Safe low DC voltage which is perfect for public spaces and commercial applications
IP67 - Can be used outdoors or indoors, temporary or permanently.
UV Rated - High-quality materials are used to withstand the harsh sun for many years.
RGB LED - A Red, Green and Blue LED are combined in the same package allowing the creations of millions of colours.
48 Bit Digital Processing - 16 Bit per colour allowing for millions of colour combinations.
1KHZ Refresh Rate - High refresh rate allowing for broadcast-quality recording without flicker effects.
Quick Connect Plug - Fast 1/2 turn weatherproof connector allowing for dramatically reduced installation and dismantle times.
Knowledge & Experience - We know our products and we can help you make the best use of our lighting and control systems for maximum impact.
Plug and Play Options - We work with you to offer complete plug and play solutions, programmed with installation instructions based on your customized needs.
