Multiple Sizes Available: C100 to C400mm (6 standard sizes)
Complete 360° Illumination: Full spherical lighting coverage
Dual Voltage Options: 12V/24V DC configurations
Professional Control: 16-bit (65,536 color transitions)
Beam Angle: 360-degree omnidirectional lighting
Weather Resistance: IP66 waterproof rating
Power Range: 1.34W-3.5W per cube
Wire Quality: 20AWG 4C UV protected
Installation: Flexible power injection options
Applications: Architectural, landscape, commercial lighting

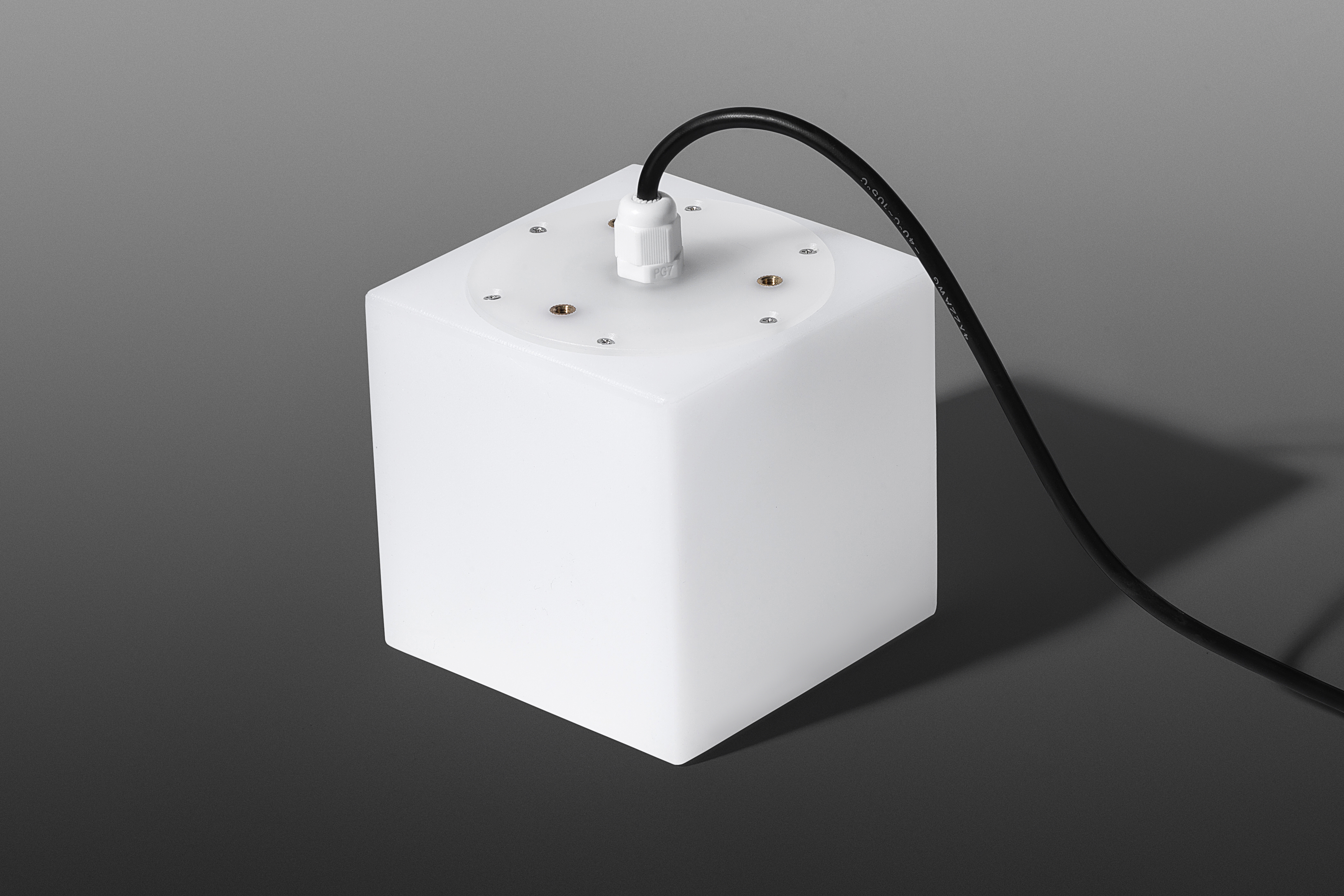

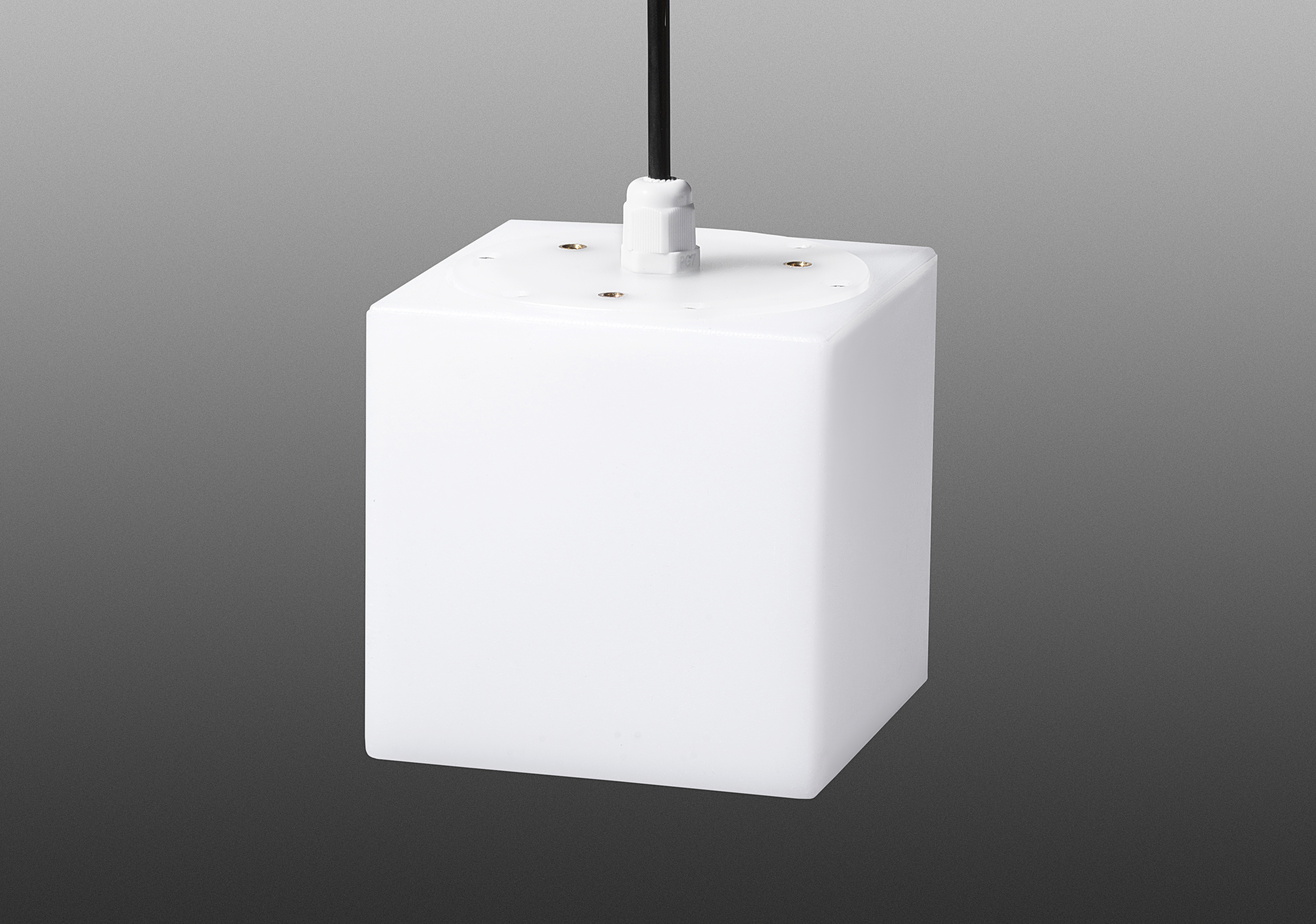

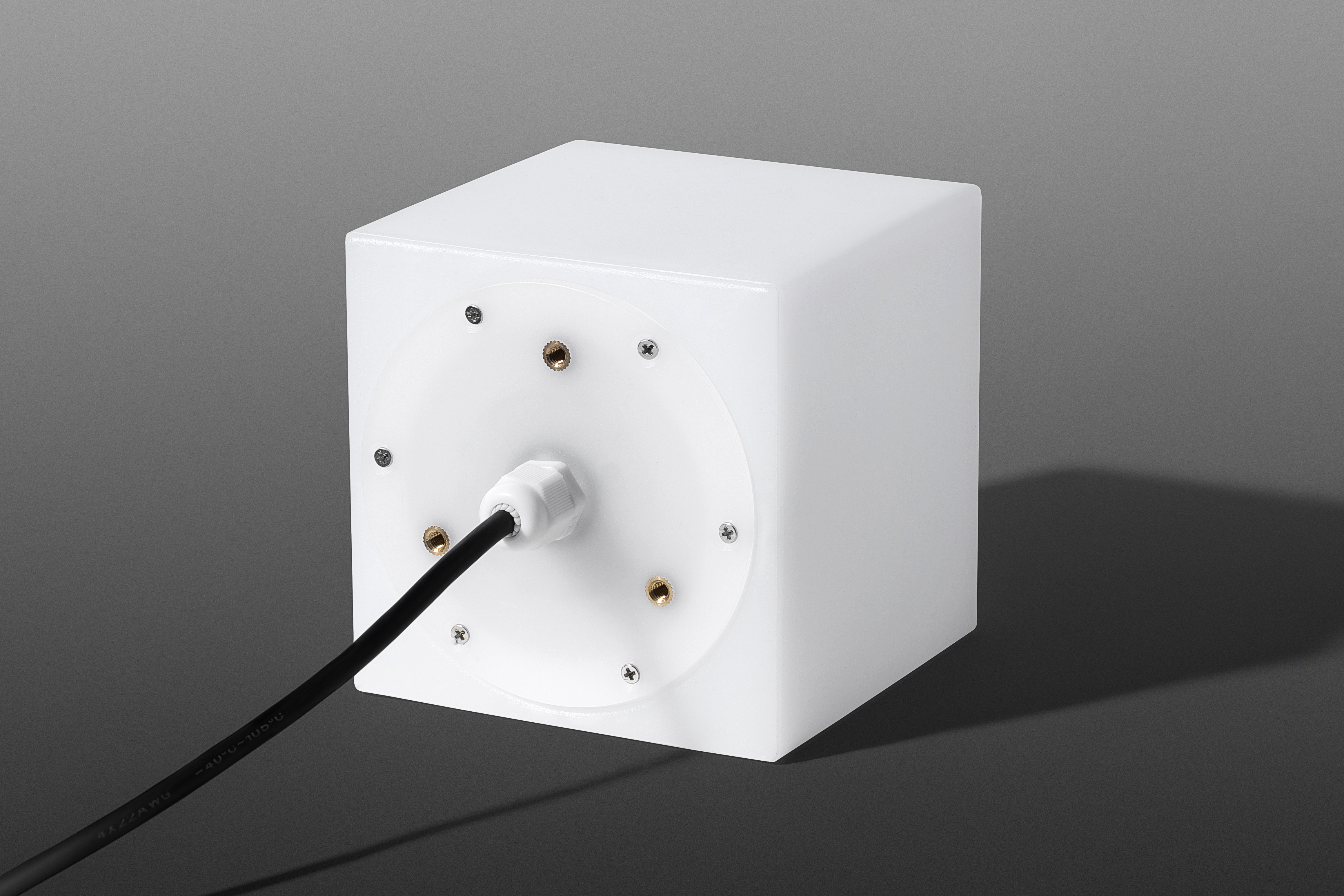

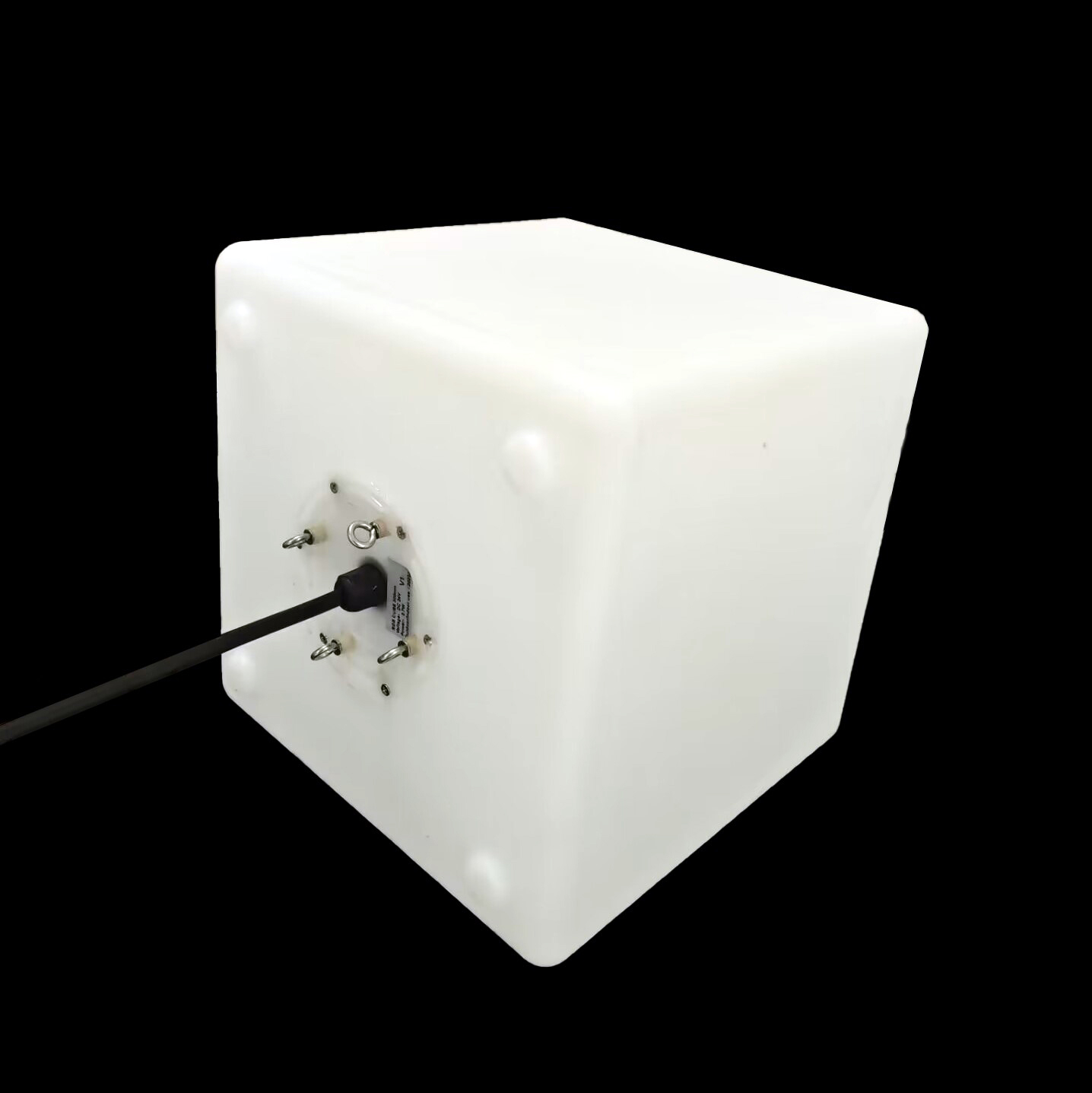

LED RGB CUBE
RAINMIN
Rainmin's LED RGB Cube Light collection offers stunning 360-degree illumination across six size options from 100mm to 400mm. These professional-grade lighting cubes feature advanced SMD 5050 LED technology with 16-bit color processing, delivering smooth, precise color transitions across 65,536 shades. The IP66-rated construction ensures complete weather resistance for permanent outdoor installation, while dual voltage options (12V/24V DC) provide flexibility for various project requirements. With compatibility for major control systems including NEC and WEC controllers, these cube lights are perfect for architectural highlighting, landscape illumination, and commercial applications where reliable performance and visual impact are essential.

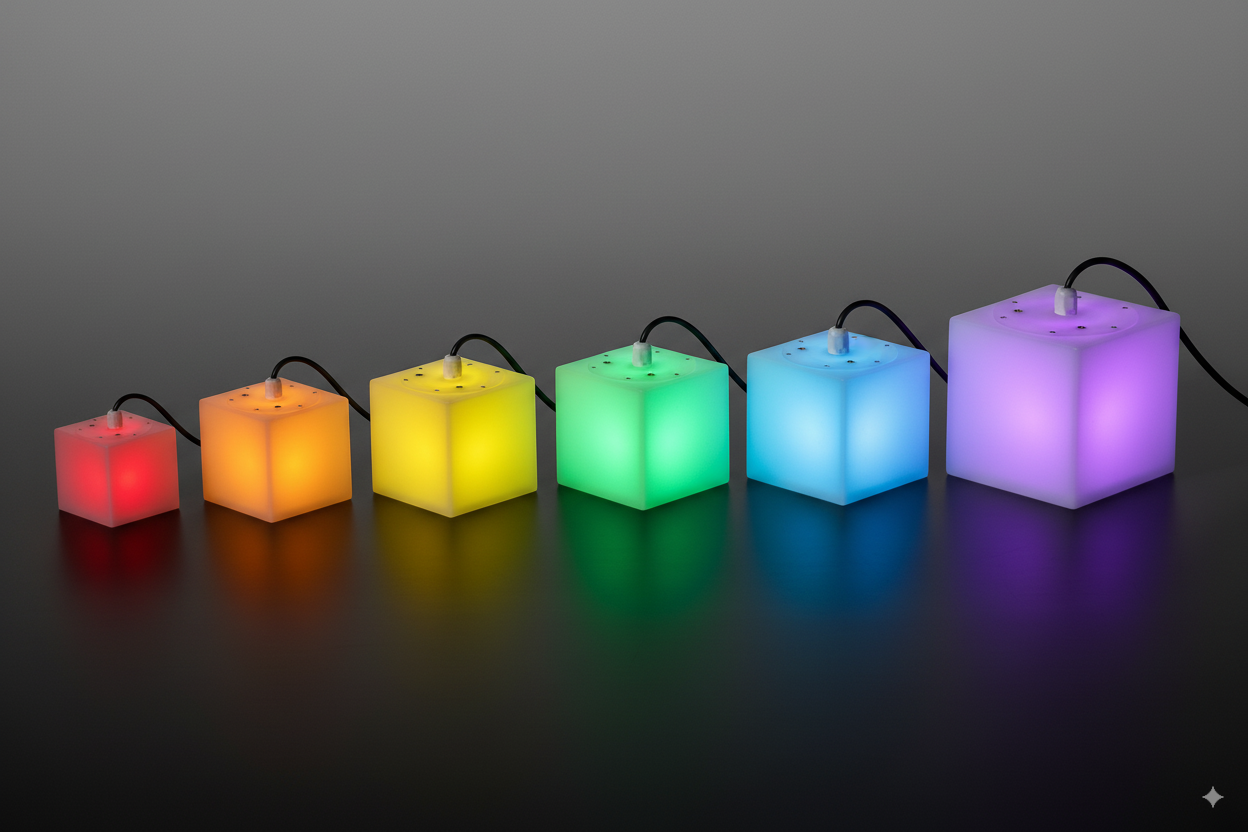

Multiple Size Options: Six standard sizes from 100mm to 400mm
Complete Spherical Illumination: 360-degree lighting from all angles
Advanced Color Control: 16-bit processing with 65,536 smooth transitions
Weatherproof Design: IP66 rating ensures outdoor durability
Dual Voltage Operation: 12V/24V DC options for flexible installation
Professional Integration: Compatible with major control systems
Quality Construction: UV-protected wiring and durable materials
Easy Installation: Standard connectors and mounting options
Physical Parameters:
| Parameter | Specification |
|---|---|
| Product Name | LED RGB Cube Light |
| Available Sizes | C100, C150, C200, C250, C300, C350, C400mm |
| LED Type | SMD 5050 RGB |
| LED Quantity | 8, 20, 24, 28, 32, 32 (size dependent) |
| Grayscale | 16-bit (65,536 levels) |
| Beam Angle | 360-degree |
| Waterproof Rating | IP66 |
Electrical Parameters:
| Parameter | Specification |
|---|---|
| Input Voltage | 12V/24V DC |
| Current Consumption | 0.112-0.29A/cube |
| Power Consumption | 1.34-3.5W/cube |
| Wire Type | 20AWG 4C UV protected |
| Max Lights Before Injection | 12-25 cubes |
| Max Distance Before Injection | 10 feet |
| Protocol Support | SPI/TTL |
Architectural Lighting: Building features and structural highlighting

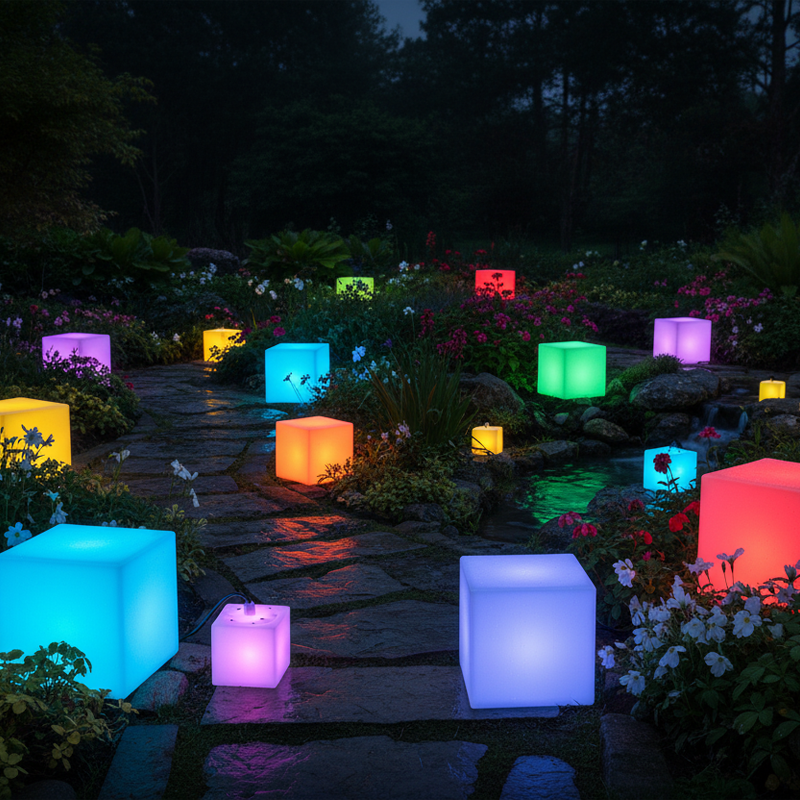

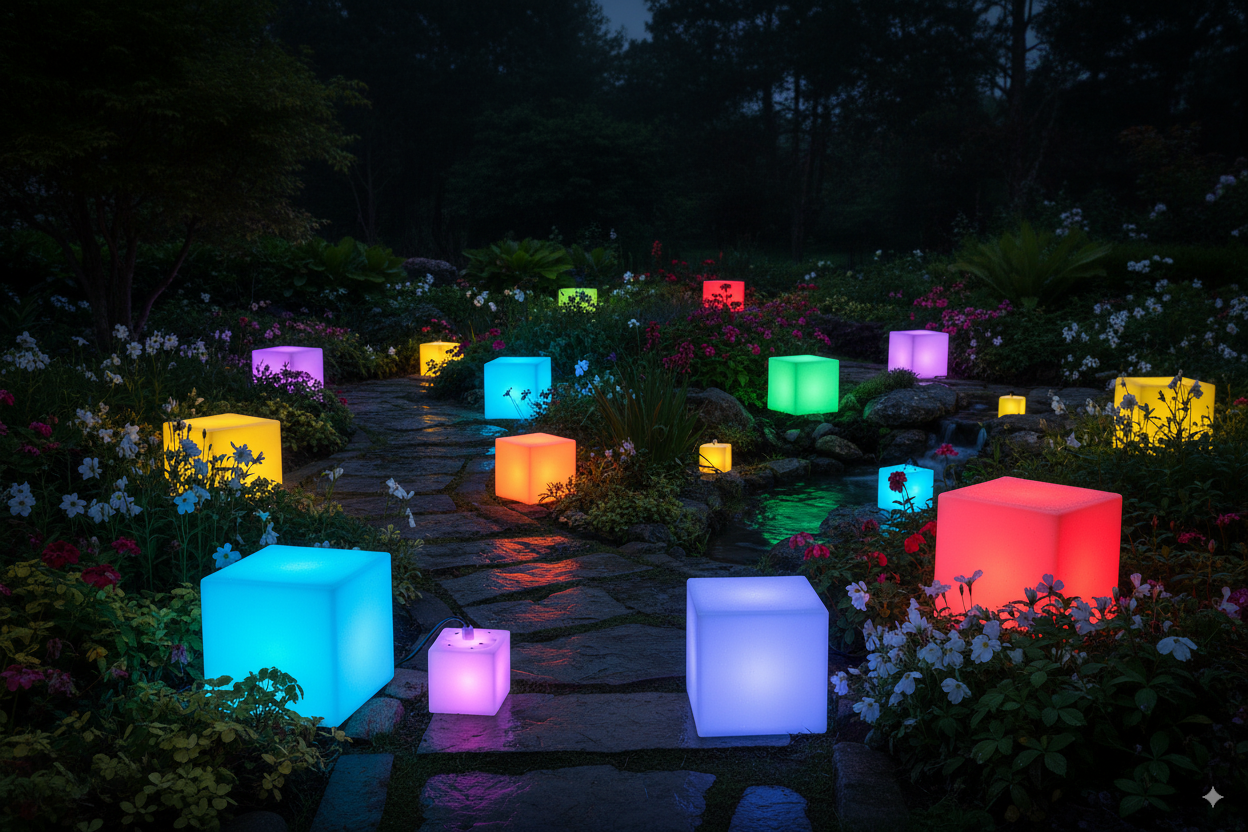

Landscape Illumination: Garden pathways and feature lighting
Commercial Displays: Shopping centers and retail decorations
Public Spaces: Parks and municipal area lighting

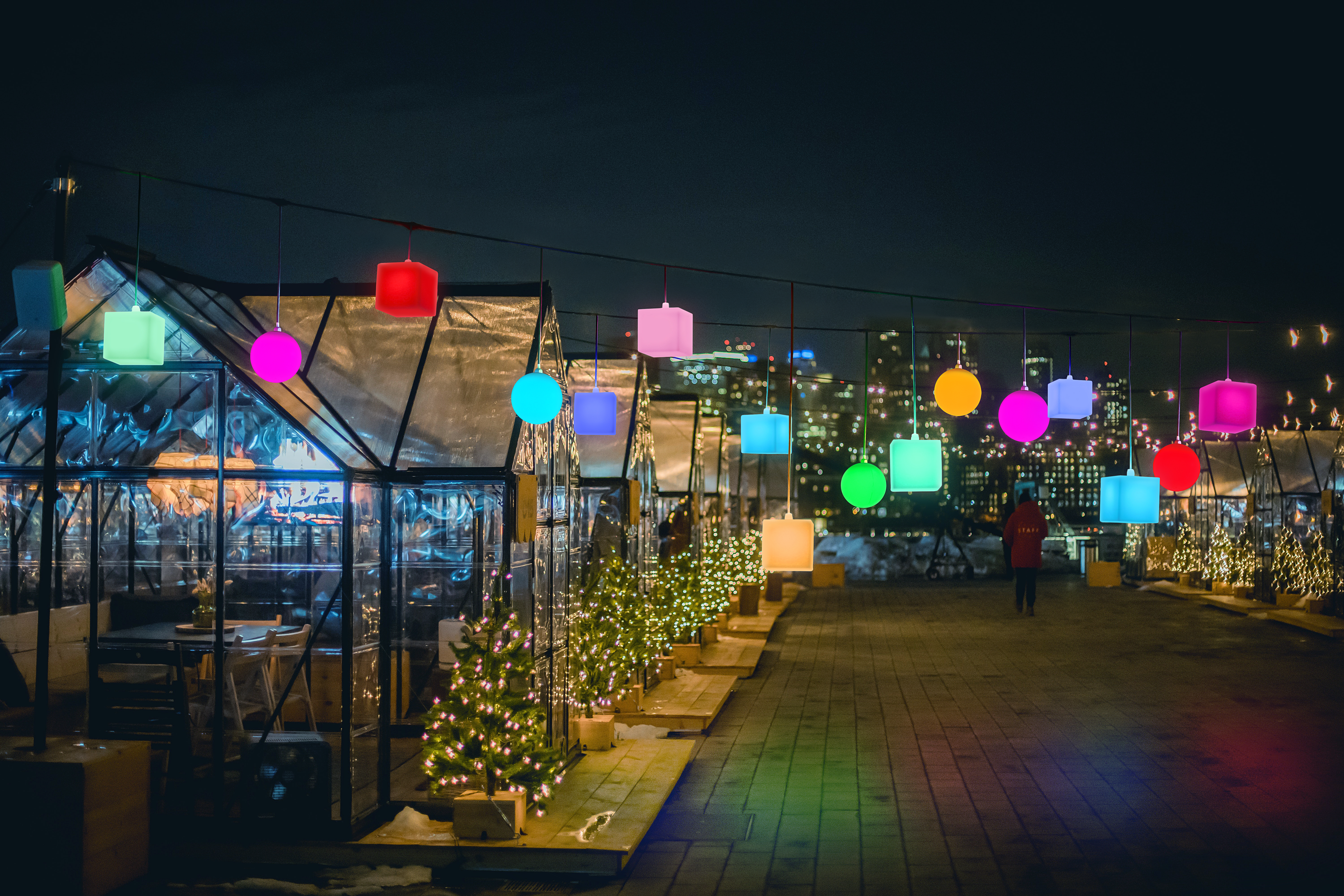

Event Decoration: Wedding and party installations
Water Features: Pool and fountain illumination
Urban Design: City beautification projects
Rainmin Lighting: Expert in Professional Lighting Solutions
With 16+ years of specialized manufacturing experience, Rainmin provides:
Custom size and configuration options
Specialized optical engineering services
Custom firmware development capabilities
International safety certification support
Technical guidance for complex installations
Competitive OEM pricing for volume orders
Q: What size should I choose for my project?
A: Smaller cubes (100-200mm) suit intimate spaces, while larger cubes (300-400mm) work best for large areas and statement pieces
Q: Can these cubes be used in water features?
A: While IP66 rated for heavy rain, they are not designed for permanent submersion
Q: What controllers are compatible?
A: Compatible with NEC, WEC, and other SPI/TTL based control systems
Q: Can you create custom sizes beyond 400mm?
A: Yes, we offer custom cube manufacturing for specific project requirements

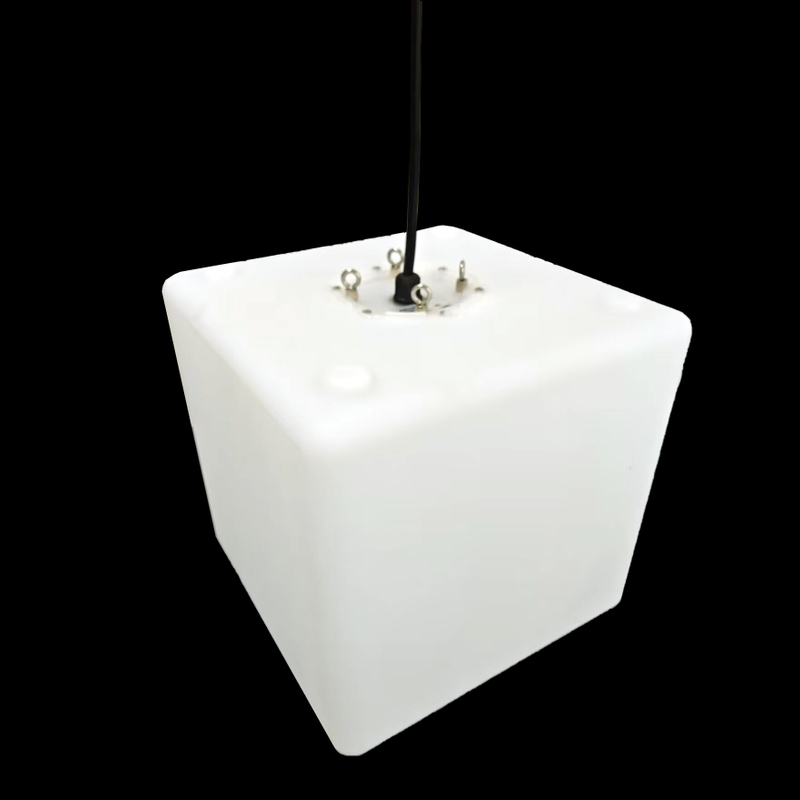

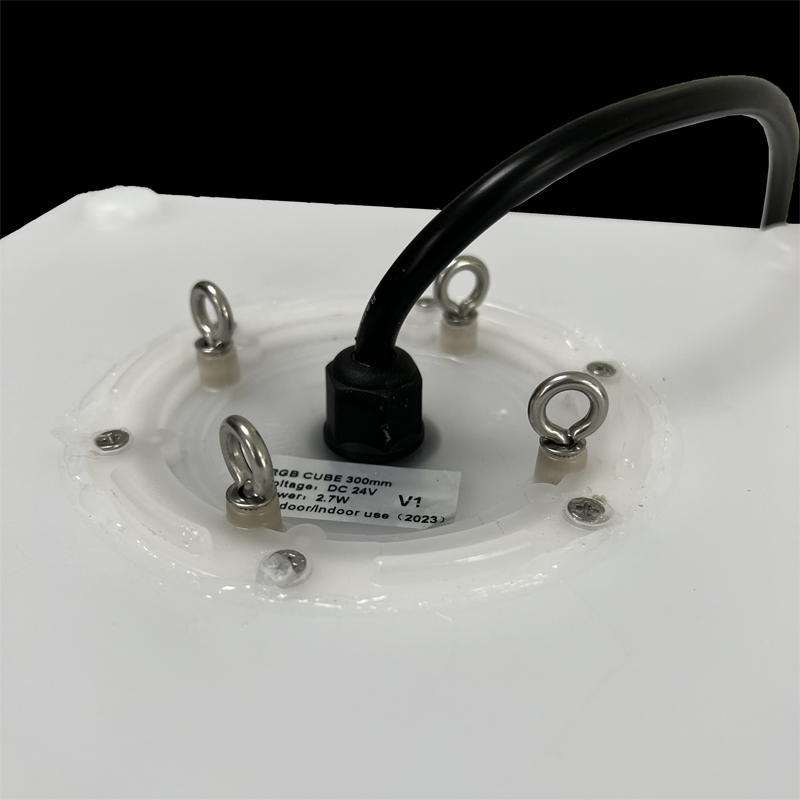

Q: How are the cubes mounted?

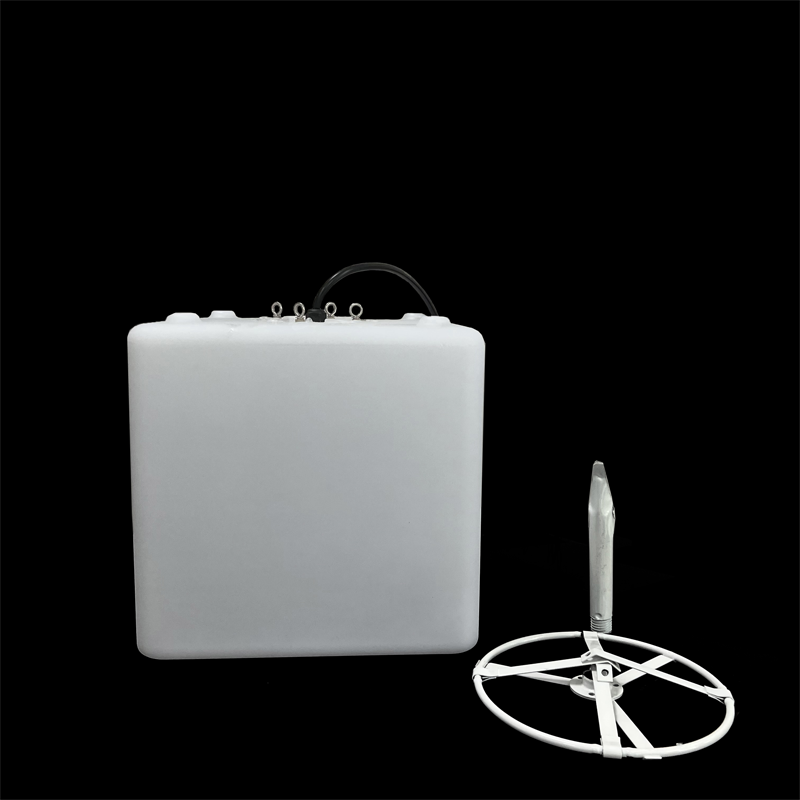

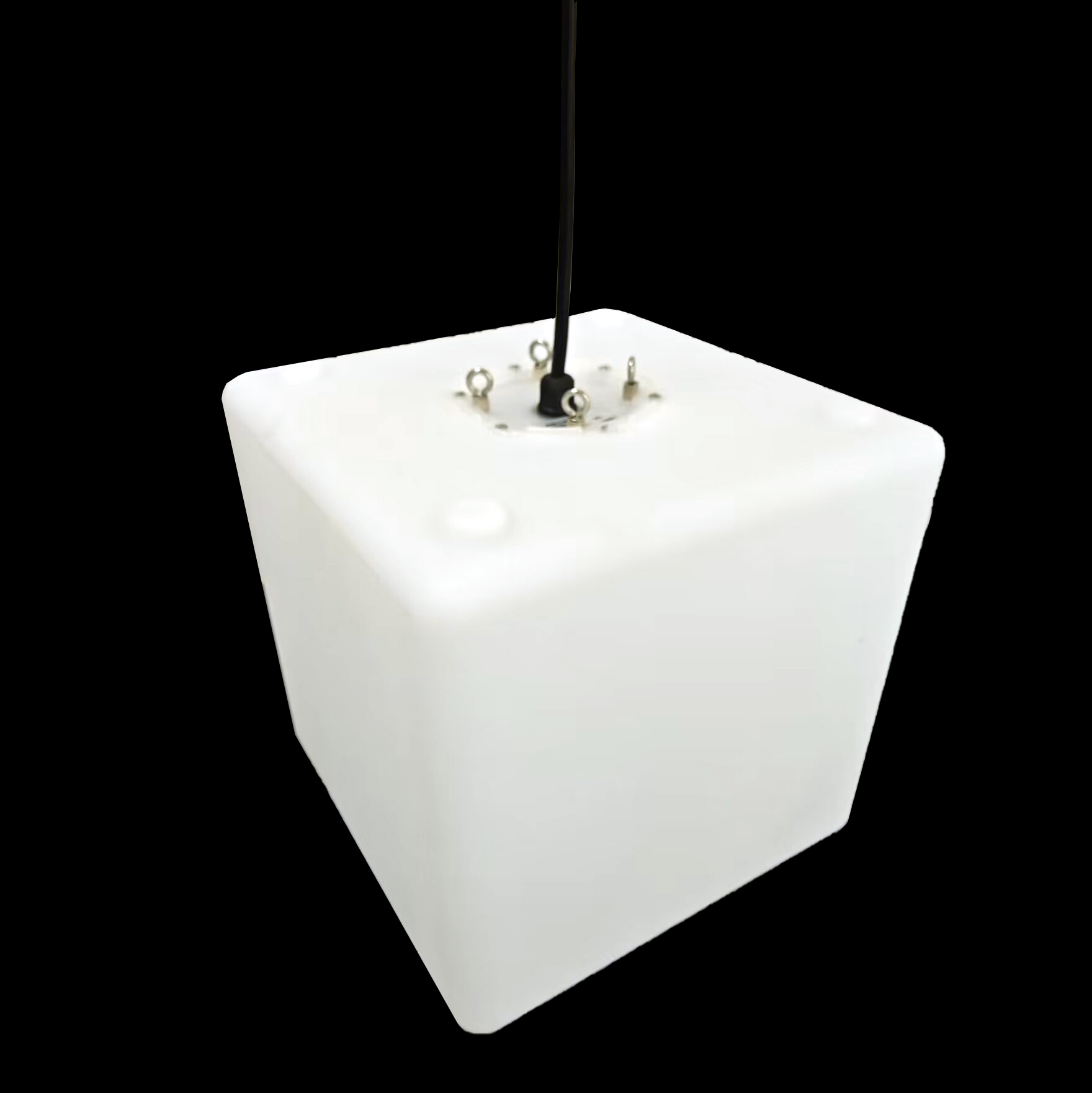

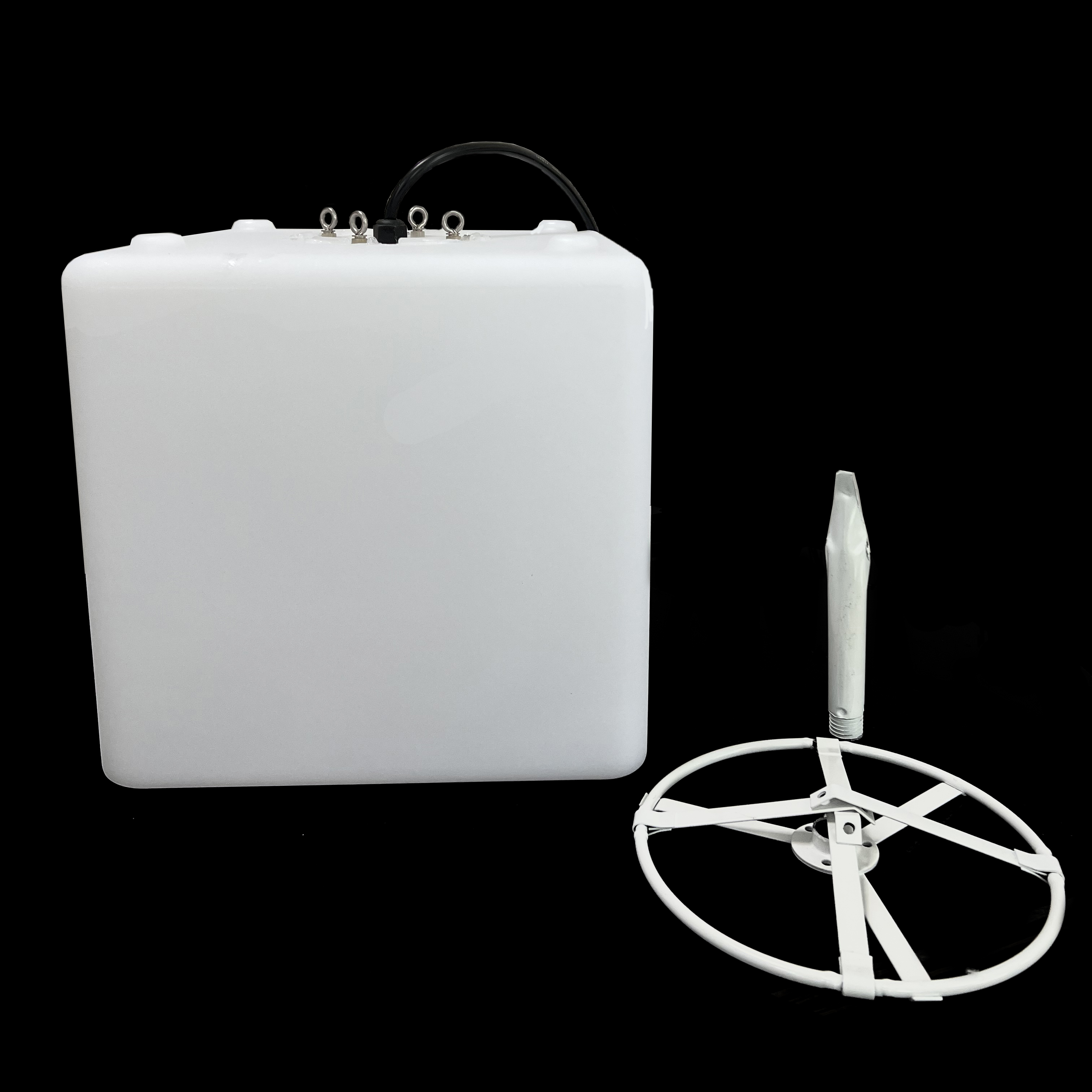

A: Various mounting options available including ground spikes, hanging kits, and surface mounts
