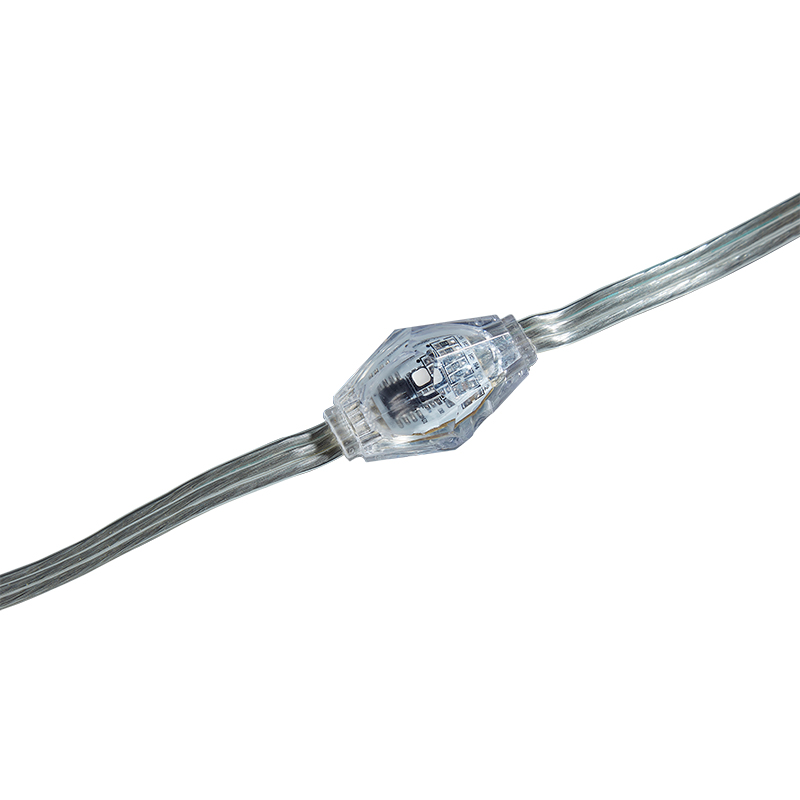

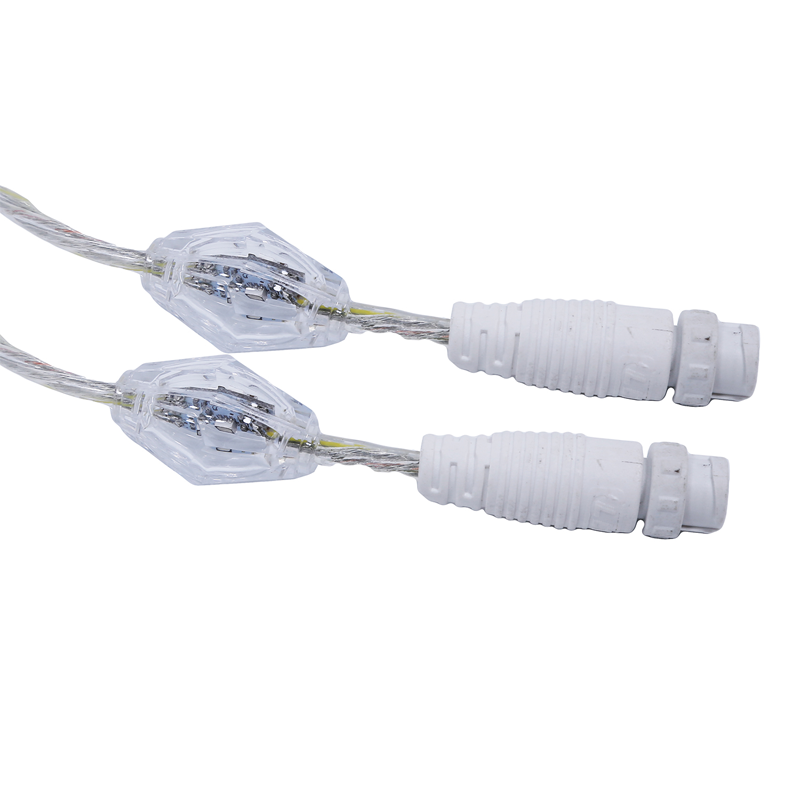

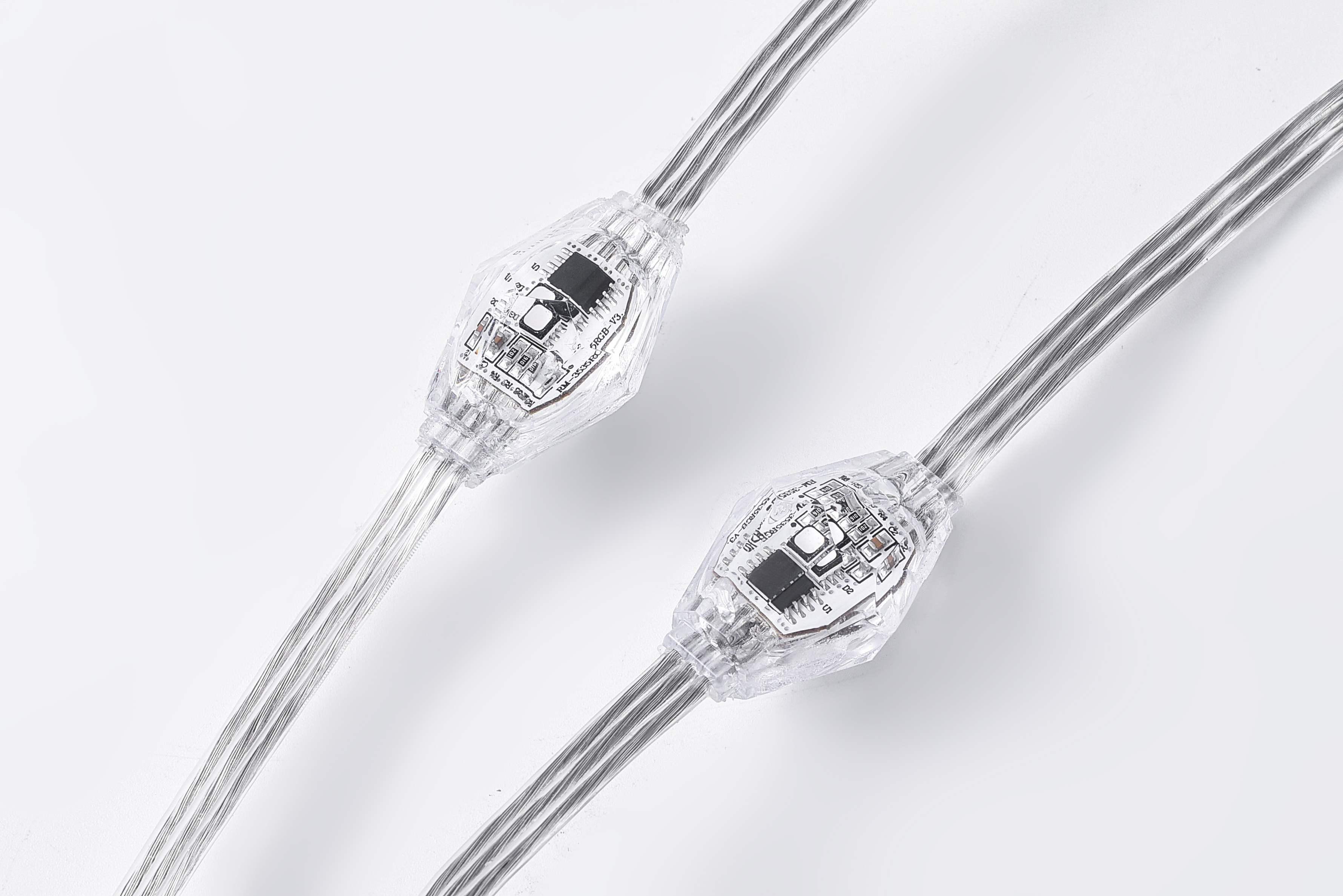

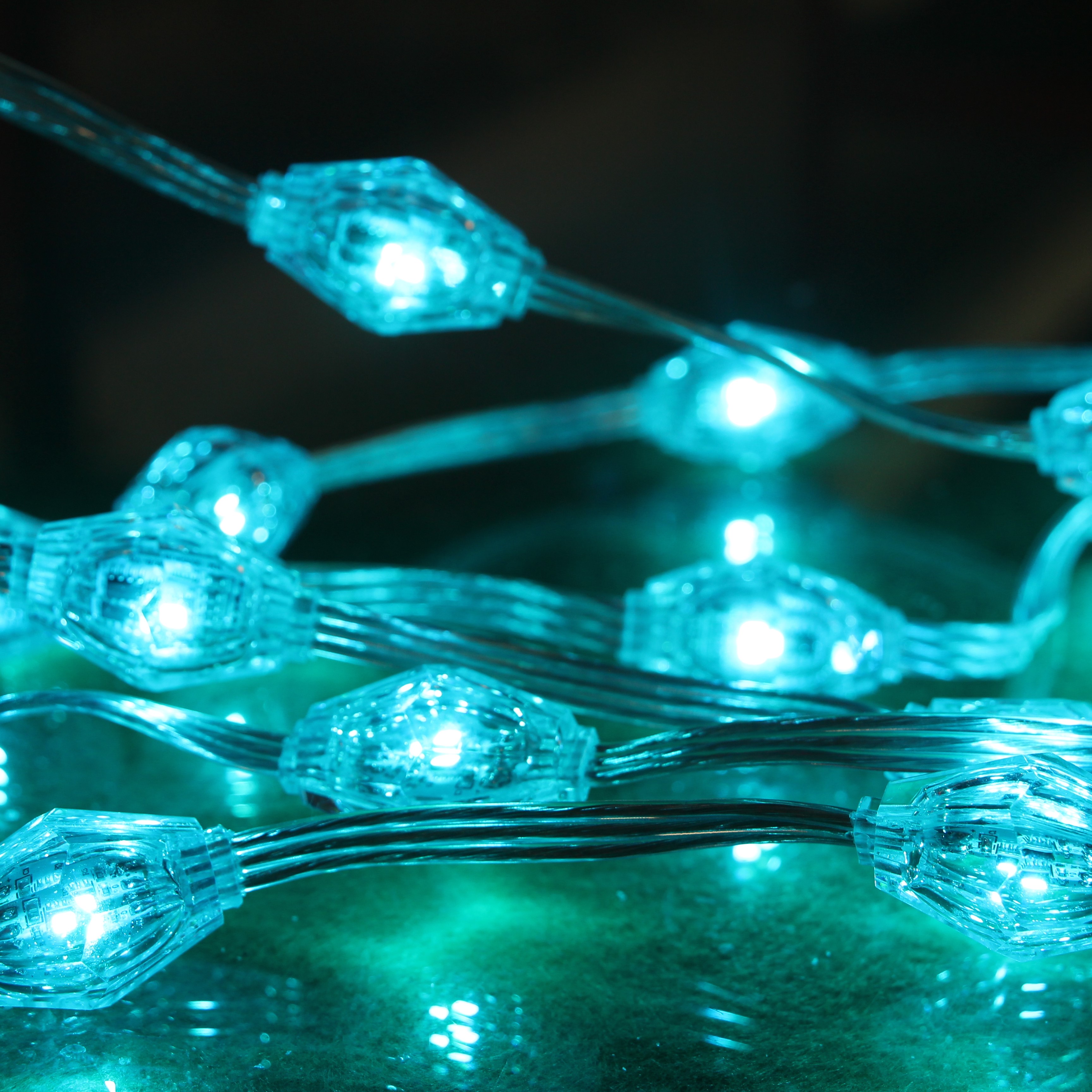

The J22 Diamond Light is a premium RGB pixel lighting solution designed for dynamic visual experiences. Featuring high-performance SMD 3535 LEDs, 16-bit grayscale with over 65,000 smooth color variations, and a 360° beam angle, this diamond-shaped light ensures full coverage and stunning brilliance. Built with durable polycarbonate housing, it comes in IP20/IP66 options for both indoor and outdoor installations. With SPI/TTL control compatibility, it is ideal for programmable lighting projects where creativity meets technology.
J22 Diamond Light
RAINMIN
| Power: | |
|---|---|
| Input Watts: | |
| Beam Angle: | |
| Current: | |
| Color Temperature: | |
| Housing Material: | |
| LED Channels: | |
Product Name: J22 Diamond Light
Lamp Bead Model: SMD 3535
LED Channels: R-G-B
Grayscale: 16-bit, 65536 levels
Number of LEDs: 2
Beam Angle: 360°
Housing Material: Polycarbonate

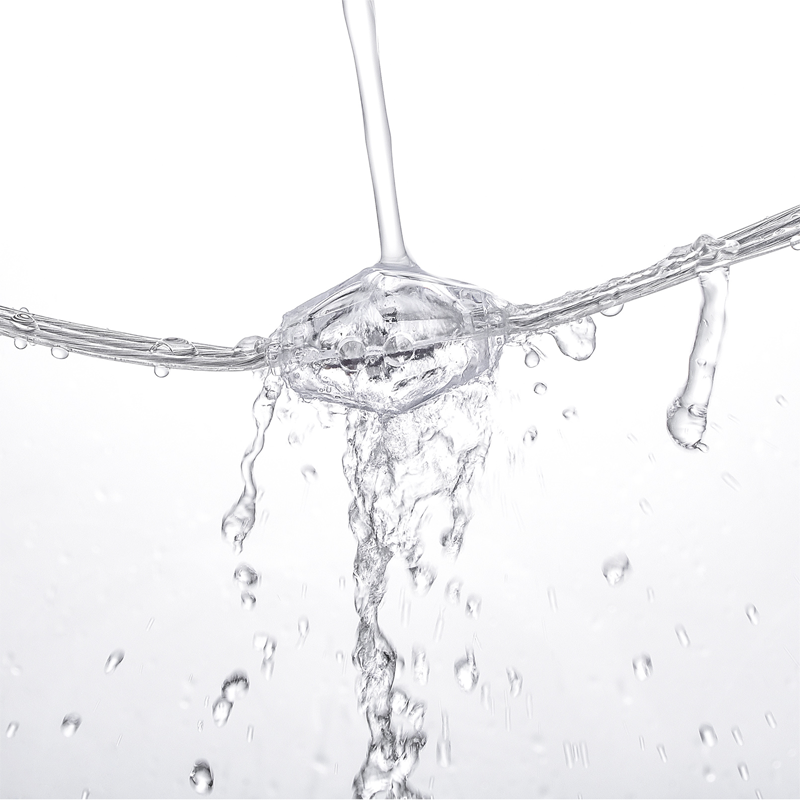

Waterproof Rating: IP20 / IP66 (Optional)
Operating Temperature: -25° to +60°C
Electrical Parameters:
Input Voltage: 12V DC
Current: 0.028 Amps
Power: 0.35W
Wire Gauge: 20 AWG, UV protected
Chips per Meter: Customized
Max Distance Without Power Supply: 30 meters
Power Supply Method: Via Power T & 12V Power Supply
Control System:
Supported Controllers: NEC & NDB / WEC / WEC BOSS / Other controls
Protocol: SPI/TTL
Unique Diamond Shape – Adds modern design aesthetics to lighting installations.
RGB Programmable Lighting – 16-bit grayscale with smooth color transitions.
360° Light Distribution – Ensures full and uniform illumination.
Flexible Installation Options – Choose IP20 indoor or IP66 outdoor models.
⚡ Low Voltage & Energy Efficient – Safe 12V DC input with just 0.35W per unit.
️ Smart Control Compatibility – Works with SPI/TTL protocols and multiple controllers.
️ Application Scenarios
Architectural facade and building outlines
Stage, concerts, and entertainment venues
Shopping mall and retail displays
Landscape and garden decorative lighting
Creative indoor ambiance lighting
Over 16 years of expertise in RGB pixel and programmable lighting.
Complete plug-and-play lighting ecosystem with advanced LightShow Pro software.
Wide product range: pixel lights, pebble lights, wall washers, neon strips, floodlights, and more.
Global projects experience in architecture, landscape, and event lighting.
Dedicated pre-sales & after-sales technical support.
Q1: Is the J22 Diamond Light suitable for outdoor use?
A1: Yes, it is available in both IP20 (indoor) and IP66 (outdoor) versions.
Q2: Can the diamond light be programmed for custom effects?
A2: Yes, it supports SPI/TTL protocols and works with multiple controllers.
Q3: What is the maximum distance before power injection is required?
A3: Up to 30 meters before an additional power supply is needed.
Q4: Why choose diamond-shaped lights instead of regular strip lights?
A4: The diamond shape provides unique visual aesthetics, making installations more creative and eye-catching.
