Waterproof Rating: IP66 (Full outdoor protection)
Input Voltage: 24V DC (Professional low-voltage operation)
LED Options: RGB & RGBW configurations available
Beam Angle: 360-degree full illumination
Grayscale: 16-bit (65,536 smooth transitions)
LED Count: 6 high-intensity LEDs per unit
Material: Polycarbonate casing (Impact resistant)
Max Run: 100 lights before injection
Power Consumption: 0.72W per light (Energy efficient)
Applications: Architectural, landscape, commercial lighting

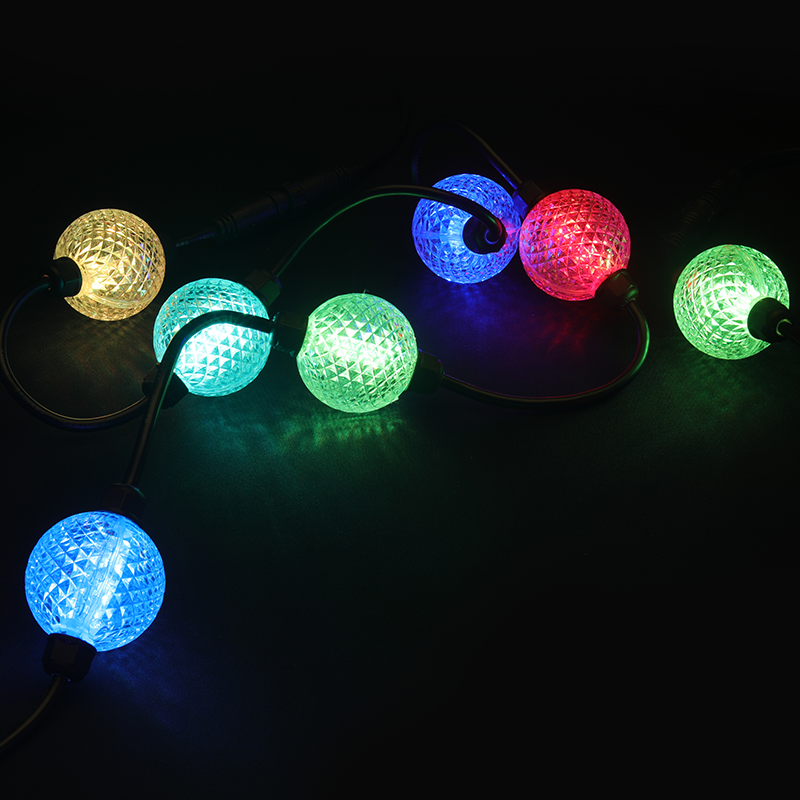

G50 Triklit
RAINMIN
| Power: | |
|---|---|
| Beam Angle: | |
| Crust Material: | |
| LED Quantity: | |
| Input Voltage: | |
| LED Type: | |
| Grey Scale: | |

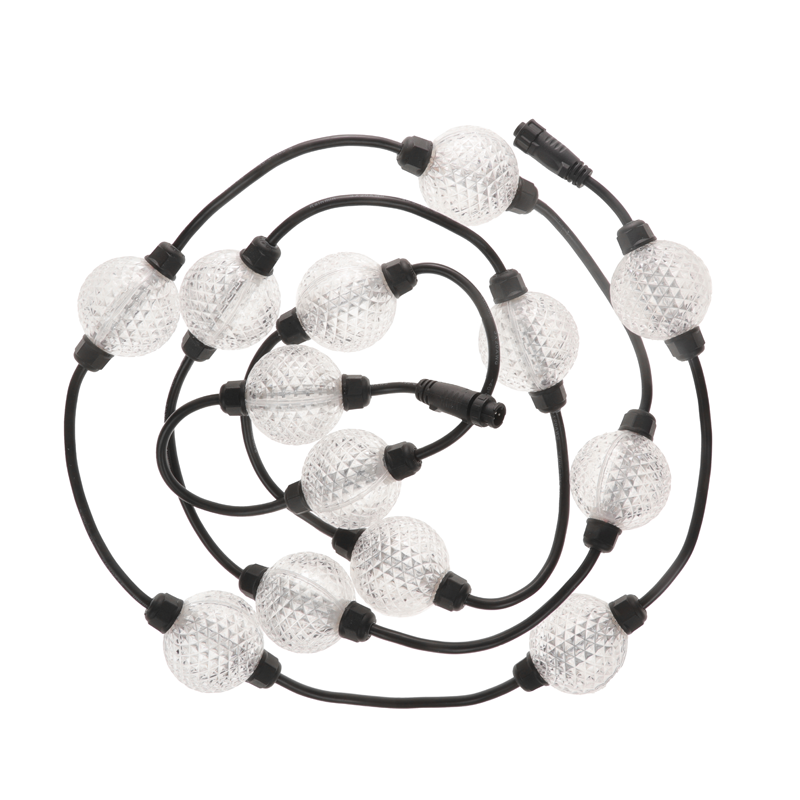

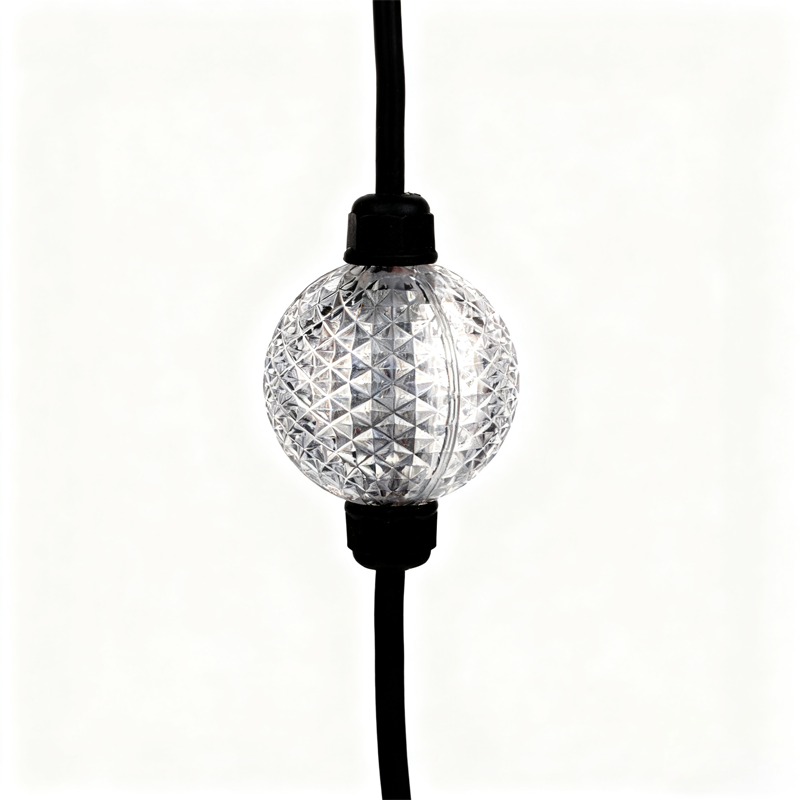

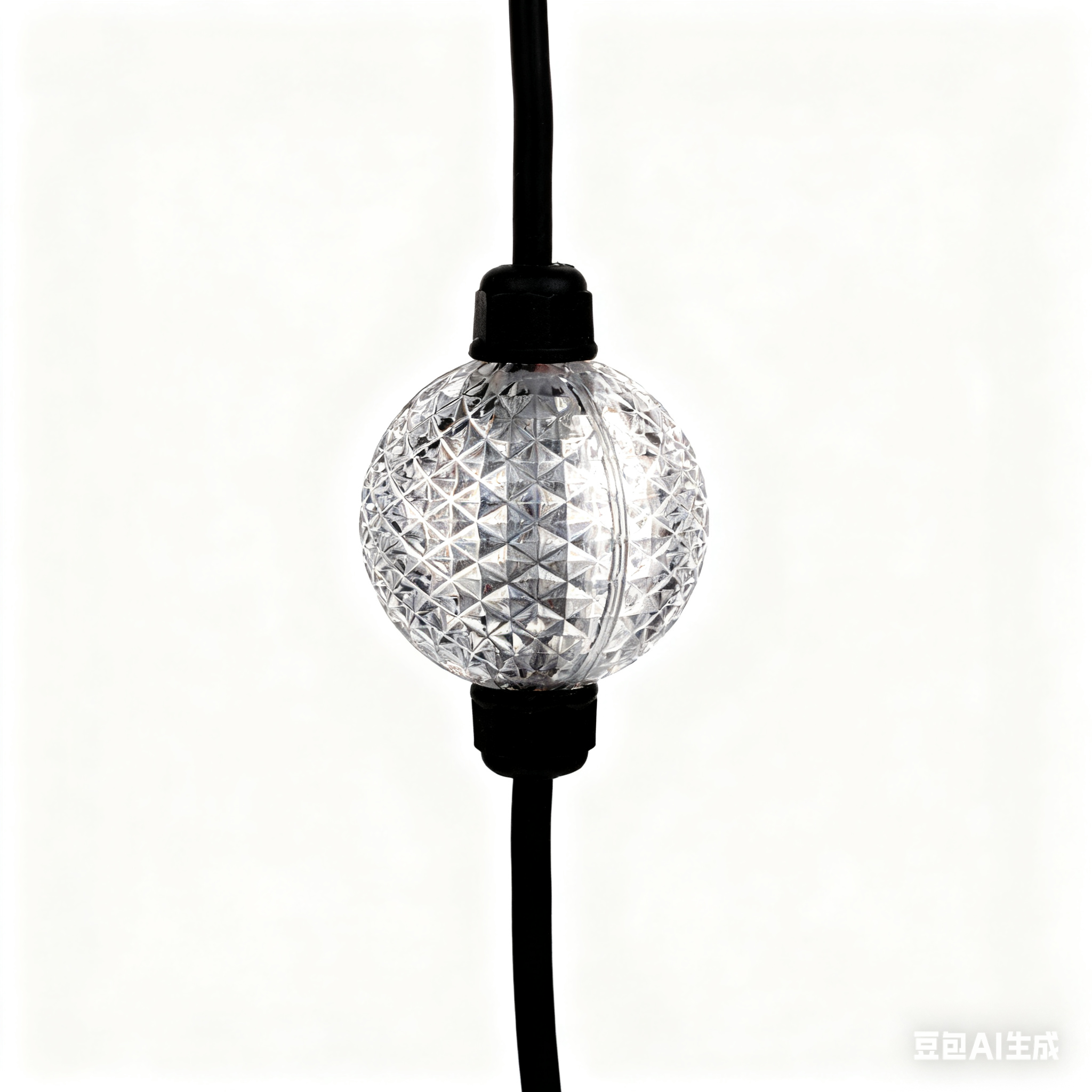

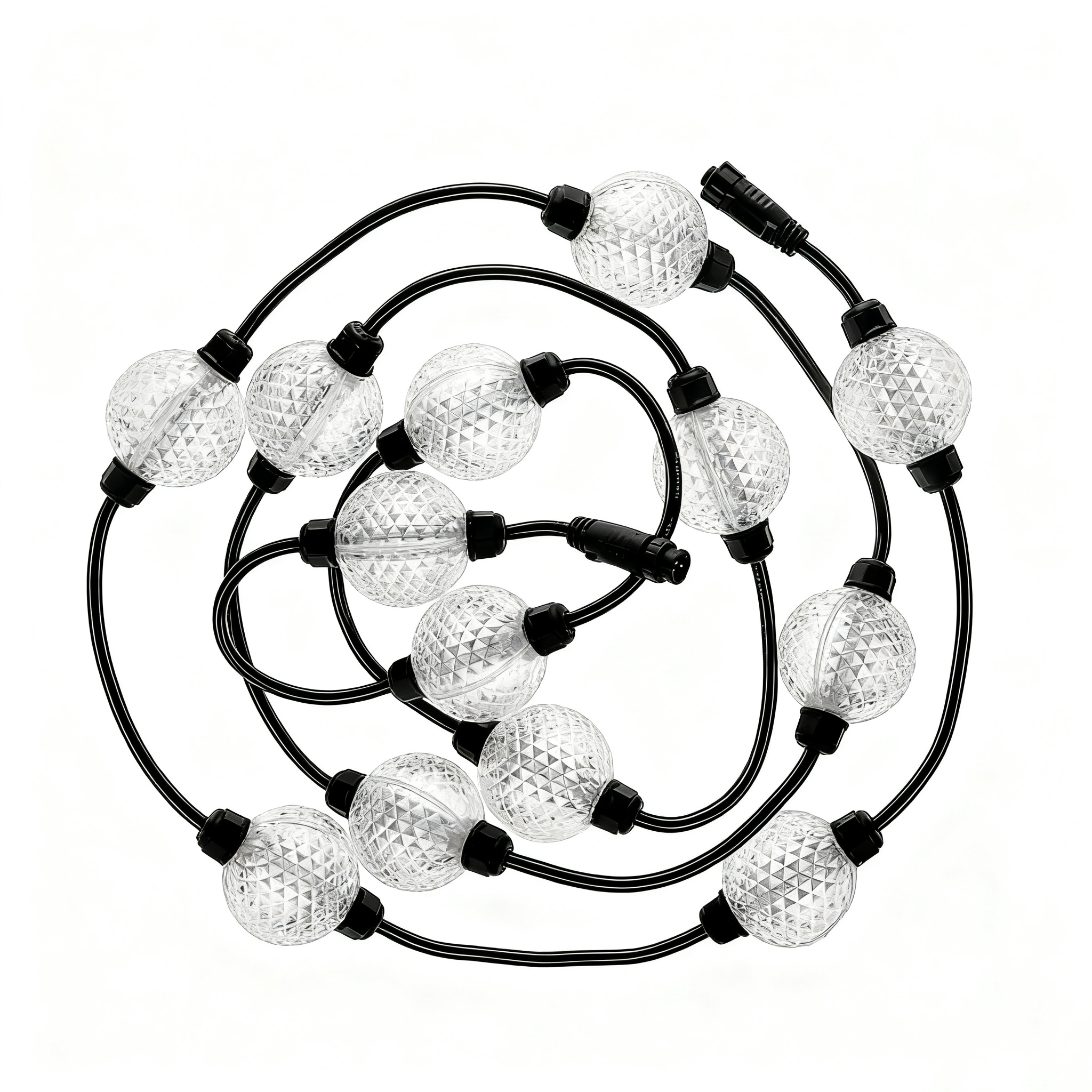

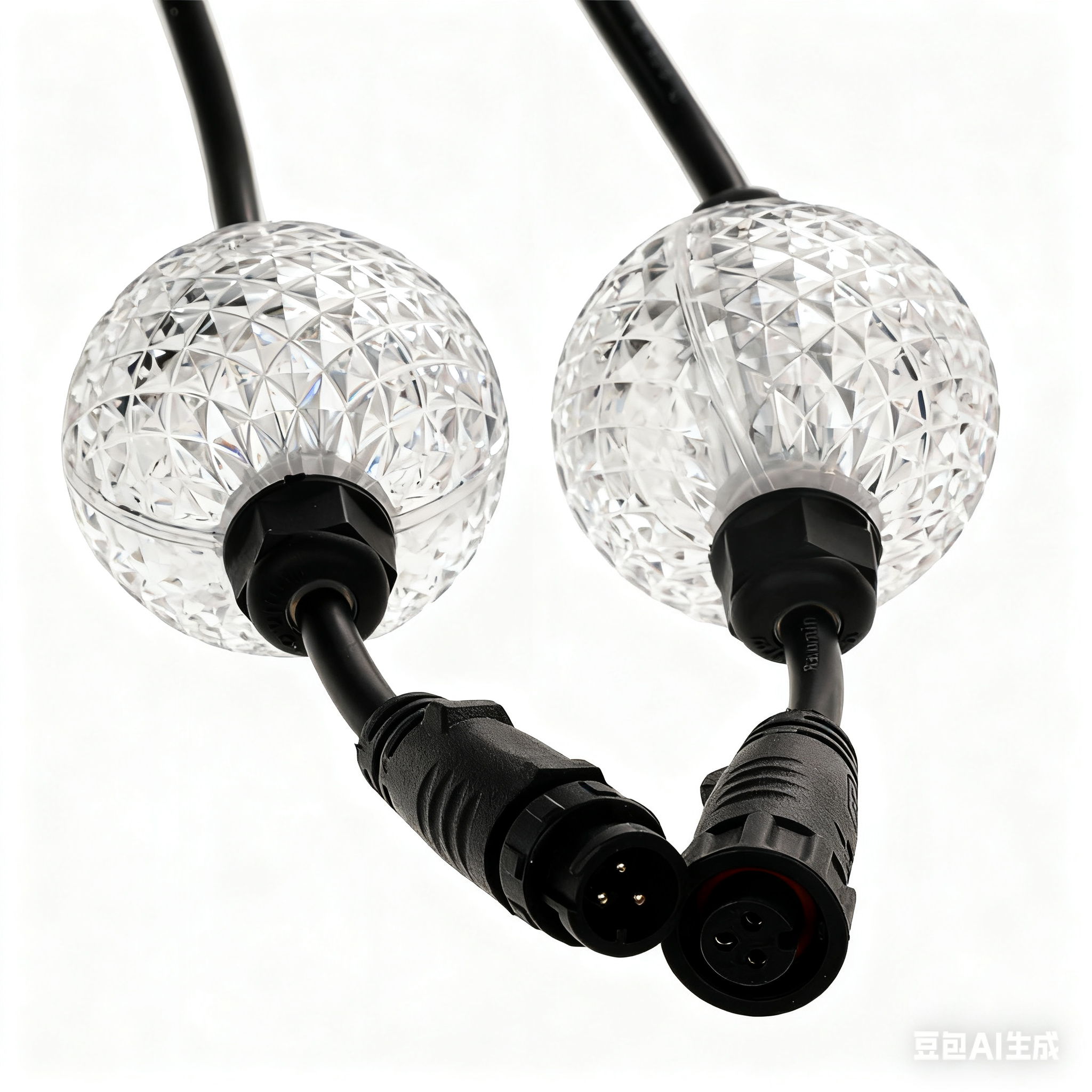

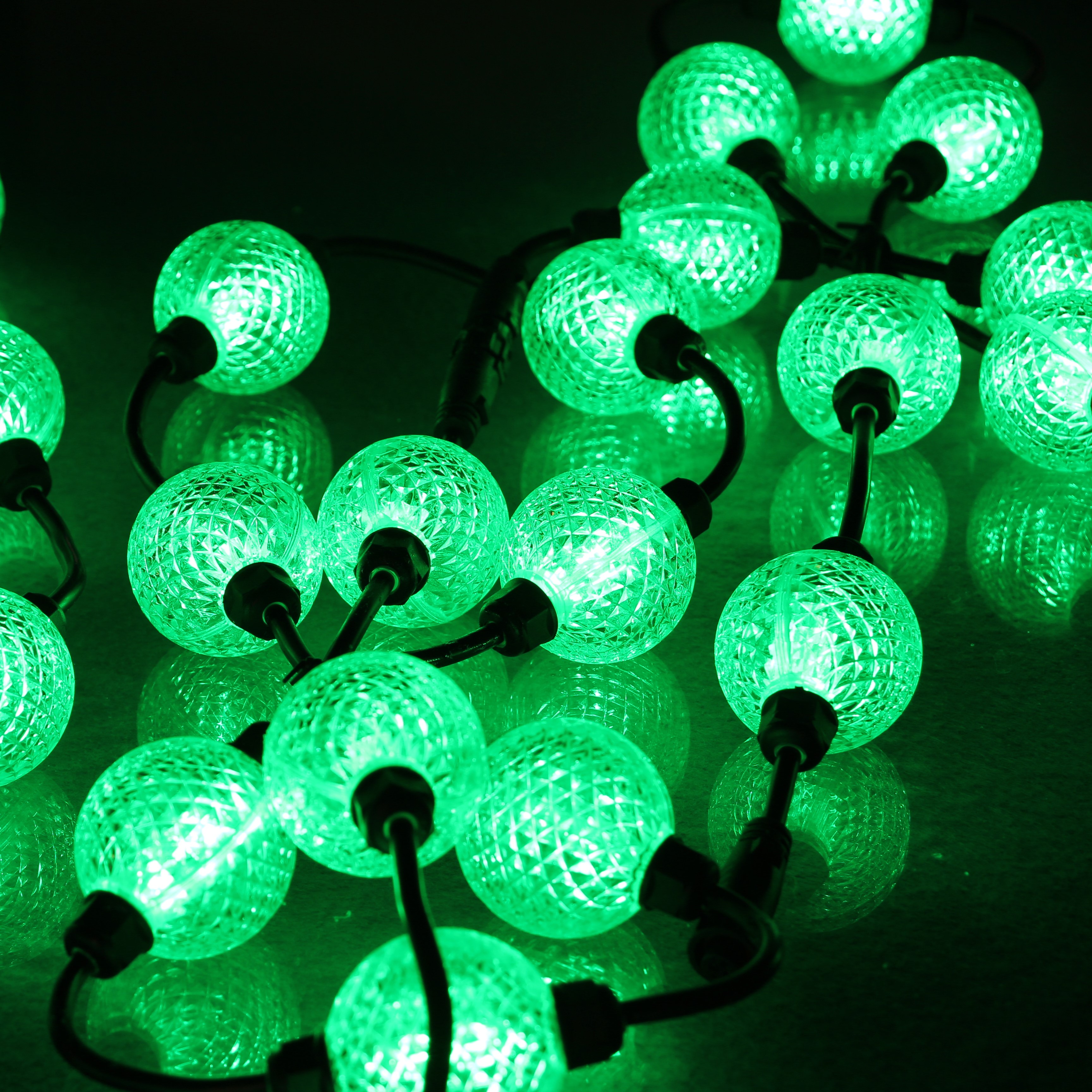

Rainmin's G50 TRIKLIT Point Light delivers professional-grade 360-degree illumination with advanced 16-bit color processing capabilities. Featuring six high-intensity LEDs per unit and IP66-rated polycarbonate construction, this point light offers exceptional brightness and weather resistance for demanding outdoor applications. Available in both RGB and RGBW configurations, the G50 provides designers with complete creative flexibility for architectural highlighting, landscape illumination, and commercial installations. With extended run capability of up to 100 lights and 30 meters without power injection, this system offers unparalleled installation flexibility. Compatible with major control systems including NEC and WEC controllers, the G50 TRIKLIT is the ideal choice for professional lighting designers seeking reliable, high-performance point lighting solutions.
Complete 360° Illumination: Full spherical lighting from each point light
High-Intensity Output: 6 LEDs per unit for maximum brightness
Dual Configuration Options: RGB for colors or RGBW for color + white light
Professional Color Control: 16-bit processing with 65,536 smooth transitions
Weatherproof Construction: IP66 rating ensures all-weather durability
Extended Run Capability: Up to 100 lights over 30 meters without injection
Energy Efficient Design: Low 0.72W power consumption per light
Wide Compatibility: Supports NEC, WEC and SPI/TTL control systems
| Parameter | Specification |
|---|---|
| Model Number | G50 TRIKLIT Point Light |
| LED Type | SMD 5050 (RGB/RGBW) |
| LED Quantity | 6 LEDs per unit |
| Grayscale | 16-bit (65,536 levels) |
| Beam Angle | 360-degree |
| Housing Material | Polycarbonate |
| Waterproof Rating | IP66 |
| Operating Temperature | -25°C to +60°C |
| Parameter | Specification |
|---|---|
| Input Voltage | 24V DC |
| Current Consumption | 0.028A per light |
| Power Consumption | 0.72W per light |
| Wire Type | 20AWG UV protected |
| Max Lights Before Injection | 100 lights |
| Max Distance Before Injection | 30 meters |
| Protocol Support | SPI/TTL |

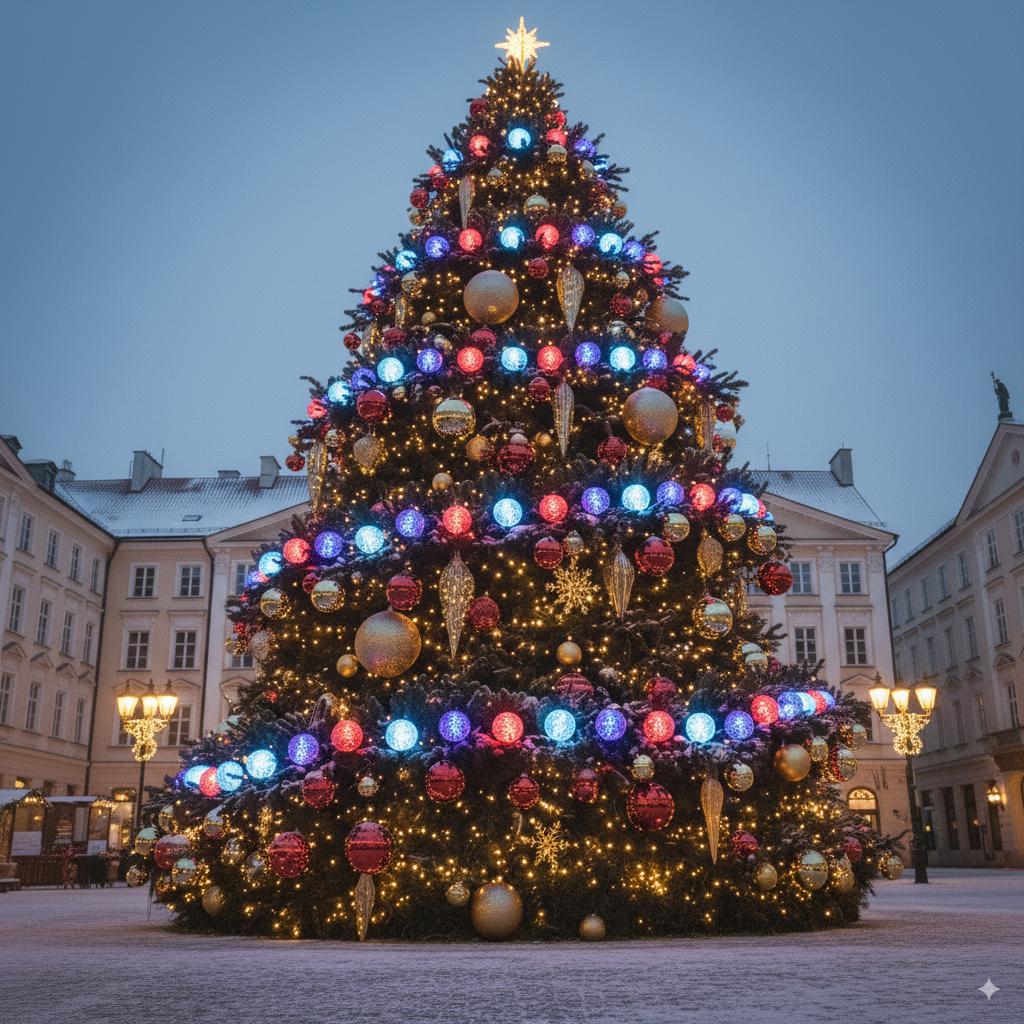

Architectural Lighting: Building facades and structural highlighting
Landscape Illumination: Garden features and pathway lighting
Commercial Displays: Retail signage and storefront lighting
Public Space Lighting: Parks and municipal area illumination

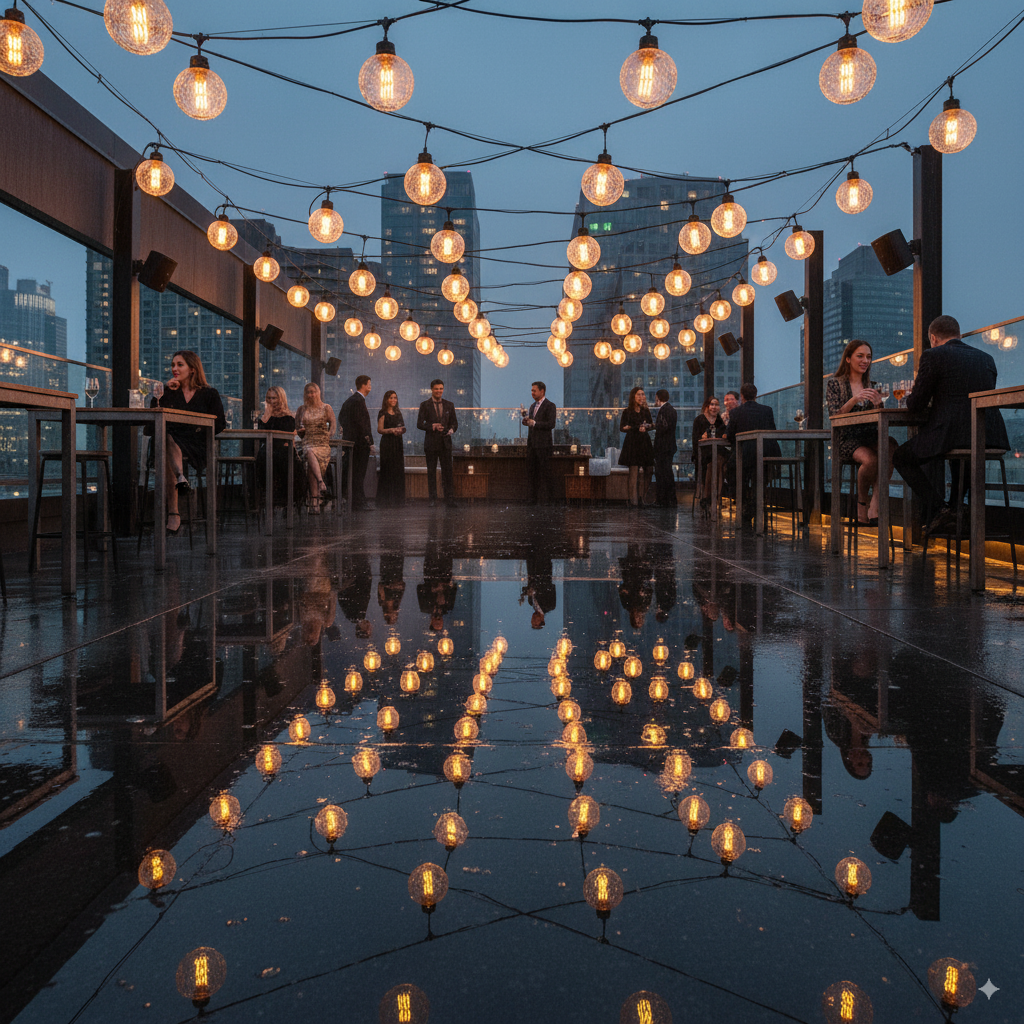

Event Decoration: Wedding and party lighting installations
Hospitality Lighting: Hotel and resort ambiance creation
Creative Installations: Artistic and decorative lighting projects
Rainmin Lighting: Expert in Professional Point Lighting Solutions
With 16+ years of specialized manufacturing experience, Rainmin provides:
Custom housing designs and color options
Specialized optical engineering services
Custom firmware development capabilities
International safety certification support
Technical guidance for complex installations
Competitive OEM pricing for volume orders
Q: What's the advantage of having 6 LEDs per unit?
A: Six LEDs provide higher brightness and more uniform illumination compared to standard point lights
Q: Can I mix RGB and RGBW versions in one installation?
A: Yes, but they require separate control channels due to different power requirements
Q: What controllers are compatible?
A: Compatible with NEC, WEC, and other SPI/TTL based control systems
Q: Can you create custom housing colors?
A: Yes, we offer custom color matching for specific project requirements
Q: How does the 360-degree lighting benefit architectural applications?
A: Provides uniform illumination from all viewing angles, ensuring consistent visual effects
