Waterproof Rating: IP66 (Full outdoor protection)
Dual Voltage Options: 12V DC (RGB) & 24V DC (RGBW)
Beam Angle: 360-degree spherical illumination
LED Options: RGB & RGBW configurations
Transmission Distance: 30m (12V) / 60m (24V) before injection
Grayscale: 16-bit (65,536 smooth transitions)
Material: Polycarbonate housing (Impact resistant)
Power Consumption: 0.35W per light (Energy efficient)
Wire Quality: 20AWG UV protected
Applications: Landscape, architectural, event lighting
G42 trilklit
RAINMIN

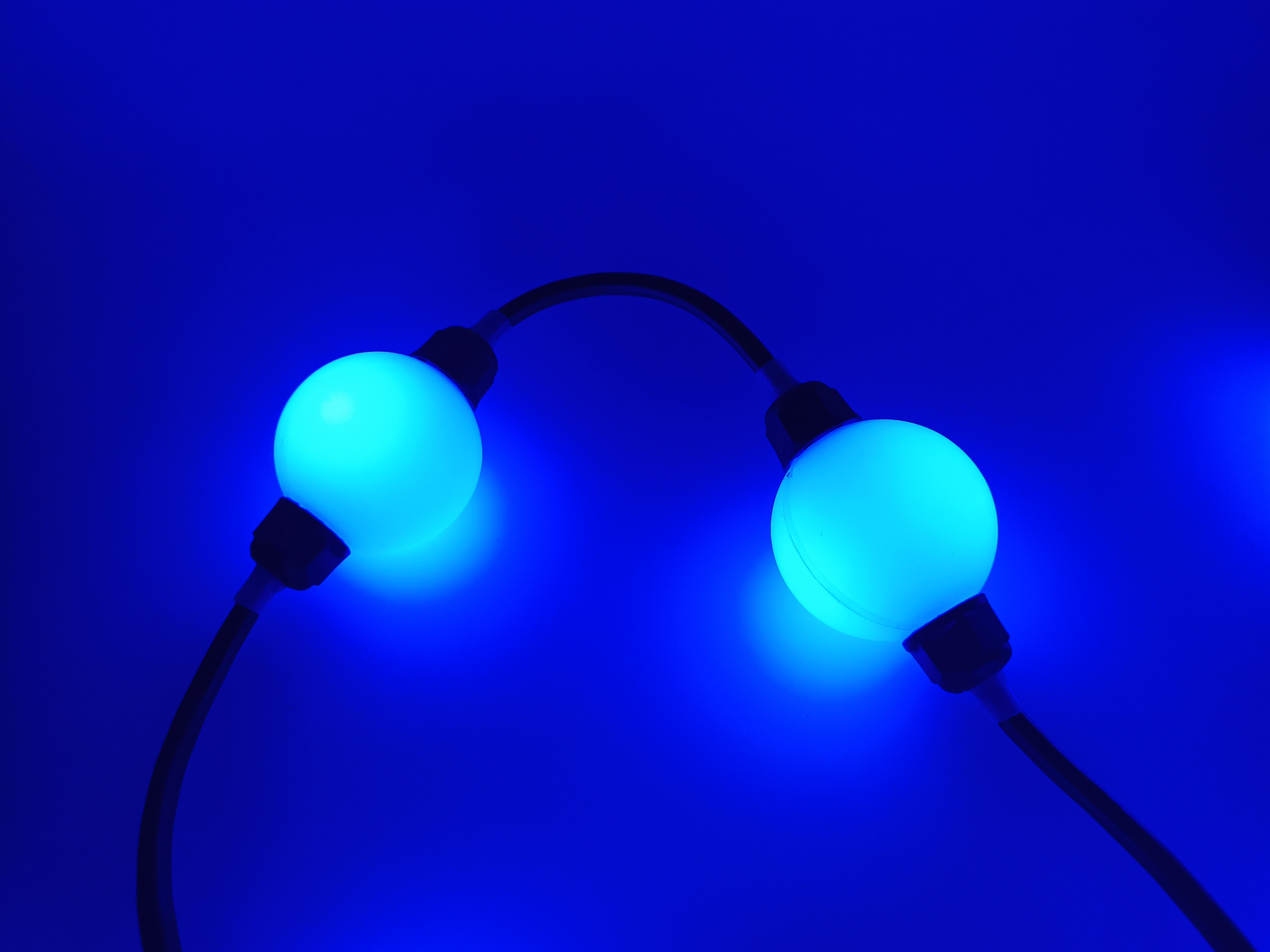

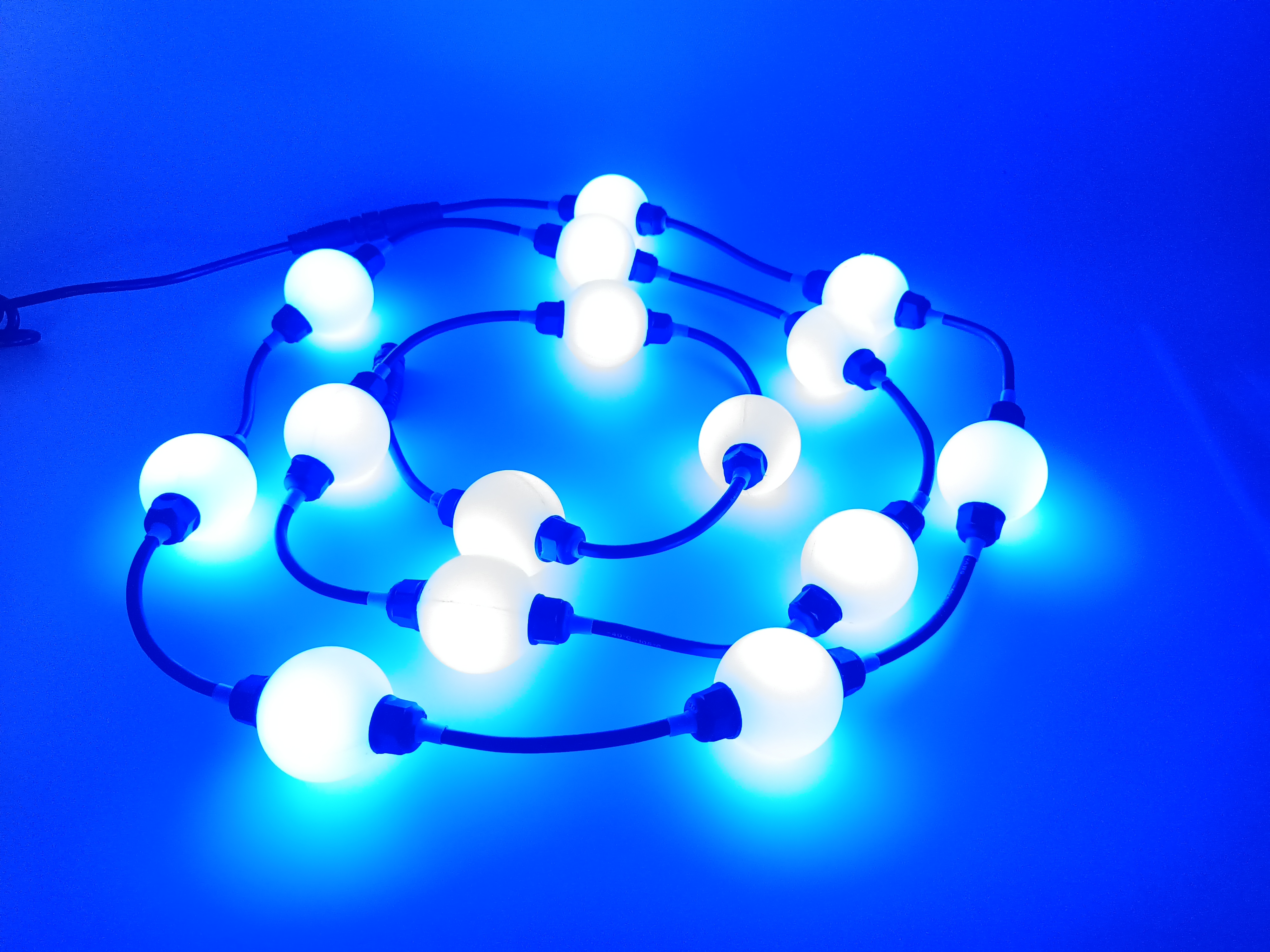

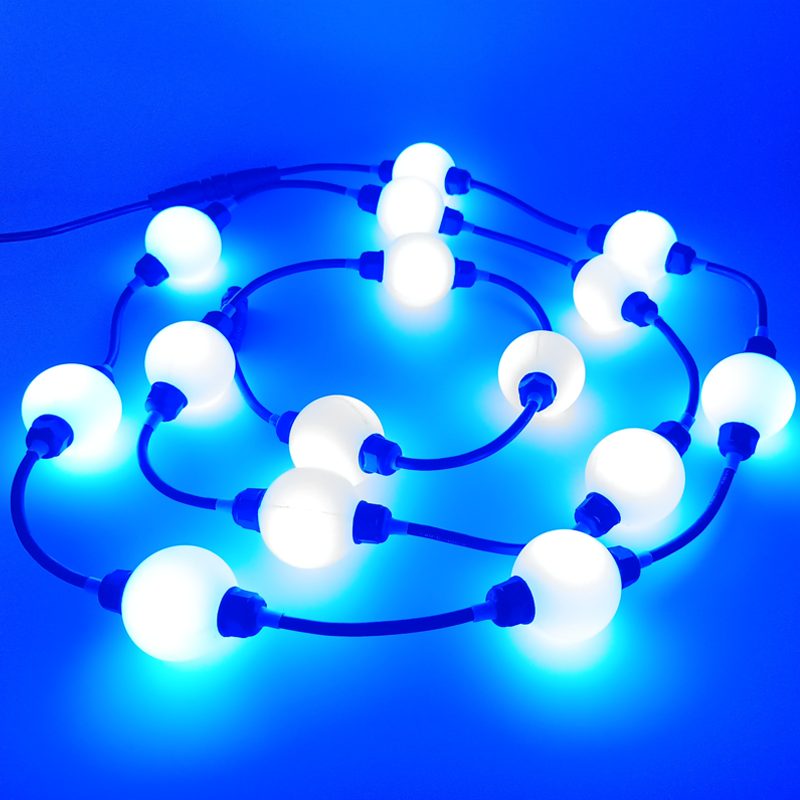

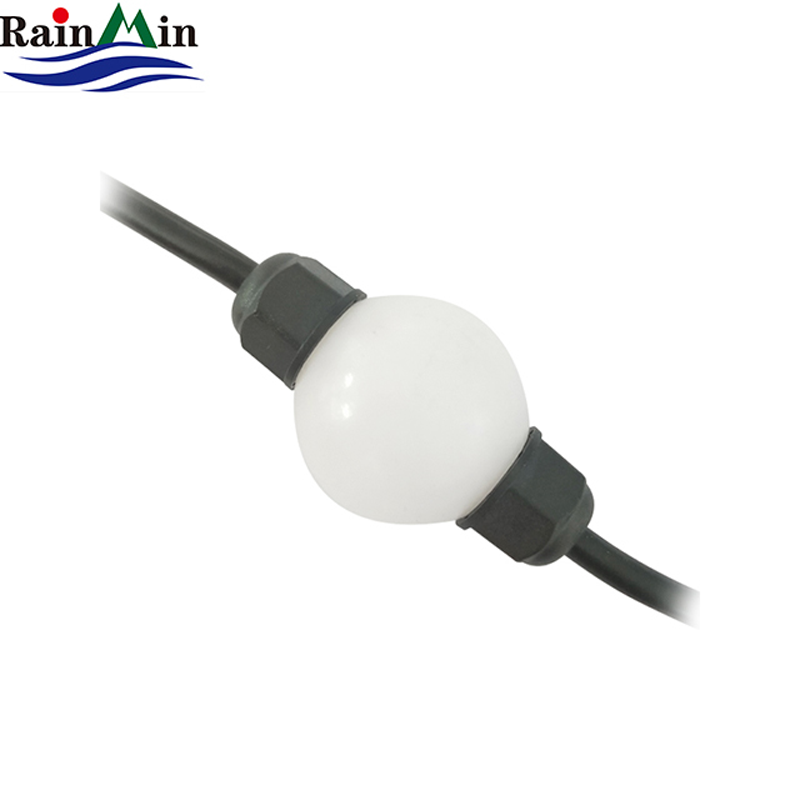

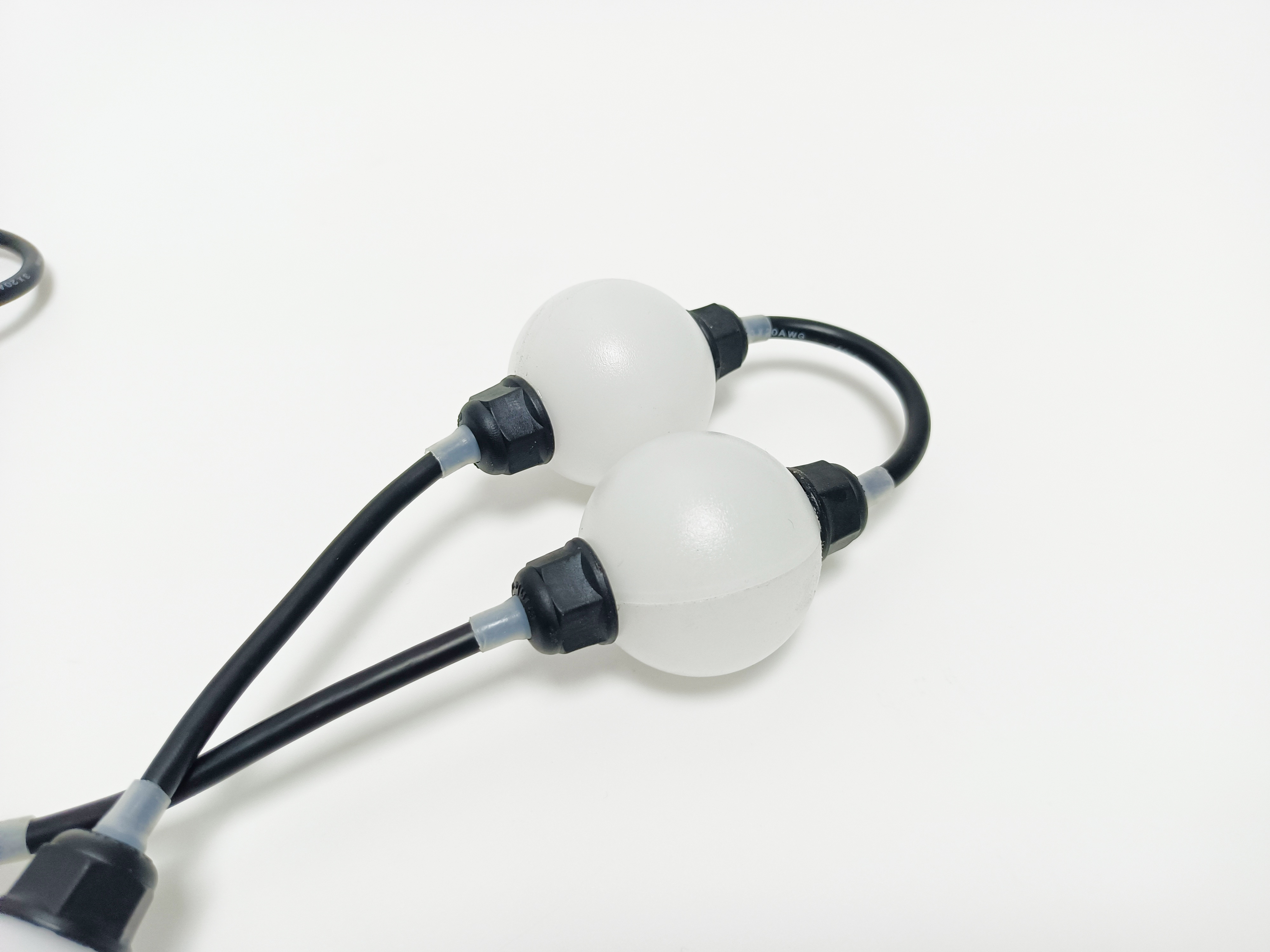

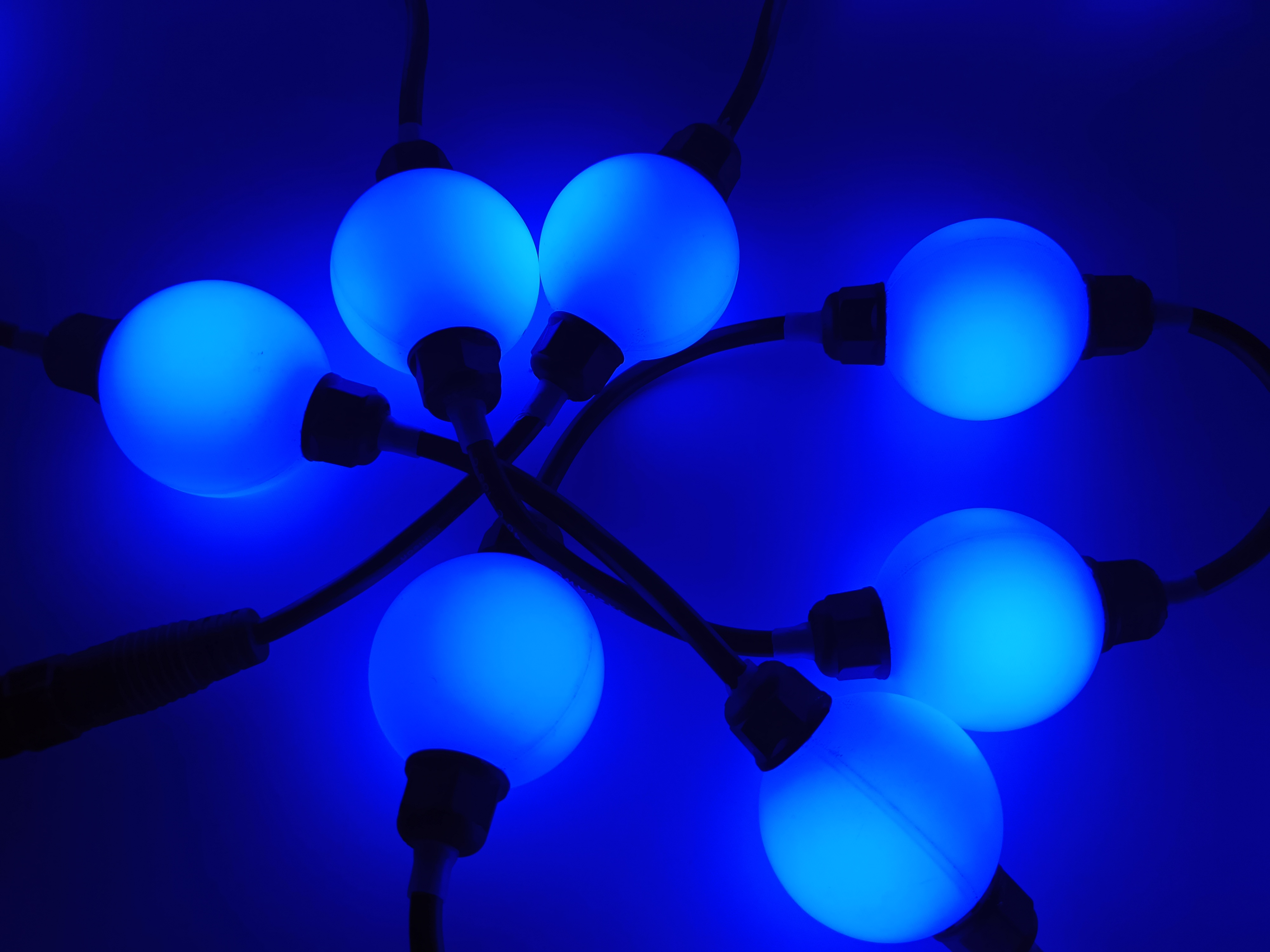

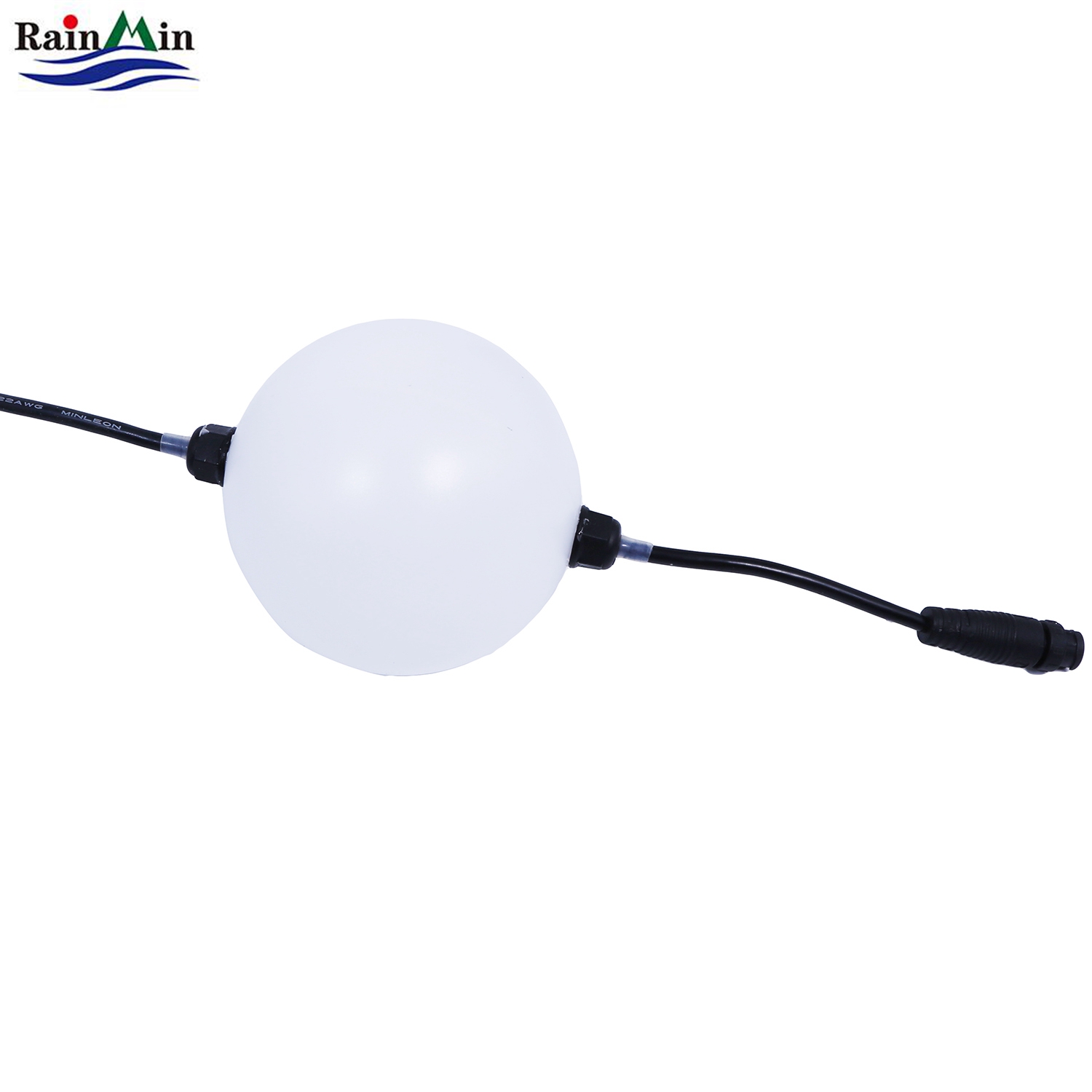

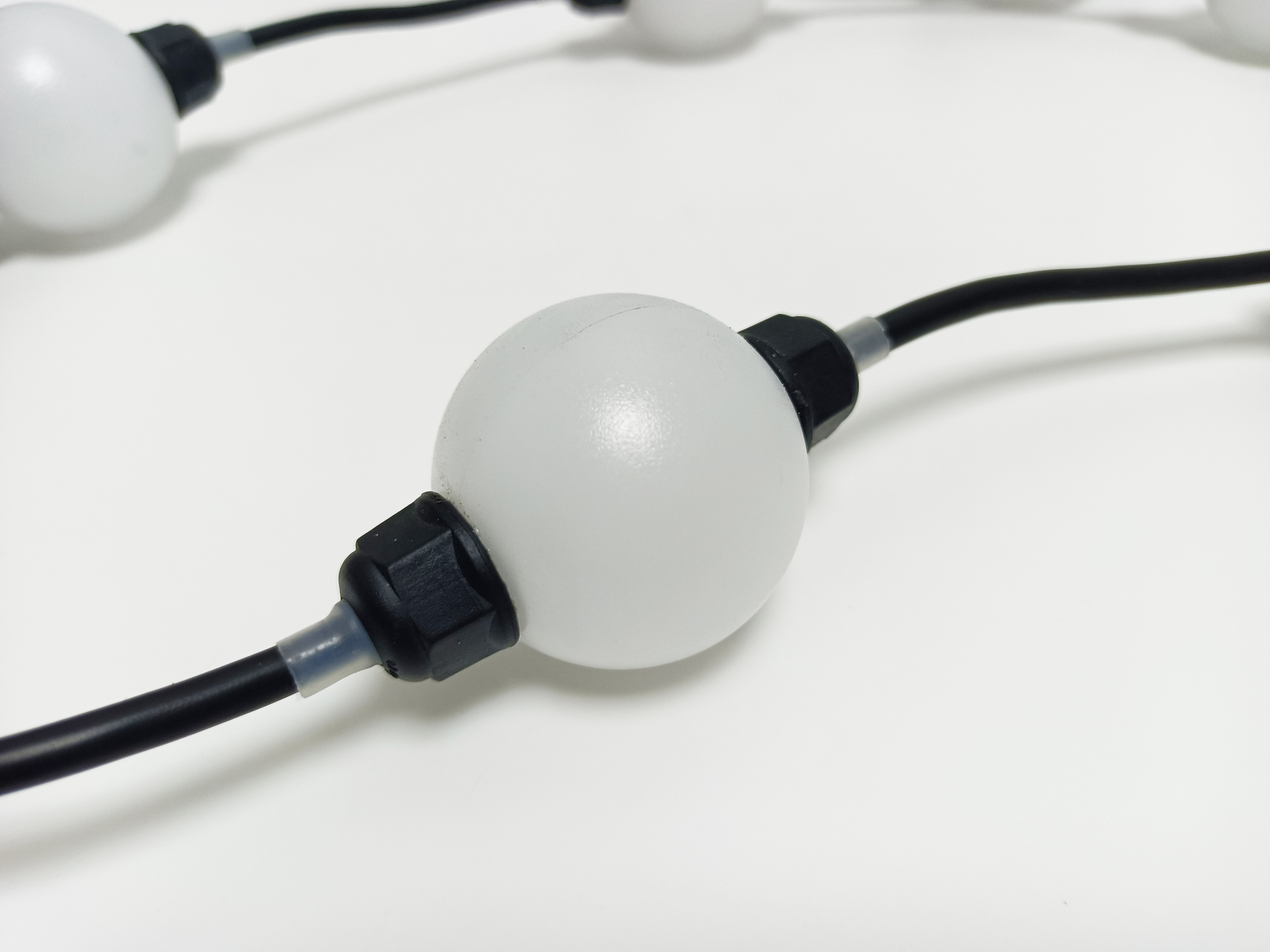

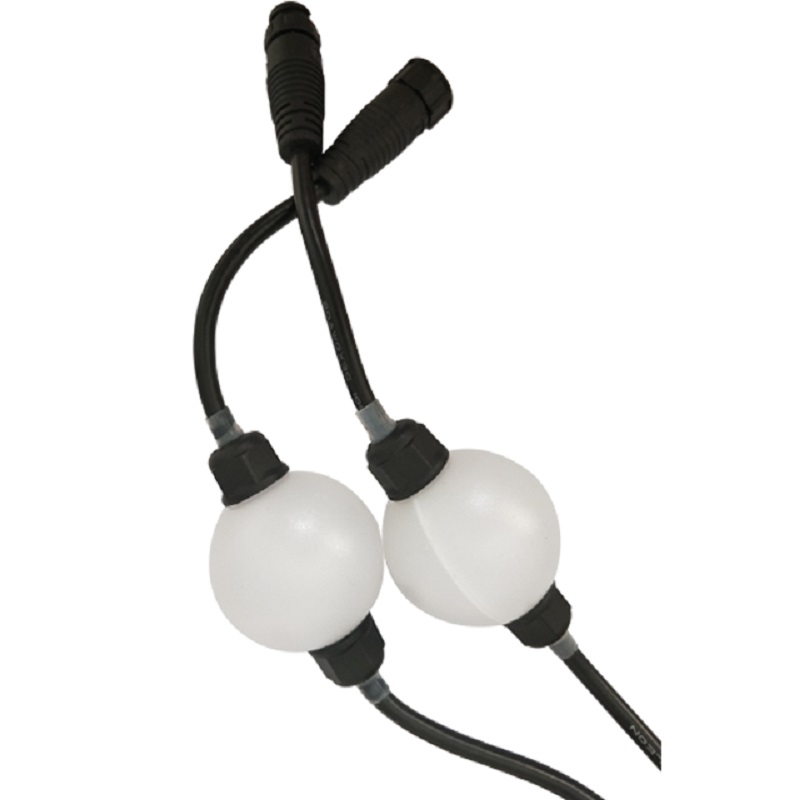

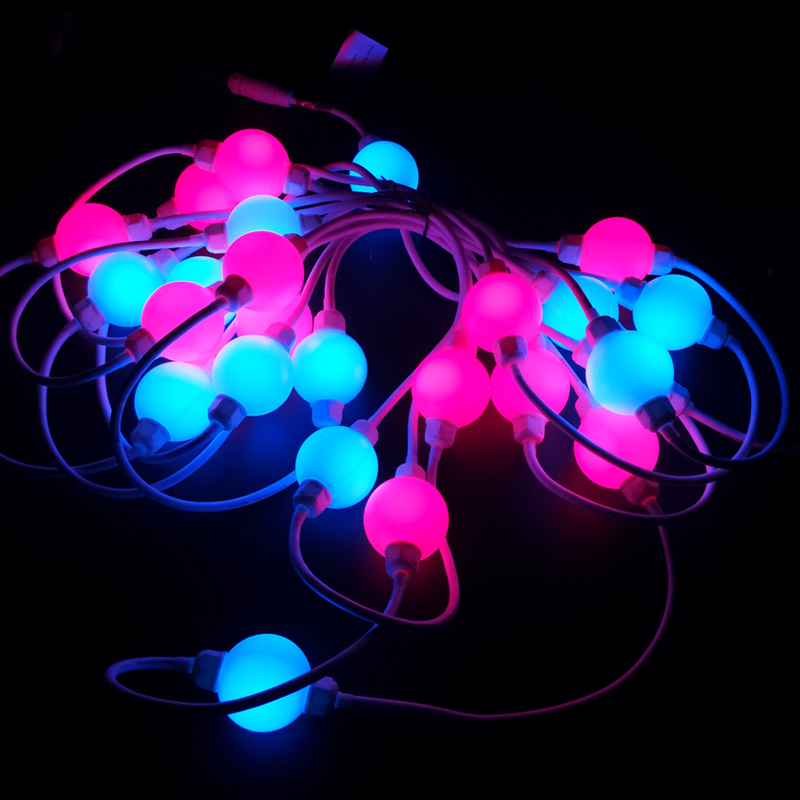

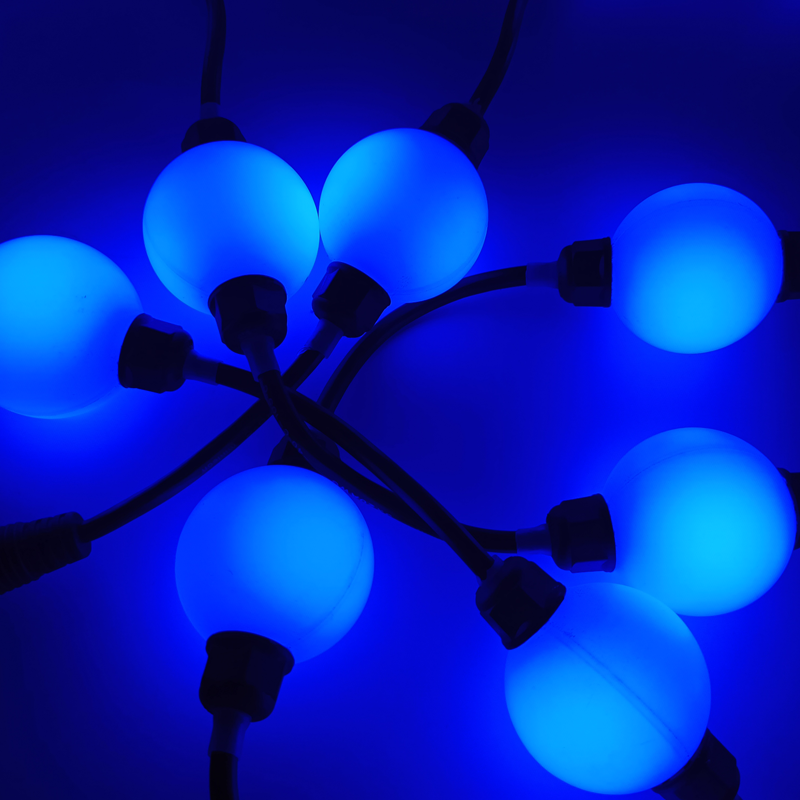

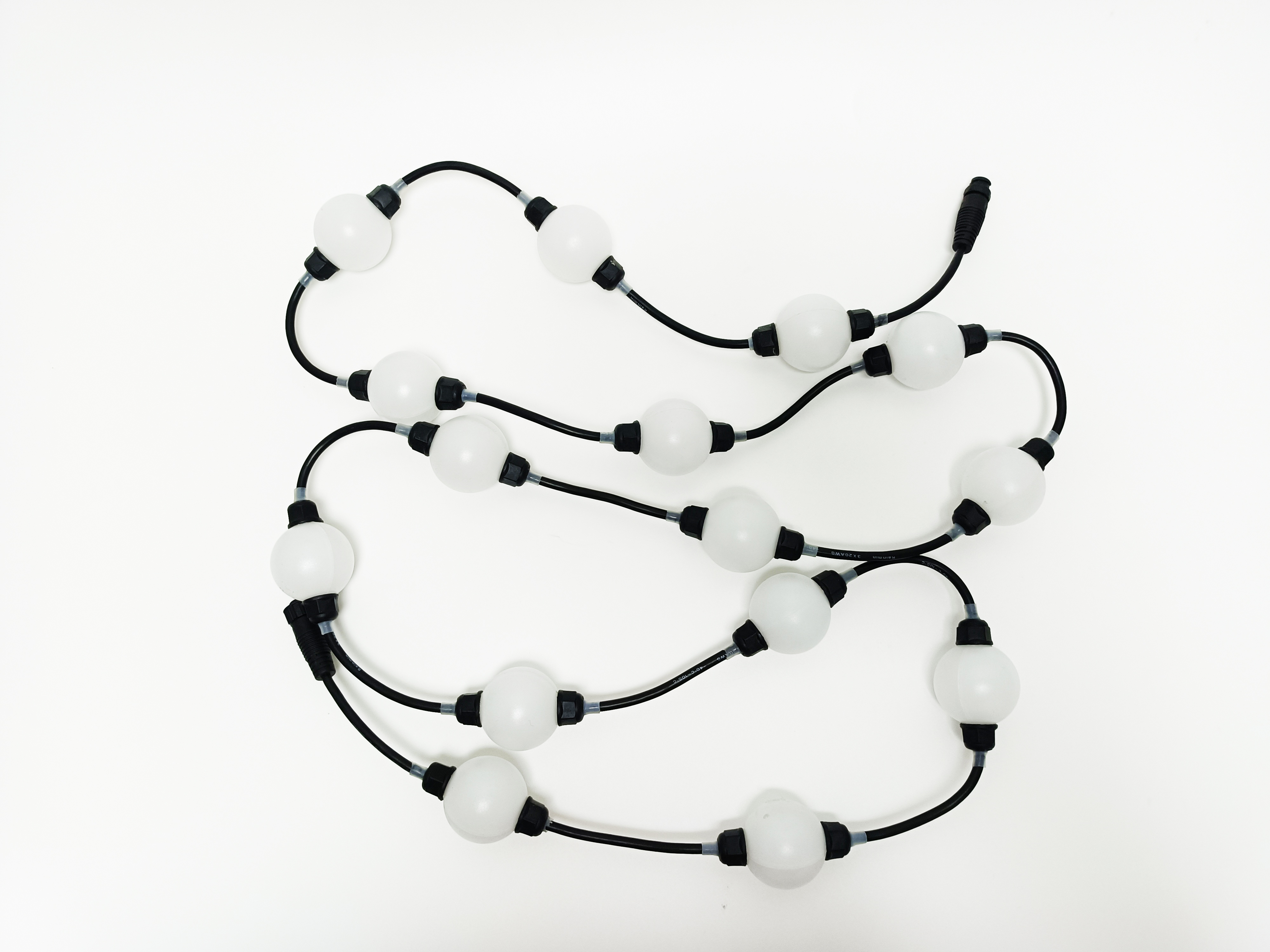

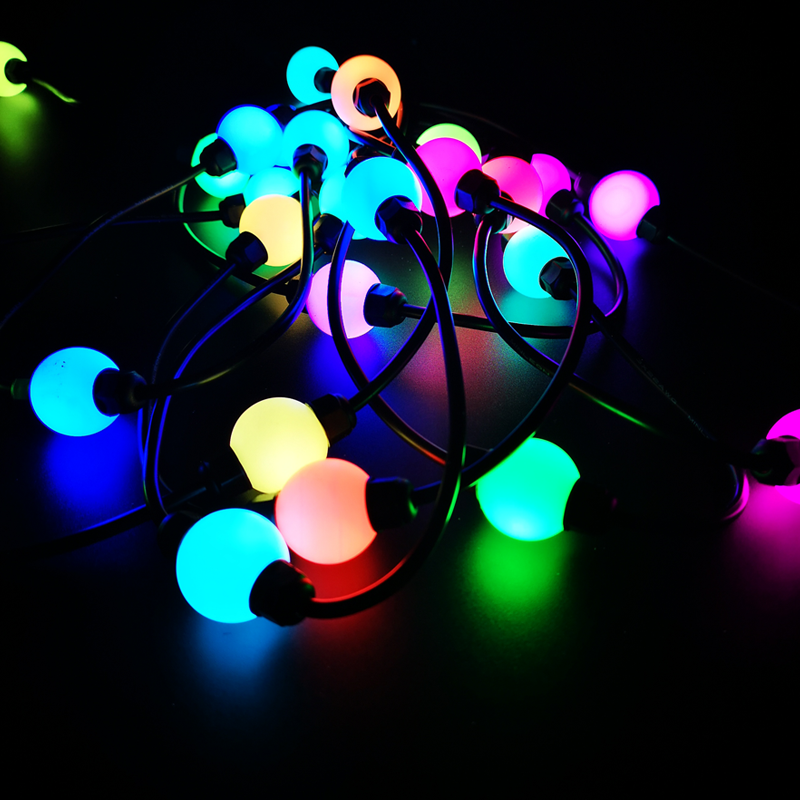

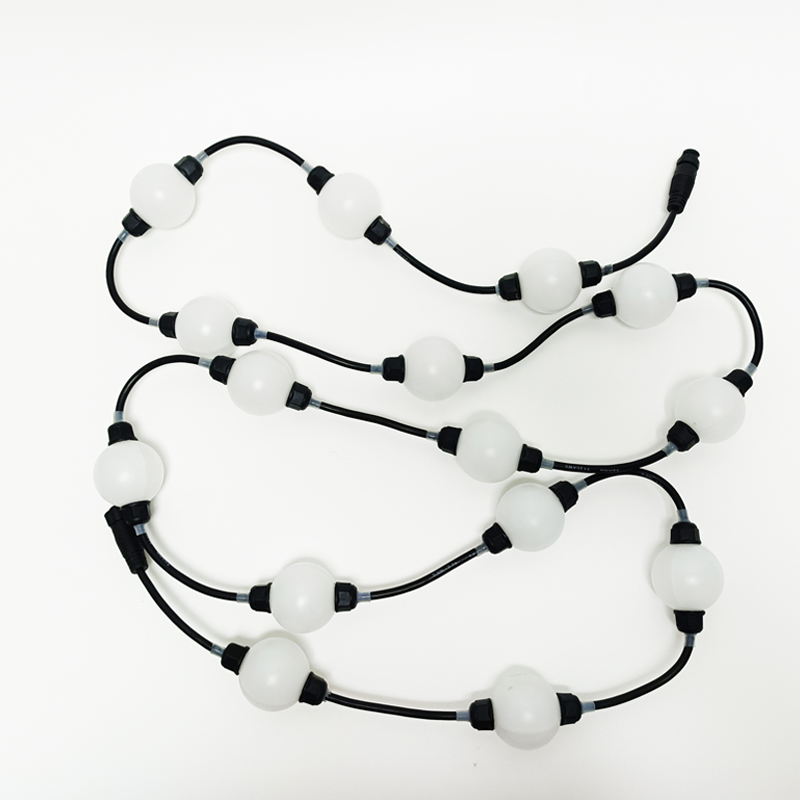

Rainmin's G42 Point Light String offers unparalleled versatility with dual voltage options and multiple LED configurations. The 12V DC RGB version delivers vibrant color effects with 30-meter transmission distance, while the 24V DC RGBW version provides enhanced illumination with pure white light and extended 60-meter reach. Featuring 360-degree spherical illumination and IP66-rated polycarbonate construction, these point lights deliver exceptional outdoor performance in all weather conditions. With advanced 16-bit color processing and compatibility with major control systems, the G42 series is perfect for professional landscape lighting, architectural highlighting, and large-scale event installations where reliability and flexibility are essential.
Dual Voltage Operation: 12V DC for RGB colors, 24V DC for RGBW + white light
Extended Transmission: 60-meter maximum distance (24V RGBW version)
Complete 360° Illumination: Spherical lighting from compact design
Dual LED Options: Choose between RGB or RGBW configurations
Professional Color Control: 16-bit processing with 65,536 smooth transitions
Weatherproof Construction: IP66 rating ensures all-weather durability
Energy Efficient: Low 0.35W power consumption per light
Wide Compatibility: Supports NEC, WEC and SPI/TTL control systems
RGB Version (12V DC):
| Parameter | Specification |
|---|---|
| Input Voltage | 12V DC |
| Current Consumption | 0.028A per light |
| Max Distance Before Injection | 30 meters |
| Color Channels | RGB |
RGBW Version (24V DC):
| Parameter | Specification |
|---|---|
| Input Voltage | 24V DC |
| Current Consumption | 0.014A per light |
| Max Distance Before Injection | 60 meters |
| Color Channels | RGBW |
Common Specifications:
| Parameter | Specification |
|---|---|
| Model Number | G42 Point Light String |
| LED Type | SMD 5050 |
| LED Quantity | 2 LEDs per light |
| Grayscale | 16-bit (65,536 levels) |
| Beam Angle | 360-degree |
| Housing Material | Polycarbonate |
| Waterproof Rating | IP66 |
| Operating Temperature | -25°C to +60°C |
| Power Consumption | 0.35W per light |
| Wire Type | 20AWG UV protected |
| Protocol Support | SPI/TTL |

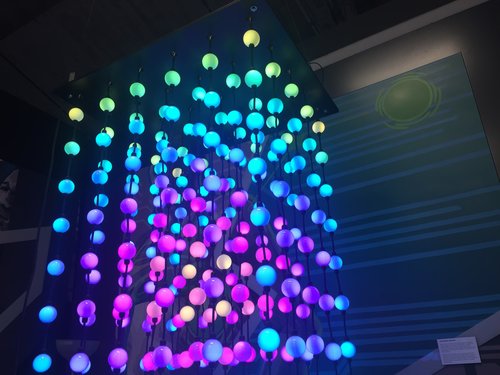

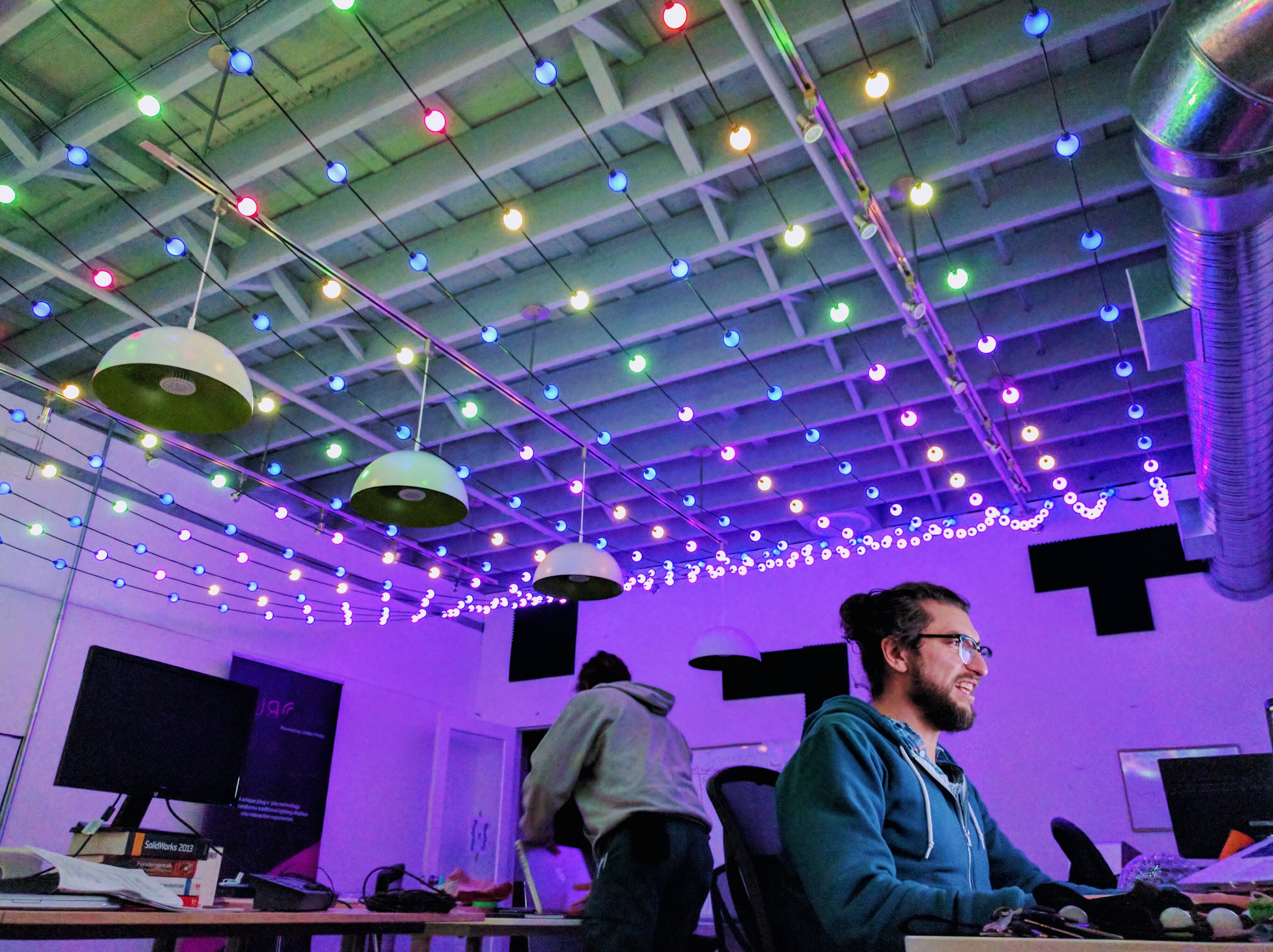

Landscape Lighting: Garden pathways and feature illumination
Architectural Highlights: Building outlines and structural features
Commercial Displays: Shopping centers and retail decorations
Event Decoration: Wedding and party lighting installations
Public Spaces: Parks and municipal area lighting
Hospitality Lighting: Hotel and resort ambiance creation
Themed Environments: Restaurants and entertainment venues
Rainmin Lighting: Expert in Professional Point Lighting Solutions
With 16+ years of specialized manufacturing experience, Rainmin provides:
Custom voltage configuration options
Specialized optical engineering services
Custom firmware development capabilities
International safety certification support
Technical guidance for large-scale installations
Competitive OEM pricing for volume orders
Q: What's the main difference between 12V and 24V versions?
A: 12V version offers RGB colors with 30m range, while 24V version provides RGBW + white light with extended 60m range
Q: Can I mix both versions in one installation?
A: They require separate power supplies and control channels due to different voltage requirements
Q: What controllers are compatible?
A: Compatible with NEC, WEC, and other SPI/TTL based control systems
Q: Are these suitable for permanent outdoor use?
A: Yes, the IP66 rating ensures protection against harsh weather conditions
Q: Can you create custom spacing between lights?
A: Yes, we offer custom spacing and string length options
