Waterproof Rating: IP66 (Full outdoor protection)
Dual Voltage Options: 12V DC & 24V DC configurations
LED Type: DIP 5mm RGB (Classic bulb appearance)
Grayscale: 16-bit (65,536 smooth transitions)
Beam Angle: 180-degree wide illumination
Material: Polycarbonate housing (Impact resistant)
Max Run Options: 125 lights (12V) / 200 lights (24V)
Wire Type: 20AWG UV protected
Power Consumption: 0.35W per bulb
Applications: Commercial, architectural, event lighting

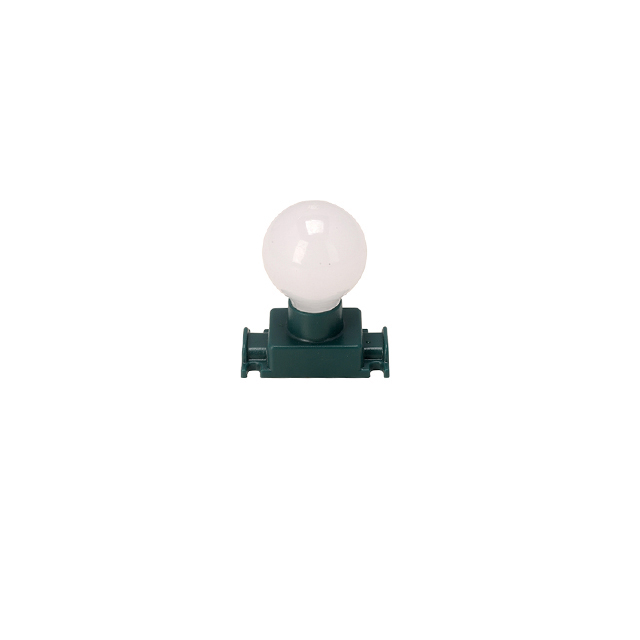

G20 Strip Light
RAINMIN
Rainmin's G20 String Light combines classic DIP bulb aesthetics with advanced programmable technology. Featuring dual voltage options (12V/24V DC) and IP66-rated polycarbonate construction, these string lights deliver exceptional outdoor performance with professional 16-bit color control. Choose the 12V version for shorter runs or upgrade to 24V for extended installations supporting up to 200 lights over 60 meters without power injection. The classic DIP 5mm LEDs provide authentic bulb appearance while offering modern RGB capabilities. Compatible with major control systems including NEC and WEC controllers, these lights are perfect for commercial displays, architectural highlighting, and event decoration. Backed by Rainmin's manufacturing expertise, we offer complete customization options.
Dual Voltage Flexibility: 12V DC and 24V DC options for different project scales
Classic DIP Design: Traditional bulb appearance with modern RGB technology
Extended Run Capability: Up to 200 lights with 24V version
Professional Color Control: 16-bit processing with 65,536 smooth transitions
Weatherproof Construction: IP66 rating ensures all-weather durability
Authentic Bulb Appearance: DIP 5mm LEDs provide classic lighting aesthetic
Energy Efficient: Low 0.35W power consumption per bulb
Wide Compatibility: Supports NEC, WEC and SPI/TTL control systems
12V DC Version:
| Parameter | Specification |
|---|---|
| Input Voltage | 12V DC |
| Current Consumption | 0.028A per bulb |
| Max Lights Before Injection | 125 lights |
| Max Distance Before Injection | 30 meters |
24V DC Version:
| Parameter | Specification |
|---|---|
| Input Voltage | 24V DC |
| Current Consumption | 0.14A per bulb |
| Max Lights Before Injection | 200 lights |
| Max Distance Before Injection | 60 meters |
Common Specifications:
| Parameter | Specification |
|---|---|
| Model Number | G20 String Light |
| LED Type | DIP 5mm RGB |
| LED Quantity | 1 LED per bulb |
| Grayscale | 16-bit (65,536 levels) |
| Beam Angle | 180-degree |
| Housing Material | Polycarbonate |
| Waterproof Rating | IP66 |
| Operating Temperature | -25°C to +60°C |
| Power Consumption | 0.35W per bulb |
| Wire Type | 20AWG UV protected |
| Protocol Support | SPI/TTL |
Commercial Displays: Shopping center and retail decorations
Architectural Lighting: Building outlines and feature highlighting
Event Decoration: Wedding and party lighting installations
Hospitality Lighting: Hotel and resort ambiance creation
Public Space Lighting: Parks and municipal area illumination
Seasonal Displays: Holiday and festival lighting installations
Theme Park Lighting: Entertainment venue decoration
With 16+ years of specialized manufacturing experience, Rainmin provides:
Custom bulb spacing and string length options
Specialized voltage configuration services
Custom firmware development capabilities
International safety certification support
Technical guidance for large-scale installations
Competitive OEM pricing for volume orders
Q: Which voltage option should I choose?
A: 12V for shorter runs (up to 125 lights), 24V for longer installations (up to 200 lights)
Q: Can I mix 12V and 24V versions in one installation?
A: No, they require separate power supplies and control channels
Q: What controllers are compatible?
A: Compatible with NEC, WEC, and other SPI/TTL based control systems
Q: Are these suitable for permanent outdoor use?
A: Yes, IP66 rating ensures protection against harsh weather conditions
Q: Can you customize bulb spacing?
A: Yes, we offer custom spacing and string length options
At Rainmin, our commitment to you begins the moment you place your order. We pride ourselves on providing comprehensive after-sales support to ensure your projects are successful from installation to long-term operation.
1. Warranty Policy:
We offer a standard 2-year limited warranty on all our lighting products against manufacturing defects and premature failure.
The warranty covers components including LEDs, drivers, and housing under normal use conditions.
Our warranty is backed by our 16+ years of manufacturing expertise and quality commitment.
2. Technical Support:
Free Lifetime Technical Consultation: Our expert engineering team provides unlimited free support for system design, controller configuration, and installation guidance.
Dedicated Support Channel: Access priority email and WhatsApp support for urgent troubleshooting.
Remote Diagnostics: We can assist in diagnosing and resolving issues remotely to minimize downtime.
3. Replacement & Return Policy:
Defective Products: We will replace any product confirmed to have manufacturing defects immediately, with shipping costs covered by us.
Return Process: Simplified return process for qualified items. Contact our support team within 30 days of receipt to initiate a return or replacement.
4. Ongoing Product Support:
Spare Parts Availability: We maintain an inventory of critical components to ensure long-term supportability for your installations.
Firmware Updates: Access to the latest firmware updates for compatible products to enhance functionality and performance.
Your success is our priority. We stand behind our products and are here to ensure your complete satisfaction.
Rainmin Lighting: Your Partner in Professional Lighting Solutions
With over 16 years of specialized expertise in point lighting systems, Rainmin has established itself as a leading manufacturer for lighting designers and OEM clients worldwide. We combine innovative technology with practical design to create lighting solutions that deliver exceptional performance in demanding environments.
Our Custom Capabilities:
• Complete product customization: housing designs, optical configurations
• Specialized engineering services
• Custom firmware development
• International certification support
• Large-scale production capacity
Technical Expertise:
Professional point lighting design
Weather-resistant material engineering
360-degree optical technology
Control system integration
Installation technical support
Partner Benefits:
• Custom product development services
• Competitive OEM pricing
• Technical documentation support
• Global logistics management
• Dedicated technical support
Rainmin - Innovative Lighting Solutions for Professional Applications
