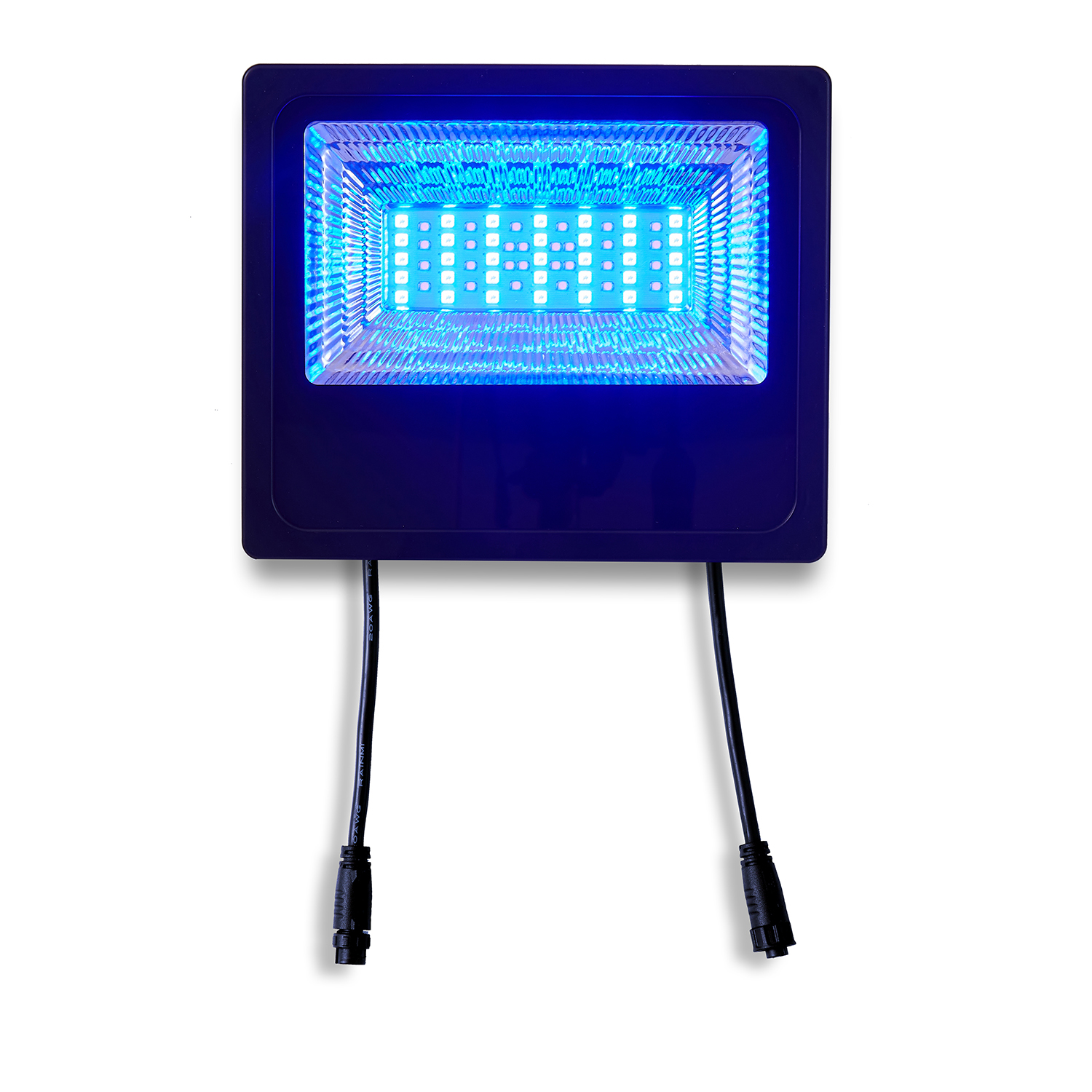

The F50W Floodlight is a high-performance outdoor lighting solution designed for architectural and landscape projects. Featuring premium SMD 5054 LEDs, it is available in two versions: RGB with 63 LEDs and RGBW with 42 LEDs. Both versions deliver 50W of powerful illumination with a wide 180° beam angle. Built with durable aluminum and glass housing, and rated IP66 for waterproof protection, the F50W ensures reliable performance even in challenging outdoor environments. Supporting SPI/TTL protocols and compatible with multiple controllers, it provides seamless programmable lighting effects for creative installations.
F50W
Rainmin
| Bean Angle: | |
|---|---|
| Current: | |
| Power: | |
| LED Type: | |
| Input Voltage: | |
| LED Quantity: | |
| Crust Material: | |
Product Parameters:
Lamp Model: SMD 5054
LED Channels: RGB (63 LEDs), RGBW (42 LEDs)
Grayscale: 16-bit, 65,536 levels
Beam Angle: 180°
Housing Material: Aluminum + Glass
Waterproof Rating: IP66
Operating Temperature: -25° to +60°
Input Voltage: 24V DC
Current: 2.1A
Power: 50W
Wire Gauge: 18 AWG, UV protected
Max Units Before Power Injection: 2
Power Supply Method: Via Power T & 24V power supply
Control System: NEC & NDB / WEC / WEC BOSS / Other controls
Protocol: SPI/TTL
Product Features:
Two versions available:
RGB with 63 LEDs for vibrant full-color effects
RGBW with 42 LEDs for pure white + RGB flexibility
50W high brightness with wide 180° beam coverage
Smooth 16-bit grayscale, 65,536 levels for stunning transitions
IP66 waterproof and weatherproof for outdoor durability
Sturdy aluminum + glass body with excellent heat dissipation
Easy installation and safe 24V DC low-voltage design
Compatible with multiple controllers for programmable effects
Application Scenarios:
Building façades and landmark illumination
Shopping malls and commercial complexes
Public plazas and outdoor landscapes
Bridges, tunnels, and large structures
Event venues and stage lighting
Parks, gardens, and residential areas
Company Advantages:
16+ years of experience in LED pixel lighting
Support for custom wattage, LED channels, and housing design
Safe low-voltage, waterproof, and durable construction
Advanced R&D with global lighting project experience
Professional one-stop service: design, production, and technical support
FAQ:
Q1: What LED versions are available for the F50W Floodlight?
A1: RGB (63 LEDs) and RGBW (42 LEDs).
Q2: Is this light suitable for outdoor projects?
A2: Yes, the F50W has IP66 waterproof protection and durable construction.
Q3: How many units can be connected before power injection?
A3: Up to 2 units before additional power injection is required.
Q4: What control protocols are supported?
A4: The F50W supports SPI/TTL protocols and works with NEC, NDB, WEC, WEC BOSS, and other controllers.
