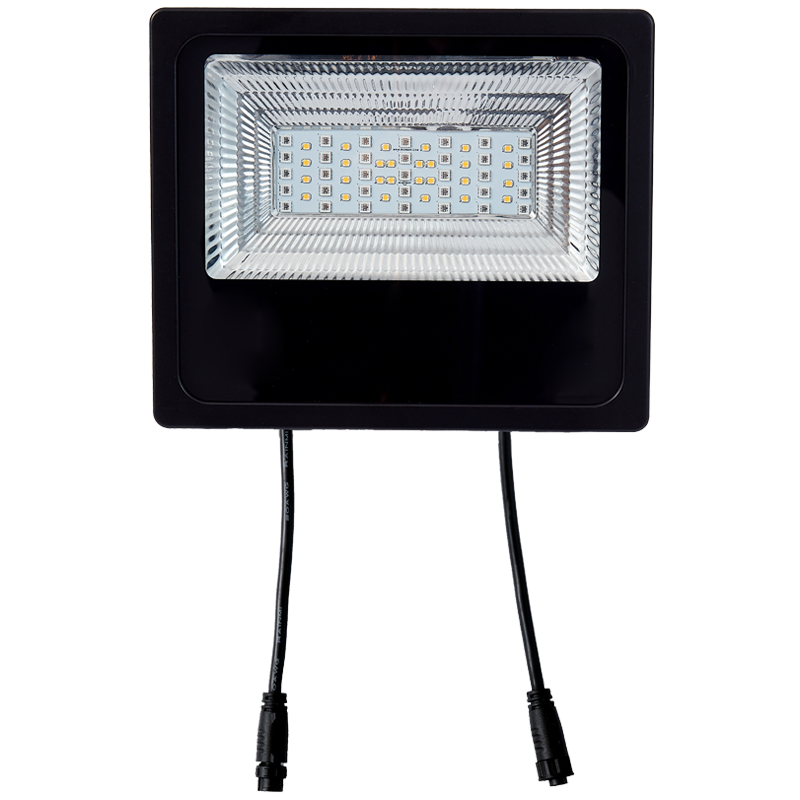

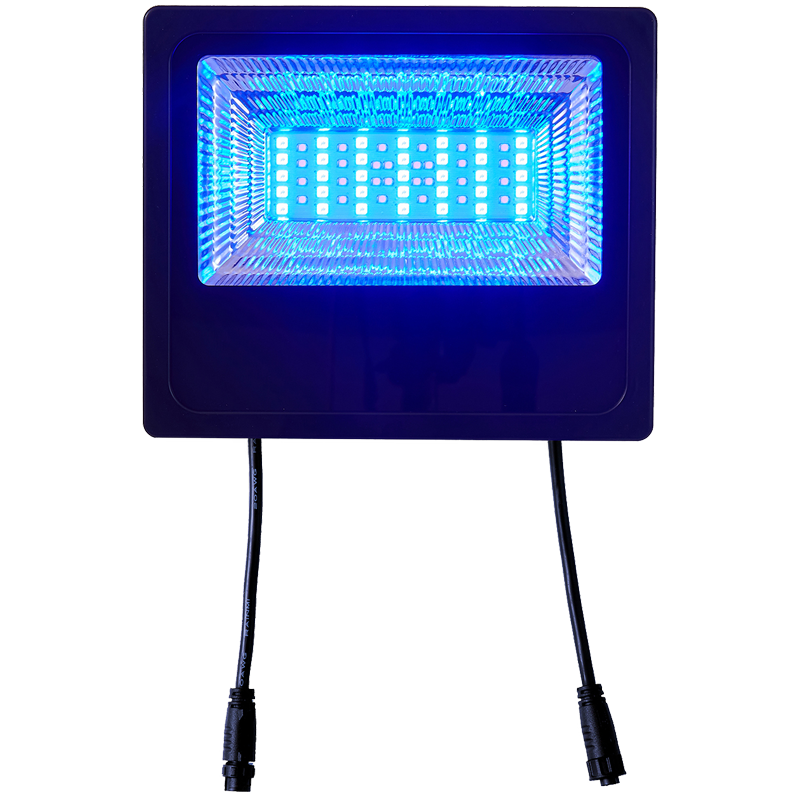

The F50W Floodlight represents the pinnacle of professional architectural lighting, combining high-intensity 50W output with advanced RGBW color technology. Engineered with premium SMD 5054 LEDs and available in 63 or 42 LED configurations, this robust floodlight delivers exceptional 16-bit color accuracy with 65,536 grayscale levels for perfectly smooth color transitions. The innovative aluminum and glass construction ensures optimal heat dissipation and long-term durability, while the IP66 waterproof rating guarantees reliable performance in all outdoor conditions.
Designed for demanding commercial applications, the F50W produces a powerful 180-degree beam angle that effortlessly illuminates large architectural surfaces and landscapes. Operating on efficient 24V DC power with professional SPI/TTL control compatibility, this floodlight seamlessly integrates into sophisticated lighting systems. The heavy-duty 18AWG UV-protected wiring and industrial-grade components make the F50W the ideal choice for permanent installations where reliability and performance are paramount.
F50W
Rainmin
| Bean Angle: | |
|---|---|
| Current: | |
| Power: | |
| LED Type: | |
| Input Voltage: | |
| LED Quantity: | |
| Crust Material: | |
| Specification Category | Detailed Parameters |
|---|---|
| Physical Parameters | |
| LED Type | SMD 5054 |
| LED Channels | R-G-B, R-G-B-W |
| Grey Scale | 16-bit (65,536 levels) |
| LED Quantity | 63/42 LEDs |
| Beam Angle | 180-degree |
| Materia | Aluminum + Glass |
| Waterproof Rating | IP66 (Outdoor use) |
| Working Temperature | -25°C to +60°C |
| Electrical Parameters | |
| Input Voltage | 24V DC |
| Current | 2.1A |
| Power Consumption | 50W |
| Wire Type | 18AWG, UV protected |
| Maximum Lights Before Power Injection | 2 lights |
| Power Injection | via Power T & 24V power supply |
| Control System | |
| Supported Controllers | NEC & NDB/WEC/WEC BOSS/Other controls |
| Protocol | SPI/TTL |
High-Intensity Illumination: 50W power output with SMD 5054 LEDs delivers brilliant, far-reaching light coverage
Dual Color Mode Operation: Switch between vibrant RGB colors and enhanced RGB-W white light for maximum versatility
Professional Thermal Management: Aluminum housing with glass cover provides excellent heat dissipation for extended lifespan
Industrial-Grade Construction: IP66 rated aluminum and glass design withstands harsh outdoor environments
Advanced Color Control: 16-bit grayscale ensures 65,536 color shades for the smoothest professional-grade transitions
Robust Electrical Design: Heavy-duty 18AWG UV-protected wiring ensures reliability in demanding installations
Architectural Lighting
Building facade washing and architectural feature highlighting
Monument and historical structure illumination
Corporate building identity and branding lighting
Bridge and infrastructure lighting projects
Commercial Applications
Hotel and resort exterior lighting systems
Shopping center and retail complex architectural lighting
Restaurant and entertainment venue outdoor lighting
Automotive dealership and showroom lighting
Landscape Lighting
Large garden and park area illumination
Water feature and fountain lighting effects
Sports field and recreational area lighting
Public space and square lighting installations
Special Events & Entertainment
Concert and stage lighting applications
Festival and temporary event lighting
Film and photography location lighting
Wedding and special occasion lighting
16 Years Professional Experience in commercial floodlight manufacturing with global project expertise
Advanced Thermal Engineering capabilities ensuring optimal LED performance and longevity
International Quality Certifications including CE, RoHS, and IP66 for worldwide compliance
Custom Engineering Solutions offering OEM/ODM services with flexible design modifications
Global Project Support providing technical assistance for large-scale installations worldwide
Competitive Manufacturing Advantage combining quality materials with cost-effective production
Q: What is the advantage of SMD 5054 LEDs in floodlight applications?
A: SMD 5054 LEDs offer higher lumen output, better thermal management, and superior color consistency compared to standard LEDs, making them ideal for high-power floodlight applications where reliability and brightness are critical.
Q: How many F50W floodlights can I connect together without power injection?
A: You can connect up to 2 F50W floodlights without power injection due to their high 50W power consumption. For larger installations, we recommend using our Power T injection system every 2 units.
Q: Is the aluminum housing sufficient for heat dissipation in continuous operation?
A: Yes, the specially engineered aluminum housing provides excellent thermal management, allowing for continuous operation even at high ambient temperatures up to 60°C.
Q: Can I use the F50W for permanent outdoor installations in coastal areas?
A: Absolutely. The IP66 rating and corrosion-resistant aluminum construction make the F50W suitable for coastal environments and other challenging outdoor conditions.
Q: What makes the F50W suitable for professional architectural projects?
A: The 16-bit color control, high 50W output, professional construction quality, and compatibility with industry-standard control systems make the F50W ideal for demanding architectural applications.
