Waterproof Rating: IP67 (Full immersion protection)
Input Voltage: 24V DC (Professional operation)
Power Consumption: 2.4W per unit (High efficiency)
Chip Technology: 3535 Epistar ×6 chips
Beam Angle: ≥120 degree
Protection Method: All-round glue filling
Connection: M16D connectors (Male/Female)
Cable Quality: Double-jacketed UV resistant
Material: Engineering plastic + PC (Flame retardant 94-V0)
Applications: Architectural, landscape, commercial lighting

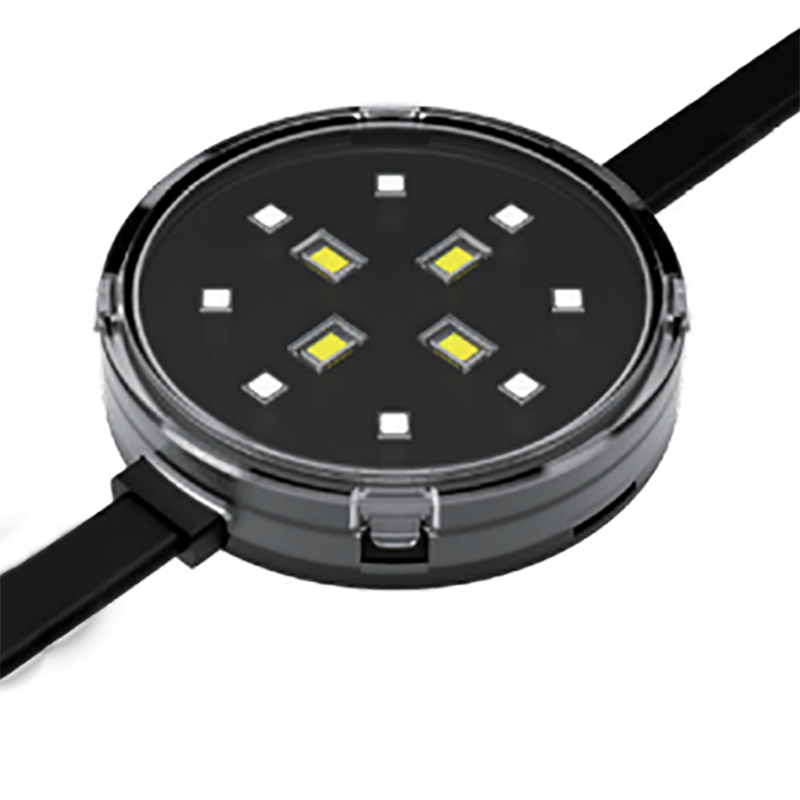

D65 Pixel Light
RAINMIN
| Input Voltage: | |
|---|---|
| Beam Angle: | |
| Lamp Body Material: | |
| Lamp chip: | |
| Power: | |
| Size: | |
| Working temperature: | |
Rainmin's D65 Pixel Light represents the pinnacle of professional outdoor lighting technology. Featuring IP67-rated all-round glue filling protection and an exceptional 120-degree beam angle, this high-performance pixel light delivers unparalleled illumination for architectural and landscape applications. With six advanced 3535 Epistar chips and 2.4W power output, the D65 provides brilliant, consistent lighting even in the most demanding environments. The professional M16D connector system and double-jacketed UV-resistant cable ensure easy installation and long-term reliability. Compatible with SPI/TTL/DMX control protocols, this light offers complete flexibility for lighting designers and architects seeking premium-quality solutions for high-end projects.
Ultra-Wide Illumination: 120-degree beam angle for maximum coverage
IP67 Protection: All-round glue filling ensures complete waterproofing
High-Quality Chips: Six 3535 Epistar chips for superior performance
Professional Connectors: M16D male/female connectors for easy installation
Durable Construction: Engineering plastic + PC, flame retardant 94-V0
UV Resistant Cable: Double-jacketed wiring for outdoor durability
Multi-Protocol Support: SPI/TTL/DMX control compatibility
High Temperature Resistance: Operates from -25°C to +60°C
Physical Parameters:
| Parameter | Specification |
|---|---|
| Model Number | D65 Pixel Light |

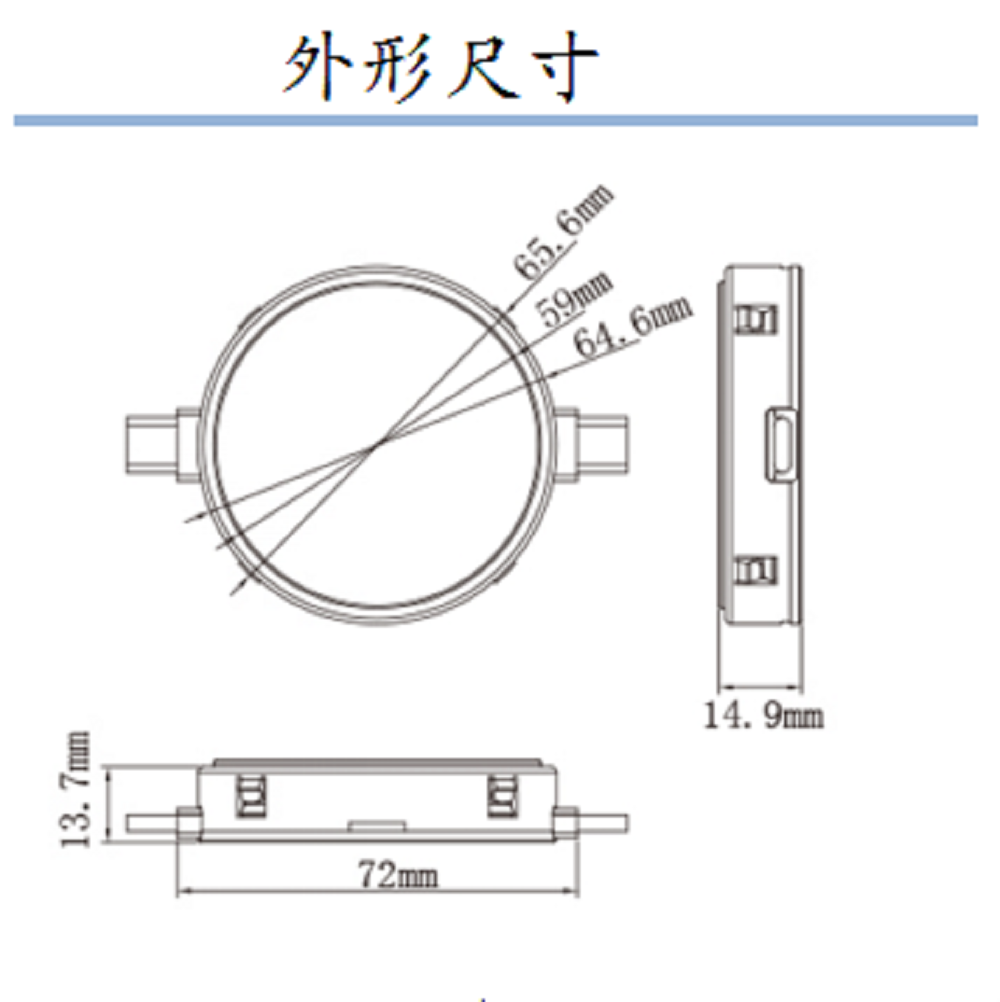

| Dimensions | 65mm × 65mm |
| Chip Type | 3535 Epistar ×6 |
| Beam Angle | ≥120-degree |
| Waterproof Method | All-round glue filling |
| Protection Rating | IP67 |
| Operating Temperature | -25°C to +60°C |
| Housing Material | Engineering plastic + PC |
| Flame Rating | 94-V0 |
| Cable Type | 2×0.75mm² + 3×0.3mm² double-jacketed |
Electrical Parameters:
| Parameter | Specification |
|---|---|
| Input Voltage | 24V DC |
| Power Consumption | 2.4W per unit |
| Control Protocols | SPI/TTL/DMX |
| Connector Type | M16D (Male/Female) |
| String Configuration | 30 pcs per string |
| Lamp Spacing | 100mm |
| Cable Length | 150mm between units |

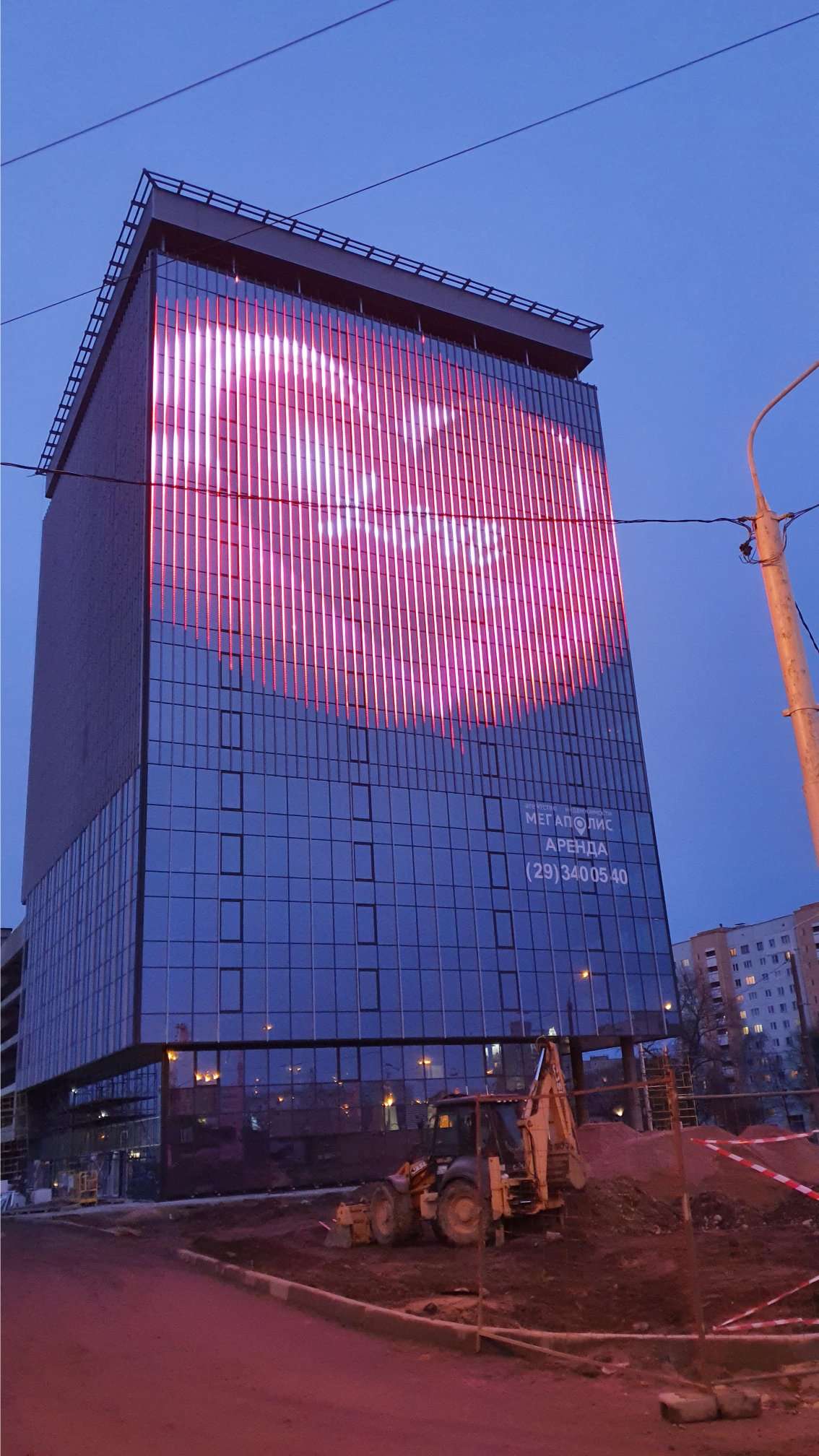

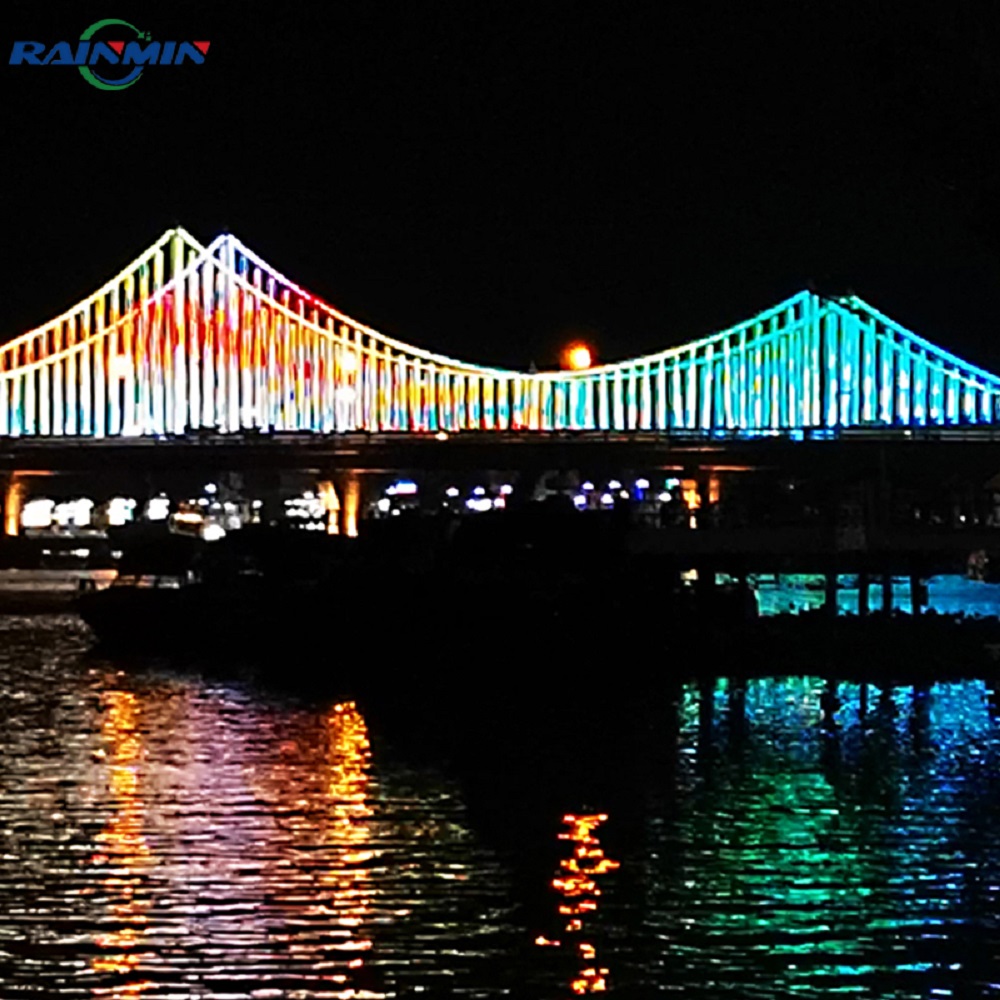

Architectural Lighting: Building facades and structural highlighting
Landscape Illumination: Parks, gardens, and water features
Commercial Buildings: Hotel, resort, and shopping center lighting
Public Spaces: Municipal buildings and monuments
Entertainment Venues: Theme parks and stage lighting
High-end Residential: Luxury property lighting
Historical Sites: Heritage building illumination
Rainmin Lighting: Expert in Professional Architectural Lighting
With 16+ years of specialized manufacturing experience, Rainmin provides:
Custom housing designs and optical solutions
Specialized waterproofing engineering
Custom control protocol development
International safety certification support
Technical guidance for premium installations
Competitive OEM pricing for volume orders
Q: What does IP67 rating mean?
A: IP67 provides protection against dust immersion and temporary water immersion up to 1 meter
Q: What control systems are compatible?
A: Supports SPI, TTL, and DMX control protocols for maximum flexibility
Q: Can these lights be used underwater?
A: While IP67 rated for temporary immersion, they are not designed for permanent underwater use
Q: What is the advantage of M16D connectors?
A: Professional-grade connectors ensure secure, waterproof connections and easy installation
Q: Can you customize the cable length between units?
A: Yes, we offer custom spacing and cable length options
