D42
RAINMIN
The D42 IP67 Waterproof Pixel Light represents a significant breakthrough in modern lighting technology, combining exceptional performance with reliable quality. This professional-grade pixel lighting equipment utilizes advanced manufacturing processes and premium materials, providing perfect solutions for architectural lighting, landscape beautification, and commercial displays. Its outstanding water and dust resistance performance and wide environmental adaptability make it the preferred choice for various indoor and outdoor lighting projects.
The D42 pixel light employs comprehensive glue filling technology to achieve IP67-level complete protection, ensuring stable operation in harsh weather conditions. This advanced waterproof pixel light design provides complete protection against dust ingress and can withstand temporary immersion in water, offering reliable assurance for outdoor installations. The product's sealing performance undergoes rigorous testing to ensure no water seepage or fogging occurs during long-term use.
Engineered to perform flawlessly across extreme temperatures from -25°C to +60°C, this wide-temperature LED lighting is suitable for various environmental conditions from cold regions to tropical climates. The combination of engineering plastic and PC material housing provides excellent UV resistance and weather ability, ensuring stable mechanical performance and optical characteristics under intense sunlight or freezing environments.
Supporting multiple control protocols including SPI, TTL, and DMX, these programmable pixel lights provide lighting designers with complete creative freedom. Whether for simple static lighting or complex dynamic effects, all can be precisely achieved through standardized control protocols. This flexibility makes D42 the ideal choice for projects ranging from small commercial installations to large municipal engineering applications.
| Parameter Category | Specific Specifications |
|---|---|
| Product Model | D42 Pixel Light |

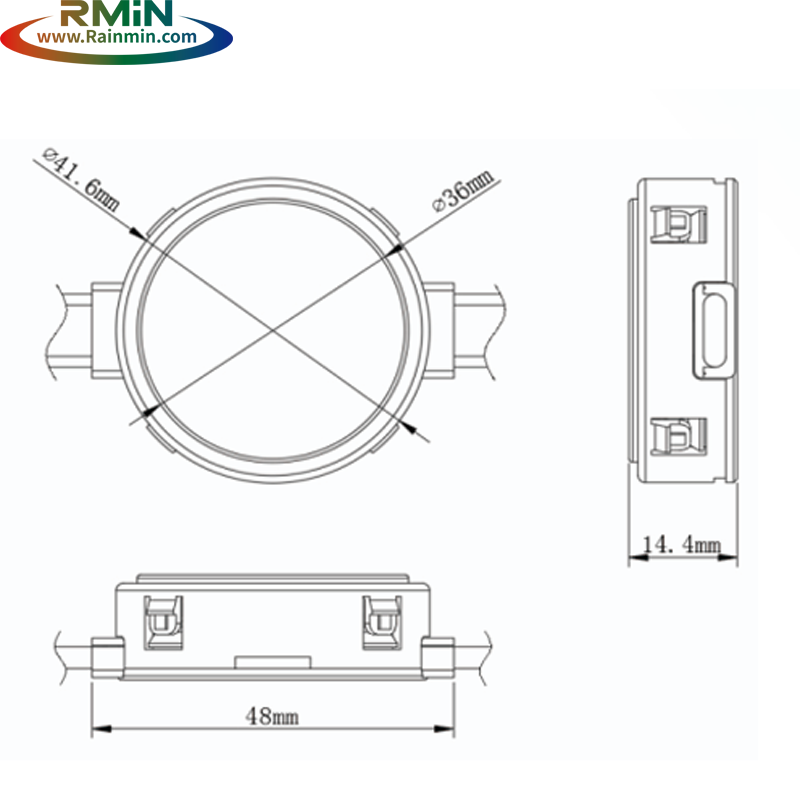

| Product Size | 842mm |
| Single Power | 1.4W |
| Input Voltage | 24V DC |
| LED Chip | 3535 Epistar × 6 |
| Beam Angle | ≥120 degrees |
| Control Method | SPI/TTL/DMX |
| Working Temperature | -25°C ~ +60°C |
| Protection Level | IP67 |
| Lamp Spacing | 100mm |
| Connector Type | M16D male and female connectors |
| Units per String | 30 lights/string |
| Material Composition | Double-sheathed cable (2×0.75mm²+3×0.3mm²), Engineering plastic + PC |

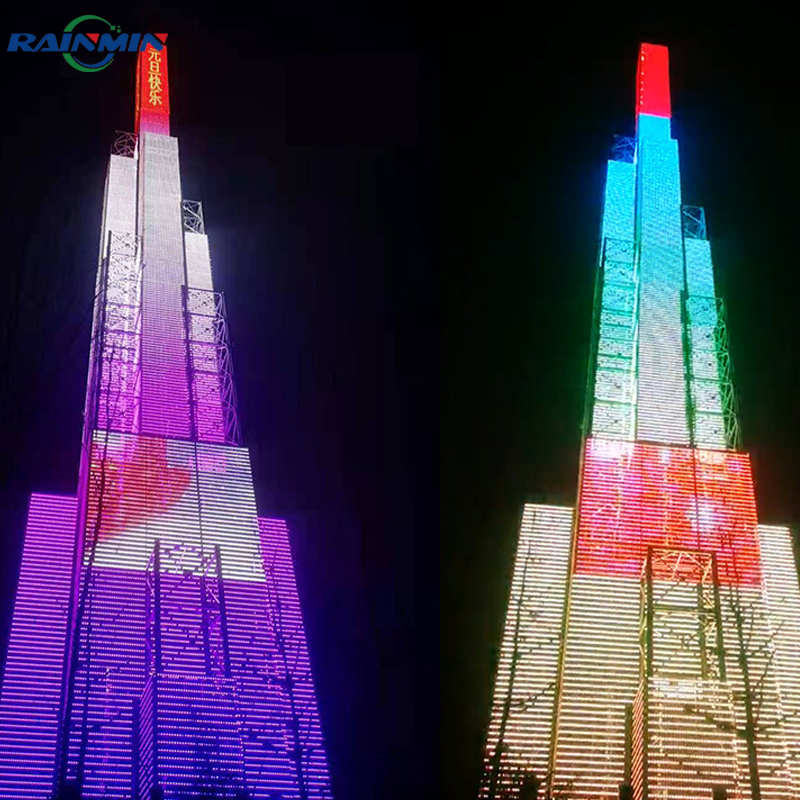

D42 pixel lights perform excellently in architectural lighting projects, capable of precisely outlining building contours and highlighting facade details. Their uniform light distribution and rich color performance give buildings new charm at night while maintaining optimal energy efficiency.
Suitable for commercial display lighting, including shopping malls, exhibition halls, and retail spaces. The flexible control capability of the fixtures allows adjustment of lighting effects according to different marketing activities and seasonal themes, enhancing brand image and customer experience.
In the field of outdoor landscape lighting, D42's durability and stability are fully demonstrated. In lighting designs for parks, squares, and water features, these pixel lights can withstand various climate challenges while providing charming visual effects.
We implement a comprehensive quality control system, with each环节 undergoing strict testing from raw material procurement to finished product delivery. The manufacturing process of these high-quality LED products complies with international standards, ensuring every D42 pixel light meets design specifications.

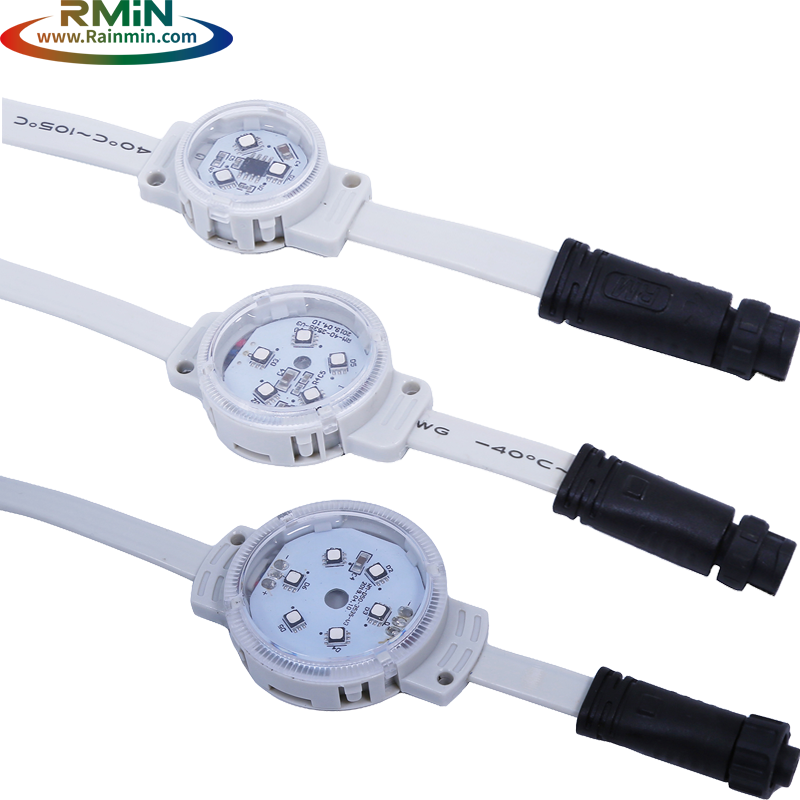

Using high-quality 3535 Epistar chips combined with optimized heat dissipation design ensures the fixtures maintain stable light output and color consistency during long-term use. This durable lighting equipment has an average service life exceeding 50,000 hours, significantly reducing maintenance costs.
We provide complete technical support and after-sales service, including lighting design方案 consultation, installation guidance, and technical training. Our professional technical team is always ready to assist customers in solving various challenges in projects.
