Waterproof Rating: IP66 (Full outdoor protection)
Input Voltage: 12V/24V DC Dual Option (Low-voltage safety)
LED Type: DIP 5mm RGB (Traditional look, modern technology)
Grayscale: 16-bit (65,536 smooth color transitions)
Beam Angle: 180-degree wide illumination
Max Run: 125 lights (12V) / 200 lights (24V)
Wire Type: 20 AWG UV protected (Weather-resistant)
Customization: OEM/ODM available
Applications: Christmas, landscape, commercial decorating
Certification: ROHS, CE compliant
C7 stripn light
RAINMIN
| LED Quantity: | |
|---|---|
| Beam Angle: | |
| Crust Material: | |
| voltage: | |
| Input Watts: | |
| Current: | |
| LED Channels: | |

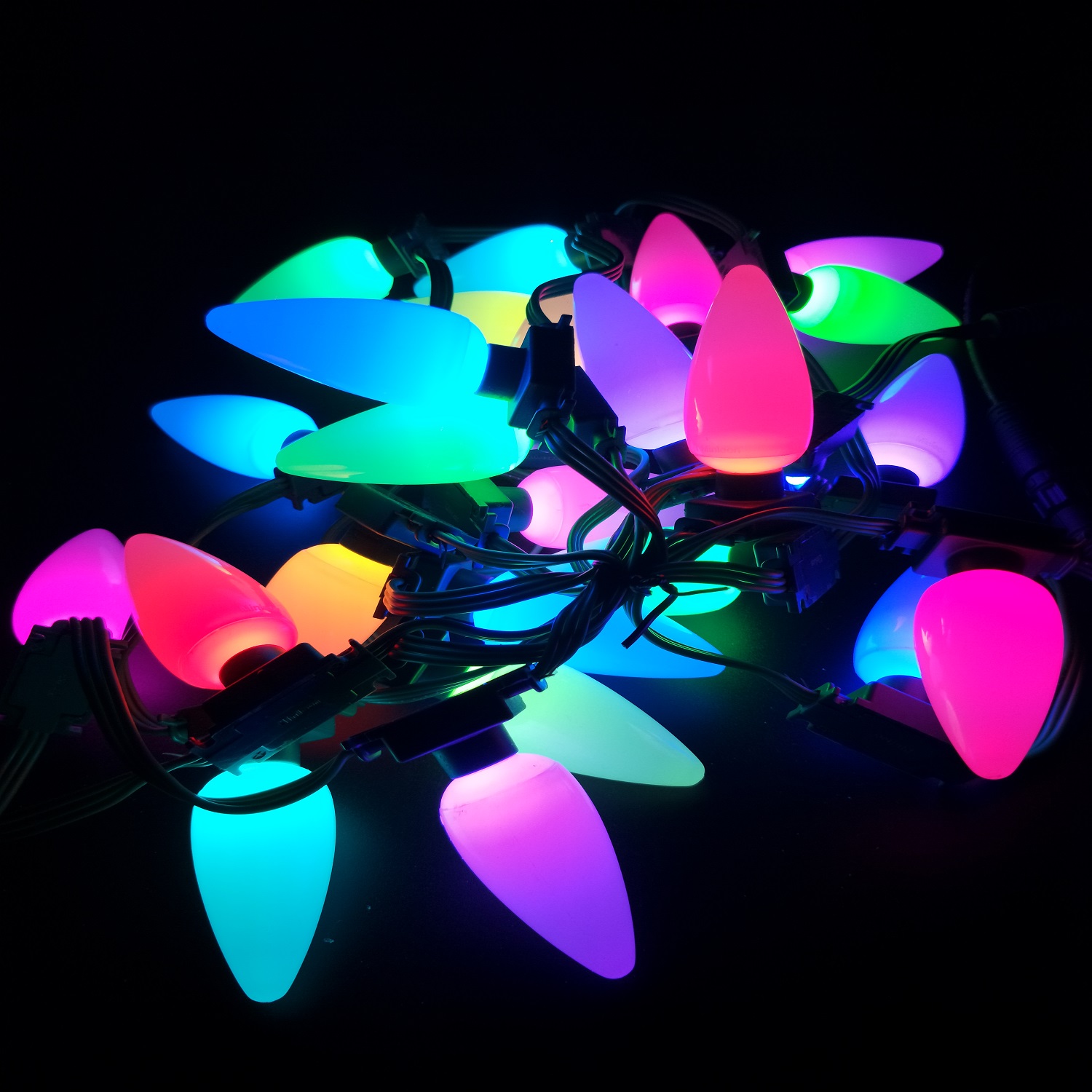

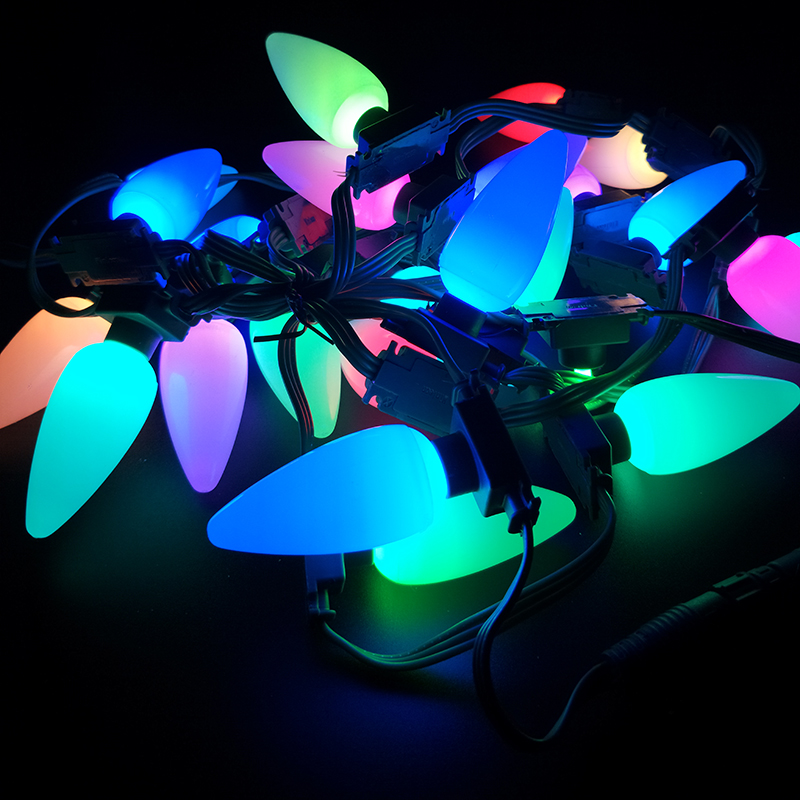

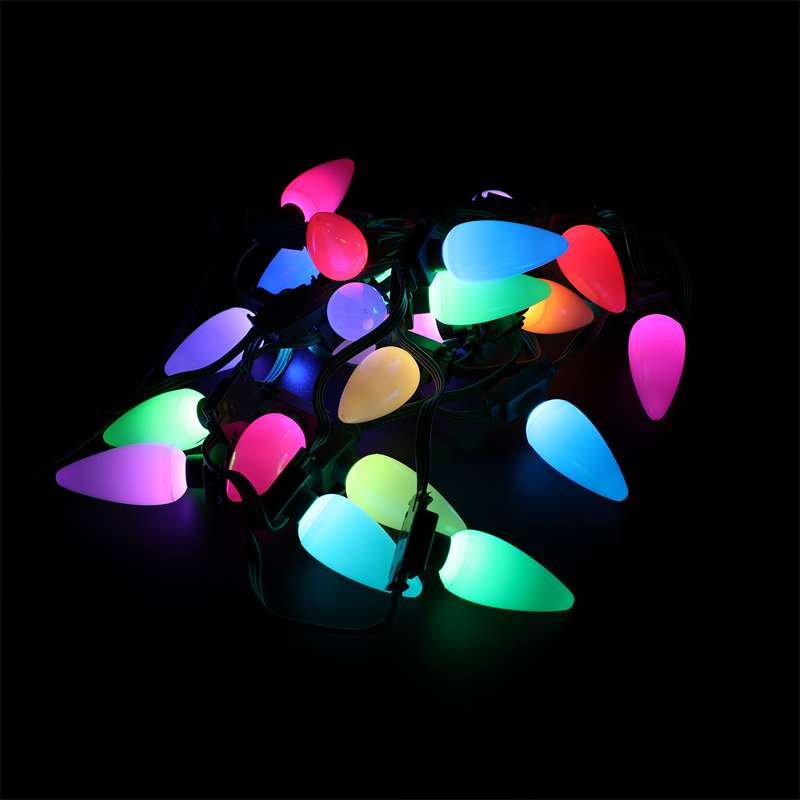

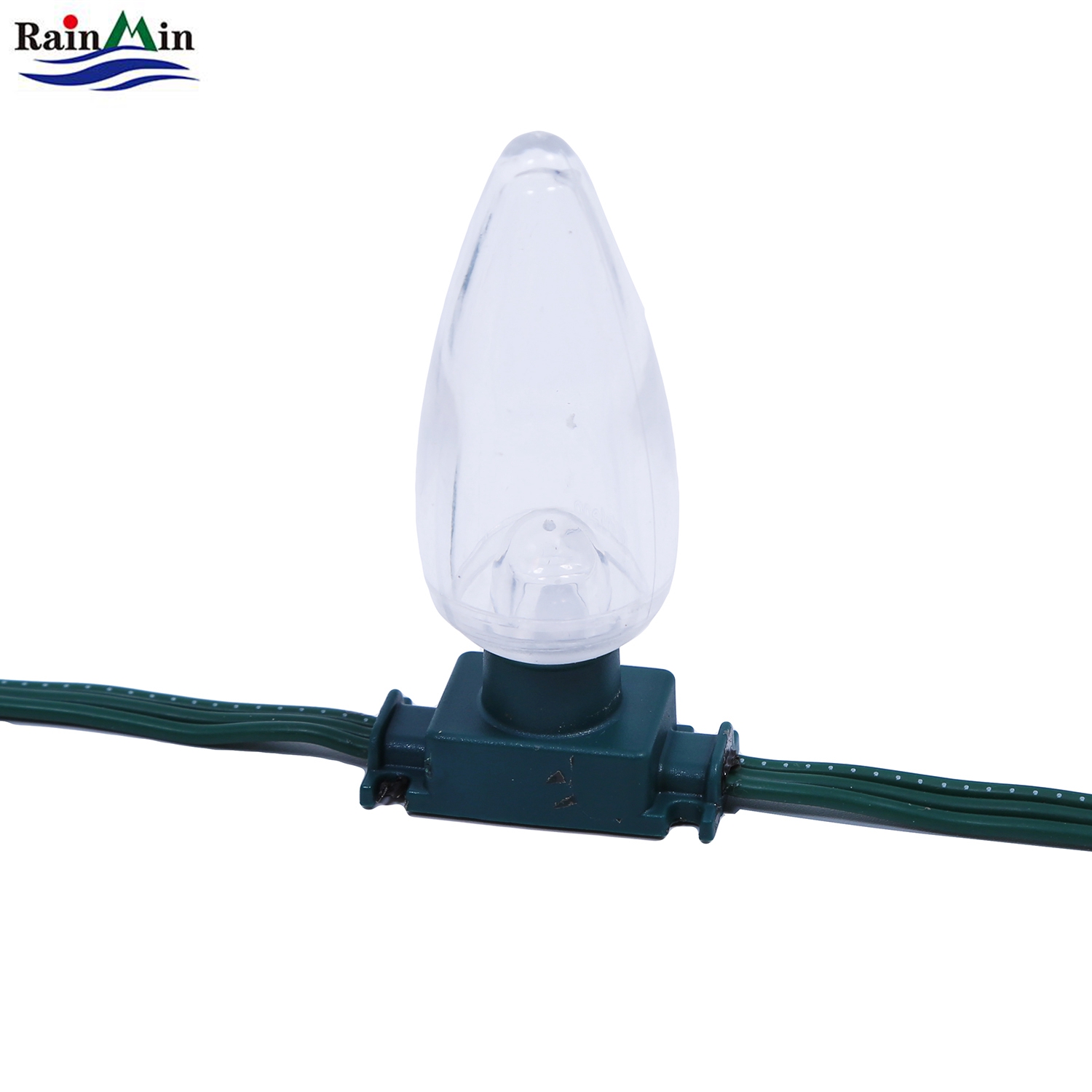

Rainmin's C7 String Light combines classic aesthetics with advanced programmable technology. Featuring durable DIP 5mm RGB LEDs and robust IP66 waterproof rating, these string lights deliver exceptional outdoor performance with 16-bit smooth color transitions. Available in both 12V and 24V configurations, they offer flexible installation options with extended run lengths up to 200 lights. Compatible with major control systems including NEC and WEC, these lights are perfect for commercial holiday displays, landscape lighting, and permanent architectural applications. Backed by Rainmin's 16 years of manufacturing expertise, we offer complete customization from bulb spacing to firmware development.

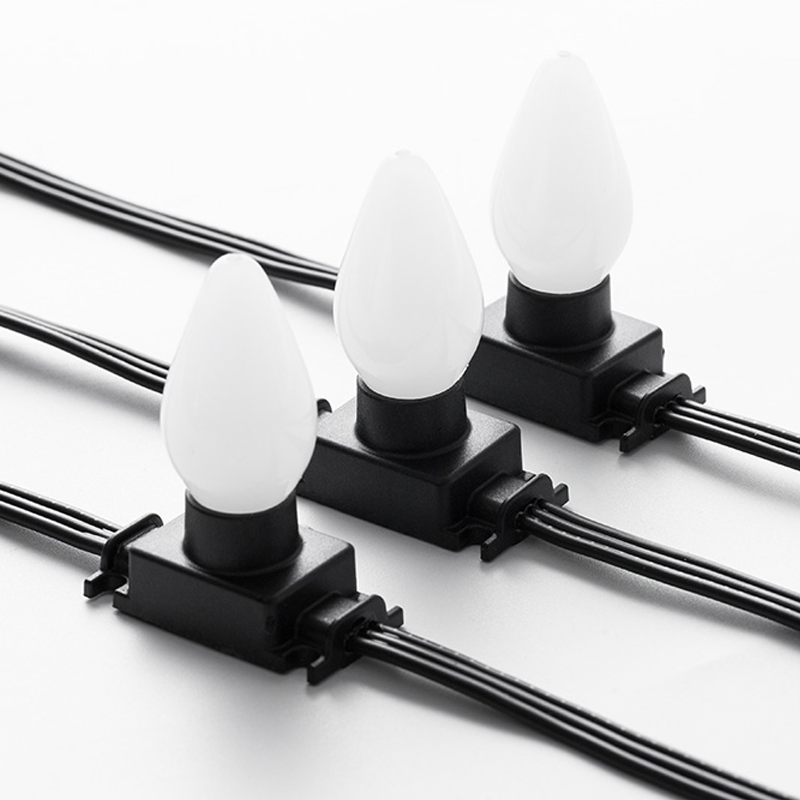

Classic DIP Design: Traditional C7 appearance with modern RGB technology
Dual Voltage Option: 12V/24V DC configurations for flexible installation
16-bit Precision: 65,536 grayscale levels for smooth color fading
IP66 Protection: Complete weather resistance for permanent outdoor use
Extended Runs: Up to 200 lights without power injection (24V version)
UV Protected Wiring: 20 AWG weather-resistant cable for longevity
Wide Compatibility: NEC, WEC, and SPI/TTL controller support
Energy Efficient: Low 0.35W power consumption per bulb
| Parameter | 12V DC Specification | 24V DC Specification |
|---|---|---|
| Model Number | C7 String Light | C7 String Light |
| LED Type | DIP 5mm RGB | DIP 5mm RGB |
| Grayscale | 16-bit (65,536 levels) | 16-bit (65,536 levels) |
| Input Voltage | 12V DC | 24V DC |
| Current Consumption | 0.028A per bulb | 0.14A per bulb |
| Power Consumption | 0.35W per bulb | 0.35W per bulb |
| Max Lights Before Injection | 125 lights | 200 lights |
| Max Distance Before Injection | 30 meters | 60 meters |
| Waterproof Rating | IP66 | IP66 |
| Operating Temperature | -25°C to +60°C | -25°C to +60°C |
| Wire Type | 20 AWG UV protected | 20 AWG UV protected |
| Protocol Support | SPI/TTL | SPI/TTL |
Commercial Holiday Lighting: Storefronts and shopping center decorations
Landscape Lighting: Garden paths and tree illumination
Architectural Highlights: Building outlines and feature lighting
Event Decoration: Wedding and party lighting installations
Restaurant Ambiance: Outdoor dining and patio lighting
Theme Park Decor: Seasonal and permanent installations
Public Space Lighting: Parks and municipal decorations
Rainmin Lighting: Expert in Custom Decorative Lighting Solutions
With 16+ years of specialized manufacturing experience, Rainmin provides:
Custom bulb spacing and string length configurations
Specialized firmware for unique lighting effects
Custom color matching and housing designs
International safety certification support
Technical guidance for large-scale installations
Competitive OEM/ODM pricing for volume orders
Q: What's the difference between 12V and 24V versions?
A: The 24V version allows longer runs (200 lights vs 125 lights) and longer distance between power injection points (60m vs 30m)
Q: Can you customize string length and bulb spacing?
A: Yes, we offer complete customization of string length, bulb spacing, and overall configuration
Q: Are these lights suitable for year-round outdoor use?
A: Absolutely. IP66 rating ensures protection against harsh weather conditions
Q: What controllers are compatible?
A: Compatible with NEC, WEC, and other SPI/TTL controllers
Q: Do you offer custom coloring effects?
A: Yes, we can develop custom firmware for unique lighting sequences and effects
With over 16 years of specialized expertise in decorative and architectural lighting, Rainmin has established itself as a leading manufacturer and innovation partner for commercial decorators, event companies, and OEM clients worldwide. We combine traditional lighting aesthetics with modern programmable technology to create unique visual experiences.
Our Custom Capabilities:
• Complete string light customization: bulb spacing, string length, colors
• Custom firmware development for unique lighting sequences
• Specialized waterproofing solutions for extreme environments
• International certification support (CE, ROHS, UL)
• Large-scale production capacity with quality assurance
Technical Expertise:
Advanced 16-bit control technology
Dual voltage system design
Weather-resistant material engineering
System integration consulting
Installation technical support
Partner Benefits:
• Custom product development from concept to production
• Competitive OEM pricing for volume orders
• Technical documentation and certification support
• Global logistics and shipping expertise
• Dedicated account management
Rainmin - Traditional Aesthetics, Modern Technology
