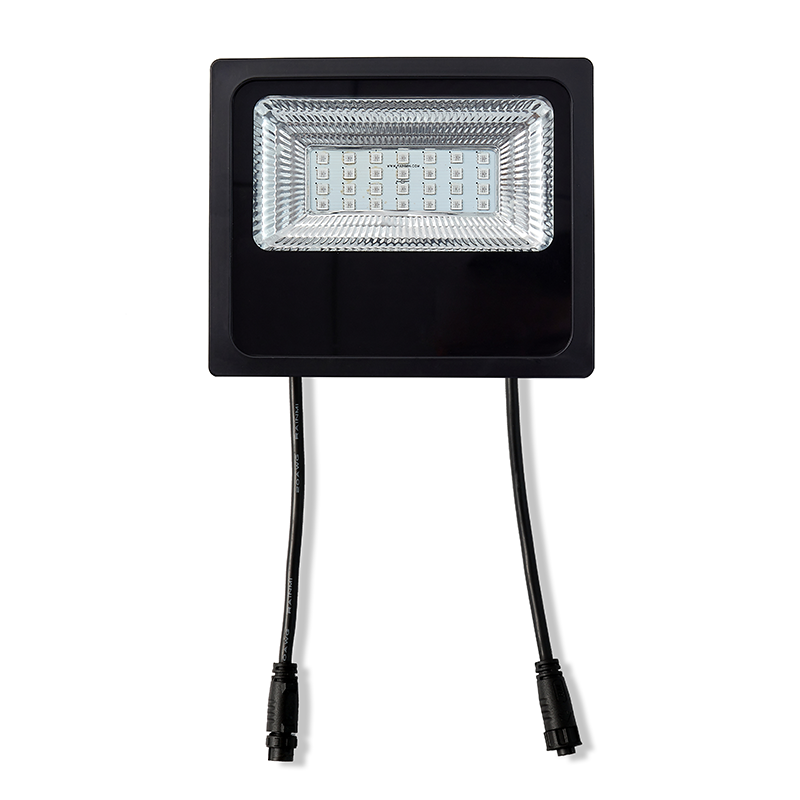

The 30W RGBW Flood Light delivers professional-grade color lighting with enhanced energy efficiency. Utilizing advanced SMD 5054 LEDs in dual RGB and RGB-W configurations, this fixture produces vibrant colors and pure white light with 16-bit precision (65,536 grayscale levels). Housed in a robust aluminum and glass construction with IP66 waterproof protection, it withstands harsh outdoor conditions while maintaining optimal thermal performance. With a wide 180° beam angle and compatibility with SPI/TTL control systems, this 30W floodlight is ideal for architectural, commercial, and landscape lighting applications requiring reliable, dynamic illumination.
F30W
Rainmin
| Beam Angle: | |
|---|---|
| LED Quantity: | |
| LED Type: | |
| Current: | |
| Power: | |
| Crust Material: | |
| Category | Specifications |
|---|---|
| Physical Parameters | |
| LED Type | SMD 5054 |
| LED Channels | R-G-B, R-G-B-W |
| Gray Scale | 16-bit, 65,536 levels |
| LED Quantity | 35 or 28 LEDs |
| Beam Angle | 180-degree |
| Material | Aluminum + Glass |
| Waterproof Level | IP66, Outdoor use |
| Working Temperature | -25°C to +60°C |
| Electrical Parameters | |
| Input Voltage | 24V DC |
| Current | 1.25A |
| Power | 30W |
| Wire Type | 18AWG, UV protected |
| Max Lights Before Injection | 3 Lights |
| Power Injection | via Power T & 24V power supply |
| Control System | |
| Supported Controllers | NEC & NDB/WEC/WEC BOSS/Others |
| Protocol | SPI/TTL |
Product Features:
Energy-Efficient 30W Output: Balanced power consumption and brightness for cost-effective operation.
Dual RGB/RGB-W Color Modes: Switch between dynamic colors and enhanced white lighting.
Durable Aluminum & Glass Build: Ensures heat dissipation and long-term outdoor durability.
IP66 Full Weatherproof Protection: Resists dust, rain, and extreme temperatures.
16-Bit Smooth Color Transitions: 65,536 color shades for professional lighting effects.
Wide 180° Beam Coverage: Uniform illumination for broad-area lighting applications.
SPI/TTL Protocol Compatibility: Integrates easily with existing control systems.
Application Scenarios:
Architectural accent lighting for residential and commercial buildings.
Landscape illumination in gardens, parks, and pathways.
Facade lighting for hotels, cafes, and retail stores.
Event and decorative lighting for weddings and festivals.
Security and area lighting for driveways and perimeters.
Company Strengths:
Decade-long expertise in manufacturing energy-efficient LED lighting solutions.
Certified quality management with CE, RoHS, and IP66 compliance.
Custom OEM/ODM services for tailored product specifications.
Global logistics network ensuring reliable and timely deliveries.
Dedicated R&D team focused on innovative and sustainable lighting technology.
FAQ:
Q1: How many 30W floodlights can be connected in one series?
A: Up to 3 units can be connected without power injection. Use Power T injection for extended setups.
Q2: Is the 30W floodlight suitable for cold climates?
A: Yes, it operates efficiently in temperatures as low as -25°C.
Q3: Can I use standard RGB controllers with this light?
A: Yes, it is compatible with NEC, NDB, WEC, and other SPI/TTL-based controllers.
Q4: What is the advantage of the RGB-W mode?
A: It provides brighter and purer white light compared to traditional RGB mixing.
Q5: How does the 16-bit grayscale improve performance?
A: It allows for smoother color fading and more precise lighting effects.
